Transporto priemonė: O 500 M/1725; VIN numerio dalis: 382184

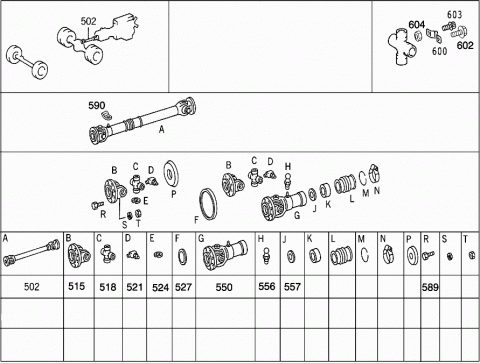

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 502 | A 6344100202 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 701 - 811 MM | ||
| 502 | A 3824100802 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 710 MM | ||
| 502 | A 3824100602 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 815 MM | ||
| 502 | A 3824101702 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 798 MM | ||
| 502 | A 3824100702 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 715 MM | ||
| 502 | A 3824101002 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 855 MM | ||
| 502 | A 6344101102 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 847 - 957 MM | ||
| 502 | A 3824109202 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 887 MM | ||
| 502 | A 3824109802 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 812 MM | ||
| 502 | A 6344100102 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 576 - 686 MM | ||
| 502 | A 6544104307 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| "2", 850 MM | ||
| 502 | A 3824101402 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 642 - 752 MM | ||
| 502 | A 3824101302 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 567 - 677 MM | ||
| 502 | A 3824101502 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 863 MM | ||
| 502 | A 3824109602 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 777 MM | ||
| 515 | A 6544110311 | DRIVE FLANGE |
| 515 | A 0004110645 | FLANGE |
| 515 | A 0004110445 | FLANGE |
| 515 | A 0004110645 | FLANGE |
| 515 | A 0004110645 | FLANGE |
| 515 | A 0004110645 | FLANGE |
| 515 | A 0004110645 | FLANGE |
| 515 | A 0004111145 | FLANGE |
| 515 | A 0004111145 | FLANGE |
| 518 | A 0004102731 | UNIVERSAL JOINT CROSS |
| 518 | A 0004103831 | UNIVERSAL JOINT CROSS |
| 518 | A 0004103831 | UNIVERSAL JOINT CROSS |
| 518 | A 0004103831 | UNIVERSAL JOINT CROSS |
| 518 | A 0004102731 | UNIVERSAL JOINT CROSS |
| 518 | A 0004103831 | UNIVERSAL JOINT CROSS |
| 518 | A 0004103931 | UNIVERSAL JOINT CROSS |
| 518 | A 0004103931 | UNIVERSAL JOINT CROSS |
| 518 | A 0004103931 | UNIVERSAL JOINT CROSS |
| 518 | A 0004103931 | UNIVERSAL JOINT CROSS |
| 518 | A 0004103931 | UNIVERSAL JOINT CROSS |
| 518 | A 6544110131 | UNIVERSAL JOINT CROSS |
| 521 | A 0009974788 | GREASE NIPPLE |
| 521 | A 0009974788 | GREASE NIPPLE |
| 521 | A 0009974788 | GREASE NIPPLE |
| 521 | A 0009974788 | GREASE NIPPLE |
| 521 | A 0009976188 | GREASE NIPPLE |
| 521 | A 0009975688 | GREASE NIPPLE |
| 521 | A 0009976188 | GREASE NIPPLE |
| 521 | A 0009976188 | GREASE NIPPLE |
| 521 | A 0009976188 | GREASE NIPPLE |
| 521 | A 0009976188 | GREASE NIPPLE |
| 524 | A 0039942135 | SNAP RING |
| 524 | A 0069941941 | LOCK RING |
| TO 654 411 03 11 | ||
| 524 | A 0069942341 | LOCK RING |
| TO 654 411 03 11 | ||
| 524 | A 0069942741 | LOCK RING |
| TO 654 411 03 11 | ||
| 527 | A 3894110080 | GASKET |
| TO 654 411 03 11 | ||
| 550 | A 0004100033 | SLIDE |
| 556 | A 0009974888 | GREASE NIPPLE |
| 557 | A 0004130380 | SEAL RING |
| 589 | A 0004110071 | SCREW |
| 589 | A 0004110071 | SCREW |
| 589 | A 0004110071 | SCREW |
| 589 | A 0004110071 | SCREW |
| 589 | A 0004110071 | SCREW |
| 589 | A 0004110071 | SCREW |
| 589 | A 0004110071 | SCREW |
| 589 | A 0004110071 | SCREW |
| 589 | A 0004110071 | SCREW |
| 590 | A 0004113373 | LOCK |
| 590 | A 0004113373 | LOCK |
| 590 | A 0004113373 | LOCK |
| 590 | A 0004113373 | LOCK |
| 590 | A 0004113373 | LOCK |
| 590 | A 0004113373 | LOCK |
| 590 | A 0004113373 | LOCK |
| 590 | A 0004113373 | LOCK |
| 590 | A 0004113373 | LOCK |
| 600 | A 6959957110 | CLAMP |
| PROPELLER SHAFT MOUNTING | ||
| 600 | A 6959957110 | CLAMP |
| PROPELLER SHAFT MOUNTING | ||
| 600 | A 6969957010 | CLAMP |
| PROPELLER SHAFT MOUNTING | ||
| 600 | A 6969957010 | CLAMP |
| PROPELLER SHAFT MOUNTING | ||
| 600 | A 6959957010 | CLAMP |
| PROPELLER SHAFT MOUNTING | ||
| 602 | N 910105014011 | SCREW |
| PROPELLER SHAFT MOUNTING | ||
| M 14X1,5X50 | ||
| 603 | A 0079901301 | SCREW |
| PROPELLER SHAFT MOUNTING | ||
| 603 | A 0079901301 | SCREW |
| PROPELLER SHAFT MOUNTING | ||
| 603 | A 3849907801 | SCREW |
| PROPELLER SHAFT MOUNTING | ||
| 603 | A 6969907201 | SCREW |
| PROPELLER SHAFT MOUNTING | ||
| 603 | A 6969907201 | SCREW |
| PROPELLER SHAFT MOUNTING | ||
| 603 | A 6969907201 | SCREW |
| PROPELLER SHAFT MOUNTING | ||
| 603 | A 6969907201 | SCREW |
| PROPELLER SHAFT MOUNTING | ||
| 604 | N 000934014020 | NUT |
| PROPELLER SHAFT MOUNTING | ||
| 604 | N 000000005461 | SCREW |
| PROPELLER SHAFT MOUNTING | ||
| M14X1,5MM | ||
| 604 | N 308673012003 | NUT |
| PROPELLER SHAFT MOUNTING | ||
| 604 | N 308673012003 | NUT |
| PROPELLER SHAFT MOUNTING | ||
| 604 | N 308673012003 | NUT |
| PROPELLER SHAFT TO TRANSMISSION | ||

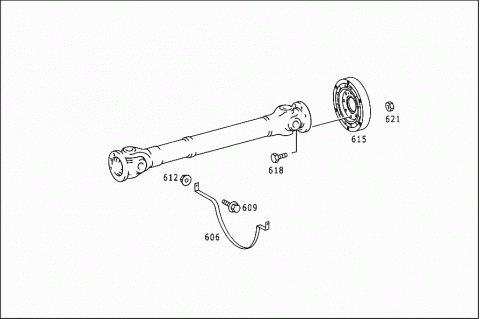

| 606 | A 3844117282 | REBOUND STRAP |
| AT FRAME | ||
| 606 | A 3824110082 | REBOUND STRAP |
| AT FRAME | ||
| 606 | A 6344110182 | REBOUND STRAP |
| AT FRAME | ||
| 606 | A 3824110182 | REBOUND STRAP |
| AT FRAME | ||
| 606 | A 3824110282 | REBOUND STRAP |
| AT FRAME | ||
| 609 | N 910105014012 | SCREW |
| REBOUND STRAP TO FRAME | ||
| M 14X1,5X30 | ||
| 609 | N 910105014005 | SCREW |
| REBOUND STRAP TO FRAME | ||
| M14X1.5X40 | ||
| 609 | N 910105008026 | SCREW |
| REBOUND STRAP TO FRAME | ||
| M8X20 | ||
| 609 | N 910105010001 | SCREW |
| REBOUND STRAP TO FRAME | ||
| M 10X30 | ||
| 609 | A 6885467071 | SCREW |
| REBOUND STRAP TO FRAME | ||
| 609 | N 910105010001 | SCREW |
| REBOUND STRAP TO FRAME | ||
| M 10X 30 | ||
| 612 | N 913023014003 | NUT |
| REBOUND STRAP TO FRAME | ||
| 612 | N 913023014003 | NUT |
| REBOUND STRAP TO FRAME | ||
| 612 | N 913023008003 | NUT |
| REBOUND STRAP TO FRAME | ||
| 612 | N 913023010002 | NUT |
| REBOUND STRAP TO FRAME | ||
| 615 | A 6004110147 | VIBRATION DAMPER |
| AT TRANSMISSION | ||
| 618 | A 3609903101 | SCREW |
| VIBRATION ABSORBER TO TRANSMISSION | ||
| 621 | N 308673012003 | NUT |
| Repalced by: A 3829900151 | ||
| 621 | A 3829900151 | NUT |
| VIBRATION ABSORBER TO TRANSMISSION | ||
