Transporto priemonė: O 500 RSD / 2736/8X2/30; VIN numerio dalis: 634081

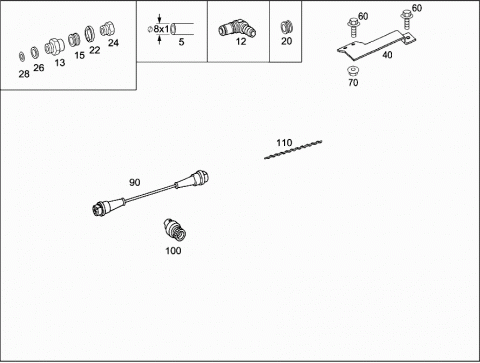

Grupė: 27 AUTOMATIC TRANSMISSION - 750 TRANSMISSION ATTACHMENT PARTS
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0009874927 | PLASTIC PIPE |
| AUTOMATIC ZF-ECOMAT TRANSMISSION | ||
| 012 | A 0019907971 | ELBOW FITTING |
| AUTOMATIC ZF-ECOMAT TRANSMISSION | ||
| 013 | A 0059978972 | FITTING |
| AUTOMATIC ZF-ECOMAT TRANSMISSION | ||
| 015 | A 0009940047 | SEAL RING |
| AUTOMATIC ZF-ECOMAT TRANSMISSION | ||
| TO M16 / VOSS 230 | ||
| 020 | A 0002510283 | PLUG |
| BELL HOUSING | ||
| 022 | A 0009941248 | RETAINING CLAMP |
| BELL HOUSING | ||
| TO M 16 / VOSS 230 | ||
| 024 | A 0009970834 | UNION SCREW |
| BELL HOUSING | ||
| M 16X1,5 / VOSS 230 | ||
| 026 | A 0009940103 | THRUST RING |
| BELL HOUSING | ||
| 028 | A 0019875046 | SEAL RING |
| BELL HOUSING | ||
| 040 | A 3825410540 | BRACKET |
| MODULATOR | ||
| 040 | A 3825410540 | BRACKET |
| MODULATOR | ||
| 060 | N 910105006004 | HEXAGON HEAD BOLT |
| BRACKET TO PEDESTAL | ||
| M 6X16 | ||
| 060 | N 910105006004 | HEXAGON HEAD BOLT |
| BUZZER | ||
| M 6X16 | ||
| 060 | N 910105006004 | HEXAGON HEAD BOLT |
| BRACKET TO PEDESTAL | ||
| M 6X16 | ||
| 060 | N 910105006004 | HEXAGON HEAD BOLT |
| BUZZER | ||
| M 6X16 | ||
| 070 | N 913023006002 | NUT |
| SWITCH TO BRACKET | ||
| 070 | N 913023006002 | NUT |
| BUZZER | ||
| 090 | A 6885404608 | CABLE HARNESS |
| ELECTRONIC TACHOGRAPH | ||
| 100 | A 0095421017 | PULSE SENDER UNIT |
| ELECTRONIC TACHOGRAPH | ||
| 110 | A 6959887070 | LEAD SEAL |
| ELECTRONIC TACHOGRAPH | ||
| A 3822701501 | AUTOMATIC TRANSMISSION | |
| AUTOMATIC TRANSMISSION ATTACHMENT PARTS |
