Transporto priemonė: O 500 RSD / 2736/8X2/30; VIN numerio dalis: 634081

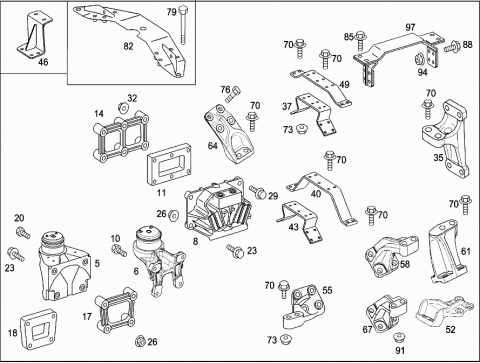

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6932400217 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| Repalced by: A 3682400217 | ||
| 005 | A 9732400317 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| Repalced by: A 3682400217 | ||
| 005 | A 6932400517 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| Repalced by: A 3682400217 | ||
| 006 | A 3682400217 | ENGINE SUPPORT |
| ENGINE FRONT SUSPENSION | ||
| 008 | A 6342410213 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 008 | A 6342410413 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 008 | A 9412415713 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 008 | A 9412415713 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 008 | A 9412415713 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 008 | A 9412415713 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 008 | A 9412415713 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 008 | A 6342410913 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 008 | A 6342410913 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 008 | A 6342410913 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 008 | A 6342410913 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 008 | A 6342410913 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 008 | A 6342410513 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 008 | A 6342410513 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 008 | A 6342410513 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 008 | A 6342410513 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 008 | A 6342410513 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 010 | A 3829901001 | BOLT W FLANGE |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M12X1,5X90 | ||
| 011 | A 6342417184 | SHIM |
| ENGINE SUSPENSION | ||
| 011 | A 6342417184 | SHIM |
| ENGINE SUSPENSION | ||
| 011 | A 6342417184 | SHIM |
| ENGINE SUSPENSION | ||
| 011 | A 6342411684 | SHIM |
| ENGINE SUSPENSION | ||
| 40 MM | ||
| 011 | A 3822410384 | SHIM |
| ENGINE SUSPENSION | ||
| 10 MM | ||
| 014 | A 6342410084 | SHIM |
| ENGINE SUSPENSION | ||
| 014 | A 6342410084 | SHIM |
| ENGINE SUSPENSION | ||
| 014 | A 6342410084 | SHIM |
| ENGINE SUSPENSION | ||
| 017 | A 6342411884 | SHIM |
| ENGINE SUSPENSION | ||
| 42 MM | ||
| 017 | A 6342410184 | SHIM |
| ENGINE SUSPENSION | ||
| 40 MM | ||
| 018 | A 6342410384 | SHIM |
| ENGINE SUSPENSION | ||
| 40 MM | ||
| 020 | A 6349900101 | SCREW |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M12X1,5X70 | ||
| 023 | N 000000005514 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M14X1.5X40 | ||
| 023 | N 000000005518 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M14X1.5X30 | ||
| 023 | N 000000005518 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M14X1.5X30 | ||
| 023 | N 910105014013 | HEXAGON HEAD BOLT |
| LEFT AND RIGHT | ||
| M14X1,5X35 | ||
| 023 | N 000000005721 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M14X1.5X60 | ||
| 023 | N 910105014008 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M 14X1,5X55 | ||
| 026 | N 000000005662 | NUT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M14X1,5 | ||
| 026 | N 000000005662 | NUT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M14X1,5 | ||
| 026 | N 000000005662 | NUT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M14X1,5 | ||
| 026 | N 913023012002 | NUT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| 029 | N 910105014019 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M 14X1,5X60 | ||
| 029 | N 000000005721 | HEXAGON HEAD BOLT |
| LEFT AND RIGHT | ||
| M14X1.5X60 | ||
| 029 | N 910105014017 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M 14X1.5X80 | ||
| 029 | N 910105014016 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M 14X1.5X90 | ||
| 029 | N 000000005720 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M14X1,5X100 | ||
| 029 | N 910105014006 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M 14X1,5X65 | ||
| Repalced by: N 000000005716 | ||
| 029 | N 000000005716 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M14X1.5X65 | ||
| 029 | N 910105014008 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| 029 | N 000000005518 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| 029 | N 910105014008 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| 029 | N 000000005514 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M14X1.5X40 | ||
| 029 | N 000000005718 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M14X1,5X45 | ||
| 029 | N 000000005720 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M14X1,5X100 | ||
| 029 | N 910105014020 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M14X1.5X110 | ||
| 029 | N 910105014006 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M14X1,5X65 | ||
| 029 | N 910105014017 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M14X1,5X80 | ||
| 029 | N 910105012007 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M 12X30 | ||
| 029 | N 910105012020 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M12X1,5X35 MM | ||
| 029 | N 910105012015 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M12X1,5X45MM | ||
| 029 | N 910105012017 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M12X70 | ||
| 029 | N 910105012002 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M12X1,5X25 MM | ||
| 032 | N 000000005662 | NUT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M14X1,5 | ||
| 032 | N 000000005662 | NUT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M14X1,5 | ||
| 032 | N 000000005662 | NUT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M14X1,5 | ||
| 032 | N 000000005662 | NUT |
| LEFT AND RIGHT | ||
| M14X1,5 | ||
| 032 | N 000000005662 | NUT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| 032 | N 910112012001 | HEXAGON NUT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| 035 | A 6342422201 | ENGINE MOUNT |
| BRACKET TO ENGINE REAR SUPPORT,LEFT | ||
| 035 | A 6342422301 | ENGINE MOUNT |
| BRACKET TO ENGINE REAR SUPPORT,RIGHT | ||
| 037 | A 6342410521 | BRACKET |
| BRACKET TO TRANSMISSION,TOP | ||
| 040 | A 3822410401 | ENGINE SUPPORT |
| BRACKET TO TRANSMISSION,TOP | ||
| 043 | A 3822410021 | BRACKET |
| ENGINE REAR SUSPENSION | ||
| 046 | A 6344900037 | SUSPENSION |
| ENGINE REAR SUSPENSION | ||
| 049 | A 6342410501 | ENGINE SUPPORT |
| BRACKET TO TRANSMISSION,TOP | ||
| 052 | A 6342421301 | ENGINE MOUNT |
| BRACKET TO ENGINE REAR SUPPORT,RIGHT | ||
| 052 | A 6342421901 | ENGINE MOUNT |
| BRACKET TO ENGINE REAR SUPPORT,RIGHT | ||
| 052 | A 6342422101 | ENGINE MOUNT |
| BRACKET TO ENGINE REAR SUPPORT,RIGHT | ||
| 055 | A 6342420001 | ENGINE SUPPORT |
| LEFT | ||
| 055 | A 6342420101 | ENGINE SUPPORT |
| RIGHT | ||
| 058 | A 6342421601 | ENGINE SUPPORT |
| BRACKET TO ENGINE REAR SUPPORT,LEFT | ||
| 061 | A 6342421701 | ENGINE SUPPORT |
| BRACKET TO ENGINE REAR SUPPORT,RIGHT | ||
| 064 | A 6342421801 | ENGINE MOUNT |
| BRACKET TO ENGINE REAR SUPPORT,LEFT | ||
| 064 | A 6342422001 | ENGINE MOUNT |
| BRACKET TO ENGINE REAR SUPPORT,RIGHT | ||
| 067 | A 6342421201 | ENGINE SUPPORT |
| BRACKET TO ENGINE REAR SUPPORT,LEFT | ||
| 070 | N 910105016013 | HEXAGON HEAD BOLT |
| ENGINE SUPPORT TO RUBBER MOUNTING | ||
| M16X1,5X30 | ||
| 070 | N 910105016013 | HEXAGON HEAD BOLT |
| RIGHT | ||
| M16X1,5X30 | ||
| 070 | N 000000005535 | HEXAGON HEAD BOLT |
| RIGHT | ||
| M16X1,5X40 | ||
| 070 | N 910105016005 | HEXAGON HEAD BOLT |
| LEFT AND RIGHT | ||
| M16X1,5X60 | ||
| 070 | N 910105018027 | HEXAGON HEAD BOLT |
| ENGINE FRONT MOUNTING TO ENGINE SUPPORT | ||
| M18X1,5X80 | ||
| 070 | N 000960022015 | SCREW |
| ENGINE REAR SUPPORT TO BELL HOUSING | ||
| M22X1,5X60 | ||
| 070 | N 000961022027 | SCREW |
| ENGINE REAR SUPPORT TO BELL HOUSING | ||
| M22X1,5X65 | ||
| 070 | N 910105018026 | HEXAGON HEAD BOLT |
| ENGINE FRONT MOUNTING TO ENGINE SUPPORT | ||
| M18X1.5X70 | ||
| 070 | N 910105018024 | HEXAGON HEAD BOLT |
| ENGINE FRONT MOUNTING TO ENGINE SUPPORT | ||
| M18X1.5X60 | ||
| 070 | N 910105018021 | HEXAGON HEAD BOLT |
| FROM BRACKET AT ENGINE REAR MOUNTING TO BRACKET AT TRANSMISSION | ||
| M18X1.5X40 | ||
| 070 | N 910105018021 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO TRANSMISSION | ||
| M18X1.5X40 | ||
| 070 | N 910105018022 | HEXAGON HEAD BOLT |
| ENGINE REAR SUPPORT TO BELL HOUSING | ||
| M18X1.5X50 | ||
| 070 | N 910105018022 | HEXAGON HEAD BOLT |
| ENGINE SUPPORT TO RUBBER MOUNTING | ||
| M18X1.5X50 | ||
| 070 | N 910105018022 | HEXAGON HEAD BOLT |
| ENGINE REAR SUPPORT TO BELL HOUSING | ||
| M18X1.5X50 | ||
| 070 | N 910105018023 | HEXAGON HEAD BOLT |
| BRACKET TO BRACKET AT CROSS MEMBER | ||
| M18X1.5X55 | ||
| 070 | N 910105018018 | HEXAGON HEAD BOLT |
| ENGINE SUPPORT TO RUBBER MOUNTING | ||
| M18X1,5X45 | ||
| 070 | N 910105018023 | HEXAGON HEAD BOLT |
| ENGINE SUPPORT TO RUBBER MOUNTING | ||
| M18X1.5X55 | ||
| 073 | N 913023018002 | NUT |
| BRACKET TO BRACKET AT CROSS MEMBER | ||
| 073 | N 913023018002 | NUT |
| BRACKET TO BRACKET AT CROSS MEMBER | ||
| 076 | N 910105018022 | HEXAGON HEAD BOLT |
| BRACKET TO TRANSMISSION CASE | ||
| M18X1.5X50 | ||
| 076 | N 910105018022 | HEXAGON HEAD BOLT |
| BRACKET TO TRANSMISSION CASE | ||
| M18X1.5X50 | ||
| 076 | N 910105018025 | HEXAGON HEAD BOLT |
| BRACKET TO TRANSMISSION CASE | ||
| M18X1,5X65 | ||
| 076 | N 910105018025 | HEXAGON HEAD BOLT |
| BRACKET TO TRANSMISSION CASE | ||
| M18X1,5X65 | ||
| 076 | N 910105018018 | HEXAGON HEAD BOLT |
| ENGINE SUPPORT TO ENGINE FRONT MOUNTING | ||
| 076 | N 910105018018 | HEXAGON HEAD BOLT |
| ENGINE SUPPORT TO ENGINE FRONT MOUNTING | ||
| M18X1.5X45 | ||
| 076 | N 910105018023 | HEXAGON HEAD BOLT |
| ENGINE SUPPORT TO ENGINE FRONT MOUNTING | ||
| 076 | N 910105018024 | HEXAGON HEAD BOLT |
| ENGINE SUPPORT TO ENGINE FRONT MOUNTING | ||
| 076 | N 910105018026 | HEXAGON HEAD BOLT |
| ENGINE FRONT MOUNTING TO ENGINE SUPPORT | ||
| M18X1.5X70 | ||
| 079 | N 000931016137 | SCREW |
| CROSS MEMBER TO TRANSMISSION | ||
| M16 X 65 | ||
| 082 | A 6933107032 | CROSS MEMBER |
| TRANSMISSION | ||
| 085 | N 910105020037 | HEXAGON HEAD BOLT |
| BRACKET TO BRACKET AT CROSS MEMBER | ||
| M20X1,5X50 MM | ||
| 088 | N 910105016007 | HEXAGON HEAD BOLT |
| LEFT AND RIGHT | ||
| M16X1,5X40 MM | ||
| 091 | N 913023020001 | NUT |
| BRACKET TO BRACKET AT CROSS MEMBER | ||
| 094 | N 913023016001 | NUT |
| BRACKET TO BRACKET AT CROSS MEMBER | ||
| 097 | A 6342400600 | TRANSMISSION CARRIER |
| SUPPORT TO TRANSMISSION | ||
| 100 | A 6952407017 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| 100 | A 6952407017 | RUBBER MOUNTING |

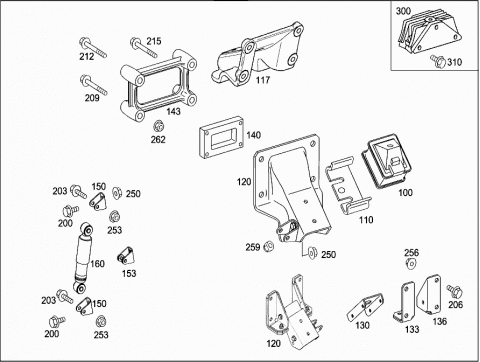

| ENGINE FRONT SUSPENSION | ||
| 110 | A 3522420509 | ENGINE STAY |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 110 | A 3522420509 | ENGINE STAY |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 117 | A 6342401006 | ENGINE BRACKET |
| ENGINE SUPPORT TO LEFT SIDE MEMBER | ||
| 117 | A 6342401106 | ENGINE BRACKET |
| ENGINE SUPPORT TO RIGHT SIDE MEMBER | ||
| 120 | A 6342400106 | CONSOLE |
| ENGINE SUPPORT TO LEFT SIDE MEMBER | ||
| Repalced by: A 6342400406 | ||
| 120 | A 6342400406 | CONSOLE |
| ENGINE SUPPORT TO LEFT SIDE MEMBER | ||
| 120 | A 6342400206 | CONSOLE |
| ENGINE SUPPORT TO RIGHT SIDE MEMBER | ||
| Repalced by: A 6342400506 | ||
| 120 | A 6342400506 | CONSOLE |
| ENGINE SUPPORT TO RIGHT SIDE MEMBER | ||
| 130 | A 6342411132 | REINFORCEMENT |
| WEB TO BRACKET | ||
| TO A6342400106/0206 | ||
| 133 | A 6342410932 | STIFFENING |
| WEB TO BRACKET | ||
| TO A6342400106/0206 | ||
| 136 | A 6342411032 | STIFFENING |
| WEB TO BRACKET | ||
| TO A6342400106/0206 | ||
| 140 | A 6342411084 | SHIM |
| ENGINE SUSPENSION | ||
| 140 | A 6342411984 | BASE |
| ENGINE SUSPENSION | ||
| 143 | A 6342411184 | SHIM |
| ENGINE SUSPENSION | ||
| 143 | A 6342412084 | BASE |
| ENGINE SUSPENSION | ||
| 150 | A 6342410040 | BRACKET |
| TOP AND BOTTOM,LEFT AND RIGHT | ||
| 150 | A 6342410040 | BRACKET |
| 153 | A 6343200942 | RETAINING CLIP |
| WITH BRACKET AND WELDED NUT | ||
| 153 | A 6343200942 | RETAINING CLIP |
| WITH BRACKET AND WELDED NUT | ||
| 160 | A 6642407048 | ENGINE VIBRATION ABSORBER |
| REAR LEFT AND RIGHT | ||
| 160 | A 6642407048 | ENGINE VIBRATION ABSORBER |
| REAR LEFT AND RIGHT | ||
| 200 | N 910105010001 | SCREW |
| BRACKET TO ENGINE SUPPORT | ||
| M 10X30 MM | ||
| 200 | N 910105010001 | HEXAGON HEAD BOLT |
| BRACKET TO ENGINE SUPPORT | ||
| M 10X30 MM | ||
| 200 | N 910105010007 | HEXAGON HEAD BOLT |
| BRACKET TO ENGINE SUPPORT | ||
| M 10X35 MM | ||
| 203 | N 910105012011 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| M 12X1,5X60 | ||
| Repalced by: N 910105012017 | ||
| 203 | N 910105012017 | HEXAGON HEAD BOLT |
| SHOCK ABSORBER TO BRACKET | ||
| M 12X1,5X60 | ||
| 203 | N 910105012011 | HEXAGON HEAD BOLT |
| SHOCK ABSORBER TO BRACKET | ||
| M 12X1,5X60 | ||
| 203 | N 910105012017 | HEXAGON HEAD BOLT |
| SHOCK ABSORBER TO BRACKET | ||
| M 12X1,5X70 | ||
| 206 | N 910105010007 | SCREW |
| BRACKET TO ENGINE SUPPORT | ||
| M 10X35 MM (TO A6342400106/0206) | ||
| 209 | N 910105014006 | HEXAGON HEAD BOLT |
| ENGINE LEFT SUPPORT | ||
| M14X1,5X65 MM | ||
| 212 | A 6349900201 | SCREW |
| ENGINE LEFT SUPPORT | ||
| M14X1,5X100 MM | ||
| 212 | A 6349900201 | SCREW |
| ENGINE LEFT SUPPORT | ||
| M14X1,5X100 MM | ||
| 212 | N 000000005720 | HEXAGON HEAD BOLT |
| ENGINE LEFT SUPPORT | ||
| M14X1,5X100 MM | ||
| 215 | N 910105014013 | HEXAGON HEAD BOLT |
| ENGINE RIGHT SUPPORT | ||
| M14X1,5X35 MM | ||
| 250 | N 913023010002 | NUT |
| BRACKET TO ENGINE SUPPORT | ||
| 250 | N 913023010002 | NUT |
| BRACKET TO ENGINE SUPPORT | ||
| 253 | N 913023012002 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
| 256 | N 913023010002 | NUT |
| BRACKET TO ENGINE SUPPORT | ||
| (TO A6342400106/0206) | ||
| 259 | N 913023012002 | NUT |
| RUBBER MOUNTING TO FRONT CONSOLE | ||
| 259 | N 913023012002 | NUT |
| RUBBER MOUNTING TO FRONT CONSOLE | ||
| 262 | N 000000005662 | NUT |
| LEFT AND RIGHT | ||
| M14X1,5 | ||
| 262 | N 000000005662 | NUT |
| LEFT AND RIGHT | ||
| M14X1,5 | ||
| 300 | A 9702400318 | RUBBER MOUNTING |
| WITH AIR CONDITIONER | ||
| 310 | N 000000005543 | HEXAGON HEAD BOLT |
| WITH AIR CONDITIONER | ||
| M16X1,5X 30 | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
