Transporto priemonė: O 500 RSD / 2736/8X2/30; VIN numerio dalis: 634081

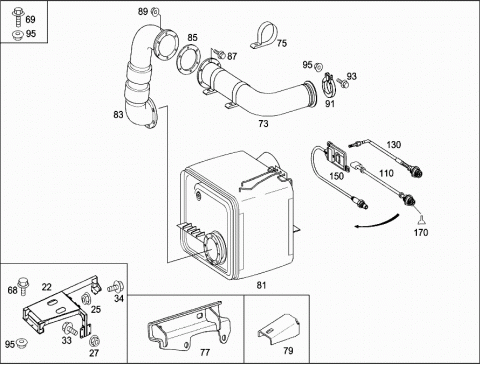

Grupė: 49 EXHAUST SYSTEM - 030 EXHAUST PIPE TO SUBSTRUCTURE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6344900019 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 6344900819 | EXHAUST GAS LINE |
| FRONT | ||
| 005 | A 6344900319 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 6344900319 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 6344900919 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 6344900419 | EXHAUST PIPE |
| FRONT | ||
| 006 | A 6344920840 | CLAMP |
| BRACKET EXHAUST SYSTEM | ||
| TO A6344900019 | ||
| 006 | A 6344920840 | CLAMP |
| BRACKET EXHAUST SYSTEM | ||
| TO A6344900919 | ||
| 006 | A 6344920840 | CLAMP |
| BRACKET EXHAUST SYSTEM | ||
| TO A6344900819 | ||
| 007 | A 6344900841 | CLAMP |
| BRACKET EXHAUST SYSTEM | ||
| TO A6344900019 | ||
| 007 | A 6344900841 | CLAMP |
| BRACKET EXHAUST SYSTEM | ||
| TO A6344900919 | ||
| 007 | A 6344900841 | CLAMP |
| BRACKET EXHAUST SYSTEM | ||
| TO A6344900819 | ||
| 008 | A 6344900519 | EXHAUST PIPE |
| FRONT | ||
| 011 | A 3824907065 | FLEXIBLE METAL TUBE |
| Repalced by: A 3824900165 | ||
| 011 | A 3824900165 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 014 | A 3844927340 | CLAMP |
| Repalced by: A 3824920140 | ||
| 014 | A 3824920140 | CLAMP |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| 017 | A 6344900065 | FLEXIBLE METAL TUBE |
| Repalced by: A 6934900265 | ||
| 017 | A 6934900265 | FLEXIBLE METAL TUBE |
| EXHAUST MUFFLER | ||
| 017 | A 6344900265 | FLEXIBLE METAL TUBE |
| EXHAUST MUFFLER | ||
| 020 | A 6344900565 | FLEXIBLE METAL TUBE |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE AND TO EXHAUST MUFFLER | ||
| 020 | A 6344900565 | FLEXIBLE METAL TUBE |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE AND TO EXHAUST MUFFLER | ||
| 020 | A 6344900565 | FLEXIBLE METAL TUBE |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE AND TO EXHAUST MUFFLER | ||
| 021 | A 6344900240 | BRACKET |
| AT EXHAUST PIPE | ||
| 022 | A 6344901334 | BEAM |
| MUFFLER BRACKET TO FRAME | ||
| 023 | A 6209970590 | CLAMP |
| AT EXHAUST PIPE | ||
| 023 | A 6344920340 | CLAMP |
| AT EXHAUST PIPE | ||
| 023 | A 6344920640 | CLAMP |
| 024 | A 6939970190 | LOOM TIE |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE AND TO EXHAUST MUFFLER | ||
| 024 | A 6939970190 | LOOM TIE |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE AND TO EXHAUST MUFFLER | ||
| 024 | A 6939970190 | LOOM TIE |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE AND TO EXHAUST MUFFLER | ||
| 025 | N 913023012002 | NUT |
| 025 | N 913023012002 | NUT |
| 025 | N 913023012002 | NUT |
| 026 | N 910112010001 | NUT |
| CLAMP MOUNTING | ||
| 026 | N 913023008003 | NUT |
| CLAMP MOUNTING | ||
| 027 | N 000000005738 | NUT |
| EXHAUST MUFFLER SUPPORT TO SIDE MEMBER | ||
| M16 X 1,5 | ||
| 032 | N 910105010011 | SCREW |
| CLAMP MOUNTING | ||
| M10X40 | ||
| 032 | N 910105008010 | SCREW |
| Repalced by: N 910105008020 | ||
| 032 | N 910105008020 | SCREW |
| CLAMP MOUNTING | ||
| M 8X35 | ||
| 033 | N 910105016004 | HEXAGON HEAD BOLT |
| EXHAUST MUFFLER SUPPORT TO SIDE MEMBER | ||
| M16X40 | ||
| 034 | N 910105012007 | HEXAGON HEAD BOLT |
| M12X1,5X30 | ||
| 035 | N 910105010001 | HEXAGON HEAD BOLT |
| EXHAUST PIPE SUSPENSION | ||
| M10X30 | ||
| 035 | N 910105010001 | HEXAGON HEAD BOLT |
| EXHAUST PIPE SUSPENSION | ||
| M10X30 | ||
| 035 | N 910105010001 | HEXAGON HEAD BOLT |
| EXHAUST PIPE SUSPENSION | ||
| M10X30 | ||
| 035 | N 910105008039 | HEXAGON HEAD BOLT |
| AT SUPPORT | ||
| M8 X 25 | ||
| 035 | N 910105008039 | HEXAGON HEAD BOLT |
| AT SUPPORT | ||
| M8 X 25 | ||
| 035 | N 910105008039 | HEXAGON HEAD BOLT |
| AT SUPPORT | ||
| M8 X 25 | ||
| 035 | N 910105010001 | SCREW |
| EXHAUST PIPE SUSPENSION | ||
| M10X30 | ||
| 036 | N 910105010001 | SCREW |
| MOUNTING BRACKET TO BRACKET | ||
| M10X30 | ||
| 038 | N 910112010001 | NUT |
| EXHAUST PIPE SUSPENSION | ||
| 038 | N 910112010001 | NUT |
| EXHAUST PIPE SUSPENSION | ||
| 039 | N 910112010001 | NUT |
| MOUNTING BRACKET TO BRACKET | ||
| 041 | A 6344900034 | SUPPORT |
| EXHAUST MUFFLER | ||
| 041 | A 6344900334 | SUPPORT |
| EXHAUST MUFFLER | ||
| 047 | A 6344900234 | SUPPORT |
| EXHAUST MUFFLER | ||
| 047 | A 6344900434 | SUPPORT |
| EXHAUST MUFFLER | ||
| 047 | A 6344900734 | SUPPORT |
| EXHAUST MUFFLER | ||
| 047 | A 6344900834 | SUPPORT |
| EXHAUST MUFFLER | ||
| 047 | A 6344900934 | BEAM |
| EXHAUST MUFFLER | ||
| 047 | A 6344900234 | SUPPORT |
| EXHAUST MUFFLER | ||
| N 910105010001 | SCREW | |
| M10X30 | ||
| 048 | N 910112012001 | NUT |
| EXHAUST MUFFLER | ||
| 048 | N 910112012001 | NUT |
| EXHAUST MUFFLER | ||
| 050 | A 3475040012 | RUBBER MOUNTING |
| Repalced by: A 6349980041 | ||
| 050 | A 6349980041 | BUFFER |
| EXHAUST MUFFLER TO BRACKET | ||
| 050 | A 6349980041 | BUFFER |
| EXHAUST MUFFLER TO BRACKET | ||
| 050 | A 6349980041 | BUFFER |
| EXHAUST MUFFLER TO BRACKET | ||
| 050 | A 6349980041 | BUFFER |
| EXHAUST MUFFLER TO BRACKET | ||
| 050 | A 3475040012 | RUBBER MOUNTING |
| EXHAUST MUFFLER TO BRACKET | ||
| 053 | N 910112010001 | NUT |
| EXHAUST MUFFLER TO BRACKET | ||
| 053 | N 910112010001 | NUT |
| EXHAUST MUFFLER TO BRACKET | ||
| 053 | N 910112010001 | NUT |
| EXHAUST MUFFLER TO BRACKET | ||
| 053 | N 910112010001 | NUT |
| EXHAUST MUFFLER TO BRACKET | ||
| 053 | N 910112010001 | NUT |
| EXHAUST MUFFLER TO BRACKET | ||
| N 910112010001 | NUT | |
| 056 | A 6344900001 | EXHAUST MUFFLER |
| 056 | A 6344900501 | EXHAUST MUFFLER |
| 056 | A 6344900501 | EXHAUST MUFFLER |
| 056 | A 6344900901 | MUFFLER |
| 056 | A 6344900901 | MUFFLER |
| 057 | A 6344901201 | EXHAUST MUFFLER |
| 057 | A 6344901001 | MUFFLER |
| 057 | A 6344901301 | MUFFLER |
| 057 | A 6344901401 | MUFFLER |
| 059 | A 6344900201 | EXHAUST MUFFLER |
| FRONT | ||
| 059 | A 6344900401 | EXHAUST MUFFLER |
| FRONT | ||
| 062 | A 6344920041 | BRACKET |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| 062 | A 6344920041 | BRACKET |
| 063 | A 6344921441 | BRACKET |
| 063 | A 6344921441 | BRACKET |
| 063 | A 6344921441 | BRACKET |
| 064 | A 6344920741 | BRACKET |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| 065 | A 6344920341 | BRACKET |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| 066 | A 6344900137 | SUSPENSION |
| AT TRANSMISSION CASE | ||
| 068 | N 910105010001 | SCREW |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| M10X30 | ||
| 068 | N 910105010001 | HEXAGON HEAD BOLT |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| M10X30 | ||
| 068 | N 910105010001 | HEXAGON HEAD BOLT |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| M10X30 | ||
| 069 | N 910105010009 | HEXAGON HEAD BOLT |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| M10X25 | ||
| 071 | N 910112010001 | NUT |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| 071 | N 910112010001 | NUT |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| 071 | N 910112010001 | NUT |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| 071 | N 913023010002 | NUT |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| M10 | ||
| 073 | A 6344901019 | EXHAUST PIPE |
| FRONT | ||
| 075 | A 3824920340 | PIPE CLAMP F EXHAUST SYS. |
| TO A6344901019 | ||
| 077 | A 6344901540 | BRACKET |
| 077 | A 6344901640 | BRACKET |
| BRACKET TO BELL HOUSING | ||
| 079 | A 3824921142 | BRACKET |
| 081 | A 3824900514 | PARTICULATE CONVERTER |
| PARTICULATE REDUCTION CATALYTIC CONVERTER SYSTEM | ||
| 083 | A 6344901119 | EXHAUST PIPE |
| PARTICULATE REDUCTION CATALYTIC CONVERTER SYSTEM | ||
| 085 | A 0004920780 | FLANGE GASKET |
| PARTICULATE REDUCTION CATALYTIC CONVERTER SYSTEM | ||
| 087 | N 910105010011 | HEXAGON HEAD BOLT |
| PARTICULATE REDUCTION CATALYTIC CONVERTER SYSTEM | ||
| M10X40 | ||
| 089 | N 913023010002 | NUT |
| PARTICULATE REDUCTION CATALYTIC CONVERTER SYSTEM | ||
| M10 | ||
| 091 | A 6344920340 | CLAMP |
| 093 | N 910105010011 | HEXAGON HEAD BOLT |
| 095 | N 913023010002 | NUT |
| M10 | ||
| 110 | A 0001506933 | ELECTRIC CABLE |
| ADAPTER | ||
| 130 | A 0061530628 | SENDER UNIT |
| TEMPERATURE SENSOR,UPSTREAM OFCATALYTIC CONVERTER | ||
| 130 | A 0061530728 | SENDER UNIT |
| TEMPERATURE SENSOR,DOWNSTREAM OFCATALYTIC CONVERTER | ||
| A 0025402781 | PARTS KIT | |
| A 0295459528 | PLUG HOUSING | |
| 150 | A 0061537328 | CONTROL UNIT |
| SENSOR | ||
| Repalced by: A 0091533628 | ||
| 150 | A 0091533628 | NOX SENSOR |
| SENSOR | ||
| 170 | A 0005460522 | CLAMPING RING |
| A 0355454828 | CONTACT PIN | |
| 0,5 - 1,0 MM2 | ||
| A 0295456528 | CONTACT PIN | |
| 1,0 - 1,5 MM2 | ||
| A 0005457280 | WIRE SEAL | |
| GREY | ||
| 0,5 - 1,0 MM2 | ||
| A 0005457380 | CORE BUNDLE SEALING | |
| YELLOW COLOURED | ||
| 02 171300 | ||
| A 0005456280 | BLIND PLUG | |
| NATURAL-COLORED | ||
