Transporto priemonė: O 530 - CITARO K; VIN numerio dalis: 628490

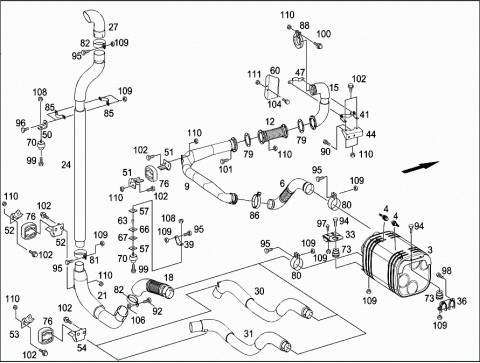

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 0004904414 | CATALYST |
| 003 | A 0014904514 | CATALYST |
| 004 | A 0061530328 | SENDER UNIT |
| 004 | A 0061530328 | SENDER UNIT |
| 006 | A 6284903921 | EXHAUST PIPE |
| 006 | A 6284903921 | EXHAUST PIPE |
| 009 | A 6284903721 | EXHAUST PIPE |
| 009 | A 6284903721 | EXHAUST PIPE |
| 012 | A 6284903821 | EXHAUST PIPE |
| Repalced by: A 6284904721 | ||
| 012 | A 6284904721 | EXHAUST PIPE |
| 012 | A 6284904721 | EXHAUST PIPE |
| 015 | A 6284903119 | EXHAUST PIPE |
| 015 | A 6284903119 | EXHAUST PIPE |
| 018 | A 6284904021 | EXHAUST PIPE |
| 018 | A 6284904621 | EXHAUST PIPE |
| 021 | A 6284904121 | EXHAUST PIPE |
| 021 | A 6284904121 | EXHAUST PIPE |
| 024 | A 6284902821 | EXHAUST PIPE |
| 024 | A 6284902821 | EXHAUST PIPE |
| 027 | A 6284920414 | TAILPIPE |
| 027 | A 6284920414 | TAILPIPE |
| 030 | A 6284901027 | TAILPIPE |
| 030 | A 6284902127 | TAILPIPE |
| 031 | A 6284901127 | END PIECE |
| 033 | A 6284903740 | BRACKET |
| 033 | A 6284903740 | BRACKET |
| 036 | A 6284903840 | BRACKET |
| 036 | A 6284903840 | BRACKET |
| 039 | A 6284920442 | BRACKET |
| 039 | A 6284920442 | BRACKET |
| 041 | A 6284901640 | BRACKET |
| 041 | A 6284901640 | BRACKET |
| 044 | A 6284924341 | BRACKET |
| 044 | A 6284924341 | BRACKET |
| 047 | A 6284924441 | BRACKET |
| 047 | A 6284924441 | BRACKET |
| 050 | A 6284923741 | BRACKET |
| 050 | A 6284923741 | BRACKET |
| 051 | A 3014910215 | CONSOLE |
| 051 | A 3014910215 | CONSOLE |
| 052 | A 3014910215 | CONSOLE |
| 052 | A 3014910215 | CONSOLE |
| 053 | A 3014910215 | CONSOLE |
| 053 | A 3014910215 | CONSOLE |
| 054 | A 6284910415 | CONSOLE |
| 054 | A 6284910415 | CONSOLE |
| 057 | A 6284910018 | PLATE |
| 057 | A 6284910018 | PLATE |
| 060 | A 6284920030 | PROTECTIVE PLATE |
| 060 | A 6284920030 | PROTECTIVE PLATE |
| 063 | A 6284920153 | SPACER TUBE |
| 063 | A 6284920153 | SPACER TUBE |
| 066 | A 6284920683 | INSULATION |
| THICKNESS, | ||
| 2 MM | ||
| 066 | A 6284920683 | INSULATION |
| THICKNESS, | ||
| 2 MM | ||
| 067 | A 6284920783 | INSULATION |
| THICKNESS, | ||
| 4 MM | ||
| 067 | A 6284920783 | INSULATION |
| THICKNESS, | ||
| 4 MM | ||
| 070 | A 0032371012 | BUFFER |
| 070 | A 0032371012 | BUFFER |
| 070 | A 0032371012 | BUFFER |
| 070 | A 0032371012 | BUFFER |
| 073 | A 0009980246 | INSULATION |
| 073 | A 0009980246 | INSULATION |
| 076 | A 3004920082 | DAMPING PAD |
| 076 | A 3004920082 | DAMPING PAD |
| 079 | A 6284920380 | FLANGE GASKET |
| 079 | A 6284920380 | FLANGE GASKET |
| 080 | A 6554920140 | CLAMP |
| D=124,5MM | ||
| 080 | A 6554920140 | CLAMP |
| D=124,5MM | ||
| 081 | A 9404920240 | CLAMP |
| 081 | A 9404920240 | CLAMP |
| 082 | A 6289950802 | CLAMP |
| 082 | A 6289950802 | CLAMP |
| 085 | A 6289950601 | CLAMP |
| 085 | A 6289950601 | CLAMP |
| 086 | A 0004921340 | CLAMP |
| 088 | A 6209970590 | CLAMP |
| 088 | A 6209970590 | CLAMP |
| 090 | N 910105016013 | HEXAGON HEAD BOLT |
| M16X1,5X30MM | ||
| Repalced by: N 000000005543 | ||
| 090 | N 000000005543 | HEXAGON HEAD BOLT |
| M16X1,5X30MM | ||
| 090 | N 910105016013 | HEXAGON HEAD BOLT |
| Repalced by: N 910105016029 | ||
| 090 | N 910105016029 | HEXAGON HEAD BOLT |
| Repalced by: N 000000005555 | ||
| 090 | N 000000005555 | HEXAGON HEAD BOLT |
| M16X25MM | ||
| 090 | N 910105016029 | HEXAGON HEAD BOLT |
| M16X25MM | ||
| 092 | N 910105012010 | HEXAGON HEAD BOLT |
| M12X1,5X40MM | ||
| 092 | N 910105012010 | HEXAGON HEAD BOLT |
| M12X1,5X40MM | ||
| 094 | N 910105010003 | HEXAGON HEAD BOLT |
| M10X60MM | ||
| 094 | N 910105010003 | HEXAGON HEAD BOLT |
| M10X60MM | ||
| 095 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35MM | ||
| 095 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35MM | ||
| 095 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35MM | ||
| 095 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35MM | ||
| 096 | N 910105010001 | HEXAGON HEAD BOLT |
| M10X30 | ||
| 096 | N 910105010001 | HEXAGON HEAD BOLT |
| M10X30 | ||
| 097 | N 910105010009 | HEXAGON HEAD BOLT |
| M10X25MM | ||
| 097 | N 910105010009 | HEXAGON HEAD BOLT |
| M10X25MM | ||
| 098 | N 910105010006 | HEXAGON HEAD BOLT |
| M10X20MM | ||
| 098 | N 910105010006 | HEXAGON HEAD BOLT |
| M10X20MM | ||
| 099 | N 910105010040 | HEXAGON HEAD BOLT |
| M10X16MM | ||
| 099 | N 910105010040 | HEXAGON HEAD BOLT |
| M10X16MM | ||
| 099 | N 910105010040 | HEXAGON HEAD BOLT |
| M10X16MM | ||
| 099 | N 910105010040 | HEXAGON HEAD BOLT |
| M10X16MM | ||
| 100 | N 910105008038 | HEXAGON HEAD BOLT |
| M8X50MM | ||
| 100 | N 910105008018 | HEXAGON HEAD BOLT |
| M8X40MM | ||
| 101 | N 910105008060 | HEXAGON HEAD BOLT |
| M8X35MM | ||
| 101 | N 910105008060 | HEXAGON HEAD BOLT |
| M8X35MM | ||
| 102 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20MM | ||
| 102 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20MM | ||
| 104 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12MM | ||
| 104 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12MM | ||
| 106 | N 910112012001 | HEXAGON NUT |
| M12X1,5 | ||
| 106 | N 910112012001 | HEXAGON NUT |
| M12X1,5 | ||
| 108 | N 910112010001 | NUT |
| M10 | ||
| 108 | N 910112010001 | NUT |
| M10 | ||
| 108 | N 910112010001 | NUT |
| M10 | ||
| 109 | N 913023010002 | NUT |
| M10 | ||
| 109 | N 913023010002 | NUT |
| M10 | ||
| 110 | N 913023008003 | NUT |
| M8 | ||
| 110 | N 913023008003 | NUT |
| M8 | ||
| Repalced by: N 913023008002 | ||
| 110 | N 913023008002 | NUT |
| M8 | ||
| 111 | N 913023006002 | NUT |
| M6 | ||
| 111 | N 913023006002 | NUT |
| M6 | ||
