Transporto priemonė: O 530 GN3 EURO 3; VIN numerio dalis: 628250

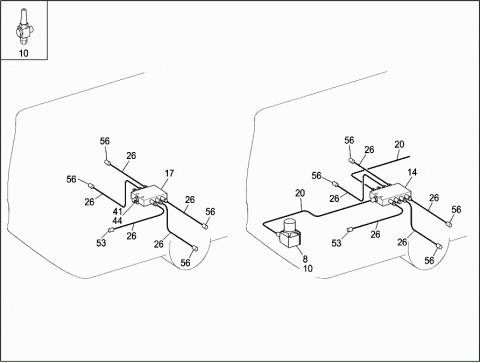

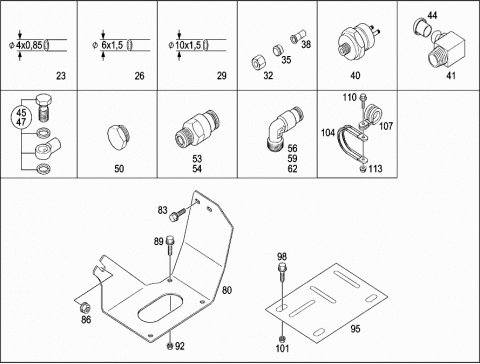

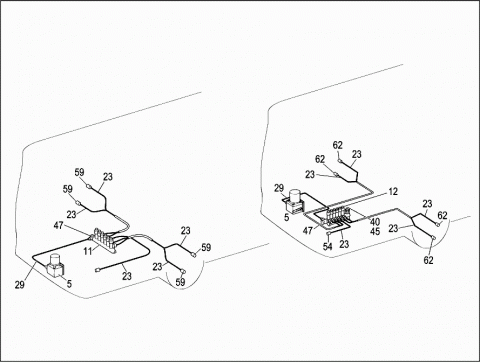

Grupė: 57 CENTRAL LUBRICATION

#	Kodas	Pavadinimas
005	A 0015710101	PUMP
		KFB1-S2+924
008	A 0015710201	PUMP
		KFA1-S2+924
008	A 0005719801	PUMP
		P301-1ZN
008	A 0005719001	PUMP
	Repalced by: A 0005719601
008	A 0005719601	PUMP
010	A 0009977710	PRESSURE LIMITING VALVE
011	A 0035737820	DISTRIBUTOR
		FRONT
012	A 0035738120	DISTRIBUTOR
		FRONT
014	A 0035739320	DISTRIBUTOR
		FRONT
014	A 0045731220	LUBRICANT DISPENSER
		FRONT
014	A 0035737520	DISTRIBUTOR
		FRONT
014	A 0035737720	DISTRIBUTOR
		FRONT
017	A 0035739020	DISTRIBUTOR
		FRONT
017	A 0035737620	DISTRIBUTOR
		FRONT
020	A 0005732836	HOSE
		FROM PUMP TO DISTRIBUTOR AT FRONT AXLE
		1800 MM
020	A 0005732836	HOSE
		FROM DISTRIBUTOR ON RING MOUNT TO DISTRIBUTOR ON FRONT AXLE
		9500 MM
023	A 0179977082	HOSE
		4X0.85
026	A 0009970479	PLASTIC PIPE
		6X1.5
029	A 0179977182	HOSE
		10X1.5
032	A 0029905968	FITTING
		M 16X1.5 / TO:10X1.5
032	A 0009974134	SCREW
		TO:10X1.5
035	A 0019903667	SEAL CONE
		TO:10X1.5
035	A 0009905067	SEAL CONE
		TO:4X0.85
038	A 0005730553	PIN BUSHING
		TO:10X1.5
	Repalced by: A 0005730753
038	A 0005730753	PIN BUSHING
		TO:10X1.5
038	A 0005730053	PIN BUSHING
		TO:4X0.85
040	A 0065452314	SWITCH
	Repalced by: A 0035450614
040	A 0035450614	SWITCH
041	N 071412010200	GREASE NIPPLE
		M 10X1
044	A 0009985721	EXPANSION PLUG
		GREASE NIPPLE
045	A 0029906571	ELBOW FITTING
		PARTS KIT
		M 16X1.5/M 10X1
047	A 0029906771	ELBOW FITTING
		PARTS KIT
		M 16X1.5/M 16X1.5
	Repalced by: A 0049903971
047	A 0049903971	ELBOW FITTING
		PARTS KIT
		M 16X1.5/M 16X1.5
050	A 0009976630	SCREW PLUG
		M 8X1
050	A 0005710756	SCREW PLUG
		M 16X1.5
053	A 0039970089	COUPLING
		STRAIGHT VERSION
		M 8X1
053	A 0005731355	CLUTCH
		STRAIGHT VERSION
		M 8X1
054	A 0049972189	COUPLING
		STRAIGHT VERSION
		M 8X1
056	A 0049972589	COUPLING
		ELBOW FITTING
		M 10X1
	Repalced by: A 0059970989
056	A 0059970989	COUPLING
		ELBOW FITTING
		M 10X1
056	A 0005731455	CLUTCH
		ELBOW FITTING
		M 10X1
059	A 0005731330	ELBOW
		M 10X1
062	A 0049972089	COUPLING
		ELBOW FITTING
		M 10X1
	Repalced by: A 0069976089
062	A 0069976089	PLUG CONNECTION
		ELBOW FITTING
		M 10X1
080	A 6285730340	BRACKET
		CENTRAL LUBRICATION PUMP TO SUBSTRUCTURE
083	N 910105006004	HEXAGON HEAD BOLT
		BRACKET TO SUBSTRUCTURE
		M6X16
	Repalced by: N 910143006001
083	N 910143006001	HEXALOBULAR BOLT
		BRACKET TO SUBSTRUCTURE
		M6X16
086	N 910112008003	NUT
		BRACKET TO SUBSTRUCTURE
		M 8
089	N 910105008039	SCREW
		PUMP TO BRACKET
		M 8X25
	Repalced by: N 910143008002
089	N 910143008002	SCREW
		PUMP TO BRACKET
		M 8X25
089	N 910105008039	SCREW
		CENTRAL LUBRICATION PUMP TO SUBSTRUCTURE
		M 8X25
	Repalced by: N 910143008002
089	N 910143008002	SCREW
		CENTRAL LUBRICATION PUMP TO SUBSTRUCTURE
		M 8X25
092	N 913023008003	NUT
		PUMP TO BRACKET
		M 8
	Repalced by: N 913023008002
092	N 913023008002	NUT
		PUMP TO BRACKET
		M 8
092	N 913023008003	NUT
		CENTRAL LUBRICATION PUMP TO SUBSTRUCTURE
		M 8
	Repalced by: N 913023008002
092	N 913023008002	NUT
		CENTRAL LUBRICATION PUMP TO SUBSTRUCTURE
		M 8
095	A 6285730040	BRACKET
		DISTRIBUTOR
098	N 910105006012	SCREW
		DISTRIBUTOR TO BRACKET AT SUBSTRUCTURE
		M 6X40
	Repalced by: N 910143006006
098	N 910143006006	SCREW
		DISTRIBUTOR TO BRACKET AT SUBSTRUCTURE
		M 6X40
098	N 910105006008	SCREW
		DISTRIBUTOR TO BRACKET AT SUBSTRUCTURE
		M 6X25
101	N 913023006002	NUT
		DISTRIBUTOR TO BRACKET AT SUBSTRUCTURE
		M 6
	Repalced by: N 913023006001
101	N 913023006001	NUT
		DISTRIBUTOR TO BRACKET AT SUBSTRUCTURE
		M 6
104	A 0029952001	CLAMP
		LINE MOUNTING
		90X15
107	N 916016008200	CLAMP
		LINE MOUNTING
		8/15
107	N 916016010201	CLAMP
		LINE MOUNTING
		10/15
110	N 910105006008	SCREW
		LINE MOUNTING
		M 6X25
110	N 910105006012	SCREW
		LINE MOUNTING
		M 6X40
	Repalced by: N 910143006006
110	N 910143006006	SCREW
		LINE MOUNTING
		M 6X40
113	N 913023006002	NUT
		LINE MOUNTING
		M 6
	Repalced by: N 913023006001
113	N 913023006001	NUT
		LINE MOUNTING
		M 6
	A 0019978490	CABLE TIE
		LINE MOUNTING
		376X7.6
