Transporto priemonė: O 530 GN3 EURO 3; VIN numerio dalis: 628250

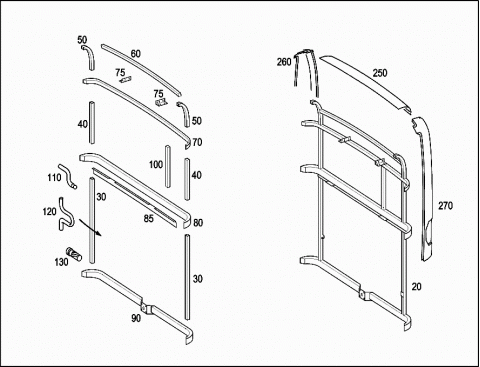

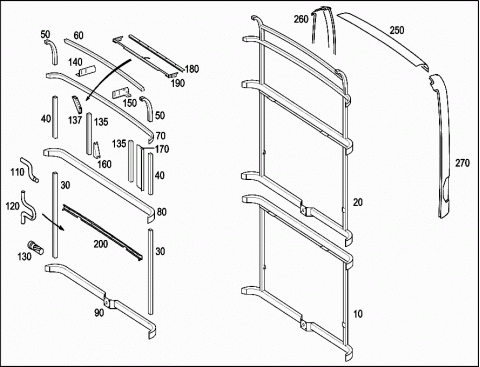

Grupė: 64 REAR PANEL
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 6286400901 | REAR PANEL |
| 020 | A 6286400501 | REAR PANEL |
| 020 | A 6286401101 | REAR PANEL |
| 020 | A 6286400701 | REAR PANEL |
| 030 | A 6286410710 | PILLAR |
| LEFT AND RIGHT | ||
| TO A6286400901 | ||
| 030 | A 6286410810 | PILLAR |
| LEFT AND RIGHT | ||
| 030 | A 6286410510 | PILLAR |
| LEFT AND RIGHT | ||
| 030 | A 6286410710 | PILLAR |
| LEFT AND RIGHT | ||
| 040 | A 6286410410 | PILLAR |
| LEFT AND RIGHT | ||
| 040 | A 6286410210 | PILLAR |
| LEFT AND RIGHT | ||
| 050 | A 6286410110 | PILLAR |
| LEFT AND RIGHT | ||
| 050 | A 6286410110 | PILLAR |
| LEFT AND RIGHT | ||
| 060 | A 6286421147 | CROSS MEMBER |
| 060 | A 6286421147 | CROSS MEMBER |
| 070 | A 6286421247 | CROSS MEMBER |
| 070 | A 6286401514 | CROSS MEMBER |
| 075 | A 6286420109 | BRACKET |
| LEFT AND RIGHT | ||
| 080 | A 6286401414 | CROSS MEMBER |
| TO A6286400901 | ||
| 080 | A 6286400614 | CROSS MEMBER |
| 080 | A 6286401414 | CROSS MEMBER |
| 085 | A 6286420312 | ANGLE |
| 085 | A 6286420318 | RAIL |
| 085 | A 6286420312 | ANGLE |
| 090 | A 6286401314 | CROSS MEMBER |
| TO A 6286400901 | ||
| 090 | A 6286401314 | CROSS MEMBER |
| 090 | A 6286400414 | CROSS MEMBER |
| 090 | A 6286401314 | CROSS MEMBER |
| 100 | A 6286400034 | STRUT |
| LEFT | ||
| 100 | A 6286410610 | PILLAR |
| LEFT | ||
| 110 | A 3576020214 | BRACKET |
| LEFT AND RIGHT | ||
| 110 | A 3576020214 | BRACKET |
| LEFT AND RIGHT | ||
| 120 | A 3576023132 | CONNECTION |
| LEFT AND RIGHT | ||
| 120 | A 3576023132 | CONNECTION |
| LEFT AND RIGHT | ||
| 130 | A 0039901397 | RIVETED NUT |
| LEFT AND RIGHT | ||
| 130 | A 0039901397 | RIVETED NUT |
| LEFT AND RIGHT | ||
| 135 | A 6286430020 | STRUT |
| LEFT AND RIGHT | ||
| 135 | A 6286430020 | STRUT |
| LEFT AND RIGHT | ||
| 135 | A 6286430020 | STRUT |
| 137 | A 6286430120 | STRUT |
| RIGHT | ||
| 140 | A 6286420109 | BRACKET |
| RIGHT | ||
| 140 | A 6286420109 | BRACKET |
| RIGHT | ||
| 150 | A 6286420309 | BRACKET |
| LEFT | ||
| 150 | A 6286420309 | BRACKET |
| LEFT | ||
| 150 | A 6286420309 | BRACKET |
| LEFT | ||
| 160 | A 6286430016 | REINFORCEMENT |
| RIGHT | ||
| 170 | A 6286420035 | GUSSET PLATE |
| LEFT | ||
| 170 | A 6286420035 | GUSSET PLATE |
| LEFT | ||
| 170 | A 6286420035 | GUSSET PLATE |
| LEFT | ||
| 170 | A 6286420035 | GUSSET PLATE |
| LEFT | ||
| 170 | A 6286401601 | COVER PLATE |
| LEFT | ||
| 180 | A 6286420512 | ANGLE |
| 180 | A 6286421212 | ANGLE |
| 190 | A 6288300714 | BRACKET |
| 190 | A 6288300714 | BRACKET |
| 190 | A 6286401701 | BRACKET |
| 200 | A 6286470105 | AIR BAFFLE |
| 250 | A 6286470206 | FRAME |
| 260 | A 6286470204 | PILLAR |
| RIGHT | ||
| 270 | A 6286470104 | PILLAR |
| LEFT | ||
| A 0009844621 | RIVETED NUT | |
| REAR |
