Transporto priemonė: O 530 GN3 EURO 3; VIN numerio dalis: 628250

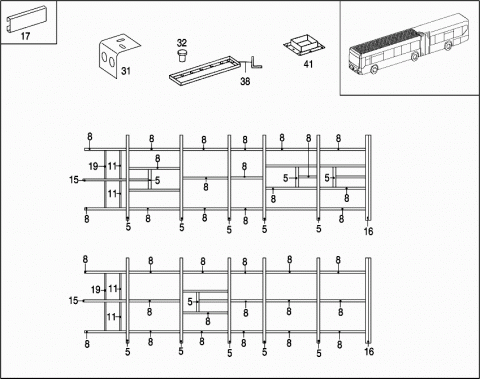

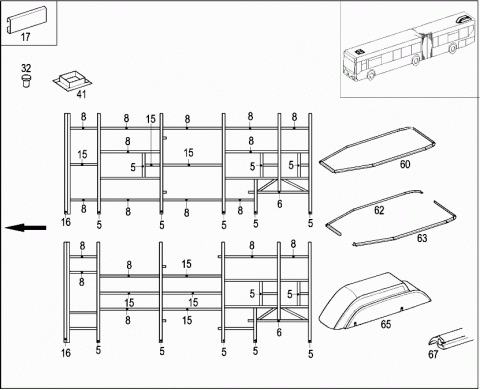

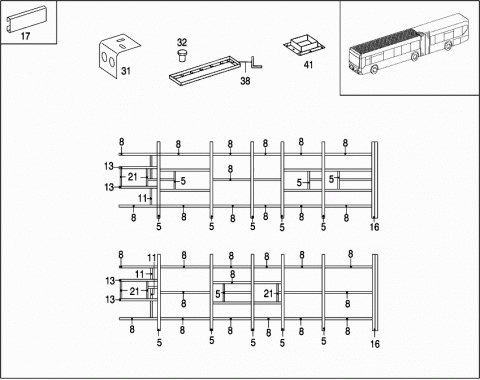

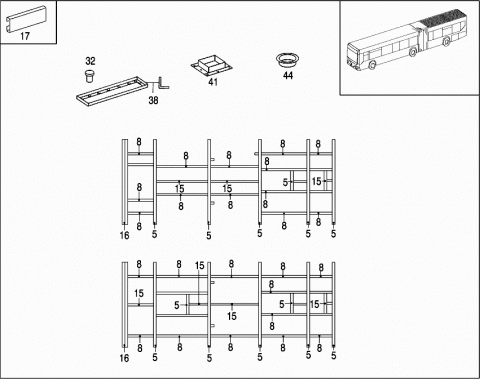

Grupė: 65 ROOF

#	Kodas	Pavadinimas
005	A 6286520102	ROOF BOW
		VEHICLE WIDTH
		2500 MM
005	A 6286520102	ROOF BOW
		VEHICLE WIDTH
		2500 MM
005	A 6286520102	ROOF BOW
		VEHICLE WIDTH
		2500 MM
005	A 6286520302	ROOF BOW
		VEHICLE WIDTH
		2550 MM
005	A 6286520302	ROOF BOW
		VEHICLE WIDTH
		2550 MM
005	A 6286520302	ROOF BOW
		VEHICLE WIDTH
		2550 MM
005	A 6286520302	ROOF BOW
		VEHICLE WIDTH
		2550 MM
005	A 6286520302	ROOF BOW
		VEHICLE WIDTH
		2550 MM
005	A 6286520302	ROOF BOW
		VEHICLE WIDTH
		2550 MM
005	A 6286520302	ROOF BOW
		VEHICLE WIDTH
		2550 MM
005	A 6286520302	ROOF BOW
		VEHICLE WIDTH
		2550 MM
006	A 6286521802	ROOF BOW
		VEHICLE WIDTH
		2550 MM
008	A 6286522501	ROOF BOW
		LONGITUDINAL BOW
		60 X 30 X 1.5 X 1813 MM
008	A 6286522501	ROOF BOW
		LONGITUDINAL BOW
		60 X 30 X 1.5 X 1813 MM
008	A 6286522501	ROOF BOW
		LONGITUDINAL BOW
		60 X 30 X 1.5 X 1813 MM
008	A 6286522501	ROOF BOW
		LONGITUDINAL BOW
		60 X 30 X 1.5 X 1813 MM
008	A 6286522501	ROOF BOW
		LONGITUDINAL BOW
		60 X 30 X 1.5 X 1813 MM
008	A 6286522501	ROOF BOW
		LONGITUDINAL BOW
		60 X 30 X 1.5 X 1813 MM
008	A 6286522501	ROOF BOW
		LONGITUDINAL BOW
		60 X 30 X 1.5 X 1813 MM
011	A 6286510202	ROOF RAIL
		30 X 30 X 2 X 757 MM
011	A 6286510202	ROOF RAIL
		30 X 30 X 2 X 757 MM
011	A 6286510202	ROOF RAIL
		30 X 30 X 2 X 757 MM
011	A 6286510202	ROOF RAIL
		30 X 30 X 2 X 757 MM
011	A 6286510202	ROOF RAIL
		30 X 30 X 2 X 757 MM
013	A 6286500021	ROOF BOW
		FRONT CARRIAGE,FRONT
		40 X 40 X 1.5 X 1385 MM
013	A 6286500021	ROOF BOW
		FRONT CARRIAGE,FRONT
		40 X 40 X 1.5 X 1385 MM
013	A 6286500021	ROOF BOW
		FRONT CARRIAGE,FRONT
		40 X 40 X 1.5 X 1385 MM
013	A 6286500021	ROOF BOW
		FRONT CARRIAGE,FRONT
015	A 6286524901	ROOF BOW
		60 X 40 X 1.5 X 1813MM
015	A 6286524901	ROOF BOW
		60 X 40 X 1.5 X 1813MM
015	A 6286524901	ROOF BOW
		60 X 40 X 1.5 X 1813MM
015	A 6286524901	ROOF BOW
		60 X 40 X 1.5 X 1813MM
015	A 6286524901	ROOF BOW
		60 X 40 X 1.5 X 1813 MM
015	A 6286524901	ROOF BOW
		60 X 40 X 1.5 X 1813 MM
015	A 6286524901	ROOF BOW
		60 X 40 X 1.5 X 1813 MM
016	A 6286500020	ROOF BOW
		VEHICLE WIDTH
		2550 MM
016	A 6286500020	ROOF BOW
		VEHICLE WIDTH
		2550 MM
016	A 6286500020	ROOF BOW
		VEHICLE WIDTH
		2550 MM
016	A 6286500020	ROOF BOW
		VEHICLE WIDTH
		2550 MM
016	A 6286500020	ROOF BOW
		VEHICLE WIDTH
		2550 MM
016	A 6286500020	ROOF BOW
		VEHICLE WIDTH
		2550 MM
016	A 6286500020	ROOF BOW
		VEHICLE WIDTH
		2550 MM
016	A 6286500120	ROOF BOW
		VEHICLE WIDTH
		2500 MM
016	A 6286500120	ROOF BOW
		VEHICLE WIDTH
		2500 MM
017	A 6286028118	RAIL
		LENGTH AVAILABLE:
		2460 MM
017	A 6286028118	RAIL
		LENGTH AVAILABLE:
		2460 MM
017	A 6286028118	RAIL
		LENGTH AVAILABLE:
		2460 MM
017	A 6286028118	RAIL
		LENGTH AVAILABLE:
		2460 MM
017	A 6286028118	RAIL
		LENGTH AVAILABLE:
		2460 MM
017	A 6286028118	RAIL
		LENGTH AVAILABLE:
		2460 MM
019	A 6286023719	BOW CROSS
019	A 6286023819	STRUT
		VEHICLE WIDTH
		2500 MM
021	A 6286523101	ROOF BOW
		40 X 40 X 1.5 X 1385MM
021	A 6286520902	ROOF BOW
		FRONT CARRIAGE,FRONT
		40 X 20 X 1.5 X 565 MM
021	A 6286520902	ROOF BOW
		FRONT CARRIAGE,FRONT
		40 X 20 X 1.5 X 565 MM
021	A 6286500021	ROOF BOW
021	A 6286500021	ROOF BOW
021	A 6286500021	ROOF BOW
031	A 6286520314	BRACKET
		CONDENSER TO STIFFENING
032	N 007337006104	RIVET
		6.4 X 12 MM
032	N 910001004102	RIVET
	Repalced by: A 0019904997
032	A 0019904997	RIVET
		4X9.45 MM
038	A 6286500265	FRAME
		AIR CONDITIONER
041	A 6286500001	ROOF RAIL
		DRIVER'S PLACE
044	A 6286570080	SCOOP
		EXHAUST
060	A 6286500465	FRAME
		REAR LEFT
062	A 6276570265	FRAME PART
063	A 6276570365	FRAME PART
065	A 6276950730	COVERING
		REAR LEFT
065	A 6286571033	COVERING
		REAR LEFT
067	A 0089878551	RUBBER SEAL
