Transporto priemonė: O 530 GN3 UESTRA E 2; VIN numerio dalis: 628202

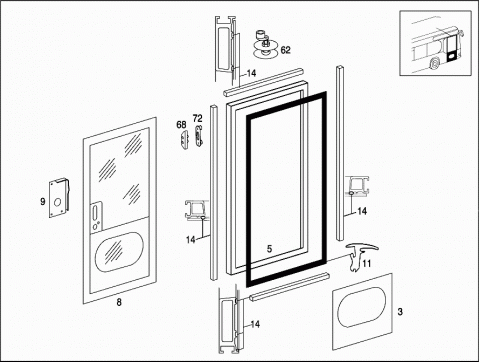

Grupė: 72 DOORS - 091 FRONT SWING-OUT DOOR ,MAKE BODE

#	Kodas	Pavadinimas
003	A 6287220009	PANELLING
005	A 6287200503	DOOR COMPLETE
008	A 0017253609	GLASS PANE
		FIXED
009	A 0007235108	COVERING
011	A 6287250620	WEATHERSTRIP
014	A 0029870133	RUBBER SECTION
		BETWEEN PANE AND DOOR WING

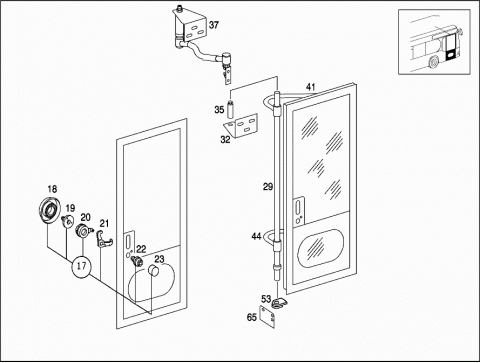

017	A 6287200666	FASTENER
		SQUARE LOCKING
017	A 6287201366	FASTENER
		TRIANGULAR LOCKING DEVICE,HOLLOW
017	A 6287201466	FASTENER
		TRIANGULAR LOCKING DEVICE,MANDREL
017	A 6287200566	FASTENER
		YMOS
018	A 0007640438	LEVER
		TO A 628 720 06 66
019	A 0007660063	DRIFT PIN
		TO A 628 720 06 66
020	A 0007350074	FOLLOWER
		TO A 628 720 06 66
021	A 3667230103	STRIKER
		TO A 628 720 06 66
022	A 0009888260	LOCK
		TO A 628 720 06 66
023	A 0007660535	CAP
		TO A 628 720 06 66
029	A 6287200865	CONTROL BAR
032	A 0007200927	MOUNTING
		SWIVEL BAR
035	A 0007230266	PIVOT PIN
		SWIVEL BAR
037	A 6287200292	ROD
041	A 0007608473	SUPPORTING ARM
		TOP
044	A 0007608573	SUPPORTING ARM
		BOTTOM
	A 0018205697	ELECTRICAL UNIT
	A 0007606303	DRIVE
053	A 3666910098	SEAL
	A 0007235208	COVERING
		BOTTOM
	A 0007235308	COVERING
		TOP
062	A 0008212863	PULSE SENDER UNIT
065	A 0007660905	PAD
065	A 0007661005	PAD
068	A 0007230403	STRIKER
		TOP
	A 0007231903	STRIKER
072	A 0007330386	CAM

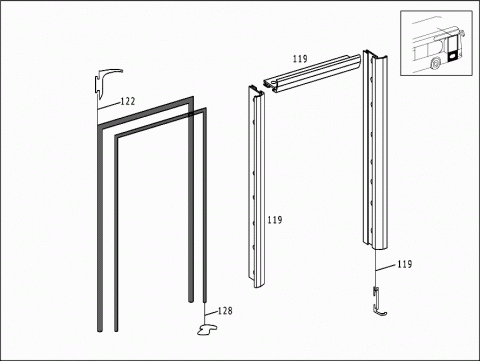

119	A 6287200008	FRAME
122	A 6287200078	WEATHERSTRIP
128	A 6287210180	SEAL
		OUTSIDE
		6500 MM
