Transporto priemonė: O 530 GN3 UESTRA E 2; VIN numerio dalis: 628202

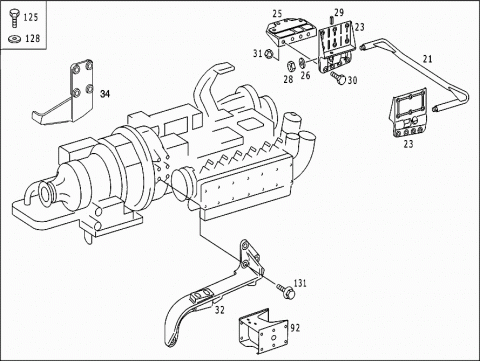

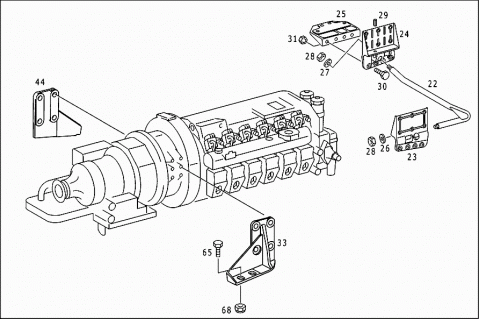

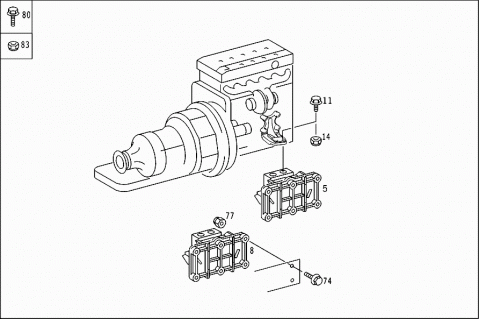

Grupė: 24 ENGINE SUSPENSION - 120 ENGINE REAR SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6282400717 | RUBBER MOUNTING |
| Repalced by: A 6282402017 | ||
| 005 | A 6282402017 | RUBBER MOUNTING |
| RIGHT | ||
| 005 | A 6282400917 | RUBBER MOUNTING |
| Repalced by: A 6282402317 | ||
| 005 | A 6282402317 | RUBBER MOUNTING |
| LEFT | ||
| 005 | A 6282401017 | RUBBER MOUNTING |
| Repalced by: A 6282402417 | ||
| 005 | A 6282402417 | RUBBER MOUNTING |
| LEFT | ||
| 005 | A 6282401017 | RUBBER MOUNTING |
| Repalced by: A 6282402417 | ||
| 005 | A 6282402417 | RUBBER MOUNTING |
| RIGHT | ||
| 005 | A 9412415713 | RUBBER MOUNTING |
| RIGHT | ||
| 005 | A 9412415813 | RUBBER MOUNTING |
| 005 | A 6282400217 | RUBBER MOUNTING |
| Repalced by: A 6282401817 | ||
| 005 | A 6282401817 | RUBBER MOUNTING |
| SUPPORTING ARM TO ENGINE REAR MOUNTING | ||
| 008 | A 6282400117 | RUBBER MOUNTING |
| Repalced by: A 6282401717 | ||
| 008 | A 6282401717 | RUBBER MOUNTING |
| FRONT | ||
| Repalced by: A 6282401817 | ||
| 008 | A 6282401817 | RUBBER MOUNTING |
| FRONT | ||
| 008 | A 6282401717 | RUBBER MOUNTING |
| FRONT | ||
| 011 | N 308676014012 | SCREW |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M 14X1.5X45 | ||
| Repalced by: N 000000005478 | ||
| 011 | N 000000005478 | SCREW |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M 14X1.5X45 | ||
| 011 | N 308676014012 | SCREW |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M 14X1.5X45 | ||
| Repalced by: N 000000005478 | ||
| 011 | N 000000005478 | SCREW |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M 14X1.5X45 | ||
| 011 | N 000000005713 | SCREW |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M 14X1.5X70 | ||
| 011 | N 000000005713 | SCREW |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M 14X1.5X70 | ||
| 011 | N 910105014010 | SCREW |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M 14X1.5X45 | ||
| Repalced by: N 000000005718 | ||
| 011 | N 000000005718 | SCREW |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M 14X1.5X45 | ||
| 011 | N 910105014010 | SCREW |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M 14X1.5X45 | ||
| Repalced by: N 000000005718 | ||
| 011 | N 000000005718 | SCREW |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M 14X1.5X45 | ||
| 011 | N 910105014019 | SCREW |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M 14X1.5X60 | ||
| Repalced by: N 000000005721 | ||
| 011 | N 000000005721 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M14X1.5X60 | ||
| 011 | N 910105014019 | SCREW |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M 14X1.5X60 | ||
| Repalced by: N 000000005721 | ||
| 011 | N 000000005721 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M14X1.5X60 | ||
| 014 | N 913023014003 | NUT |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M14X1.5 | ||
| Repalced by: N 000000005662 | ||
| 014 | N 000000005662 | NUT |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M 14 | ||
| Repalced by: N 913023014003 | ||
| 014 | N 913023014003 | NUT |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M14X1.5 | ||
| 014 | N 913023014003 | NUT |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M14X1.5 | ||
| Repalced by: N 000000005662 | ||
| 014 | N 000000005662 | NUT |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M 14 | ||
| Repalced by: N 913023014003 | ||
| 014 | N 913023014003 | NUT |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M14X1.5 | ||
| A 6282430032 | REINFORCEMENT | |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| A 6282430032 | REINFORCEMENT | |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| A 6282400332 | REINFORCEMENT | |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| 021 | A 6282400015 | BEARING TUBE |
| 021 | A 6282400015 | BEARING TUBE |
| 022 | A 6282400115 | BEARING TUBE |
| 023 | A 6282410035 | BEARING BRACKET |
| 023 | A 6282410035 | BEARING BRACKET |
| 024 | A 6282410135 | BEARING BRACKET |
| 024 | A 6282410135 | BEARING BRACKET |
| 025 | A 6282410002 | SUPPORT |
| 025 | A 6282410002 | SUPPORT |
| 026 | A 6282410076 | WASHER |
| 026 | A 6282410076 | WASHER |
| 027 | A 6282410176 | WASHER |
| 028 | A 0059902851 | NUT |
| 028 | A 0059902851 | NUT |
| 029 | N 000000002315 | ROLL PIN |
| 029 | N 000000002315 | ROLL PIN |
| 030 | N 910105016012 | SCREW |
| M 16X1.5X50 | ||
| Repalced by: N 000000005542 | ||
| 030 | N 000000005542 | SCREW |
| M 16X1.5X50 | ||
| 031 | N 913023016001 | NUT |
| M 16 | ||
| Repalced by: N 000000005738 | ||
| 031 | N 000000005738 | NUT |
| M 16 | ||
| 031 | N 913023016001 | NUT |
| M 16 | ||
| Repalced by: N 000000005738 | ||
| 031 | N 000000005738 | NUT |
| M 16 | ||
| 032 | A 6282400002 | ENGINE SUPPORT |
| LEFT | ||
| OM 906 | ||
| 033 | A 6282400001 | ENGINE SUPPORT |
| Repalced by: A 6282400005 | ||
| 033 | A 6282400005 | SUPPORTING ARM |
| LEFT | ||
| OM 457 | ||
| 034 | A 6282400102 | ENGINE SUPPORT |
| RIGHT | ||
| OM 906 | ||
| 044 | A 6282400101 | ENGINE SUPPORT |
| RIGHT | ||
| OM 457 | ||
| 065 | N 910105018024 | HEXAGON HEAD BOLT |
| ENGINE SUPPORT TO SUBSTRUCTURE | ||
| M18X1.5X60 | ||
| Repalced by: N 000000005564 | ||
| 065 | N 000000005564 | SCREW |
| ENGINE SUPPORT TO SUBSTRUCTURE | ||
| M18 X 1.5 X 60 MM | ||
| 065 | N 910105018024 | HEXAGON HEAD BOLT |
| ENGINE SUPPORT TO SUBSTRUCTURE | ||
| M18X1.5X60 | ||
| Repalced by: N 000000005564 | ||
| 065 | N 000000005564 | SCREW |
| ENGINE SUPPORT TO SUBSTRUCTURE | ||
| M18 X 1.5 X 60 MM | ||
| 068 | N 913023018002 | NUT |
| ENGINE SUPPORT TO SUBSTRUCTURE | ||
| M 18 | ||
| Repalced by: N 000000005739 | ||
| 068 | N 000000005739 | NUT |
| ENGINE SUPPORT TO SUBSTRUCTURE | ||
| M18X1.5 | ||
| 068 | N 913023018002 | NUT |
| ENGINE SUPPORT TO SUBSTRUCTURE | ||
| M 18 | ||
| Repalced by: N 000000005739 | ||
| 068 | N 000000005739 | NUT |
| ENGINE SUPPORT TO SUBSTRUCTURE | ||
| M18X1.5 | ||
| 074 | N 910105014005 | SCREW |
| ON SIDE PANEL,LEFT | ||
| M14 X 1.5 X 40 MM | ||
| Repalced by: N 000000005514 | ||
| 074 | N 000000005514 | SCREW |
| ON SIDE PANEL,LEFT | ||
| M14 X 1.5 X 40 MM | ||
| Repalced by: N 910105014005 | ||
| 074 | N 910105014005 | SCREW |
| ON SIDE PANEL,LEFT | ||
| M14 X 1.5 X 40 MM | ||
| 074 | N 910105014005 | SCREW |
| ON SIDE PANEL,LEFT | ||
| M14 X 1.5 X 40 MM | ||
| Repalced by: N 000000005514 | ||
| 074 | N 000000005514 | SCREW |
| ON SIDE PANEL,LEFT | ||
| M14 X 1.5 X 40 MM | ||
| Repalced by: N 910105014005 | ||
| 074 | N 910105014005 | SCREW |
| ON SIDE PANEL,LEFT | ||
| M14 X 1.5 X 40 MM | ||
| 077 | N 913023014003 | NUT |
| ON SIDE PANEL,LEFT | ||
| M14X1.5 | ||
| Repalced by: N 000000005662 | ||
| 077 | N 000000005662 | NUT |
| ON SIDE PANEL,LEFT | ||
| M 14 | ||
| Repalced by: N 913023014003 | ||
| 077 | N 913023014003 | NUT |
| ON SIDE PANEL,LEFT | ||
| M14X1.5 | ||
| 077 | N 913023014003 | NUT |
| ON SIDE PANEL,LEFT | ||
| M14X1.5 | ||
| Repalced by: N 000000005662 | ||
| 077 | N 000000005662 | NUT |
| ON SIDE PANEL,LEFT | ||
| Repalced by: N 913023014003 | ||
| 077 | N 913023014003 | NUT |
| ON SIDE PANEL,LEFT | ||
| M14X1.5 | ||
| 080 | N 910105018022 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO TRANSMISSION | ||
| M18X1.5X50 | ||
| Repalced by: N 000000005563 | ||
| 080 | N 000000005563 | SCREW |
| ENGINE MOUNTING TO TRANSMISSION | ||
| M 18X1.5X50 | ||
| 080 | N 910105018022 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO TRANSMISSION | ||
| M18X1.5X50 | ||
| Repalced by: N 000000005563 | ||
| 080 | N 000000005563 | SCREW |
| ENGINE MOUNTING TO TRANSMISSION | ||
| M 18X1.5X50 | ||
| 080 | N 910105018022 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO SUPPORTING ARM | ||
| M18X1.5X50 | ||
| Repalced by: N 000000005563 | ||
| 080 | N 000000005563 | SCREW |
| ENGINE MOUNTING TO SUPPORTING ARM | ||
| M 18X1.5X50 | ||
| 080 | N 910105018022 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO SUPPORTING ARM | ||
| M18X1.5X50 | ||
| Repalced by: N 000000005563 | ||
| 080 | N 000000005563 | SCREW |
| ENGINE MOUNTING TO SUPPORTING ARM | ||
| M 18X1.5X50 | ||
| 080 | N 910105014019 | SCREW |
| ENGINE MOUNTING TO SUBSTRUCTURE | ||
| M 14X1.5X60 | ||
| Repalced by: N 000000005721 | ||
| 080 | N 000000005721 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO SUBSTRUCTURE | ||
| M14X1.5X60 | ||
| 080 | N 910105014019 | SCREW |
| ENGINE MOUNTING TO SUBSTRUCTURE | ||
| M 14X1.5X60 | ||
| Repalced by: N 000000005721 | ||
| 080 | N 000000005721 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO SUBSTRUCTURE | ||
| M14X1.5X60 | ||
| 080 | N 910105014005 | SCREW |
| ENGINE MOUNTING TO SUBSTRUCTURE | ||
| M14 X 1.5 X 40 MM | ||
| Repalced by: N 000000005514 | ||
| 080 | N 000000005514 | SCREW |
| ENGINE MOUNTING TO SUBSTRUCTURE | ||
| M14 X 1.5 X 40 MM | ||
| Repalced by: N 910105014005 | ||
| 080 | N 910105014005 | SCREW |
| ENGINE MOUNTING TO SUBSTRUCTURE | ||
| M14 X 1.5 X 40 MM | ||
| 080 | N 910105014005 | SCREW |
| ENGINE MOUNTING TO SUBSTRUCTURE | ||
| M14 X 1.5 X 40 MM | ||
| Repalced by: N 000000005514 | ||
| 080 | N 000000005514 | SCREW |
| ENGINE MOUNTING TO SUBSTRUCTURE | ||
| M14 X 1.5 X 40 MM | ||
| Repalced by: N 910105014005 | ||
| 080 | N 910105014005 | SCREW |
| ENGINE MOUNTING TO SUBSTRUCTURE | ||
| M14 X 1.5 X 40 MM | ||
| 083 | N 913023014003 | NUT |
| ENGINE MOUNTING TO SUBSTRUCTURE | ||
| M14X1.5 | ||
| Repalced by: N 000000005662 | ||
| 083 | N 000000005662 | NUT |
| ENGINE MOUNTING TO SUBSTRUCTURE | ||
| M 14 | ||
| Repalced by: N 913023014003 | ||
| 083 | N 913023014003 | NUT |
| ENGINE MOUNTING TO SUBSTRUCTURE | ||
| M14X1.5 | ||
| 083 | N 913023014003 | NUT |
| ENGINE MOUNTING TO SUBSTRUCTURE | ||
| M14X1.5 | ||
| Repalced by: N 000000005662 | ||
| 083 | N 000000005662 | NUT |
| ENGINE MOUNTING TO SUBSTRUCTURE | ||
| M 14 | ||
| Repalced by: N 913023014003 | ||
| 083 | N 913023014003 | NUT |
| ENGINE MOUNTING TO SUBSTRUCTURE | ||
| M14X1.5 | ||
| 092 | A 6282400006 | CONSOLE |
| Repalced by: A 6282400406 | ||
| 092 | A 6282400406 | CONSOLE |
| VEHICLE WIDTH | ||
| 2.55 M | ||
| 092 | A 6282400006 | CONSOLE |
| Repalced by: A 6282400406 | ||
| 092 | A 6282400406 | CONSOLE |
| VEHICLE WIDTH | ||
| 2.55 M | ||
| 092 | A 6282400106 | CONSOLE |
| Repalced by: A 6282400306 | ||
| 092 | A 6282400106 | CONSOLE |
| Repalced by: A 6282400306 | ||
| 092 | A 6282400306 | CONSOLE |
| VEHICLE WIDTH | ||
| 2.50 M | ||
| 092 | A 6282400306 | CONSOLE |
| VEHICLE WIDTH | ||
| 2.50 M | ||
| 125 | N 910105018021 | HEXAGON HEAD BOLT |
| M18X1.5X40 | ||
| Repalced by: N 000000005562 | ||
| 125 | N 000000005562 | SCREW |
| M 18X1.5X40 | ||
| 125 | N 910105018021 | HEXAGON HEAD BOLT |
| M18X1.5X40 | ||
| Repalced by: N 000000005562 | ||
| 125 | N 000000005562 | SCREW |
| M 18X1.5X40 | ||
| 125 | N 910105018018 | SCREW |
| SUPPORTING ARM TO ENGINE REAR MOUNTING | ||
| M 18X1.5X45 | ||
| Repalced by: N 000000005559 | ||
| 125 | N 000000005559 | SCREW |
| SUPPORTING ARM TO ENGINE REAR MOUNTING | ||
| M 18X1.5X45 | ||
| 125 | N 910105018018 | SCREW |
| SUPPORTING ARM TO ENGINE REAR MOUNTING | ||
| M 18X1.5X45 | ||
| Repalced by: N 000000005559 | ||
| 125 | N 000000005559 | SCREW |
| SUPPORTING ARM TO ENGINE REAR MOUNTING | ||
| M 18X1.5X45 | ||
| 125 | N 910105018027 | SCREW |
| SUPPORTING ARM TO ENGINE REAR MOUNTING | ||
| M 18X1.5X80 | ||
| Repalced by: N 000000005724 | ||
| 125 | N 000000005724 | SCREW |
| SUPPORTING ARM TO ENGINE REAR MOUNTING | ||
| M 18X1.5X80 | ||
| 125 | N 910105018027 | SCREW |
| SUPPORTING ARM TO ENGINE REAR MOUNTING | ||
| M 18X1.5X80 | ||
| Repalced by: N 000000005724 | ||
| 125 | N 000000005724 | SCREW |
| SUPPORTING ARM TO ENGINE REAR MOUNTING | ||
| M 18X1.5X80 | ||
| 128 | N 009021019101 | WASHER |
| SUPPORTING ARM TO ENGINE REAR MOUNTING | ||
| 131 | N 910105016004 | SCREW |
| SUPPORTING ARM TO TRANSMISSION CASE | ||
| M 16X1.5X40 | ||
| 131 | N 910105016004 | SCREW |
| SUPPORTING ARM TO TRANSMISSION CASE | ||
| M 16X1.5X40 | ||
| Repalced by: N 000000005535 | ||
| 131 | N 000000005535 | SCREW |
| SUPPORTING ARM TO TRANSMISSION CASE | ||
| M 16X1.5X40 | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
