Transporto priemonė: O 530 GN3 UESTRA E 2; VIN numerio dalis: 628202

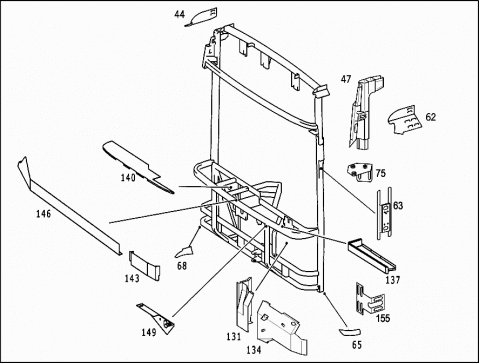

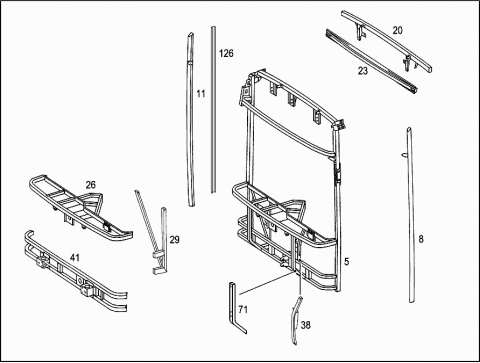

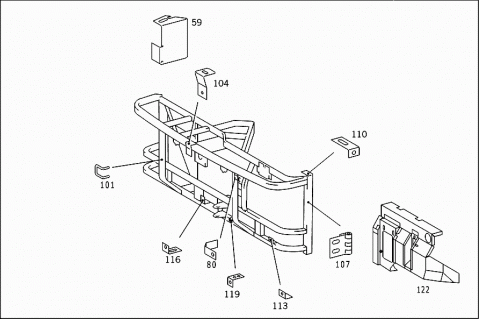

Grupė: 62 FRONT PANEL - 030 COWL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6286202705 | COWL |
| VEHICLE WIDTH | ||
| 2550 MM | ||
| 005 | A 6286203605 | COWL |
| VEHICLE WIDTH | ||
| 2550 MM | ||
| 008 | A 6286210310 | PILLAR |
| LEFT | ||
| 011 | A 6286210410 | PILLAR |
| RIGHT | ||
| 020 | A 6286200220 | BOW |
| VEHICLE WIDTH | ||
| 2550 MM | ||
| 023 | A 6286203130 | SUPPORT |
| VEHICLE WIDTH | ||
| 2550 MM | ||
| 026 | A 6286202630 | SUPPORT |
| VEHICLE WIDTH | ||
| 2550 MM | ||
| 026 | A 6286204530 | SUPPORT |
| VEHICLE WIDTH | ||
| 2550 MM | ||
| 029 | A 6286201630 | SUPPORT |
| 038 | A 6286200419 | STRUT |
| 041 | A 6286200486 | SUPPORT |
| VEHICLE WIDTH | ||
| 2550 MM | ||
| 044 | A 6286240212 | ANGLE |
| RIGHT | ||
| 047 | A 6286240505 | CONNECTION |
| LEFT | ||
| 059 | A 6286240305 | CONNECTION |
| 062 | A 6286240312 | ANGLE |
| LEFT | ||
| 063 | A 6286200515 | CONSOLE |
| 065 | A 6286280112 | ANGLE |
| LEFT INSIDE | ||
| 065 | A 6286280212 | ANGLE |
| LEFT OUTSIDE | ||
| 068 | A 6286280312 | ANGLE |
| RIGHT INSIDE | ||
| 068 | A 6286280412 | ANGLE |
| RIGHT OUTSIDE | ||
| 071 | A 6286220819 | STRUT |
| WINDOW SILL | ||
| 075 | A 6286201314 | BRACKET |
| RIGHT | ||
| 075 | A 6286201414 | BRACKET |
| LEFT | ||
| 080 | A 6286280214 | BRACKET |
| 101 | A 6286220032 | CLAMP |
| COWL FLAP | ||
| 104 | A 6286280326 | STAY |
| COWL FLAP | ||
| 107 | A 6286200051 | HINGE |
| 110 | A 6286210212 | ANGLE |
| TEST CONNECTION | ||
| 113 | A 3056141814 | BRACKET |
| 116 | A 6286120324 | BRACKET |
| TEMPERATURE SENSOR | ||
| 119 | A 3576026014 | BRACKET |
| 122 | A 6286201810 | PANELLING |
| LEFT | ||
| 126 | A 6286022435 | RAIL |
| FRONT RIGHT | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| PANELLING | ||
| 131 | A 6286200010 | PANELLING |
| 134 | A 6286200310 | PANELLING |
| PEDAL ASSEMBLY | ||
| 137 | A 6286261330 | COVERING |
| WINDOW SILL | ||
| 137 | A 6286262630 | COVERING |
| WINDOW SILL | ||
| 140 | A 6286261230 | COVERING |
| WINDOW SILL | ||
| 143 | A 6286260125 | PANELLING |
| LEFT | ||
| 146 | A 6286260025 | PANELLING |
| RIGHT | ||
| 149 | A 6286270108 | COVERING |
| LEFT WINDSHIELD WIPER | ||
| 149 | A 6286270208 | COVERING |
| RIGHT WINDSHIELD WIPER | ||
| 155 | A 6287510012 | ANGLE |
| LEFT AND RIGHT |
