Transporto priemonė: O 530 GN3 UESTRA E 2; VIN numerio dalis: 628202

Grupė: 48 OIL TANK

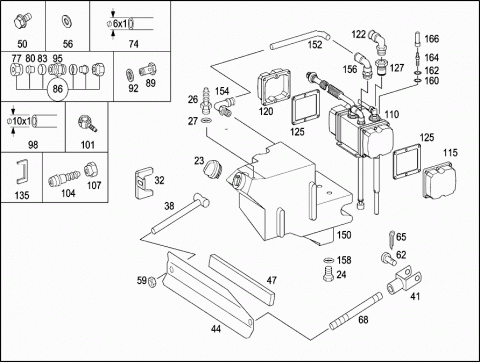

#	Kodas	Pavadinimas

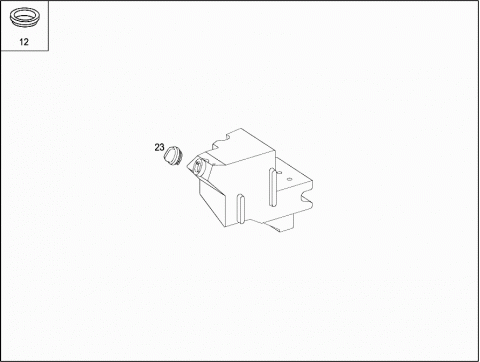

012	A 1109870644	EXPANSION PLUG
023	A 0000180702	FILLER CAP
		LESS VENT
024	N 007604012100	SCREW PLUG
		M12X1,5
026	N 915059004000	FITTING
027	A 0005510790	O-RING
	A 6285400017	SENDER UNIT
032	A 6284800040	BRACKET
		OIL TANK
038	A 6284800140	BRACKET
		BRACKET TO OIL TANK
041	A 6209960001	YOKE
044	A 6284810044	PLATE
		LONG
044	A 6284810144	PLATE
		SHORT
047	A 3578961097	PAD
047	A 3058960497	PAD
050	N 910105008041	SCREW
		M8X16MM
056	N 000433008400	WASHER
		8,4MM
059	N 910112008001	HEXAGON NUT
		OIL TANK TO SUBSTRUCTURE
		M8
062	N 001444008228	PIN
		OIL TANK TO SUBSTRUCTURE
065	N 000094002069	COTTER PIN
		OIL TANK TO SUBSTRUCTURE
068	N 900331008471	PULL ROD
	A 0004810291	VALVE
		(SOLENOID VALVE)
074	A 0009872627	PLASTIC PIPE
		CONNECTION TO ENGINE
		4X6X1MM
077	N 915017006100	UNION NUT
080	N 003861006007	GLAND
083	N 915062004000	SLEEVE
086	A 0039979172	FITTING
		(PARTS KIT),LINE RUPTURE
089	N 915036010108	HOLLOW SCREW
		CONNECTION TO ENGINE
092	N 007603018101	SEAL RING
		CONNECTION TO ENGINE
		18X22-CU
092	N 007603014102	SEAL RING
		CONNECTION TO ENGINE
		14X18-CU
095	N 915027000000	FITTING
		CONNECTION TO ENGINE
098	A 0019970652	PLASTIC PIPE
		10X1MM
101	N 915052008000	BANJO UNION
		LINE CONNECTION
104	A 0019974972	FITTING
107	N 915017010200	UNION NUT
110	A 6285400145	CONTROL UNIT
115	A 0004810011	COVER
		BLACK
120	A 0004810111	COVER
		TRANSPARENT
122	A 0029976071	ELBOW FITTING
125	A 0179970145	FULL FACE GASKET
127	A 0009970322	VALVE
135	A 6284810082	RUBBER MAT
150	A 6284800001	OIL TANK
		ENGINE OIL AUTOMATIC REPLENISHMENT
150	A 6284800301	OIL TANK
		ENGINE OIL AUTOMATIC REPLENISHMENT
152	A 0004800018	BREATHER LINE
154	A 0004810067	CONNECTOR
		TOP
156	A 0004810167	CONNECTOR
		BOTTOM
158	A 0129973645	SEAL RING
160	A 0189975245	SEAL RING
162	A 0189975345	SEAL RING
164	A 0009904816	THREADED PIN
166	A 0039928801	BUSHING
