Mercedes-benz | iAUTO.lt

Transporto priemonė: O 530 GN3 UESTRA E 2; VIN numerio dalis: 628202

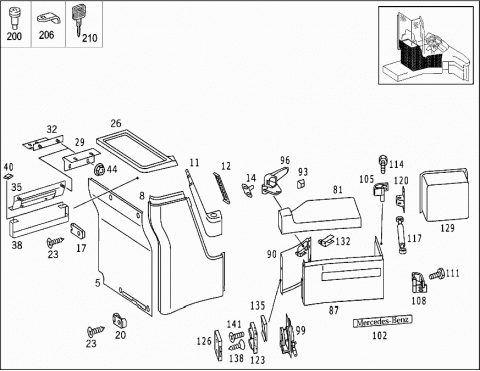

Grupė: 71 PARTITION PANELS - 120 DRIVER'S PARTITION PANEL

#	Kodas	Pavadinimas
005	A 6287140110	PANELLING
		ELECTRICAL COMPARTMENT, BEHIND DRIVER'S PLACE
		FAHRZEUGBREITE 2550 MM
008	A 6287140010	PANELLING
		ELECTRICAL COMPARTMENT LATERAL, BEHIND DRIVER'S PLACE
011	A 6287100124	COVERING
		TO COVERING
012	A 0008311860	NOZZLE
		DRIVER VENTILATION FROM REAR
014	A 6287100000	DOOR FITTING ASSEMBLY
		AT COVERING
017	A 1409942045	LOCK
		COVERING TO COVERING
020	A 0029943945	LOCK
		COVERING TO COVERING
023	N 914127004217	SHEET METAL SCREW
		COVERING TO COVERING
026	A 6287150008	COVERING
		BEHIND DRIVER'S SEAT
029	A 6286950051	HINGE
		COVERING TO COVERING
032	A 6287100336	BRACKET
		HINGE
035	A 6287100436	BRACKET
		HINGE
038	A 6286025414	BRACKET
040	A 0019878440	RUBBER BUFFER
		AT BRACKET
044	N 913017004000	NUT
		MOUNTING, COVER
044	N 910104004000	NUT
		MOUNTING, COVER
047	A 6287100167	COUNTER
		INTERIOR DOOR UPPER PART
048	A 6287100057	COVER
		TILL
	A 0008401302	VALUABLES COMPARTMENT
	A 0007100535	LOCK
	A 0007110121	END PIECE
	A 0007110114	BRACKET
	A 0007110078	DETENT
	A 0007110084	LATCH
	A 0007150062	GUIDE
075	A 0009882563	SNAP LOCK
		LOWER PART
078	A 0009882663	SNAP LOCK
		UPPER PART
081	A 6287160225	PANELLING
		INTERIOR DOOR UPPER PART
084	A 6289110137	COVERING
		INTERIOR DOOR INSIDE
087	A 6287100118	PANELLING
		INTERIOR DOOR OUTSIDE
090	A 6287100218	PANELLING
		INTERIOR DOOR INSIDE
093	A 0019878040	RUBBER BUFFER
		INTERIOR DOOR INSIDE
096	A 6287180064	HANDLE
		INTERIOR DOOR INSIDE
099	A 3567500850	LOCK
102	A 6288170016	BADGE
		INTERIOR DOOR OUTSIDE
105	A 6287180051	HINGE
		TOP
108	A 6287180151	HINGE
		BOTTOM
111	N 910143008001	SCREW
		HINGE TO BODY
		M8X20
114	N 910143008000	SCREW
		HINGE TO BODY
		M8X16
117	A 0009880020	VIBRATION ABSORBER
120	A 6286024814	BRACKET
		MUFFLER
123	A 0007430139	GUIDE
		BOTTOM
126	A 0007430039	GUIDE
		BOTTOM
129	A 6287160264	POCKET
		INTERIOR DOOR INSIDE
132	A 6287160414	BRACKET
		DOOR POCKET
135	A 2029940045	LOCK
		BRACKET MOUNTING
138	N 000000000529	SHEET METAL SCREW
		BRACKET MOUNTING
141	N 007983004256	SHEET METAL SCREW
		BRACKET MOUNTING
144	A 6287112810	GLASS PANE
		DRIVER'S PARTITION PANEL
147	A 6288310512	ANGLE
		DRIVER'S PARTITION PANEL
150	A 0006950342	ADHESIVE FASTENER
		GLASS PANE TO BODY
156	A 6287150208	COVERING
		AIR INTAKE DRIVER'S WORKING PLACE
159	A 6287150508	COVERING
		INSIDE TOP LEFT
159	A 6287150508	COVERING
		INSIDE TOP LEFT
162	A 6286900214	BRACKET
162	A 6286900214	BRACKET
168	A 3579916440	SPACER TUBE
		TO GLASS PANE,BOTTOM
171	N 000965005013	SCREW
		TO GLASS PANE,BOTTOM
174	A 6289870170	RUBBER SECTION
		TO GLAS PANE,LATERAL
177	A 0008142301	CLOTHES-HOOK
180	A 6288156755	GRIP RAIL
		DRIVER'S PLACE
183	A 6288152014	BRACKET
		TOP GRIP RAIL
	Repalced by: A 6288151314
183	A 6288151314	BRACKET
		TOP GRIP RAIL
186	A 0007110028	COVERING
		TOP
189	A 6287100019	ANGLE
		GRIP RAIL MOUNTING
200	A 0009885660	LOCK
206	A 6286950043	LATCH
210	A 0009880259	KEY
		Y-MOS TO A0009885660
900	A 4608100254	HANDLE
		TO GLASS PANE,BOTTOM
900	A 6328100354	HANDLE
		TO GLASS PANE,BOTTOM
		MODULAR 330LG
905	A 0009800041	END PIECE
		TO A 632 810 03 54
910	A 6328150036	METAL SECTION
		TO A 632 810 03 54
915	A 6329110097	INSERT
		TO A 632 810 03 54
920	A 0009902111	SCREW
		M8 X 25 MM / TO A 632 810 03 54
