Transporto priemonė: O 530 GN3 UESTRA E 2; VIN numerio dalis: 628202

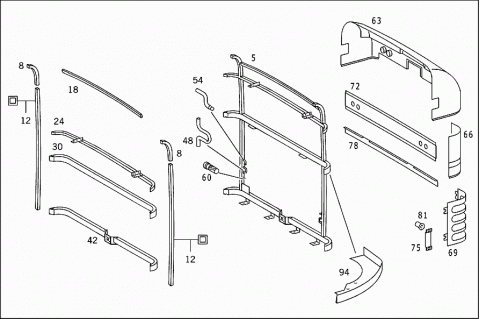

Grupė: 64 REAR PANEL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6286400601 | REAR PANEL |
| VEHICLE WIDTH | ||
| 2550 MM | ||
| 005 | A 6286400801 | REAR PANEL |
| VEHICLE WIDTH | ||
| 2550 MM | ||
| 008 | A 6286410110 | PILLAR |
| 008 | A 6286410110 | PILLAR |
| 012 | A 6286321840 | SUPPORT |
| 012 | A 6286321840 | RECTANGULAR TUBE |
| 018 | A 6286421147 | CROSS MEMBER |
| VEHICLE WIDTH | ||
| 2550 MM | ||
| 018 | A 6286421147 | CROSS MEMBER |
| VEHICLE WIDTH | ||
| 2550 MM | ||
| 024 | A 6286420947 | CROSS MEMBER |
| VEHICLE WIDTH | ||
| 2550 MM | ||
| 024 | A 6286420947 | CROSS MEMBER |
| VEHICLE WIDTH | ||
| 2550 MM | ||
| 030 | A 6286400614 | CROSS MEMBER |
| VEHICLE WIDTH | ||
| 2550 MM | ||
| 030 | A 6286400614 | CROSS MEMBER |
| VEHICLE WIDTH | ||
| 2550 MM | ||
| 042 | A 6286400414 | CROSS MEMBER |
| VEHICLE WIDTH | ||
| 2550 MM | ||
| 042 | A 6286400414 | CROSS MEMBER |
| VEHICLE WIDTH | ||
| 2550 MM | ||
| 048 | A 3576023132 | CONNECTION |
| 048 | A 3576023132 | CONNECTION |
| 054 | A 3576020214 | BRACKET |
| 054 | A 3576020214 | BRACKET |
| 060 | A 0009849719 | WELDED PINS |
| 060 | A 0009849719 | WELDED PINS |
| 063 | A 6286400204 | ROOF RAIL |
| VEHICLE WIDTH | ||
| 2550 MM | ||
| 066 | A 6286470404 | PILLAR |
| LEFT AND RIGHT | ||
| 069 | A 6288200112 | COVERING |
| LEFT TAIL LAMP | ||
| 069 | A 6288200212 | COVERING |
| RIGHT TAIL LAMP | ||
| 072 | A 6286470001 | PANELLING |
| CENTRAL | ||
| 075 | A 6286470012 | ANGLE |
| 078 | A 6286420518 | RAIL |
| 081 | A 0039901397 | RIVET |
| 094 | A 6288360041 | COVERING |
| USED WITH AIR CONDITIONER |
