Transporto priemonė: O 530 G -CNG; VIN numerio dalis: 628220

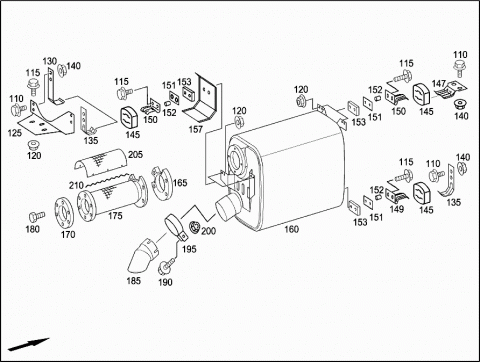

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 110 | N 910105010009 | HEXAGON HEAD BOLT |
| M10X25MM | ||
| 115 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25MM | ||
| 120 | N 913023008003 | NUT |
| M8 | ||
| 125 | A 6284910115 | CONSOLE |
| ON ENGINE SUPPORT | ||
| 130 | A 6284910041 | BRACKET |
| EXHAUST MUFFLER TO CONSOLE | ||
| 135 | A 6204926241 | BRACKET |
| EXHAUST MUFFLER TO CONSOLE | ||
| 140 | N 913023010002 | NUT |
| M10 | ||
| 145 | A 3004920082 | DAMPING PAD |
| EXHAUST MUFFLER SUSPENSION | ||
| 147 | A 3014910015 | CONSOLE |
| EXHAUST MUFFLER SUSPENSION | ||
| 149 | A 6284910415 | CONSOLE |
| EXHAUST MUFFLER SUSPENSION | ||
| 150 | A 3014910215 | CONSOLE |
| EXHAUST MUFFLER SUSPENSION | ||
| 151 | A 3014910118 | PLATE |
| EXHAUST MUFFLER SUSPENSION | ||
| 152 | A 3014910053 | SPACER TUBE |
| EXHAUST MUFFLER SUSPENSION | ||
| 153 | A 3004910183 | INSULATION |
| EXHAUST MUFFLER SUSPENSION | ||
| 153 | A 3004910283 | INSULATION |
| EXHAUST MUFFLER SUSPENSION | ||
| 157 | A 6284910030 | PROTECTIVE PLATE |
| EXHAUST MUFFLER SUSPENSION | ||
| 160 | A 6284901914 | CATALYST |
| 165 | A 6284920080 | FLANGE GASKET |
| 170 | A 6284920180 | FLANGE GASKET |
| 175 | A 6284900265 | FLEXIBLE METAL TUBE |
| EXHAUST GAS TURBOCHARGER CONNECTION | ||
| 180 | A 0129900601 | SCREW |
| M10X25MM | ||
| 185 | A 6284900310 | EXHAUST PIPE |
| AT MUFFLER | ||
| 190 | A 0109904401 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| M12X60MM | ||
| 195 | A 3574921540 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 114,5 MM | ||
| 200 | A 0049905351 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| M12 | ||
| 200 | A 0049905651 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| M12 | ||
| 205 | A 6284920083 | INSULATION |
| 210 | A 0009881073 | WIRE |
