Transporto priemonė: O 530 G -CNG; VIN numerio dalis: 628220

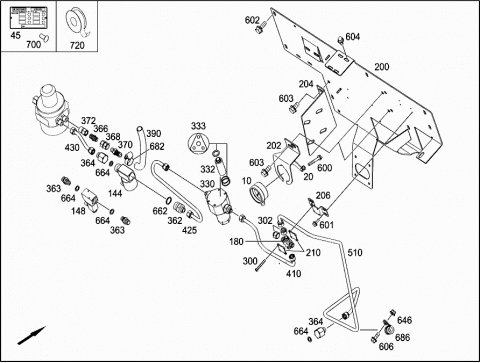

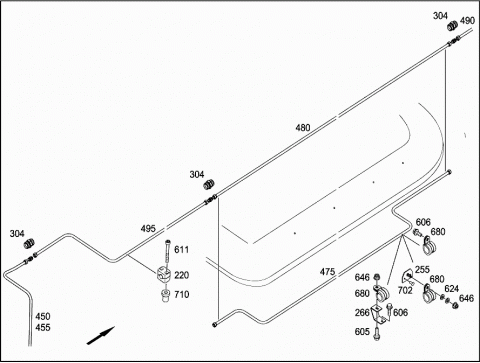

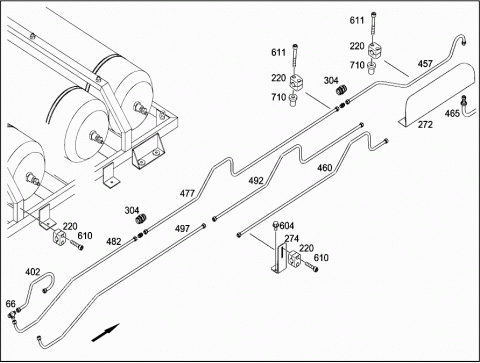

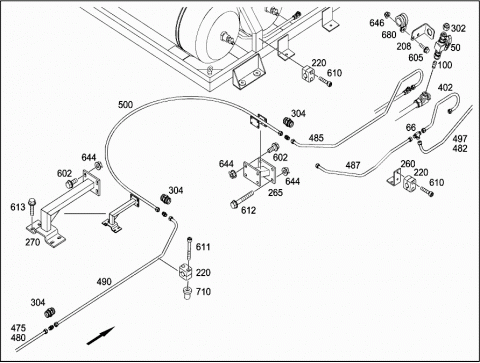

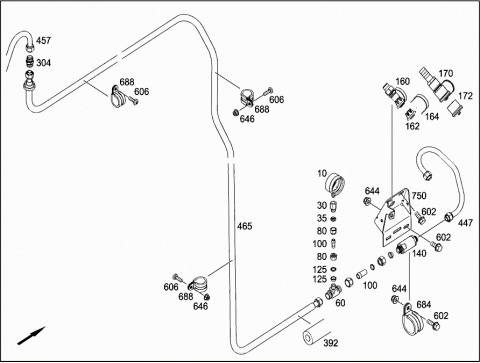

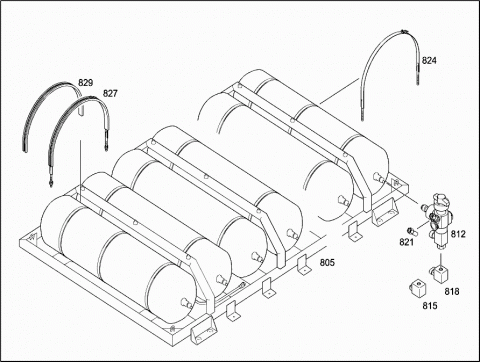

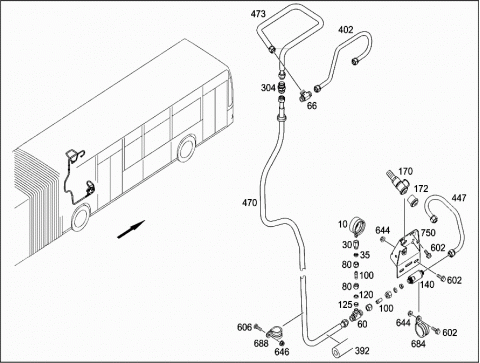

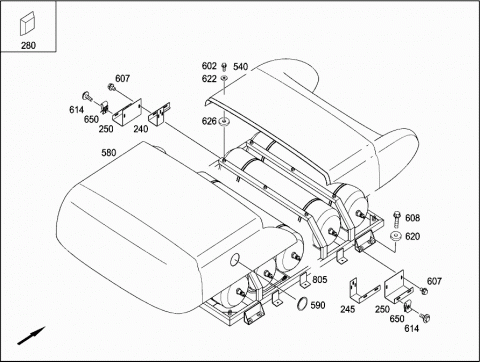

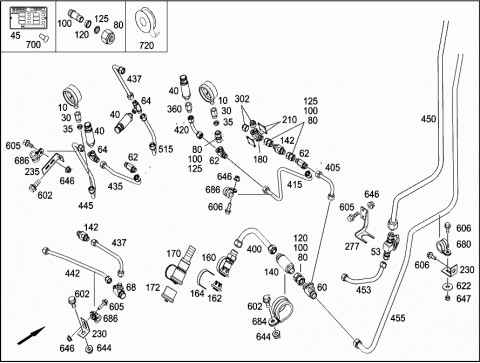

Grupė: 47 FUEL SYSTEM - 270 L.P. GAS SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 0005833147 | TIRE GAUGE |
| 010 | A 0005833147 | TIRE GAUGE |
| 020 | A 0004760037 | BRACKET |
| PRESSURE GAUGE | ||
| 020 | A 0004760037 | BRACKET |
| PRESSURE GAUGE | ||
| 030 | A 0039901868 | FITTING |
| PRESSURE GAUGE CONNECTION | ||
| 030 | A 0039901868 | FITTING |
| PRESSURE GAUGE CONNECTION | ||
| 035 | A 0009977049 | GASKET |
| PRESSURE GAUGE CONNECTION | ||
| 035 | A 0009977049 | GASKET |
| PRESSURE GAUGE CONNECTION | ||
| 040 | A 0045420218 | PRESSURE SENSOR |
| 040 | A 0045420218 | PRESSURE SENSOR |
| 045 | A 6285840146 | GUIDE SIGN |
| 050 | A 0004761290 | COCK |
| 050 | A 0004761290 | COCK |
| 053 | A 0019978435 | BALL VALVE |
| 060 | A 0039908670 | T-FITTING |
| 16/10/16 | ||
| 060 | A 0039908670 | T-FITTING |
| 16/10/16 | ||
| 062 | A 0039902970 | T-FITTING |
| 10/10/10 | ||
| 064 | A 0039908770 | T-FITTING |
| 064 | A 0039908770 | T-FITTING |
| 066 | A 0049901070 | T-FITTING |
| 066 | A 0049901070 | T-FITTING |
| 068 | A 0019973174 | T-PIECE |
| 080 | A 0019904354 | NUT |
| LINE DIA., | ||
| 16 MM | ||
| 080 | A 0019903954 | NUT |
| LINE DIA., | ||
| 10 MM | ||
| 080 | A 0019903954 | NUT |
| LINE DIA., | ||
| 10 MM | ||
| 100 | A 0009901766 | INTERMEDIATE PIECE |
| LINE DIA., | ||
| 16 MM | ||
| 100 | A 0009901766 | INTERMEDIATE PIECE |
| LINE DIA., | ||
| 16 MM | ||
| 100 | A 0009901366 | INTERMEDIATE PIECE |
| LINE DIA., | ||
| 10 MM | ||
| 100 | A 0009901366 | INTERMEDIATE PIECE |
| LINE DIA., | ||
| 10 MM | ||
| 100 | A 0009901366 | INTERMEDIATE PIECE |
| FROM BALL COCK TO T-FITTING | ||
| 10 MM | ||
| 100 | A 0009901366 | INTERMEDIATE PIECE |
| FROM BALL COCK TO T-FITTING | ||
| 10 MM | ||
| 120 | A 0019906067 | SEAL CONE |
| LINE DIA., | ||
| 16 MM | ||
| 120 | A 0019905967 | SEAL CONE |
| LINE DIA., | ||
| 16 MM | ||
| 120 | A 0019905367 | CLAMPING RING |
| LINE DIA., | ||
| 10 MM | ||
| 125 | A 0019905367 | CLAMPING RING |
| LINE DIA., | ||
| 10 MM | ||
| 125 | A 0019905567 | CLAMPING RING |
| LINE DIA., | ||
| 10 MM | ||
| 125 | A 0019905567 | CLAMPING RING |
| LINE DIA., | ||
| 10 MM | ||
| 140 | A 0004706293 | VALVE |
| TVR5 | ||
| 140 | A 0004706293 | VALVE |
| TVR5 | ||
| 142 | A 0004706193 | VALVE |
| TVR1 | ||
| 144 | A 0004765632 | VALVE |
| (SOLENOID VALVE) | ||
| Repalced by: A 0014764232 | ||
| 144 | A 0014764232 | SOLENOID VALVE |
| (SOLENOID VALVE) | ||
| 144 | A 0004765632 | VALVE |
| (SOLENOID VALVE) | ||
| Repalced by: A 0014764232 | ||
| 144 | A 0014764232 | SOLENOID VALVE |
| (SOLENOID VALVE) | ||
| 148 | A 0014764232 | SOLENOID VALVE |
| (SOLENOID VALVE) | ||
| 160 | A 0004705993 | FILLING VALVE |
| NGV1 | ||
| 162 | A 0009982723 | PROTECTIVE CAP |
| 164 | A 0009950992 | CABLE BAND HOLDER |
| 170 | A 0004706093 | FILLING VALVE |
| NGV2 | ||
| 172 | A 0009820809 | CAP |
| 180 | A 0049902470 | CROSS FITTING |
| 10/10/10/10 | ||
| 180 | A 0049902470 | CROSS FITTING |
| 10/10/10/10 | ||
| 200 | A 6284700141 | MOUNTING PLATE |
| 200 | A 6284700441 | MOUNTING PLATE |
| 200 | A 6284700441 | MOUNTING PLATE |
| 202 | A 6284765936 | BRACKET |
| 202 | A 6284765936 | BRACKET |
| 204 | A 6284766036 | BRACKET |
| 204 | A 6284766036 | BRACKET |
| 206 | A 6284766236 | BRACKET |
| 206 | A 6284766236 | BRACKET |
| 208 | A 6284766336 | BRACKET |
| 208 | A 6284766336 | BRACKET |
| 210 | A 6284761041 | PLATE |
| 210 | A 6284761041 | PLATE |
| 220 | A 3574762936 | BRACKET |
| 220 | A 3574762936 | BRACKET |
| 220 | A 3574762936 | BRACKET |
| 230 | A 3058211714 | BRACKET |
| 230 | A 3058211714 | BRACKET |
| 235 | A 3056148014 | BRACKET |
| 235 | A 3056148014 | BRACKET |
| 240 | A 6288510214 | BRACKET |
| 245 | A 6288510314 | BRACKET |
| 250 | A 6288510014 | BRACKET |
| 250 | A 6288510414 | BRACKET |
| 255 | A 6288300914 | BRACKET |
| 260 | A 6284761836 | BRACKET |
| 260 | A 6284761836 | BRACKET |
| 265 | A 6284700381 | BRACKET |
| 265 | A 6284700381 | BRACKET |
| 266 | A 6284769036 | BRACKET |
| 270 | A 6284700481 | BRACKET |
| 270 | A 6284700481 | BRACKET |
| 272 | A 6284760046 | DEFLECTOR |
| 274 | A 6284768236 | BRACKET |
| 277 | A 6284751427 | BRACKET |
| 280 | A 0019878440 | RUBBER BUFFER |
| 300 | A 0039908112 | SCREW |
| 300 | A 0039908112 | SCREW |
| 302 | A 0019904712 | SCREW |
| 302 | A 0019904712 | SCREW |
| 302 | A 0019904712 | SCREW |
| 304 | A 0039904571 | ELBOW FITTING |
| 16/16 | ||
| 304 | A 0039904571 | ELBOW FITTING |
| 16/16 | ||
| 330 | A 0004701090 | FUEL FILTER |
| TSF4 | ||
| 330 | A 0004701090 | FUEL FILTER |
| 332 | A 6284770015 | FILTER ELEMENT |
| 332 | A 6284770015 | FILTER ELEMENT |
| 333 | A 6284700185 | GASKET |
| GASKET KIT | ||
| 333 | A 6284700185 | GASKET |
| GASKET KIT | ||
| 360 | A 0019977071 | FITTING |
| 362 | A 0049906170 | FITTING |
| AT SOLENOID VALVE | ||
| 362 | A 0049906170 | FITTING |
| AT SOLENOID VALVE | ||
| 363 | A 0039906170 | FITTING |
| AT SOLENOID VALVE | ||
| 364 | A 0039903770 | FITTING |
| AT SOLENOID VALVE | ||
| 364 | A 0039903770 | FITTING |
| AT SOLENOID VALVE | ||
| 366 | A 0059900170 | FITTING |
| 366 | A 0059900170 | FITTING |
| 368 | A 0059900270 | FITTING |
| 368 | A 0059900270 | FITTING |
| 370 | A 0049905870 | FITTING |
| 370 | A 0049905870 | FITTING |
| 372 | A 6289970271 | FITTING |
| 372 | A 6289970271 | FITTING |
| 390 | A 0004767626 | HOSE |
| BREATHER LINE | ||
| 390 | A 0004767626 | HOSE |
| BREATHER LINE | ||
| 392 | A 0018321523 | INSULATING HOSE |
| 392 | A 0018321523 | INSULATING HOSE |
| 400 | A 6284702473 | LINE |
| 402 | A 6284704473 | GAS PIPE |
| 402 | A 6284704473 | GAS PIPE |
| 405 | A 6284703173 | LINE |
| 410 | A 6284702973 | LINE |
| 410 | A 6284702973 | LINE |
| 415 | A 6284703073 | LINE |
| 420 | A 6284701773 | LINE |
| 425 | A 6284700573 | LINE |
| 425 | A 6284700573 | LINE |
| 430 | A 6284700973 | LINE |
| TO A0004765632 | ||
| 430 | A 6284700973 | LINE |
| TO A0004765632 | ||
| 430 | A 6284709173 | GAS PIPE |
| TO A0014764232 | ||
| 435 | A 6284706873 | LINE |
| 437 | A 6284705473 | GAS PIPE |
| 437 | A 6284705473 | GAS PIPE |
| 442 | A 6284707173 | GAS PIPE |
| 445 | A 6284706973 | LINE |
| 447 | A 6284703373 | GAS PIPE |
| 447 | A 6284703373 | GAS PIPE |
| 450 | A 6284706773 | GAS PIPE |
| 453 | A 6284706673 | GAS PIPE |
| 455 | A 6284701573 | LINE |
| 457 | A 6284707773 | GAS PIPE |
| 460 | A 6284704673 | GAS PIPE |
| 465 | A 6284706373 | GAS PIPE |
| 470 | A 6284708873 | GAS PIPE |
| 473 | A 6284709073 | GAS PIPE |
| 475 | A 6284701373 | LINE |
| WITH AIR CONDITIONER | ||
| WEBASTO | ||
| 475 | A 6284702573 | LINE |
| WITH AIR CONDITIONER | ||
| KONVEKTA | ||
| 475 | A 6284707473 | LINE |
| WITH AIR CONDITIONER | ||
| KONVEKTA | ||
| 475 | A 6284707273 | LINE |
| WITH AIR CONDITIONER | ||
| KONVEKTA | ||
| 477 | A 6284705973 | GAS PIPE |
| 480 | A 6284702173 | LINE |
| LESS AIR CONDITIONER | ||
| 482 | A 6284705873 | GAS PIPE |
| 485 | A 6284702373 | LINE |
| 487 | A 6284704373 | GAS PIPE |
| 487 | A 6284704373 | GAS PIPE |
| 490 | A 6284701673 | LINE |
| 490 | A 6284701673 | LINE |
| 492 | A 6284707873 | GAS PIPE |
| 495 | A 6284701473 | LINE |
| 495 | A 6284707573 | LINE |
| 495 | A 6284707573 | LINE |
| 497 | A 6284704573 | GAS PIPE |
| 500 | A 0004702575 | FUEL HOSE |
| WITH 1 AIR CHAMBER | ||
| 510 | A 6284702873 | LINE |
| 515 | A 6284707073 | GAS PIPE |
| 540 | A 6288500237 | COVERING |
| GAS BOTTLE UNIT;5 BOTTLES | ||
| 540 | A 6288500337 | COVERING |
| GAS BOTTLE UNIT;6 BOTTLES | ||
| 540 | A 6288500437 | COVERING |
| GAS BOTTLE UNIT;7 BOTTLES | ||
| 540 | A 6288500537 | COVERING |
| GAS BOTTLE UNIT;8 BOTTLES | ||
| 580 | A 6288501137 | COVERING |
| REAR | ||
| 590 | A 1166900027 | COVER |
| 600 | N 910105005005 | HEXAGON HEAD BOLT |
| M5X35-8.8 | ||
| 601 | N 910105005000 | HEXAGON HEAD BOLT |
| M5X12-8.8 | ||
| 602 | N 000000000276 | SCREW |
| M8X20 | ||
| 602 | N 910105008026 | HEXAGON HEAD BOLT |
| M 8X20 | ||
| 602 | N 910105008039 | HEXAGON HEAD BOLT |
| M 8X25 | ||
| 603 | N 000000003853 | HEXALOBULAR BOLT |
| M8X16-8.8 | ||
| 604 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12-8.8 | ||
| 604 | N 910105006004 | HEXAGON HEAD BOLT |
| M6X16 | ||
| 605 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20-8.8 | ||
| 605 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20-8.8 | ||
| 606 | N 910105006004 | HEXAGON HEAD BOLT |
| M6X16 | ||
| Repalced by: N 910143006001 | ||
| 606 | N 910143006001 | HEXALOBULAR BOLT |
| M6X16 | ||
| 606 | N 910105006008 | HEXAGON HEAD BOLT |
| M6X25 | ||
| 606 | N 000000001147 | HEXALOBULAR BOLT |
| M6X20 | ||
| 607 | N 910105006007 | HEXAGON HEAD BOLT |
| M6X10-8.8 | ||
| 607 | N 000912006045 | SCREW |
| M 6X 40 | ||
| 608 | N 910105012021 | HEXAGON HEAD BOLT |
| M12X1,5X 50-10.9 | ||
| 610 | N 000912006063 | SCREW |
| M6X30-8.8 | ||
| 610 | N 000912006045 | SCREW |
| M6X40 | ||
| 611 | N 000912006076 | SCREW |
| M6X50-8.8 | ||
| 612 | N 910143008019 | HEXALOBULAR BOLT |
| M8X60-8.8 | ||
| 613 | N 910105008016 | HEXAGON HEAD BOLT |
| M8X30-8.8 | ||
| 614 | N 914007006065 | SCREW-AND-WASHER ASSEMBLY |
| M6X20-8.8 | ||
| 620 | A 6259900340 | WASHER |
| 40-12,5X8 MM | ||
| 622 | N 000000003250 | WASHER |
| 624 | N 000125006449 | WASHER |
| 626 | A 6284740052 | SPACER WASHER |
| 40-14X6 MM | ||
| 644 | N 910112008000 | NUT |
| M8- 8 | ||
| 644 | N 913023008003 | NUT |
| M8- 8 | ||
| 646 | N 913023006002 | NUT |
| M6- 8 | ||
| 646 | N 913023006002 | NUT |
| M 6- 8 | ||
| 646 | N 910112006001 | HEXAGON NUT |
| 647 | N 910113006000 | HEXAGON NUT |
| M6- 8 | ||
| 650 | A 0009906391 | SOCKET NUT |
| M6 | ||
| 662 | N 007603021100 | SEALING RING |
| AT SOLENOID VALVE | ||
| 21X26 | ||
| 664 | N 007603012106 | SEALING RING |
| AT SOLENOID VALVE | ||
| 12X18 | ||
| 664 | A 0259970045 | FLAT SEALING RING |
| AT SOLENOID VALVE | ||
| CU 13X18,7X1,3 | ||
| 680 | N 916016016200 | CLAMP |
| 16/15 | ||
| 680 | N 916016016200 | CLAMP |
| 16/15 | ||
| 680 | N 000000000323 | CLAMP |
| 16/15 | ||
| Repalced by: A 0019950842 | ||
| 680 | A 0019950842 | MOUNTING CLAMP |
| 16/15 | ||
| 680 | A 0019950842 | MOUNTING CLAMP |
| 16/15 | ||
| 682 | N 000000000666 | CLAMP |
| ATTACHMENT OF VENT LINE | ||
| 16-27X13 | ||
| 684 | N 916016035201 | CLAMP |
| 35/20 | ||
| 684 | N 000000005975 | CLAMP |
| 35/ 20 | ||
| 686 | N 000000000320 | CLAMP |
| 10/15 | ||
| Repalced by: N 000000007511 | ||
| 686 | N 000000007511 | CLAMP |
| 10/15 | ||
| 688 | N 000000000326 | CLAMP |
| 22/ 15 | ||
| Repalced by: A 0019951442 | ||
| 688 | A 0019951442 | MOUNTING CLAMP |
| 22/ 15 | ||
| 700 | N 910001003100 | RIVET |
| 3,2X7,49 | ||
| 702 | N 910001004102 | RIVET |
| 4X9,45 | ||
| 710 | A 0009845521 | RIVETED NUT |
| M6 | ||
| 710 | A 0009845521 | RIVETED NUT |
| M6 | ||
| 720 | A 0029891998 | SEALING STRIP |
| 6X14600 MM | ||
| 750 | A 6284750203 | CONSOLE |
| 750 | A 6284750203 | CONSOLE |
| 805 | A 6284702609 | L.P. GAS SYSTEM |
| GAS BOTTLE UNIT;6 BOTTLES | ||
| 805 | A 6284702709 | L.P. GAS SYSTEM |
| GAS BOTTLE UNIT;7 BOTTLES | ||
| Repalced by: A 6284703409 | ||
| 805 | A 6284703409 | FUEL TANK SYSTEM |
| GAS BOTTLE UNIT;7 BOTTLES | ||
| Repalced by: A 6284704409 | ||
| 805 | A 6284704409 | FUEL TANK SYSTEM |
| GAS BOTTLE UNIT;7 BOTTLES | ||
| 805 | A 6284702809 | L.P. GAS SYSTEM |
| GAS BOTTLE UNIT;8 BOTTLES | ||
| Repalced by: A 6284703509 | ||
| 805 | A 6284703509 | L.P. GAS SYSTEM |
| GAS BOTTLE UNIT;8 BOTTLES | ||
| 805 | A 6284703809 | FUEL TANK SYSTEM |
| 9 FLASCHEN | ||
| 805 | A 6284704709 | FUEL TANK SYSTEM |
| 9 FLASCHEN | ||
| 805 | A 6284704309 | FUEL TANK SYSTEM |
| GAS BOTTLE UNIT;6 BOTTLES | ||
| 805 | A 6284704409 | FUEL TANK SYSTEM |
| GAS BOTTLE UNIT;7 BOTTLES | ||
| 805 | A 6284704509 | FUEL TANK SYSTEM |
| GAS BOTTLE UNIT;8 BOTTLES | ||
| 812 | A 0014763632 | SOLENOID VALVE |
| 812 | A 0014763532 | SOLENOID VALVE |
| 812 | A 0014763732 | SOLENOID VALVE |
| 812 | A 0014763132 | SOLENOID VALVE |
| 815 | A 0009800003 | SOLENOID |
| 818 | A 0009800103 | SOLENOID |
| 821 | A 0014763232 | SOLENOID VALVE |
| FUSE LINK | ||
| 824 | A 0009840103 | RETAINING STRAP |
| 827 | A 0039953101 | FASTENING CLAMP |
| 827 | A 0009840003 | TS RETAINING STRAP |
| 829 | A 0009835194 | ELASTIC BAND |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
