Transporto priemonė: O 530 G -CNG; VIN numerio dalis: 628220
Grupė: 48 OIL TANK

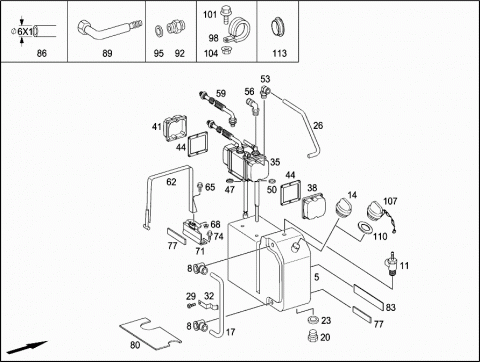

59218
# Kodas Pavadinimas
005 A 6284801401 OIL TANK
GROENEVELD
008 A 6284800025 ELBOW FITTING
011 A 6284800125 ELBOW FITTING
014 A 0000180702 FILLER CAP
LESS VENT
017 A 0109976482 PLASTIC PIPE
020 N 007604018109 SCREW PLUG, FILLING
M18X1.5
023 N 007603018104 SEALING RING
18X24-CU
026 A 0109976982 PLASTIC PIPE
029 N 000912004016 SCREW
M4X8
032 A 6284811740 BRACKET
035 A 6285400745 CONTROL UNIT
038 A 0004810011 COVER
041 A 0004810111 COVER
044 A 0179970145 FULL FACE GASKET
047 A 0179972645 SEAL RING
050 A 0179972545 SEAL RING
053 A 0279970182 BANJO UNION
056 A 0029976071 ELBOW FITTING
059 A 0035401505 CABLE HARNESS
062 A 6284800121 RETAINING STRAP
065 N 910105008016 HEXAGON HEAD BOLT
M8X30
068 N 913023008003 NUT
M8
071 A 6284811140 BRACKET
074 N 910105008026 HEXAGON HEAD BOLT
M8X20
077 A 6284810582 ELASTOMER BEARING
120X20X5MM
080 A 6284810382 ELASTOMER BEARING
302X167X5MM
083 A 6284810482 ELASTOMER BEARING
240X39X5MM
086 A 0009872627 PLASTIC PIPE
089 A 6284801615 OIL LINE
092 N 915027000000 FITTING
M18X1.5
095 N 007603018101 SEALING RING
18X22-CU
098 N 000000000320 CLAMP
10/15MM
Repalced by: N 000000007511
098 N 000000007511 CLAMP
10/15MM
098 N 000000000324 CLAMP
18/15MM
Repalced by: A 0019951042
098 A 0019951042 MOUNTING CLAMP
18/15MM
098 N 000000000350 CLAMP
38/20MM
Repalced by: N 000000007515
098 N 000000007515 CLAMP
38/20MM
101 N 910105006006 HEXAGON HEAD BOLT
M6X20
104 N 913023006002 NUT
M6
107 A 0000181102 CAP
WITH CHAIN
110 A 0000180180 GASKET
113 A 1109870644 EXPANSION PLUG
