Transporto priemonė: O 530 G EURO 4; VIN numerio dalis: 628290

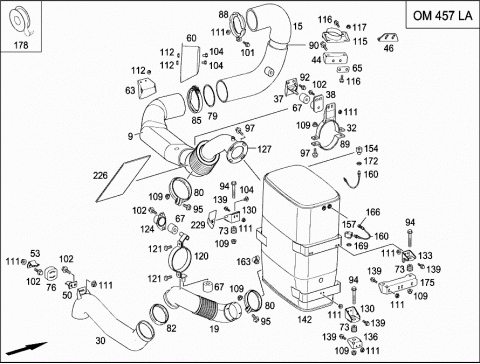

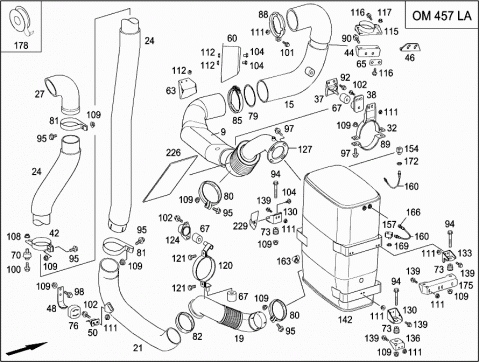

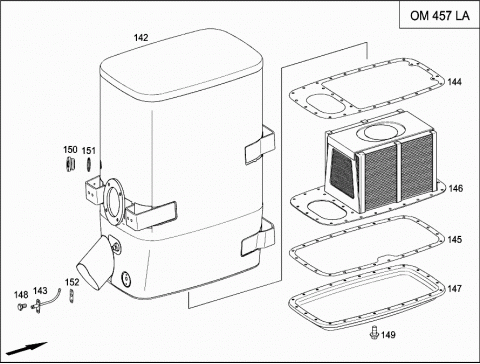

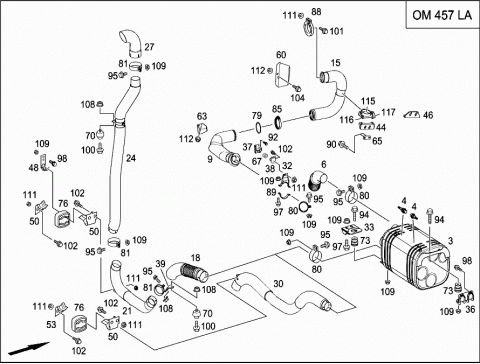

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 0004904414 | CATALYST |
| 003 | A 0014906514 | CATALYTIC CONVERTER |
| 004 | A 0061530328 | SENDER UNIT |
| TEMPERATURE SENSOR,EXHAUST | ||
| 004 | A 0061530528 | SENDER UNIT |
| TEMPERATURE SENSOR,EXHAUST | ||
| 006 | A 6284900116 | FRONT MUFFLER |
| 009 | A 6284904221 | EXHAUST PIPE |
| 009 | A 6284904221 | EXHAUST PIPE |
| 009 | A 6284905021 | EXHAUST LINE |
| 015 | A 6284903219 | EXHAUST PIPE |
| 015 | A 6284903219 | EXHAUST PIPE |
| 015 | A 6284904319 | FLAME TUBE |
| 015 | A 6284904519 | FLAME TUBE |
| 018 | A 6284904021 | EXHAUST PIPE |
| 018 | A 6284904621 | EXHAUST PIPE |
| 019 | A 6284901410 | EXHAUST PIPE |
| 021 | A 6284901010 | EXHAUST PIPE |
| 021 | A 6284901110 | EXHAUST PIPE |
| 021 | A 6284901110 | EXHAUST PIPE |
| 021 | A 6284901310 | EXHAUST PIPE |
| 024 | A 6284900910 | EXHAUST PIPE |
| 024 | A 6284901210 | EXHAUST PIPE |
| 024 | A 6284901210 | EXHAUST PIPE |
| 027 | A 6284920414 | TAILPIPE |
| 030 | A 6284901027 | TAILPIPE |
| 030 | A 6284902127 | TAILPIPE |
| 030 | A 6284902827 | TAILPIPE |
| 032 | A 6284902840 | BRACKET |
| 033 | A 6284903740 | BRACKET |
| CATALYST SUSPENSION | ||
| 033 | A 6284903740 | BRACKET |
| Repalced by: A 6284905440 | ||
| 033 | A 6284905440 | BRACKET |
| 033 | A 6284905440 | BRACKET |
| CATALYST SUSPENSION | ||
| 036 | A 6284903840 | BRACKET |
| CATALYST SUSPENSION | ||
| 036 | A 6284903840 | BRACKET |
| Repalced by: A 6284905540 | ||
| 036 | A 6284905540 | BRACKET |
| 036 | A 6284905540 | BRACKET |
| CATALYST SUSPENSION | ||
| 037 | A 6284904040 | BRACKET |
| 038 | A 6284904140 | BRACKET |
| 039 | A 6284920442 | BRACKET |
| 042 | A 6454920440 | CLAMP |
| 044 | A 6284925441 | BRACKET |
| 044 | A 6284925441 | BRACKET |
| 046 | A 6284926142 | BRACKET |
| 048 | A 6204926241 | BRACKET |
| 048 | A 6204926241 | BRACKET |
| 050 | A 6284910415 | CONSOLE |
| 050 | A 6284910415 | CONSOLE |
| 050 | A 6284910415 | CONSOLE |
| 053 | A 3014910215 | CONSOLE |
| 060 | A 6284920030 | PROTECTIVE PLATE |
| 063 | A 6284920330 | PROTECTIVE PLATE |
| 065 | A 6284921218 | BASE PLATE |
| 065 | A 6284921218 | BASE PLATE |
| 067 | A 0009872143 | RUBBER BUSHING |
| D=50X45MM | ||
| 070 | A 0032371012 | BUFFER |
| 073 | A 0009980246 | INSULATION |
| CATALYST SUSPENSION | ||
| 073 | A 0009980246 | INSULATION |
| Repalced by: A 0009980846 | ||
| 073 | A 0009980846 | DASHPOT |
| 073 | A 0009980846 | DASHPOT |
| CATALYST SUSPENSION | ||
| 073 | A 0009980846 | DASHPOT |
| CATALYST SUSPENSION | ||
| 076 | A 3004920082 | DAMPING PAD |
| 079 | A 6284920480 | FLANGE GASKET |
| 080 | A 6554920140 | CLAMP |
| D=124,5MM | ||
| 080 | A 6554920140 | CLAMP |
| 081 | A 6289950802 | CLAMP |
| 082 | A 0019953902 | PIPE CLAMP |
| Repalced by: A 0019954302 | ||
| 082 | A 0019954302 | PIPE CLAMP |
| 085 | A 0004921440 | CLAMP |
| EXHAUST SYSTEM | ||
| 088 | A 9429970290 | CLAMP |
| 089 | A 6289950901 | CLAMP |
| 090 | N 910105016013 | HEXAGON HEAD BOLT |
| M16X1.5X30 | ||
| Repalced by: N 000000005543 | ||
| 090 | N 000000005543 | HEXAGON HEAD BOLT |
| M16X1.5X30 | ||
| 090 | N 000000005543 | HEXAGON HEAD BOLT |
| M16X1.5X30 | ||
| 092 | N 910105012002 | HEXAGON HEAD BOLT |
| M12X25 | ||
| 092 | N 910105012013 | HEXAGON HEAD BOLT |
| M12X1.5X25 | ||
| 094 | N 910105010003 | HEXAGON HEAD BOLT |
| CATALYST SUSPENSION | ||
| M10X60 | ||
| 095 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35 | ||
| 095 | N 910105012020 | HEXAGON HEAD BOLT |
| M12X1.5X35 | ||
| 097 | N 910105010009 | HEXAGON HEAD BOLT |
| M10X25 | ||
| 098 | N 910105010006 | HEXAGON HEAD BOLT |
| M10X20 | ||
| 100 | N 910105010006 | HEXAGON HEAD BOLT |
| M10X20 | ||
| 100 | N 910105010040 | HEXAGON HEAD BOLT |
| M10X16 | ||
| 101 | N 910105008017 | HEXAGON HEAD BOLT |
| M8X45 | ||
| 102 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 104 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12 | ||
| 108 | N 910112010001 | NUT |
| M10 | ||
| 109 | N 913023010002 | NUT |
| M10 | ||
| 109 | N 913023012002 | NUT |
| M12X1,5 | ||
| 111 | N 913023008003 | NUT |
| M8 | ||
| 112 | N 913023006002 | NUT |
| M6 | ||
| 115 | A 6284902340 | BRACKET |
| 116 | N 910105010009 | HEXAGON HEAD BOLT |
| M10X25 | ||
| 117 | N 913023010002 | NUT |
| M10 | ||
| 120 | A 6284904940 | BRACKET |
| 121 | N 304017010040 | HEXAGON HEAD BOLT |
| M10X25 | ||
| 124 | A 6284904840 | BRACKET |
| 127 | A 6284900616 | FRONT MUFFLER |
| Repalced by: A 6284900716 | ||
| 127 | A 6284900716 | FRONT MUFFLER |
| 130 | A 6284906540 | BRACKET |
| 133 | A 6284905040 | BRACKET |
| 136 | A 6284924142 | BRACKET |
| 139 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 142 | A 0014902714 | CATALYST |
| 142 | A 0014908014 | CATALYTIC CONVERTER |
| Repalced by: A 0014907914 | ||
| 142 | A 0014907914 | CATALYTIC CONVERTER |
| 143 | A 0004900213 | NOZZLE |
| REDUCING AGENT | ||
| Repalced by: A 0004900513 | ||
| 143 | A 0004900513 | INJECTION NOZZLE ADDITIVE |
| REDUCING AGENT | ||
| 144 | A 0004900180 | GASKET |
| 145 | A 0004900380 | GASKET |
| 146 | A 0004902592 | PARTICLE FILTER |
| 146 | A 0004902792 | PARTICULATE FILTER |
| 147 | A 0004910203 | BOTTOM |
| 147 | A 0004910303 | FLOOR |
| 148 | A 0019904000 | SCREW |
| M6X12 | ||
| 149 | A 0169902301 | SCREW |
| M8X14.5 | ||
| 150 | A 0019900217 | SCREW |
| M20X8 | ||
| 151 | N 007603020101 | SEALING RING |
| 20X24MM-CU | ||
| 152 | A 0004921080 | SINGLE LAYER METAL SEAL |
| TO A 000 490 02 13 | ||
| 154 | A 6284922118 | BASE PLATE |
| 157 | A 6284922218 | BASE PLATE |
| 160 | A 0049975052 | HOSE |
| 163 | A 0009975870 | CONNECTION FITTING |
| 166 | A 0009976570 | CONNECTION FITTING |
| 169 | N 080705022001 | NUT |
| M22X1.5 | ||
| Repalced by: N 000000006644 | ||
| 169 | N 000000006644 | NUT |
| M22X1.5 | ||
| 172 | N 080705024002 | NUT |
| M24X1.5 | ||
| Repalced by: N 000000005915 | ||
| 172 | N 000000005915 | NUT |
| M24X1.5 | ||
| 175 | A 6284906240 | BRACKET |
| 178 | A 0029891998 | SEALING STRIP |
| 181 | A 0001400539 | METERING DEVICE |
| ADBLUE | ||
| 184 | A 0001400594 | SOOT FILTER |
| 187 | A 0001400030 | NOZZLE |
| HEATED | ||
| 190 | A 0189979245 | SEAL RING |
| 193 | A 0029973671 | FITTING |
| 196 | N 000000001390 | SEALING RING |
| 10X13,5MM-CU | ||
| 199 | A 0001420050 | BUSHING |
| 202 | A 0009950083 | BRACKET |
| PLUG | ||
| 205 | A 0029971271 | FITTING |
| 208 | A 0169974945 | SEALING RING |
| 211 | A 6281400255 | DELIVERY LINE |
| 214 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16MM | ||
| 217 | N 910105008064 | HEXAGON HEAD BOLT |
| M8X65MM | ||
| 220 | N 913023008003 | NUT |
| M8 | ||
| 223 | N 916016010203 | CLAMP |
| 10/20MM | ||
| Repalced by: N 000000006221 | ||
| 223 | N 000000006221 | CLAMP |
| 10/20MM | ||
| 226 | A 6284900530 | HEAT SHIELD |
| 229 | A 6284900230 | PROTECTIVE PLATE |
