Transporto priemonė: O 530 G EURO 4; VIN numerio dalis: 628290

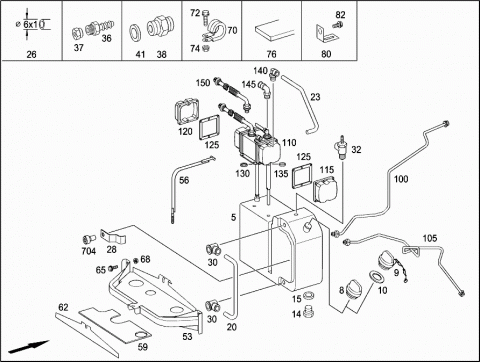

Grupė: 48 OIL TANK
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6284801401 | OIL TANK |
| ENGINE OIL AUTOMATIC REPLENISHMENT | ||
| GROENEVELD | ||
| 008 | A 0000180702 | FILLER CAP |
| LESS BREATHING | ||
| 009 | A 0000181102 | CAP |
| WITH CHAIN | ||
| 010 | A 0000180180 | GASKET |
| 014 | N 007604018109 | SCREW PLUG, FILLING |
| AT OIL TANK | ||
| M18X1.5 | ||
| 015 | N 007603018104 | SEALING RING |
| AT OIL TANK | ||
| 18X24-CU | ||
| 020 | A 0109976482 | PLASTIC PIPE |
| AT OIL TANK | ||
| 10X1MM | ||
| 020 | A 0019970652 | PLASTIC PIPE |
| FROM FEED LINE TO ENGINE | ||
| 10X1MM | ||
| 023 | A 0109976982 | PLASTIC PIPE |
| PIPE LINE TO CONTROL UNIT | ||
| 8X1MM | ||
| 026 | A 0009872627 | PLASTIC PIPE |
| BREATHER LINE | ||
| 6X1MM | ||
| 028 | A 6284811740 | BRACKET |
| 029 | N 000912004016 | SCREW |
| M4X8 | ||
| 030 | A 6284800025 | ELBOW FITTING |
| 032 | A 6284800125 | ELBOW FITTING |
| 036 | A 0019974972 | FITTING |
| 037 | N 915017010200 | NUT |
| BL10 | ||
| 038 | N 915027000000 | FITTING |
| CONNECTION TO ENGINE | ||
| M18X1.5 | ||
| Repalced by: N 000000006152 | ||
| 038 | N 000000006152 | FITTING |
| CONNECTION TO ENGINE | ||
| M18X1.5 | ||
| 041 | N 007603018101 | SEALING RING |
| CONNECTION TO ENGINE | ||
| 18X22-CU | ||
| 053 | A 6284800540 | BRACKET |
| OIL TANK | ||
| 056 | A 6284800221 | STRAP |
| OIL TANK | ||
| 059 | A 6284810882 | RUBBER MAT |
| ON BRACKET | ||
| 062 | A 6284810982 | RUBBER MOUNTING |
| ON BRACKET | ||
| 065 | N 910105010006 | HEXAGON HEAD BOLT |
| M10X20 | ||
| 068 | N 913023010002 | NUT |
| M10 | ||
| 070 | N 916016010203 | CLAMP |
| TO ENGINE | ||
| 10/20MM | ||
| Repalced by: N 000000006221 | ||
| 070 | N 000000006221 | CLAMP |
| TO ENGINE | ||
| 10/20MM | ||
| Repalced by: N 000000007529 | ||
| 070 | N 000000007529 | CLAMP |
| TO ENGINE | ||
| 10/20MM | ||
| 070 | N 000000000320 | CLAMP |
| TO ENGINE | ||
| 10/15MM | ||
| Repalced by: N 000000007511 | ||
| 070 | N 000000007511 | CLAMP |
| TO ENGINE | ||
| 10/15MM | ||
| 070 | A 0029953101 | CLAMP |
| Repalced by: A 0019952842 | ||
| 070 | A 0019952842 | MOUNTING CLAMP |
| 072 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 074 | N 913023006002 | NUT |
| M6 | ||
| 074 | N 913023008003 | NUT |
| M8 | ||
| 076 | A 6124750318 | ELASTIC BAND |
| 080 | A 3058211714 | BRACKET |
| BRACKET TO ENGINE | ||
| Repalced by: A 6344280240 | ||
| 080 | A 6344280240 | BRACKET |
| BRACKET TO ENGINE | ||
| 080 | A 6344280240 | BRACKET |
| BRACKET TO ENGINE | ||
| Repalced by: A 6284812240 | ||
| 080 | A 6284812240 | BRACKET |
| BRACKET TO ENGINE | ||
| 082 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20 | ||
| 100 | A 6284801015 | OIL LINE |
| AUTOMATIC OIL REPLENISHMENT | ||
| 105 | A 6284801515 | OIL LINE |
| AUTOMATIC OIL REPLENISHMENT | ||
| 110 | A 6285400745 | CONTROL UNIT |
| AT OIL TANK | ||
| 115 | A 0004810011 | COVER |
| BLACK | ||
| 120 | A 0004810111 | COVER |
| TRANSPARENT | ||
| 125 | A 0179970145 | FULL FACE GASKET |
| 130 | A 0179972645 | SEAL RING |
| 22.2X3.5 | ||
| 135 | A 0179972545 | SEAL RING |
| 17X3 | ||
| 140 | A 0279970182 | BANJO UNION |
| 145 | A 0029976071 | ELBOW FITTING |
| DIA., | ||
| 10MM | ||
| 150 | A 0035401505 | CABLE HARNESS |
| 162 | A 6284801815 | OIL LINE |
| 165 | N 915008008402 | FITTING |
| 168 | N 915003008201 | BALL-TYPE NIPPLE |
| 171 | N 915017010201 | NUT |
| BL10 | ||
| 174 | N 007603018101 | SEALING RING |
| 18X22-CU | ||
| 177 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 180 | N 000000007519 | CLAMP |
| 50/20 | ||
| 183 | A 0029975890 | CABLE TIE |
| 704 | N 000000001933 | HEXALOBULAR BOLT |
| M4X8 | ||
