Transporto priemonė: O 530 N3 EURO 3; VIN numerio dalis: 628045

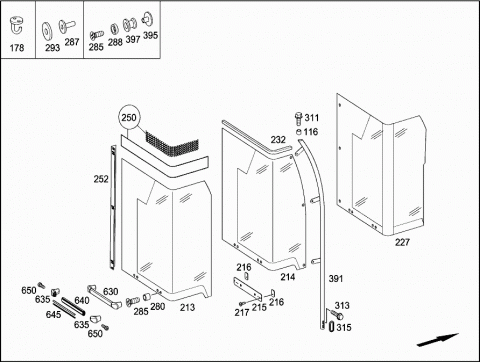

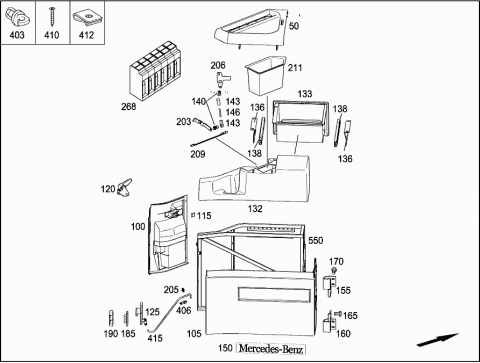

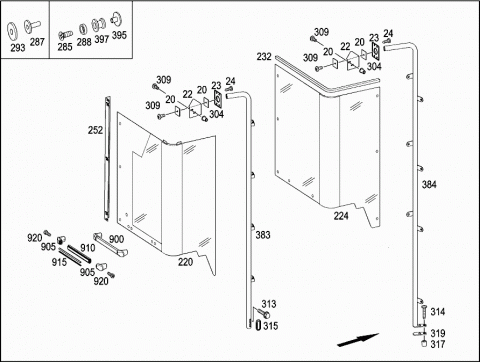

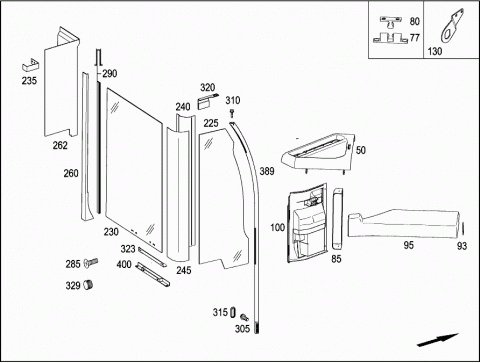

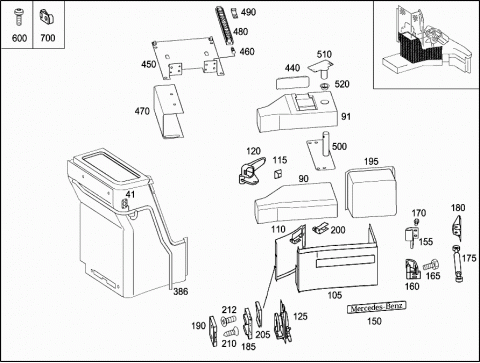

Grupė: 71 PARTITION PANELS - 120 DRIVER'S PARTITION PANEL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6287141310 | PANELLING |
| ELECTRICAL COMPARTMENT, BEHIND DRIVER'S PLACE | ||
| 2550 MM | ||
| 006 | A 6287140810 | PANELLING |
| ELECTRICAL COMPARTMENT, BEHIND DRIVER'S PLACE | ||
| 007 | A 6287140710 | PANELLING |
| ELECTRICAL COMPARTMENT, BEHIND DRIVER'S PLACE | ||
| 008 | A 6287141210 | PANELLING |
| ELECTRICAL COMPARTMENT LATERAL, BEHIND DRIVER'S PLACE | ||
| 008 | A 6287141410 | PANELLING |
| ELECTRICAL COMPARTMENT LATERAL, BEHIND DRIVER'S PLACE | ||
| 008 | A 6287120625 | PANELLING |
| ELECTRICAL COMPARTMENT LATERAL, BEHIND DRIVER'S PLACE | ||
| 009 | A 6287140410 | PANELLING |
| ELECTRICAL COMPARTMENT LATERAL, BEHIND DRIVER'S PLACE | ||
| 010 | A 6287140310 | PANELLING |
| ELECTRICAL COMPARTMENT LATERAL, BEHIND DRIVER'S PLACE | ||
| 011 | A 6287100124 | COVERING |
| TO COVERING | ||
| 011 | A 6287100424 | COVERING |
| 011 | A 6287101224 | COVERING |
| 011 | A 6287100718 | PANELLING |
| TO COVERING | ||
| 012 | A 0008311860 | NOZZLE |
| DRIVER VENTILATION FROM REAR | ||
| TO A 628 710 01 24 | ||
| 012 | A 0008311860 | NOZZLE |
| DRIVER VENTILATION FROM REAR | ||
| TO A 628 710 07 18 | ||
| 013 | A 6287140065 | STOP LEDGE |
| TO COVERING | ||
| 013 | A 6287140065 | STOP LEDGE |
| TO COVERING | ||
| 014 | A 6287100000 | DOOR FITTING ASSEMBLY |
| AT COVERING | ||
| 014 | A 6287100000 | DOOR FITTING ASSEMBLY |
| AT COVERING | ||
| 016 | A 6287101013 | FRAME |
| 018 | A 6287110217 | BUSHING |
| 018 | A 6287110217 | BUSHING |
| 019 | A 0009803330 | FASTENER |
| (ELECTRICAL COMPARTMENT),BEHIND DRIVER'S PLACE | ||
| 019 | A 0009803330 | FASTENER |
| 020 | A 6287150311 | PLATE |
| TOP GRIP RAIL | ||
| 020 | A 6287150311 | PLATE |
| TOP GRIP RAIL | ||
| 022 | A 6286520914 | BRACKET |
| 023 | A 6286950150 | HEADLINER |
| TOP GRIP RAIL | ||
| 023 | A 6286950150 | HEADLINER |
| TOP GRIP RAIL | ||
| 024 | N 000000000477 | TAPPING SCREW |
| 026 | A 6287150008 | COVERING |
| BEHIND DRIVER'S SEAT | ||
| 026 | A 6287150008 | COVERING |
| BEHIND DRIVER'S SEAT | ||
| 026 | A 6287140610 | PANELLING |
| BEHIND DRIVER'S SEAT | ||
| 027 | A 6287110514 | BRACKET |
| BEHIND DRIVER'S SEAT | ||
| 029 | A 0007500850 | LOCK HOUSING |
| 45X31X31MM | ||
| 029 | A 0007500850 | LOCK HOUSING |
| 45X31X31MM | ||
| 029 | A 0007500850 | LOCK HOUSING |
| 45X31X31MM | ||
| 029 | A 0009885660 | LOCK |
| 029 | A 0009885660 | LOCK |
| 029 | A 0009885660 | LOCK |
| 029 | A 0009887360 | LOCK |
| 029 | A 0009887360 | LOCK |
| 029 | A 0009882860 | LOCK |
| 030 | A 6286950243 | LATCH |
| 030 | A 6286950243 | LATCH |
| 030 | A 6286950243 | LATCH |
| 030 | A 6286950043 | LATCH |
| 030 | A 6286950043 | LATCH |
| 030 | A 6286951843 | LATCH |
| 031 | A 6286950051 | HINGE |
| COVERING TO COVERING | ||
| 031 | A 6286950051 | HINGE |
| COVERING TO COVERING | ||
| 035 | A 6287100336 | BRACKET |
| HINGE | ||
| Repalced by: A 6287100436 | ||
| 035 | A 6287100436 | BRACKET |
| HINGE | ||
| 035 | A 6287100436 | BRACKET |
| HINGE | ||
| 037 | A 0019878440 | RUBBER BUFFER |
| ELECTRICAL COMPARTMENT FLAP | ||
| 037 | A 0019878440 | RUBBER BUFFER |
| ELECTRICAL COMPARTMENT FLAP | ||
| 037 | A 0019878440 | RUBBER BUFFER |
| ELECTRICAL COMPARTMENT FLAP | ||
| 038 | A 6286025414 | BRACKET |
| 038 | A 6286025414 | BRACKET |
| 040 | A 0009880259 | KEY |
| Y-MOS TO A0009885660 | ||
| 041 | A 6287151508 | COVERING |
| BOTTOM GRIP RAIL | ||
| 044 | N 913017004000 | NUT |
| MOUNTING, COVER | ||
| 044 | N 910104004000 | NUT |
| MOUNTING, COVER | ||
| 050 | A 6287100057 | COVER |
| TILL | ||
| 050 | A 6287100057 | COVER |
| TILL | ||
| 050 | A 6287100057 | COVER |
| TILL | ||
| A 0008401302 | VALUABLES COMPARTMENT | |
| A 0007100535 | LOCK | |
| A 0007100535 | LOCK | |
| A 0007110121 | END PIECE | |
| A 0007110121 | END PIECE | |
| A 0007110021 | END PIECE | |
| A 0007110114 | BRACKET | |
| A 0007110114 | BRACKET | |
| A 0007110078 | DETENT | |
| A 0007110078 | DETENT | |
| A 0007110084 | LATCH | |
| A 0007110084 | LATCH | |
| A 0007150062 | GUIDE | |
| A 0007150062 | GUIDE | |
| 077 | A 0009882563 | SNAP LOCK |
| LOWER PART | ||
| 077 | A 0009882563 | SNAP LOCK |
| LOWER PART | ||
| 077 | A 0009882563 | SNAP LOCK |
| LOWER PART | ||
| 080 | A 0009882663 | SNAP LOCK |
| UPPER PART | ||
| 080 | A 0009882663 | SNAP LOCK |
| UPPER PART | ||
| 080 | A 0009882663 | SNAP LOCK |
| UPPER PART | ||
| 085 | A 6289110137 | COVERING |
| INTERIOR DOOR INSIDE | ||
| 087 | A 6287101213 | FRAME |
| 088 | A 6287140165 | STOP LEDGE |
| 089 | A 6287160464 | |
| 090 | A 6287160125 | PANELLING |
| INTERIOR DOOR UPPER PART | ||
| 090 | A 6287160525 | PANELLING |
| INTERIOR DOOR UPPER PART | ||
| 090 | A 6287160625 | PANELLING |
| INTERIOR DOOR UPPER PART | ||
| 090 | A 6287160925 | PANELLING |
| INTERIOR DOOR UPPER PART | ||
| 091 | A 6287163325 | PANELLING |
| INTERIOR DOOR UPPER PART | ||
| A 6287160116 | REINFORCEMENT | |
| INTERIOR DOOR UPPER PART | ||
| 093 | A 6287120011 | PLATE |
| 095 | A 6287160225 | PANELLING |
| INTERIOR DOOR UPPER PART | ||
| 095 | A 6287160425 | PANELLING |
| INTERIOR DOOR OUTSIDE | ||
| 100 | A 6287100318 | PANELLING |
| LOCKABLE PIGEONHOLE | ||
| 100 | A 6287100318 | PANELLING |
| LOCKABLE PIGEONHOLE | ||
| 100 | A 6287100618 | PANELLING |
| WITH PIGEONHOLE | ||
| 105 | A 6287100118 | PANELLING |
| INTERIOR DOOR OUTSIDE | ||
| 105 | A 6287100118 | PANELLING |
| INTERIOR DOOR OUTSIDE | ||
| 105 | A 6287100118 | PANELLING |
| INTERIOR DOOR OUTSIDE | ||
| 105 | A 6287100118 | PANELLING |
| INTERIOR DOOR OUTSIDE | ||
| 105 | A 6287100118 | PANELLING |
| INTERIOR DOOR OUTSIDE | ||
| 105 | A 6287100518 | PANELLING |
| INTERIOR DOOR OUTSIDE | ||
| 108 | A 6287161025 | PANELLING |
| 110 | A 6287100218 | PANELLING |
| 110 | A 6287100218 | PANELLING |
| INTERIOR DOOR INSIDE | ||
| 110 | A 6287100218 | PANELLING |
| INTERIOR DOOR INSIDE | ||
| 110 | A 6287100218 | PANELLING |
| INTERIOR DOOR INSIDE | ||
| 115 | A 0019878040 | RUBBER BUFFER |
| 115 | A 0019878040 | RUBBER BUFFER |
| INTERIOR DOOR INSIDE | ||
| 115 | A 0019878040 | RUBBER BUFFER |
| INTERIOR DOOR INSIDE | ||
| 115 | A 0019878040 | RUBBER BUFFER |
| INTERIOR DOOR INSIDE | ||
| 116 | A 6289910040 | SPACER TUBE |
| 116 | A 6289910040 | SPACER TUBE |
| 120 | A 6287180064 | HANDLE |
| INTERIOR DOOR INSIDE | ||
| 120 | A 6287180064 | HANDLE |
| INTERIOR DOOR INSIDE | ||
| 120 | A 6287180064 | HANDLE |
| INTERIOR DOOR INSIDE | ||
| 120 | A 6287180064 | HANDLE |
| INTERIOR DOOR INSIDE | ||
| 120 | A 0007180264 | HANDLE |
| INTERIOR DOOR INSIDE | ||
| 125 | A 3567500850 | LOCK |
| 125 | A 3567500850 | LOCK |
| 125 | A 3567500850 | LOCK |
| 125 | A 3567500850 | LOCK |
| 125 | A 3567500750 | LOCK |
| 130 | A 6287161214 | BRACKET |
| 132 | A 6287102818 | PANELLING |
| INTERIOR DOOR UPPER PART | ||
| 132 | A 6287103818 | PANELLING |
| INTERIOR DOOR UPPER PART | ||
| 132 | A 6287161425 | PANELLING |
| INTERIOR DOOR UPPER PART | ||
| 133 | A 6288161303 | MONEY CHANGER |
| 136 | A 6287163714 | BRACKET |
| 138 | A 6287110030 | WINDOW REGULATOR RAIL |
| 140 | A 0009912915 | BALL PIVOT |
| 143 | A 0019911722 | BALL SOCKET |
| 146 | A 6287150370 | GRIP RAIL |
| M4X30 | ||
| 150 | A 6288170016 | BADGE |
| INTERIOR DOOR OUTSIDE | ||
| 150 | A 6288170016 | BADGE |
| INTERIOR DOOR OUTSIDE | ||
| 150 | A 6288170016 | BADGE |
| INTERIOR DOOR OUTSIDE | ||
| 150 | A 6288170016 | BADGE |
| INTERIOR DOOR OUTSIDE | ||
| 150 | A 6288170016 | BADGE |
| INTERIOR DOOR OUTSIDE | ||
| 155 | A 6287180051 | HINGE |
| TOP | ||
| 155 | A 6287180051 | HINGE |
| TOP | ||
| 155 | A 6287180051 | HINGE |
| TOP | ||
| 155 | A 6287180051 | HINGE |
| TOP | ||
| 155 | A 6287180051 | HINGE |
| TOP | ||
| 155 | A 6287180051 | HINGE |
| TOP | ||
| 160 | A 6287180151 | HINGE |
| BOTTOM | ||
| 160 | A 6287180151 | HINGE |
| BOTTOM | ||
| 160 | A 6287180151 | HINGE |
| BOTTOM | ||
| 160 | A 6287180151 | HINGE |
| BOTTOM | ||
| 160 | A 6287180151 | HINGE |
| BOTTOM | ||
| 160 | A 6287180151 | HINGE |
| BOTTOM | ||
| 160 | A 6287180151 | HINGE |
| BOTTOM | ||
| 165 | N 000000000276 | SCREW |
| HINGE TO BODY | ||
| M8X20 | ||
| 165 | N 000000000276 | SCREW |
| HINGE TO BODY | ||
| M8X20 | ||
| 165 | N 910105008041 | HEXAGON HEAD BOLT |
| HINGE TO BODY | ||
| M8X20 | ||
| 170 | N 000000003853 | SCREW |
| HINGE TO BODY | ||
| M8 X 16 MM | ||
| 170 | N 000000003853 | SCREW |
| HINGE TO BODY | ||
| M8 X 16 MM | ||
| 170 | N 910105008026 | HEXAGON HEAD BOLT |
| HINGE TO BODY | ||
| M8X16 | ||
| 175 | A 0009880020 | VIBRATION ABSORBER |
| 175 | A 0009880020 | VIBRATION ABSORBER |
| 175 | A 0009880020 | VIBRATION ABSORBER |
| 175 | A 0029801864 | SPRING |
| 175 | A 0029801864 | VIBRATION ABSORBER |
| 175 | A 0009806364 | VIBRATION ABSORBER |
| 177 | A 0009912015 | BALL PIVOT |
| 178 | A 0008142301 | CLOTHES-HOOK |
| 178 | A 0008142301 | CLOTHES-HOOK |
| 178 | A 0008142301 | CLOTHES-HOOK |
| 180 | A 6286024814 | BRACKET |
| MUFFLER | ||
| 180 | A 6286024814 | BRACKET |
| MUFFLER | ||
| 180 | A 6286024814 | BRACKET |
| MUFFLER | ||
| 185 | A 0007430139 | GUIDE |
| BOTTOM | ||
| 185 | A 0007430139 | GUIDE |
| BOTTOM | ||
| 185 | A 0007430139 | GUIDE |
| BOTTOM | ||
| 185 | A 0007430139 | GUIDE |
| BOTTOM | ||
| 190 | A 0007430039 | GUIDE |
| BOTTOM | ||
| 190 | A 0007430039 | GUIDE |
| BOTTOM | ||
| 190 | A 0007430039 | GUIDE |
| BOTTOM | ||
| 190 | A 0007430039 | GUIDE |
| BOTTOM | ||
| 190 | A 0007430039 | GUIDE |
| 190 | A 0007430039 | GUIDE |
| BOTTOM | ||
| 190 | A 0007430039 | GUIDE |
| BOTTOM | ||
| 190 | A 0007430039 | GUIDE |
| 195 | A 6287160264 | |
| INTERIOR DOOR INSIDE | ||
| 195 | A 6287100075 | FLAP |
| 200 | A 6287160414 | BRACKET |
| DOOR POCKET | ||
| 202 | A 0007550049 | LATCH |
| 203 | A 6287110076 | LEVER |
| 205 | A 2029940045 | LOCK |
| BRACKET MOUNTING | ||
| 206 | A 6287110276 | LEVER |
| 209 | A 6287164814 | BRACKET |
| 210 | N 000000000529 | SHEET METAL SCREW |
| BRACKET MOUNTING | ||
| 211 | A 6287110007 | SHELL |
| 212 | N 007983004256 | SHEET METAL SCREW |
| BRACKET MOUNTING | ||
| 213 | A 6287100901 | PARTITION PANEL |
| PARTITION PANEL,REAR LATERAL | ||
| 213 | A 6287101101 | PARTITION PANEL |
| PARTITION PANEL,REAR LATERAL | ||
| 214 | A 6287103201 | PARTITION PANEL |
| PARTITION PANEL,REAR LATERAL | ||
| 214 | A 3117112610 | GLASS PANE |
| PARTITION PANEL,REAR LATERAL | ||
| 214 | A 6287101001 | PARTITION PANEL |
| PARTITION PANEL,REAR LATERAL | ||
| 214 | A 6287100801 | PARTITION PANEL |
| DRIVER'S PARTITION PANEL | ||
| 215 | A 6287100443 | PLATE |
| TO 6287100801 | ||
| 216 | A 6287111011 | THREADED PLATE |
| TO 6287100801 | ||
| 217 | N 000000001946 | HEXALOBULAR BOLT |
| M4X12 | ||
| 220 | A 6287101801 | PARTITION PANEL |
| PARTITION PANEL,REAR LATERAL | ||
| 222 | A 6287111301 | PARTITION PANEL |
| DRIVER'S PARTITION PANEL | ||
| 2550 MM | ||
| 224 | A 6287104101 | PARTITION PANEL |
| DRIVER'S PARTITION PANEL | ||
| 225 | A 6287111410 | GLASS PANE |
| LATERAL | ||
| 225 | A 3117112410 | GLASS PANE |
| LATERAL | ||
| 225 | A 6287111410 | GLASS PANE |
| LATERAL | ||
| 225 | A 6287111410 | GLASS PANE |
| LATERAL | ||
| 227 | A 6287101901 | PARTITION PANEL |
| PARTITION PANEL,REAR LATERAL | ||
| 230 | A 6287111510 | GLASS PANE |
| VEHICLE WIDTH | ||
| 2500 MM | ||
| 230 | A 6287111510 | GLASS PANE |
| VEHICLE WIDTH | ||
| 2500 MM | ||
| 230 | A 6287111510 | GLASS PANE |
| VEHICLE WIDTH | ||
| 2500 MM | ||
| 230 | A 6287113810 | GLASS PANE |
| VEHICLE WIDTH | ||
| 2550 MM | ||
| 230 | A 3117110710 | GLASS PANE |
| VEHICLE WIDTH | ||
| 2550 MM | ||
| 230 | A 6287113810 | GLASS PANE |
| VEHICLE WIDTH | ||
| 2550 MM | ||
| 230 | A 6287113810 | GLASS PANE |
| VEHICLE WIDTH | ||
| 2550 MM | ||
| 232 | A 6287110356 | FRAME |
| 232 | A 6287110356 | FRAME |
| 232 | A 6287110856 | FRAME |
| 235 | A 6288310512 | ANGLE |
| DRIVER'S PARTITION PANEL | ||
| 235 | A 6288310512 | ANGLE |
| DRIVER'S PARTITION PANEL | ||
| 235 | A 6288310512 | ANGLE |
| DRIVER'S PARTITION PANEL | ||
| 238 | A 6288311112 | ANGLE |
| 238 | A 6288311112 | ANGLE |
| 240 | A 6287120012 | PANELLING |
| ANGLE TO PARTITION PANEL | ||
| 240 | A 6287120012 | PANELLING |
| ANGLE TO PARTITION PANEL | ||
| 240 | A 6287120012 | ANGLE |
| ANGLE TO PARTITION PANEL | ||
| 240 | A 6287120412 | ANGLE |
| ANGLE TO PARTITION PANEL | ||
| 245 | A 6287120025 | PANELLING |
| COVERING TO PARTITION PANEL | ||
| 245 | A 6287120025 | PANELLING |
| COVERING TO PARTITION PANEL | ||
| 245 | A 6287120025 | PANELLING |
| COVERING TO PARTITION PANEL | ||
| 245 | A 6287120325 | PANELLING |
| COVERING TO PARTITION PANEL | ||
| 250 | A 0006950342 | ADHESIVE FASTENER |
| GLASS PANE TO BODY | ||
| 250 | A 0006950342 | ADHESIVE FASTENER |
| GLASS PANE TO BODY | ||
| 250 | A 0006950342 | ADHESIVE FASTENER |
| GLASS PANE TO BODY | ||
| 250 | A 0006950342 | ADHESIVE FASTENER |
| GLASS PANE TO BODY | ||
| 250 | A 0006950342 | ADHESIVE FASTENER |
| GLASS PANE TO BODY | ||
| 252 | A 6287111012 | ANGLE |
| 252 | A 6287111012 | ANGLE |
| 252 | A 6287111012 | ANGLE |
| 252 | A 6287111012 | ANGLE |
| 252 | A 6287111012 | ANGLE |
| 252 | A 6287111012 | ANGLE |
| 256 | A 6287110124 | COVER PLATE |
| 257 | A 6287150308 | COVERING |
| AIR INTAKE DRIVER'S WORKING PLACE | ||
| 260 | A 6287110224 | COVER PLATE |
| 262 | A 6287150208 | COVERING |
| AIR INTAKE DRIVER'S WORKING PLACE | ||
| 262 | A 6287150208 | COVERING |
| AIR INTAKE DRIVER'S WORKING PLACE | ||
| 262 | A 6287150208 | COVERING |
| AIR INTAKE DRIVER'S WORKING PLACE | ||
| 262 | A 6287150208 | COVERING |
| AIR INTAKE DRIVER'S WORKING PLACE | ||
| 262 | A 6287150208 | COVERING |
| INSIDE TOP LEFT | ||
| 262 | A 6287150208 | COVERING |
| PANELLING TO AIR DUCT | ||
| 262 | A 6287150208 | COVERING |
| PANELLING TO AIR DUCT | ||
| 262 | A 6287150608 | COVERING |
| AIR INTAKE DRIVER'S WORKING PLACE | ||
| 262 | A 6287150308 | COVERING |
| AIR INTAKE DRIVER'S WORKING PLACE | ||
| 262 | A 6287150308 | COVERING |
| AIR INTAKE DRIVER'S WORKING PLACE | ||
| 262 | A 6287150408 | COVERING |
| AIR INTAKE DRIVER'S WORKING PLACE | ||
| 263 | A 6287150708 | COVERING |
| FRONT | ||
| 263 | A 6287151108 | COVERING |
| FRONT | ||
| 263 | A 6287151108 | COVERING |
| FRONT | ||
| 265 | A 6287150508 | COVERING |
| INSIDE TOP LEFT | ||
| 265 | A 6287150508 | COVERING |
| INSIDE TOP LEFT | ||
| 265 | A 6287150508 | COVERING |
| INSIDE TOP LEFT | ||
| 265 | A 6287150508 | COVERING |
| INSIDE TOP LEFT | ||
| 268 | A 0008167003 | MONEY CHANGER |
| 270 | A 6286900214 | BRACKET |
| INSIDE TOP LEFT | ||
| 270 | A 6286900214 | BRACKET |
| INSIDE TOP LEFT | ||
| 270 | A 6286900214 | BRACKET |
| INSIDE TOP LEFT | ||
| 280 | A 4419910440 | SPACER TUBE |
| TO GLASS PANE,BOTTOM | ||
| 280 | A 3579916440 | SPACER TUBE |
| TO GLASS PANE,BOTTOM | ||
| 280 | A 3579916440 | SPACER TUBE |
| TO GLASS PANE,BOTTOM | ||
| 280 | A 4419910440 | SPACER TUBE |
| TO GLASS PANE,BOTTOM | ||
| 280 | A 4419910440 | SPACER TUBE |
| TO GLASS PANE,BOTTOM | ||
| 285 | N 000965005013 | SCREW |
| TO GLASS PANE,BOTTOM | ||
| M5X16 | ||
| 285 | N 000965005013 | SCREW |
| TO GLASS PANE,BOTTOM | ||
| M5X16 | ||
| 285 | N 000000001181 | SCREW |
| TO GLASS PANE,BOTTOM | ||
| M5 X 16 MM | ||
| 285 | N 000000003098 | SCREW |
| GLASS PANE TO GRIP RAIL AND TO RETAINING ANGLE | ||
| M6 X 10 MM | ||
| 285 | N 000000003098 | SCREW |
| GLASS PANE TO GRIP RAIL AND TO RETAINING ANGLE | ||
| M6 X 10 MM | ||
| 285 | A 0009905831 | SCREW |
| M6 X 30 MM | ||
| 285 | A 0009905831 | SCREW |
| M6 X 30 MM | ||
| 286 | A 3577110043 | MOUNTING |
| GLASS PANE | ||
| 287 | A 3579970016 | THREADED CHUCK |
| GLASS PANE | ||
| 287 | A 3579970016 | THREADED CHUCK |
| GLASS PANE | ||
| 287 | A 3579970016 | THREADED CHUCK |
| GLASS PANE | ||
| 287 | A 3579970016 | THREADED CHUCK |
| 287 | A 3579970016 | THREADED CHUCK |
| 288 | A 3039970040 | SEAL RING |
| 288 | A 3039970040 | SEAL RING |
| 288 | A 3039970040 | SEAL RING |
| 288 | A 3039970040 | SEAL RING |
| 288 | A 6669900040 | WASHER |
| 288 | A 6669900040 | WASHER |
| ANGLE TO PARTITION PANEL | ||
| 288 | A 6669900040 | WASHER |
| ANGLE TO PARTITION PANEL | ||
| 288 | A 6669900040 | WASHER |
| GLASS PANE | ||
| 288 | A 6669900040 | WASHER |
| GLASS PANE | ||
| 290 | A 6289870170 | RUBBER SECTION |
| TO GLAS PANE,LATERAL | ||
| 290 | A 6289870170 | RUBBER SECTION |
| TO GLAS PANE,LATERAL | ||
| 290 | A 6289870170 | RUBBER SECTION |
| TO GLAS PANE,LATERAL | ||
| 291 | A 0009871962 | RUBBER SECTION |
| TO GLAS PANE,LATERAL | ||
| 291 | A 0009871962 | RUBBER SECTION |
| TO GLAS PANE,LATERAL | ||
| 292 | N 000000003260 | WASHER |
| 293 | A 3577110013 | WASHER |
| GLASS PANE | ||
| 293 | A 3577110013 | WASHER |
| 293 | A 3577110013 | WASHER |
| 297 | A 6287103352 | BAR |
| TO GLAS PANE,LATERAL | ||
| 300 | A 6386950214 | BRACKET |
| 300 | A 6386950214 | BRACKET |
| 303 | A 6287140814 | BRACKET |
| 304 | N 913024008100 | RIVETED NUT |
| 305 | N 910143008005 | SCREW |
| M8 X 40 MM | ||
| 305 | N 910143008005 | SCREW |
| M8 X 40 MM | ||
| 309 | N 000000001427 | HEXALOBULAR BOLT |
| M8X20 | ||
| 310 | N 000000000276 | SCREW |
| M8X20 | ||
| 310 | N 910105008004 | SCREW |
| M8 X 20 MM | ||
| 311 | N 910105008026 | SCREW |
| M8 X 20 MM | ||
| 311 | N 910105008026 | SCREW |
| M8 X 20 MM | ||
| 313 | N 910105008010 | SCREW |
| M8 X 40 MM | ||
| 313 | N 910105008010 | SCREW |
| M8 X 40 MM | ||
| 314 | A 0009901729 | SCREW |
| M8 X 40 MM T40 | ||
| 315 | A 0007110028 | COVERING |
| TOP AND BOTTOM | ||
| 315 | A 0007110028 | COVERING |
| TOP AND BOTTOM | ||
| 315 | A 6287110728 | COVERING |
| 317 | A 3579915640 | SPACER TUBE |
| 16 / 9 / 3 | ||
| 317 | A 3579915840 | SPACER TUBE |
| 16 / 9 / 15 | ||
| 319 | A 3577111311 | PLATE |
| 320 | A 6287100019 | ANGLE |
| GRIP RAIL MOUNTING | ||
| 323 | A 6287102036 | BRACKET |
| TO GLASS PANE,BOTTOM | ||
| 325 | A 6288200142 | WINDOW REGULATOR |
| 326 | A 6288100013 | BRACKET |
| 80MM | ||
| 326 | A 6288100513 | BRACKET |
| 120MM | ||
| 329 | A 3579970086 | PLUG |
| 329 | A 3579970086 | PLUG |
| 329 | A 0029976486 | PLUG |
| 330 | A 0008291101 | MOTOR |
| Repalced by: A 0068203542 | ||
| 330 | A 0068203542 | ELECTRIC MOTOR |
| 335 | A 6287180013 | WASHER |
| 340 | A 6287180113 | WASHER |
| A 6287160825 | PANELLING | |
| TO DOOR FRAME TOP | ||
| 350 | A 6286710054 | LEDGE |
| TO SIDE WINDOW PANE TOP | ||
| 355 | A 6287150016 | REINFORCEMENT |
| TO SIDE WINDOW PANE BOTTOM | ||
| 360 | A 0007430139 | GUIDE |
| TO DOOR FRAME TOP | ||
| 365 | A 0009853830 | SEALING SECTION |
| WINDOW RUN | ||
| 370 | A 0009853830 | SEALING SECTION |
| TOP | ||
| 375 | A 6287180213 | WASHER |
| CRYSTAL CLEAR | ||
| 380 | A 6288150932 | CLAMP |
| 383 | A 6288106950 | GRIP RAIL |
| TO GLAS PANE,LATERAL | ||
| 383 | A 6287101572 | GRIP RAIL |
| TO GLAS PANE,LATERAL | ||
| 384 | A 3118106751 | GRIP RAIL |
| TO GLAS PANE,LATERAL | ||
| 386 | A 6288102751 | GRIP RAIL |
| TO GLAS PANE,LATERAL | ||
| 389 | A 6288104950 | GRIP RAIL |
| TO GLAS PANE,LATERAL | ||
| 389 | A 6287106272 | GRIP RAIL |
| TO GLAS PANE,LATERAL | ||
| 389 | A 6288103046 | GRIP RAIL |
| TO GLAS PANE,LATERAL | ||
| 391 | A 6288104850 | GRIP RAIL |
| TO GLAS PANE,LATERAL | ||
| 395 | A 6289920001 | BUSHING |
| ANGLE TO PARTITION PANEL | ||
| 395 | A 6289920001 | BUSHING |
| 395 | A 6289920001 | BUSHING |
| 395 | A 6289920001 | BUSHING |
| 395 | A 6289920001 | BUSHING |
| 395 | A 6289920001 | BUSHING |
| 397 | A 3577110043 | MOUNTING |
| GLASS PANE | ||
| 397 | A 3577110043 | MOUNTING |
| GLASS PANE | ||
| 397 | A 3577110043 | MOUNTING |
| GLASS PANE | ||
| 397 | A 3577110043 | MOUNTING |
| GLASS PANE | ||
| 397 | A 3577110043 | MOUNTING |
| GLASS PANE | ||
| 397 | A 3577110043 | MOUNTING |
| GLASS PANE | ||
| 397 | A 3577110043 | MOUNTING |
| GLASS PANE | ||
| 400 | A 6287112214 | BRACKET |
| TO GLASS PANE,BOTTOM | ||
| 403 | A 0009943648 | LOCK |
| 403 | A 0009943648 | LOCK |
| 406 | A 1009940160 | LOCK |
| 406 | A 1009940160 | LOCK |
| 410 | A 0019909620 | SCREW |
| M5X12 TX25 | ||
| 410 | A 0019909920 | SCREW |
| M6X12 TX30 | ||
| 412 | A 0009906291 | NUT RETAINER |
| 412 | A 0019909291 | NUT RETAINER |
| 412 | A 0019909291 | NUT RETAINER |
| 415 | A 6287180125 | GUIDE |
| 415 | A 6287180025 | GUIDE |
| 418 | A 0009872023 | PLASTIC SECTION |
| 420 | A 6287180125 | GUIDE |
| 420 | A 6287180225 | GUIDE |
| 422 | A 0009889560 | LOCK |
| AT DOOR | ||
| 425 | A 6287162414 | BRACKET |
| 440 | A 6287163425 | PANELLING |
| 450 | A 6287169014 | BRACKET |
| 460 | A 0008105763 | LOCK |
| 470 | A 6287104236 | BRACKET |
| 480 | A 6287160135 | GUIDE RAIL |
| 490 | A 6287110083 | CLAMP |
| 500 | A 6288100167 | TUBE |
| 510 | A 6287104136 | BRACKET |
| 520 | A 6287110317 | BUSHING |
| 550 | A 6287102713 | FRAME |
| 600 | A 0039907512 | SCREW |
| M3 X 16 | ||
| 600 | A 0019909220 | SCREW |
| M4 X 10 | ||
| 605 | A 0029901120 | SCREW |
| M5 X 16 MM | ||
| 607 | N 000000001181 | SCREW |
| M5 X 16 MM | ||
| 607 | N 000000001181 | SCREW |
| M5 X 16 MM | ||
| 610 | N 910105006004 | HEXAGON HEAD BOLT |
| M6X16 | ||
| Repalced by: N 910143006001 | ||
| 610 | N 910143006001 | HEXALOBULAR BOLT |
| M6X16 | ||
| 630 | A 4608100154 | HANDLE |
| TO GLASS PANE,BOTTOM | ||
| 630 | A 4608100154 | HANDLE |
| TO GLASS PANE,BOTTOM | ||
| 630 | A 4608100254 | HANDLE |
| TO GLASS PANE,BOTTOM | ||
| 630 | A 4608100254 | HANDLE |
| TO GLASS PANE,BOTTOM | ||
| 630 | A 4608100254 | HANDLE |
| TO GLASS PANE,BOTTOM | ||
| 630 | A 6328100354 | HANDLE |
| TO GLASS PANE,BOTTOM | ||
| MODULAR 330LG | ||
| 635 | A 0009800041 | END PIECE |
| TO A 632 810 03 54 | ||
| 640 | A 6328150036 | METAL SECTION |
| TO A 632 810 03 54 | ||
| 645 | A 6329110097 | INSERT |
| TO A 632 810 03 54 | ||
| 650 | A 0009902111 | SCREW |
| M8 X 25 MM / TO A 632 810 03 54 | ||
| 700 | A 0009906291 | NUT RETAINER |
| 750 | A 6287100502 | INTERIOR DOOR |
| 755 | A 6287100118 | PANELLING |
| 760 | A 6287100318 | PANELLING |
| 760 | A 6287100218 | PANELLING |
| LESS TRAY | ||
| 765 | A 6287160314 | BRACKET |
| 770 | A 6287100813 | FRAME |
| 775 | A 6287100913 | FRAME |
| 780 | A 6287161114 | BRACKET |
| 785 | A 0007430139 | GUIDE |
| 790 | A 6287180064 | HANDLE |
| 795 | A 0009943648 | LOCK |
| 800 | A 6287180025 | GUIDE |
| 805 | A 1009940160 | LOCK |
| 810 | A 3567500850 | LOCK |
| 815 | A 6288170016 | BADGE |
| 820 | A 0019897985 | ADHESIVE TAPE |
| 15X4 | ||
| 825 | N 000000000994 | ROLL PIN |
| M4X32 | ||
| 830 | N 000000000527 | TAPPING SCREW |
| 4.8X13 | ||
| 835 | A 0009906291 | NUT RETAINER |
| 840 | A 0019909620 | SCREW |
| M5X12 | ||
| 840 | N 000965005040 | SCREW |
| M5X20 | ||
| 845 | N 000000002209 | HEXALOBULAR BOLT |
| M5X20 | ||
| 850 | A 0019909920 | SCREW |
| M6X12 | ||
| 853 | A 0019909291 | SOCKET NUT |
| 855 | A 0019909291 | SOCKET NUT |
| 858 | N 007982003249 | TAPPING SCREW |
| M3,5X19 | ||
| 860 | N 000000000478 | TAPPING SCREW |
| 3.5X19 | ||
| 865 | N 913023005002 | NUT |
| M5 | ||
| 870 | A 6287100667 | COUNTER |
| 875 | A 0007100635 | LOCK |
| 880 | A 0019911722 | BALL SOCKET |
| 885 | A 6287150370 | GRIP RAIL |
| 890 | A 6287100057 | COVER |
| 895 | A 0009912915 | BALL PIVOT |
| 900 | A 6287164814 | BRACKET |
| 905 | A 6287110076 | LEVER |
| 910 | A 6287110030 | WINDOW REGULATOR RAIL |
| 915 | A 6287163714 | BRACKET |
| 920 | N 304032004002 | HEXAGON NUT |
| M4 | ||
| 925 | A 0039907712 | SCREW |
| M4X10 | ||
| 930 | A 6288161303 | MONEY CHANGER |
| 935 | A 6287110276 | LEVER |
| 940 | N 000000001935 | HEXALOBULAR BOLT |
| M6X16 | ||
| 945 | A 0009905331 | SCREW |
| M5X20 | ||
| 950 | N 910105006004 | HEXAGON HEAD BOLT |
| M6X16 | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
