Transporto priemonė: O 530 N3 LANG EURO 2; VIN numerio dalis: 628101
Grupė: 71 PARTITION PANELS - 120 DRIVER'S PARTITION PANEL
99700

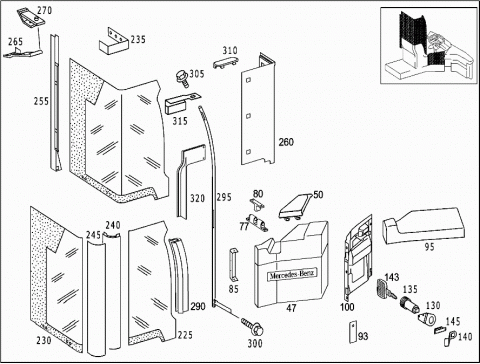

99674

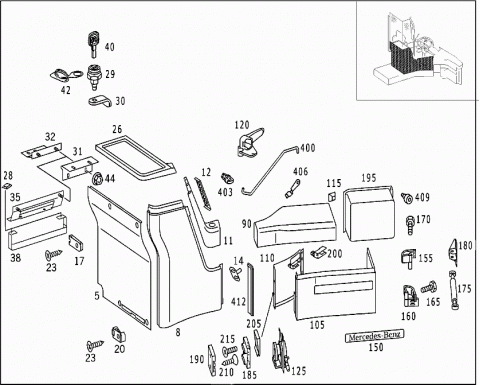

99685
# Kodas Pavadinimas
005 A 6287140210 PANELLING
VEHICLE WIDTH
2500
005 A 6287140110 PANELLING
VEHICLE WIDTH
2550
005 A 6287141110 PANELLING
VEHICLE WIDTH
2500
005 A 6287141310 PANELLING
VEHICLE WIDTH
2550
008 A 6287140010 PANELLING
ELECTRICAL COMPARTMENT LATERAL, BEHIND DRIVER'S PLACE
011 A 6287100124 COVERING
TO COVERING
012 A 0008311860 NOZZLE
DRIVER VENTILATION FROM REAR
014 A 6287100000 DOOR FITTING ASSEMBLY
AT COVERING
017 A 1409942045 LOCK
COVERING TO COVERING
020 A 0029943945 LOCK
COVERING TO COVERING
023 N 914127004217 SHEET METAL SCREW
COVERING TO COVERING
026 A 6287150008 COVERING
BEHIND DRIVER'S SEAT
028 A 0019878440 RUBBER BUFFER
AT BRACKET
029 A 0007500850 LOCK HOUSING
45X31X31MM
029 A 0009803330 FASTENER
029 A 0009885660 LOCK
030 A 6286950243 LATCH
030 A 6286950043 LATCH
031 A 6286950051 HINGE
COVERING TO COVERING
032 A 6287100336 BRACKET
HINGE
035 A 6287100436 BRACKET
HINGE
038 A 6286025414 BRACKET
040 A 0007606106 KEY
TO A0007500850
040 A 0009880259 KEY
Y-MOS TO A0009885660
042 A 3577541921 COVERING
TO A000 750 08 50
044 N 913017004000 NUT
MOUNTING, COVER
044 N 910104004000 NUT
MOUNTING, COVER
A 0008167103 MONEY CHANGER
047 A 6287100067 COUNTER
INTERIOR DOOR UPPER PART
047 A 6287100167 COUNTER
INTERIOR DOOR UPPER PART
050 A 6287100057 COVER
TILL
A 0008401302 VALUABLES COMPARTMENT
A 0007100535 LOCK
A 0007110121 END PIECE
A 0007110021 END PIECE
A 0007110114 BRACKET
A 0007110078 DETENT
A 0007110084 LATCH
A 0007150062 GUIDE
077 A 0009882563 SNAP LOCK
LOWER PART
080 A 0009882663 SNAP LOCK
UPPER PART
085 A 6289110137 COVERING
INTERIOR DOOR INSIDE
090 A 6287160125 PANELLING
INTERIOR DOOR UPPER PART
090 A 6287160525 PANELLING
INTERIOR DOOR UPPER PART
093 A 6287120011 PLATE
095 A 6287160225 PANELLING
INTERIOR DOOR UPPER PART
095 A 6287160425 PANELLING
INTERIOR DOOR OUTSIDE
100 A 6287100318 PANELLING
LOCKABLE PIGEONHOLE
105 A 6287100118 PANELLING
INTERIOR DOOR OUTSIDE
105 A 6287100118 PANELLING
INTERIOR DOOR OUTSIDE
110 A 6287100218 PANELLING
INTERIOR DOOR INSIDE
110 A 6287100218 PANELLING
INTERIOR DOOR INSIDE
115 A 0019878040 RUBBER BUFFER
INTERIOR DOOR INSIDE
120 A 6287180064 HANDLE
INTERIOR DOOR INSIDE
120 A 6287180064 HANDLE
INTERIOR DOOR INSIDE
125 A 3567500850 LOCK
125 A 3567500850 LOCK
130 A 6287161214 BRACKET
135 A 0009885660 LOCK
140 A 6286950043 LATCH
143 A 0009880259 KEY
Y-MOS TO A0009885660
145 A 0009882563 SNAP LOCK
150 A 6288170016 BADGE
INTERIOR DOOR OUTSIDE
150 A 6288170016 BADGE
INTERIOR DOOR OUTSIDE
155 A 6287180051 HINGE
TOP
155 A 6287180051 HINGE
TOP
160 A 6287180151 HINGE
BOTTOM
160 A 6287180151 HINGE
BOTTOM
165 N 910143008001 SCREW
HINGE TO BODY
M8X20
170 N 910143008000 SCREW
HINGE TO BODY
M8X16
175 A 0009880020 VIBRATION ABSORBER
175 A 0009880020 VIBRATION ABSORBER
178 A 0008142301 CLOTHES-HOOK
180 A 6286024814 BRACKET
MUFFLER
185 A 0007430139 GUIDE
BOTTOM
190 A 0007430039 GUIDE
BOTTOM
190 A 0007430039 GUIDE
BOTTOM
195 A 6287160264 POCKET
INTERIOR DOOR INSIDE
195 A 6287100075 FLAP
200 A 6287160414 BRACKET
DOOR POCKET
205 A 2029940045 LOCK
BRACKET MOUNTING
210 N 914127004203 SHEET METAL SCREW
210 N 000000000529 SHEET METAL SCREW
BRACKET MOUNTING
215 N 007983004256 SHEET METAL SCREW
BRACKET MOUNTING
216 A 6287111201 PARTITION
218 A 6287111001 PARTITION
220 A 6287110113 WASHER
DRIVER'S PARTITION PANEL
2500 MM
220 A 6287110213 WASHER
DRIVER'S PARTITION PANEL
2550 MM
220 A 6287110510 GLASS PANE
DRIVER'S PARTITION PANEL
220 A 6287110510 GLASS PANE
DRIVER'S PARTITION PANEL
220 A 6287110910 GLASS PANE
DRIVER'S PARTITION PANEL
220 A 6287110013 WASHER
DRIVER'S PARTITION PANEL
2550 MM
220 A 6287112910 GLASS PANE
DRIVER'S PARTITION PANEL
2500 MM
220 A 6287113010 GLASS PANE
DRIVER'S PARTITION PANEL
2550 MM
220 A 6287111401 PARTITION PANEL
DRIVER'S PARTITION PANEL
2500 MM
220 A 6287111501 PARTITION PANEL
DRIVER'S PARTITION PANEL
2550 MM
220 A 6287111601 PARTITION PANEL
DRIVER'S PARTITION PANEL
2500 MM
220 A 6287111701 PARTITION PANEL
DRIVER'S PARTITION PANEL
2550 MM
225 A 6287111410 GLASS PANE
DRIVER'S PARTITION PANEL
227 A 0049941645 SPRING NUT
229 N 910105006002 HEXAGON HEAD BOLT
230 A 6287111510 GLASS PANE
DRIVER'S PARTITION PANEL
232 A 6287110356 FRAME
235 A 6288310512 ANGLE
DRIVER'S PARTITION PANEL
235 A 6288310512 ANGLE
DRIVER'S PARTITION PANEL
235 A 6288310512 ANGLE
DRIVER'S PARTITION PANEL
240 A 6287100119 PANELLING
GLASS PANE TO BODY
245 A 6287120025 PANELLING
GLASS PANE TO BODY
250 A 0006950342 ADHESIVE FASTENER
GLASS PANE TO BODY
252 A 6287111012 ANGLE
255 A 6287150308 COVERING
AIR INTAKE DRIVER'S WORKING PLACE
255 A 6287111012 ANGLE
255 A 6287110224 COVER PLATE
260 A 6287150408 COVERING
LENGTH:
656
260 A 6287150408 COVERING
LENGTH:
656
260 A 6287150408 COVERING
LENGTH:
656
260 A 6287150408 COVERING
LENGTH:
656
260 A 6287150208 COVERING
LENGTH:
651
260 A 6287150208 COVERING
LENGTH:
651
260 A 6287150208 COVERING
LENGTH:
651
260 A 6287150208 COVERING
LENGTH:
651
260 A 6287150608 COVERING
AIR INTAKE DRIVER'S WORKING PLACE
265 A 6287150508 COVERING
INSIDE TOP LEFT
265 A 6287150508 COVERING
INSIDE TOP LEFT
270 A 6286900214 BRACKET
270 A 6286900214 BRACKET
280 A 3579916440 SPACER TUBE
TO GLASS PANE,BOTTOM
280 A 3579916440 SPACER TUBE
TO GLASS PANE,BOTTOM
280 A 3579916440 SPACER TUBE
TO GLASS PANE,BOTTOM
280 A 3579916440 SPACER TUBE
TO GLASS PANE,BOTTOM
285 N 000965005013 SCREW
TO GLASS PANE,BOTTOM
285 N 000965005013 SCREW
TO GLASS PANE,BOTTOM
285 N 000965005013 SCREW
TO GLASS PANE,BOTTOM
285 A 0029901120 SCREW
288 A 6669900040 WASHER
290 A 6289870170 RUBBER SECTION
TO GLAS PANE,LATERAL
290 A 6289870170 RUBBER SECTION
TO GLAS PANE,LATERAL
290 A 6289870170 RUBBER SECTION
TO GLAS PANE,LATERAL
290 A 6289870170 RUBBER SECTION
TO GLAS PANE,LATERAL
295 A 6288103046 GRIP RAIL
TO GLAS PANE,LATERAL
295 A 6288103046 GRIP RAIL
TO GLAS PANE,LATERAL
295 A 6288104850 GRIP RAIL
TO GLAS PANE,LATERAL
295 A 6288104950 GRIP RAIL
TO GLAS PANE,LATERAL
300 N 910105008010 SCREW
Repalced by: N 910143008005
300 N 910143008005 SCREW
M8X40
305 N 000000000276 SCREW
305 N 910105008004 HEXAGON HEAD BOLT
M8X20
310 A 0007110028 COVERING
TOP
315 A 6287100019 ANGLE
GRIP RAIL MOUNTING
320 A 6287140910 PANELLING
OUTSIDE
395 A 6289920001 BUSHING
397 A 3577110043 MOUNTING
400 A 6287180025 GUIDE
400 A 6287180025 GUIDE
A 0009930011 TENSION SPRING
A 0009930011 TENSION SPRING
403 A 0009943648 LOCK
403 A 0009943648 LOCK
406 A 1009940160 LOCK
406 A 1009940160 LOCK
409 A 0019870740 RUBBER BUFFER
412 A 6287140065 STOP LEDGE
TO COVERING
630 A 4608100154 HANDLE
TO GLASS PANE,BOTTOM
630 A 4608100254 HANDLE
TO GLASS PANE,BOTTOM
630 A 4608100254 HANDLE
TO GLASS PANE,BOTTOM
630 A 4608100254 HANDLE
TO GLASS PANE,BOTTOM
630 A 6328100354 HANDLE
TO GLASS PANE,BOTTOM
MODULAR 330LG
635 A 0009800041 END PIECE
TO A 632 810 03 54
640 A 6328150036 METAL SECTION
TO A 632 810 03 54
645 A 6329110097 INSERT
TO A 632 810 03 54
650 A 0009902111 SCREW
M8 X 25 MM / TO A 632 810 03 54
660 N 910112006001 HEXAGON NUT
M6
670 A 0019897985 ADHESIVE TAPE
680 A 0019909820 HEXAL. SOCKET CSK. BOLT
M6X10 TX30
690 A 0009900789 NUT
M3
700 N 000084003181 SCREW
M3X20
710 N 000934003002 NUT
M3
