Transporto priemonė: O 530 N3 UESTRA E 2; VIN numerio dalis: 628002

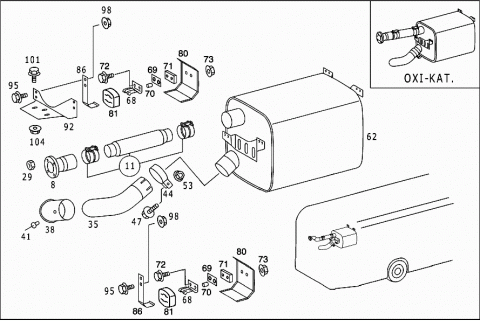

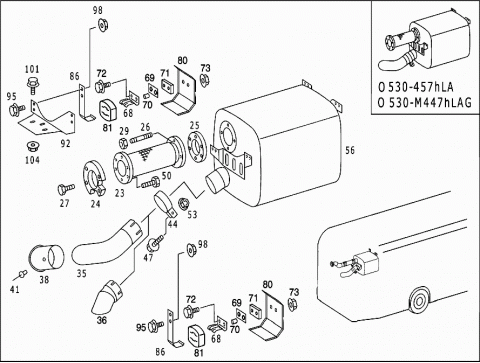

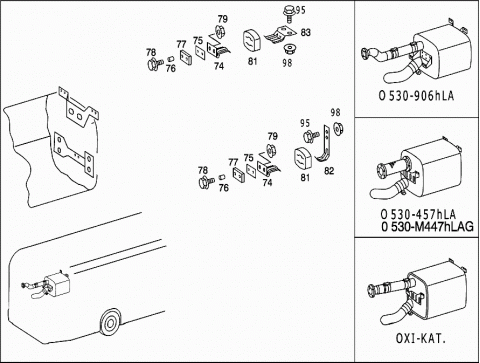

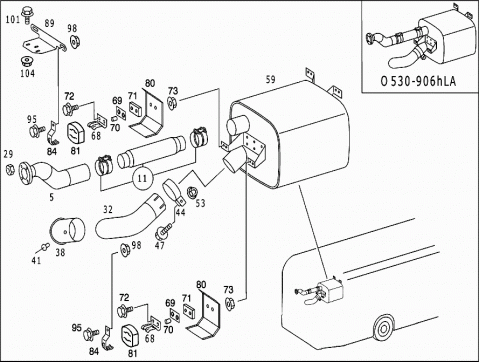

Grupė: 49 EXHAUST SYSTEM - 032 EXHAUST SYSTEM,INSTALLED AT SIDE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6284900019 | EXHAUST PIPE |
| EXHAUST GAS TURBOCHARGER CONNECTION | ||
| 005 | A 6284900025 | CONNECTOR |
| EXHAUST GAS TURBOCHARGER CONNECTION | ||
| 008 | A 6284900125 | CONNECTOR |
| EXHAUST GAS TURBOCHARGER CONNECTION | ||
| 008 | A 6284900125 | CONNECTOR |
| EXHAUST GAS TURBOCHARGER CONNECTION | ||
| 011 | A 9734900165 | FLEXIBLE METAL TUBE |
| EXHAUST GAS TURBOCHARGER CONNECTION | ||
| Repalced by: A 9704900665 | ||
| 011 | A 9704900665 | WRAPPED TUBING |
| EXHAUST GAS TURBOCHARGER CONNECTION | ||
| 011 | A 9734900165 | FLEXIBLE METAL TUBE |
| EXHAUST GAS TURBOCHARGER CONNECTION | ||
| Repalced by: A 9704900665 | ||
| 011 | A 9704900665 | WRAPPED TUBING |
| EXHAUST GAS TURBOCHARGER CONNECTION | ||
| 023 | A 6284900065 | FLEXIBLE METAL TUBE |
| LENGTH: | ||
| 240 MM | ||
| 023 | A 6284900065 | FLEXIBLE METAL TUBE |
| LENGTH: | ||
| 240 MM | ||
| 023 | A 6284900165 | FLEXIBLE METAL TUBE |
| LENGTH: | ||
| 185 MM | ||
| 024 | A 6284920080 | FLANGE GASKET |
| 025 | A 6284920180 | FLANGE GASKET |
| 026 | A 0019904605 | STUD |
| FLEXIBLE METAL TUBE TO EXHAUST MUFFLER | ||
| 026 | A 0019904605 | STUD |
| FLEXIBLE METAL TUBE TO EXHAUST MUFFLER | ||
| 026 | A 0019904605 | STUD |
| HOSE TO TURBOCHARGER | ||
| 027 | A 0129900601 | SCREW |
| M10X25MM | ||
| 029 | N 999901010000 | NUT |
| EXHAUST PIPE TO TURBOCHARGER | ||
| M10 | ||
| 029 | N 999901010000 | NUT |
| EXHAUST PIPE TO TURBOCHARGER | ||
| M10 | ||
| 032 | A 6284920004 | REAR EXHAUST PIPE |
| AT MUFFLER | ||
| 032 | A 6284920104 | REAR EXHAUST PIPE |
| AT MUFFLER | ||
| 035 | A 6284920204 | REAR EXHAUST PIPE |
| AT MUFFLER | ||
| 035 | A 6284920204 | REAR EXHAUST PIPE |
| AT MUFFLER | ||
| 035 | A 6284920304 | REAR EXHAUST PIPE |
| AT MUFFLER | ||
| 035 | A 6284920304 | REAR EXHAUST PIPE |
| AT MUFFLER | ||
| 035 | A 6284920704 | REAR EXHAUST PIPE |
| AT MUFFLER | ||
| 035 | A 6284920804 | REAR EXHAUST PIPE |
| AT MUFFLER | ||
| 035 | A 6284920804 | REAR EXHAUST PIPE |
| AT MUFFLER | ||
| 036 | A 6284923204 | REAR EXHAUST PIPE |
| AT MUFFLER | ||
| 038 | A 3574920814 | END PIECE |
| 041 | N 910002003101 | RIVET |
| Repalced by: N 007337004001 | ||
| 041 | N 007337004001 | BLIND RIVET |
| TAIL PIPE TO EXHAUST PIPE | ||
| 044 | N 071555104501 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 104,5 MM | ||
| 044 | N 071555104501 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 104,5 MM | ||
| 044 | N 071555104501 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 104,5 MM | ||
| 047 | A 0019908204 | SCREW |
| M10X25MM | ||
| Repalced by: N 910105010009 | ||
| 047 | N 910105010009 | HEXAGON HEAD BOLT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| M10X25MM | ||
| 047 | A 0019908204 | SCREW |
| M10X25MM | ||
| Repalced by: N 910105010009 | ||
| 047 | N 910105010009 | HEXAGON HEAD BOLT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| M10X25MM | ||
| 047 | A 0019908204 | SCREW |
| M10X25MM | ||
| Repalced by: N 910105010009 | ||
| 047 | N 910105010009 | HEXAGON HEAD BOLT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| M10X25MM | ||
| 050 | A 0019908204 | SCREW |
| M10X25MM | ||
| Repalced by: N 910105010009 | ||
| 050 | N 910105010009 | HEXAGON HEAD BOLT |
| EXHAUST GAS TURBOCHARGER CONNECTION | ||
| M10X25MM | ||
| 050 | A 0019908204 | SCREW |
| M10X25MM | ||
| Repalced by: N 910105010009 | ||
| 050 | N 910105010009 | HEXAGON HEAD BOLT |
| EXHAUST GAS TURBOCHARGER CONNECTION | ||
| M10X25MM | ||
| 053 | N 913023010002 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| M10 | ||
| 053 | N 913023010002 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| M10 | ||
| 053 | N 913023010002 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| M10 | ||
| 056 | A 6284900114 | CATALYST |
| 056 | A 6284900314 | CATALYST |
| 056 | A 6284900501 | EXHAUST MUFFLER |
| 056 | A 6284900501 | EXHAUST MUFFLER |
| 059 | A 6284900301 | EXHAUST MUFFLER |
| 062 | A 6284900214 | CATALYST |
| 062 | A 6284900214 | CATALYST |
| 062 | A 6284900014 | CATALYST |
| 068 | A 3014910215 | CONSOLE |
| REAR EXHAUST MUFFLER | ||
| 068 | A 3014910215 | CONSOLE |
| REAR EXHAUST MUFFLER | ||
| 068 | A 3014910215 | CONSOLE |
| REAR EXHAUST MUFFLER | ||
| 069 | A 3014910118 | PLATE |
| REAR EXHAUST MUFFLER | ||
| 069 | A 3014910118 | PLATE |
| REAR EXHAUST MUFFLER | ||
| 069 | A 3014910118 | PLATE |
| REAR EXHAUST MUFFLER | ||
| 070 | A 3014910053 | SPACER TUBE |
| REAR EXHAUST MUFFLER | ||
| 070 | A 3014910053 | SPACER TUBE |
| REAR EXHAUST MUFFLER | ||
| 070 | A 3014910053 | SPACER TUBE |
| REAR EXHAUST MUFFLER | ||
| 071 | A 3004910183 | INSULATION |
| REAR EXHAUST MUFFLER | ||
| 071 | A 3004910183 | INSULATION |
| REAR EXHAUST MUFFLER | ||
| 071 | A 3004910183 | INSULATION |
| REAR EXHAUST MUFFLER | ||
| 071 | A 3004910283 | INSULATION |
| REAR EXHAUST MUFFLER | ||
| 071 | A 3004910283 | INSULATION |
| REAR EXHAUST MUFFLER | ||
| 071 | A 3004910283 | INSULATION |
| REAR EXHAUST MUFFLER | ||
| 072 | N 910143008003 | HEXALOBULAR BOLT |
| REAR EXHAUST MUFFLER | ||
| M8X30MM | ||
| 072 | N 910143008003 | HEXALOBULAR BOLT |
| REAR EXHAUST MUFFLER | ||
| M8X30MM | ||
| 072 | N 910143008003 | HEXALOBULAR BOLT |
| REAR EXHAUST MUFFLER | ||
| M8X30MM | ||
| 073 | N 913023008003 | NUT |
| REAR EXHAUST MUFFLER | ||
| M8 | ||
| 073 | N 913023008003 | NUT |
| REAR EXHAUST MUFFLER | ||
| M8 | ||
| 073 | N 913023008003 | NUT |
| REAR EXHAUST MUFFLER | ||
| M8 | ||
| 074 | A 6284910215 | CONSOLE |
| Repalced by: A 6284910415 | ||
| 074 | A 6284910415 | CONSOLE |
| FRONT EXHAUST MUFFLER | ||
| 075 | A 3014910118 | PLATE |
| FRONT EXHAUST MUFFLER | ||
| 075 | A 3014910118 | PLATE |
| FRONT EXHAUST MUFFLER | ||
| 075 | A 3014910118 | PLATE |
| FRONT EXHAUST MUFFLER | ||
| 076 | A 3014910053 | SPACER TUBE |
| FRONT EXHAUST MUFFLER | ||
| 076 | A 3014910053 | SPACER TUBE |
| FRONT EXHAUST MUFFLER | ||
| 076 | A 3014910053 | SPACER TUBE |
| FRONT EXHAUST MUFFLER | ||
| 077 | A 3004910183 | INSULATION |
| FRONT EXHAUST MUFFLER | ||
| 077 | A 3004910183 | INSULATION |
| FRONT EXHAUST MUFFLER | ||
| 077 | A 3004910183 | INSULATION |
| FRONT EXHAUST MUFFLER | ||
| 077 | A 3004910283 | INSULATION |
| FRONT EXHAUST MUFFLER | ||
| 077 | A 3004910283 | INSULATION |
| FRONT EXHAUST MUFFLER | ||
| 077 | A 3004910283 | INSULATION |
| FRONT EXHAUST MUFFLER | ||
| 078 | N 910143008003 | HEXALOBULAR BOLT |
| FRONT EXHAUST MUFFLER | ||
| M8X30MM | ||
| 078 | N 910143008003 | HEXALOBULAR BOLT |
| FRONT EXHAUST MUFFLER | ||
| M8X30MM | ||
| 078 | N 910143008003 | HEXALOBULAR BOLT |
| FRONT EXHAUST MUFFLER | ||
| M8X30MM | ||
| 079 | N 913023008003 | NUT |
| FRONT EXHAUST MUFFLER | ||
| M8 | ||
| 079 | N 913023008003 | NUT |
| FRONT EXHAUST MUFFLER | ||
| M8 | ||
| 079 | N 913023008003 | NUT |
| FRONT EXHAUST MUFFLER | ||
| M8 | ||
| 080 | A 6284910030 | PROTECTIVE PLATE |
| FRONT EXHAUST MUFFLER | ||
| 080 | A 6284910030 | PROTECTIVE PLATE |
| FRONT EXHAUST MUFFLER | ||
| 080 | A 6284910030 | PROTECTIVE PLATE |
| FRONT EXHAUST MUFFLER | ||
| 081 | A 3004920082 | DAMPING PAD |
| EXHAUST MUFFLER SUSPENSION | ||
| 081 | A 3004920082 | DAMPING PAD |
| EXHAUST MUFFLER SUSPENSION | ||
| 081 | A 3004920082 | DAMPING PAD |
| EXHAUST MUFFLER SUSPENSION | ||
| 082 | A 6204926241 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 082 | A 6204926241 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 082 | A 6204926241 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 082 | A 6204926241 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 083 | A 3014910015 | CONSOLE |
| BRACKET TO SUBSTRUCTURE | ||
| 083 | A 3014910015 | CONSOLE |
| BRACKET TO SUBSTRUCTURE | ||
| 083 | A 3014910015 | CONSOLE |
| BRACKET TO SUBSTRUCTURE | ||
| 084 | A 6194920241 | BRACKET |
| EXHAUST MUFFLER TO CONSOLE | ||
| 086 | A 6284910041 | BRACKET |
| EXHAUST MUFFLER TO CONSOLE | ||
| 086 | A 6284910041 | BRACKET |
| EXHAUST MUFFLER TO CONSOLE | ||
| 086 | A 6284910041 | BRACKET |
| EXHAUST MUFFLER TO CONSOLE | ||
| 086 | A 6204926241 | BRACKET |
| EXHAUST MUFFLER TO CONSOLE | ||
| 086 | A 6204926241 | BRACKET |
| EXHAUST MUFFLER TO CONSOLE | ||
| 089 | A 6284910015 | CONSOLE |
| ON ENGINE SUPPORT | ||
| 092 | A 6284910115 | CONSOLE |
| ON ENGINE SUPPORT | ||
| 092 | A 6284910115 | CONSOLE |
| ON ENGINE SUPPORT | ||
| 092 | A 6284910115 | CONSOLE |
| ON ENGINE SUPPORT | ||
| 095 | A 0019908204 | SCREW |
| M10X25MM | ||
| Repalced by: N 910105010009 | ||
| 095 | N 910105010009 | HEXAGON HEAD BOLT |
| M10X25MM | ||
| 095 | A 0019908204 | SCREW |
| M10X25MM | ||
| Repalced by: N 910105010009 | ||
| 095 | N 910105010009 | HEXAGON HEAD BOLT |
| M10X25MM | ||
| 095 | A 0019908204 | SCREW |
| M10X25MM | ||
| Repalced by: N 910105010009 | ||
| 095 | N 910105010009 | HEXAGON HEAD BOLT |
| M10X25MM | ||
| 095 | A 0019908204 | SCREW |
| M10X25MM | ||
| Repalced by: N 910105010009 | ||
| 098 | N 913023010002 | NUT |
| M10 | ||
| 098 | N 913023010002 | NUT |
| M10 | ||
| 098 | N 913023010002 | NUT |
| M10 | ||
| 101 | N 910105008005 | HEXAGON HEAD BOLT |
| M8X25MM | ||
| 101 | N 910105008005 | HEXAGON HEAD BOLT |
| M8X25MM | ||
| 101 | N 910105008005 | HEXAGON HEAD BOLT |
| M8X25MM | ||
| 104 | N 913023008003 | NUT |
| M8 | ||
| 104 | N 913023008003 | NUT |
| M8 | ||
| 104 | N 913023008003 | NUT |
| M8 | ||
