Transporto priemonė: O 530 N3 UESTRA E 2; VIN numerio dalis: 628002
Grupė: 65 ROOF

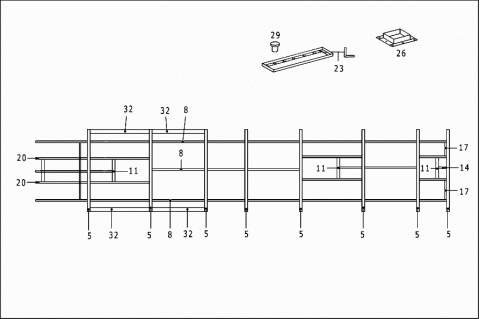

90436

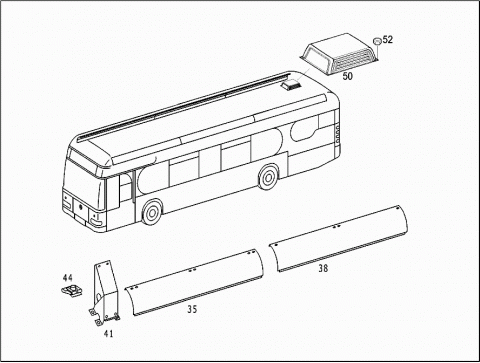

90437
# Kodas Pavadinimas
005 A 6286520302 ROOF BOW
TRANSVERSE BOW
2182 MM
005 A 6286520302 ROOF BOW
TRANSVERSE BOW
2182 MM
008 A 6286522501 ROOF BOW
LONGITUDINAL BOW
008 A 6286522501 ROOF BOW
LONGITUDINAL BOW
011 A 6286510202 ROOF RAIL
011 A 6286510202 ROOF RAIL
014 A 6286321840 SUPPORT
017 A 6286028118 RAIL
2460 MM
017 A 6286028118 RAIL
2460 MM
020 A 6286500021 ROOF BOW
023 A 6286500265 FRAME
AIR CONDITIONER
026 A 6286500001 ROOF RAIL
026 A 6288300065 FRAME
029 N 007337006104 RIVET
029 N 910001004102 RIVET
Repalced by: A 0019904997
029 A 0019904997 RIVET
032 A 6286501216 REINFORCEMENT
L.P. GAS SYSTEM
032 A 6286501116 REINFORCEMENT
L.P. GAS SYSTEM
032 A 6286500816 REINFORCEMENT
L.P. GAS SYSTEM
032 A 6286500716 REINFORCEMENT
L.P. GAS SYSTEM
032 A 6286500916 REINFORCEMENT
L.P. GAS SYSTEM
032 A 6286501016 REINFORCEMENT
L.P. GAS SYSTEM
X XXXXXXXXXXXX PART NAME MISSING
ROOF RAIL
035 A 6286371545 ROOF RAIL
LEFT
035 A 6286371745 ROOF RAIL
LEFT
035 A 6286370545 ROOF RAIL
LEFT
035 A 6286371145 ROOF RAIL
LEFT AND RIGHT
035 A 6286371945 ROOF RAIL
LEFT
035 A 6286371445 ROOF RAIL
RIGHT
035 A 6286371645 ROOF RAIL
RIGHT
035 A 6286370645 ROOF RAIL
RIGHT
035 A 6286371845 ROOF RAIL
RIGHT
038 A 6286371345 ROOF RAIL
LEFT
038 A 6286371245 ROOF RAIL
RIGHT
041 A 6286300136 BRACKET
ROOF RAIL;WRAP-AROUND
041 A 6286300136 BRACKET
ROOF RAIL;WRAP-AROUND
044 A 0009908891 NUT RETAINER
BRACKET TO ROOF RAIL
044 A 0009908891 NUT RETAINER
BRACKET TO ROOF RAIL
050 A 6286500238 COVERING
REAR RIGHT
052 A 0039900251 NUT
