Transporto priemonė: O 530 NG3 EURO 2; VIN numerio dalis: 628010

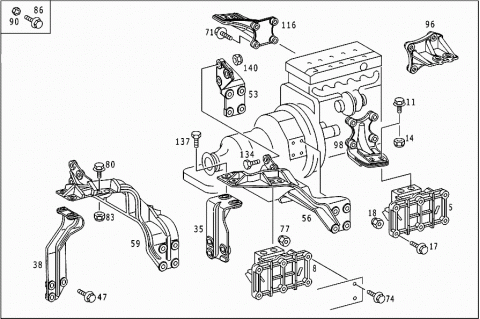

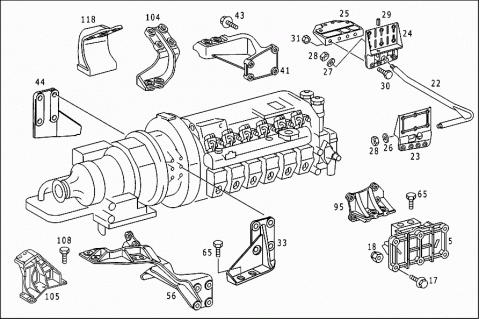

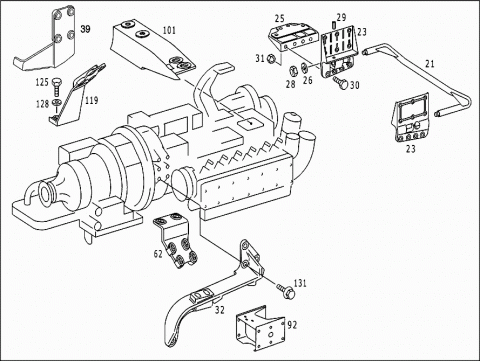

Grupė: 24 ENGINE SUSPENSION - 120 ENGINE REAR SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6282400717 | RUBBER MOUNTING |
| Repalced by: A 6282402017 | ||
| 005 | A 6282402017 | RUBBER MOUNTING |
| RIGHT | ||
| 005 | A 6282400717 | RUBBER MOUNTING |
| Repalced by: A 6282402017 | ||
| 005 | A 6282402017 | RUBBER MOUNTING |
| RIGHT | ||
| 005 | A 6282401217 | RUBBER MOUNTING |
| Repalced by: A 6282402517 | ||
| 005 | A 6282402517 | RUBBER MOUNTING |
| REAR LEFT AND RIGHT | ||
| OM457 | ||
| 005 | A 6282400917 | RUBBER MOUNTING |
| Repalced by: A 6282402317 | ||
| 005 | A 6282402317 | RUBBER MOUNTING |
| LEFT | ||
| 005 | A 6282401017 | RUBBER MOUNTING |
| Repalced by: A 6282402417 | ||
| 005 | A 6282401017 | RUBBER MOUNTING |
| Repalced by: A 6282402417 | ||
| 005 | A 6282402417 | RUBBER MOUNTING |
| LEFT | ||
| 005 | A 6282402417 | RUBBER MOUNTING |
| LEFT | ||
| 005 | A 6282401017 | RUBBER MOUNTING |
| Repalced by: A 6282402417 | ||
| 005 | A 6282402417 | RUBBER MOUNTING |
| LEFT | ||
| 005 | A 9412415713 | RUBBER MOUNTING |
| RIGHT | ||
| 005 | A 9412415713 | RUBBER MOUNTING |
| LEFT | ||
| 005 | A 9412415813 | RUBBER MOUNTING |
| 005 | A 6282400217 | RUBBER MOUNTING |
| Repalced by: A 6282401817 | ||
| 005 | A 6282400217 | RUBBER MOUNTING |
| Repalced by: A 6282401817 | ||
| 005 | A 6282401817 | RUBBER MOUNTING |
| SUPPORTING ARM TO ENGINE REAR MOUNTING | ||
| 005 | A 6282401817 | RUBBER MOUNTING |
| SUPPORTING ARM TO ENGINE REAR MOUNTING | ||
| 005 | A 6282400217 | RUBBER MOUNTING |
| Repalced by: A 6282401817 | ||
| 005 | A 6282401817 | RUBBER MOUNTING |
| SUPPORTING ARM TO ENGINE REAR MOUNTING | ||
| 005 | A 9412415113 | RUBBER MOUNTING |
| SUPPORTING ARM TO ENGINE REAR MOUNTING | ||
| 005 | A 9412415113 | RUBBER MOUNTING |
| SUPPORTING ARM TO ENGINE REAR MOUNTING | ||
| 005 | A 6282400617 | RUBBER MOUNTING |
| Repalced by: A 6282400917 | ||
| 005 | A 6282400917 | RUBBER MOUNTING |
| Repalced by: A 6282402317 | ||
| 005 | A 6282402317 | RUBBER MOUNTING |
| LEFT | ||
| 005 | A 9412415313 | RUBBER MOUNTING |
| REAR RIGHT | ||
| 008 | A 9412415713 | RUBBER MOUNTING |
| LEFT BEARING BRACKET TO TRANSMISSION | ||
| 008 | A 6282400117 | RUBBER MOUNTING |
| Repalced by: A 6282401717 | ||
| 008 | A 6282401717 | RUBBER MOUNTING |
| FRONT | ||
| Repalced by: A 6282401817 | ||
| 008 | A 6282401817 | RUBBER MOUNTING |
| FRONT | ||
| 008 | A 6282401717 | RUBBER MOUNTING |
| FRONT | ||
| 011 | N 308676014012 | SCREW |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M 14X1.5X45 | ||
| 011 | N 308676014014 | SCREW |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M 14X1.5X70 | ||
| 011 | N 910105014010 | SCREW |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M 14X1.5X45 | ||
| Repalced by: N 000000005718 | ||
| 011 | N 000000005718 | SCREW |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M 14X1.5X45 | ||
| 011 | N 910105014013 | SCREW |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M 14X1.5X35 | ||
| 011 | N 910105014019 | SCREW |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M 14X1.5X60 | ||
| Repalced by: N 000000005721 | ||
| 011 | N 000000005721 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M14X1.5X60 | ||
| 014 | N 913023014003 | NUT |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M14X1.5 | ||
| Repalced by: N 000000005662 | ||
| 014 | N 000000005662 | NUT |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| Repalced by: N 913023014003 | ||
| 014 | N 913023014003 | NUT |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M14X1.5 | ||
| 017 | N 910105014008 | SCREW |
| ENGINE MOUNTING TO CONSOLE | ||
| M 14X1.5X55 | ||
| Repalced by: N 000000005516 | ||
| 017 | N 000000005516 | SCREW |
| ENGINE MOUNTING TO CONSOLE | ||
| M 14X1.5X55 | ||
| 017 | N 910105014009 | SCREW |
| ENGINE MOUNTING TO CONSOLE | ||
| M 14X1.5X70 | ||
| Repalced by: N 000000005717 | ||
| 017 | N 000000005717 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO CONSOLE | ||
| M14X1.5X70-10.9 | ||
| Repalced by: N 910105014009 | ||
| 017 | N 910105014009 | SCREW |
| ENGINE MOUNTING TO CONSOLE | ||
| M 14X1.5X70 | ||
| 017 | N 910105014006 | SCREW |
| ENGINE MOUNTING TO CONSOLE | ||
| M14 X 1.5 X 65 MM | ||
| Repalced by: N 000000005716 | ||
| 017 | N 000000005516 | SCREW |
| ENGINE MOUNTING TO CONSOLE | ||
| M14 X 1.5 X 65 MM | ||
| 017 | N 000000005291 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO CONSOLE | ||
| M14X1.5X80 | ||
| 017 | N 000000005290 | SCREW |
| ENGINE MOUNTING TO CONSOLE | ||
| M 14X1.5X90 | ||
| 018 | N 913023014003 | NUT |
| ENGINE MOUNTING TO CONSOLE | ||
| M14X1.5 | ||
| Repalced by: N 000000005662 | ||
| 018 | N 000000005662 | NUT |
| ENGINE MOUNTING TO CONSOLE | ||
| Repalced by: N 913023014003 | ||
| 018 | N 913023014003 | NUT |
| ENGINE MOUNTING TO CONSOLE | ||
| M14X1.5 | ||
| A 6282430032 | REINFORCEMENT | |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| A 6282430032 | REINFORCEMENT | |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| A 6282430032 | REINFORCEMENT | |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| A 6282430032 | REINFORCEMENT | |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| A 6282400332 | REINFORCEMENT | |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| 021 | A 6282400015 | BEARING TUBE |
| 021 | A 6282400015 | BEARING TUBE |
| 021 | A 6282400015 | BEARING TUBE |
| 021 | A 6282400015 | BEARING TUBE |
| 022 | A 6282400115 | BEARING TUBE |
| 022 | A 6282400115 | BEARING TUBE |
| 022 | A 6282400115 | BEARING TUBE |
| 023 | A 6282410035 | BEARING BRACKET |
| 023 | A 6282410035 | BEARING BRACKET |
| 023 | A 6282410035 | BEARING BRACKET |
| 023 | A 6282410035 | BEARING BRACKET |
| 024 | A 6282410135 | BEARING BRACKET |
| 024 | A 6282410135 | BEARING BRACKET |
| 024 | A 6282410135 | BEARING BRACKET |
| 025 | A 6282410002 | SUPPORT |
| 025 | A 6282410002 | SUPPORT |
| 025 | A 6282410002 | SUPPORT |
| 025 | A 6282410002 | SUPPORT |
| 026 | A 6282410076 | WASHER |
| 026 | A 6282410076 | WASHER |
| 026 | A 6282410076 | WASHER |
| 026 | A 6282410076 | WASHER |
| 027 | A 6282410176 | WASHER |
| 027 | A 6282410176 | WASHER |
| 027 | A 6282410176 | WASHER |
| 028 | A 0059902851 | NUT |
| 028 | A 0059902851 | NUT |
| 028 | A 0059902851 | NUT |
| 028 | A 0059902851 | NUT |
| 029 | N 000000002315 | ROLL PIN |
| 030 | N 910105016012 | SCREW |
| M 16X1.5X50 | ||
| Repalced by: N 000000005542 | ||
| 030 | N 000000005542 | SCREW |
| M 16X1.5X50 | ||
| 031 | N 913023016001 | NUT |
| M16X1.5 | ||
| Repalced by: N 000000005738 | ||
| 031 | N 000000005738 | NUT |
| M16X1.5 | ||
| 032 | A 6282400002 | ENGINE SUPPORT |
| LEFT | ||
| OM 906 | ||
| 033 | A 6282400001 | ENGINE SUPPORT |
| Repalced by: A 6282400005 | ||
| 033 | A 6282400005 | SUPPORTING ARM |
| 033 | A 6282400005 | SUPPORTING ARM |
| LEFT | ||
| OM 457 | ||
| 035 | A 6282410601 | ENGINE SUPPORT |
| AT TRANSMISSION | ||
| ZF | ||
| 038 | A 6282410801 | ENGINE SUPPORT |
| TRANSMISSION MOUNTING TO TRANSMISSION, LEFT | ||
| VOITH | ||
| 039 | A 6282400102 | ENGINE SUPPORT |
| RIGHT | ||
| OM 906 | ||
| 041 | A 6282420705 | SUPPORTING ARM |
| REAR RIGHT | ||
| OM 457 | ||
| Repalced by: A 6282420905 | ||
| 041 | A 6282420905 | SUPPORTING ARM |
| REAR RIGHT | ||
| OM 457 | ||
| 043 | N 910105014005 | SCREW |
| ENGINE SUPPORT TO ENGINE | ||
| M14 X 1.5 X 40 MM | ||
| Repalced by: N 000000005514 | ||
| 043 | N 000000005514 | SCREW |
| ENGINE SUPPORT TO ENGINE | ||
| M14 X 1.5 X 40 MM | ||
| Repalced by: N 910105014005 | ||
| 043 | N 910105014005 | SCREW |
| ENGINE SUPPORT TO ENGINE | ||
| M14 X 1.5 X 40 MM | ||
| 044 | A 6282400101 | ENGINE SUPPORT |
| RIGHT | ||
| OM 457 | ||
| 044 | A 6282400101 | ENGINE SUPPORT |
| RIGHT | ||
| OM 457 | ||
| 047 | N 910105016012 | SCREW |
| LEFT SUPPORTING ARM | ||
| M 16X1.5X50 | ||
| Repalced by: N 000000005542 | ||
| 047 | N 000000005542 | SCREW |
| LEFT SUPPORTING ARM | ||
| M 16X1.5X50 | ||
| 053 | A 6282410101 | ENGINE SUPPORT |
| TRANSMISSION MOUNTING TO TRANSMISSION, RIGHT | ||
| ZF / VOITH | ||
| 056 | A 6282410001 | ENGINE SUPPORT |
| Repalced by: A 6282411301 | ||
| 056 | A 6282411301 | ENGINE SUPPORT |
| 059 | A 6282410201 | ENGINE SUPPORT |
| ENGINE MOUNTING TO TRANSMISSION | ||
| VOITH | ||
| 062 | A 6282410701 | ENGINE SUPPORT |
| TRANSMISSION | ||
| VOITH,OM 906 | ||
| 065 | N 910105018024 | HEXAGON HEAD BOLT |
| ENGINE SUPPORT TO SUBSTRUCTURE | ||
| M18X1.5X60 | ||
| Repalced by: N 000000005564 | ||
| 065 | N 000000005564 | SCREW |
| ENGINE SUPPORT TO SUBSTRUCTURE | ||
| M18 X 1.5 X 60 MM | ||
| 065 | N 910105018018 | SCREW |
| ENGINE TO REAR RUBBER MOUNTING | ||
| M 18X1.5X45 | ||
| Repalced by: N 000000005559 | ||
| 065 | N 000000005559 | SCREW |
| ENGINE TO REAR RUBBER MOUNTING | ||
| M 18X1.5X45 | ||
| 071 | N 910105016004 | SCREW |
| ENGINE FRONT SUPPORT | ||
| M 16X1.5X40 | ||
| Repalced by: N 000000005535 | ||
| 071 | N 000000005535 | SCREW |
| ENGINE FRONT SUPPORT | ||
| M 16X1.5X40 | ||
| 074 | A 9429901304 | SCREW |
| ON SIDE PANEL,LEFT | ||
| 074 | N 910105014005 | SCREW |
| ON SIDE PANEL,LEFT | ||
| M14 X 1.5 X 40 MM | ||
| Repalced by: N 000000005514 | ||
| 074 | N 000000005514 | SCREW |
| ON SIDE PANEL,LEFT | ||
| M14 X 1.5 X 40 MM | ||
| Repalced by: N 910105014005 | ||
| 074 | N 910105014005 | SCREW |
| ON SIDE PANEL,LEFT | ||
| M14 X 1.5 X 40 MM | ||
| 077 | N 913023014003 | NUT |
| ON SIDE PANEL,LEFT | ||
| M14X1.5 | ||
| Repalced by: N 000000005662 | ||
| 077 | N 000000005662 | NUT |
| ON SIDE PANEL,LEFT | ||
| M 14X1.5X10 | ||
| Repalced by: N 913023014003 | ||
| 077 | N 913023014003 | NUT |
| ON SIDE PANEL,LEFT | ||
| M14X1.5 | ||
| 080 | N 910105018022 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO TRANSMISSION | ||
| M18X1.5X50 | ||
| Repalced by: N 000000005563 | ||
| 080 | N 000000005563 | SCREW |
| ENGINE MOUNTING TO TRANSMISSION | ||
| M 18X1.5X50 | ||
| 080 | N 910105014019 | SCREW |
| ENGINE MOUNTING TO SUBSTRUCTURE | ||
| M 14X1.5X60 | ||
| Repalced by: N 000000005721 | ||
| 080 | N 000000005721 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO SUBSTRUCTURE | ||
| M14X1.5X60 | ||
| 080 | N 910105014005 | SCREW |
| ENGINE MOUNTING TO SUBSTRUCTURE | ||
| M14 X 1.5 X 40 MM | ||
| Repalced by: N 000000005514 | ||
| 080 | N 000000005514 | SCREW |
| ENGINE MOUNTING TO SUBSTRUCTURE | ||
| M14 X 1.5 X 40 MM | ||
| Repalced by: N 910105014005 | ||
| 080 | N 910105014005 | SCREW |
| ENGINE MOUNTING TO SUBSTRUCTURE | ||
| M14 X 1.5 X 40 MM | ||
| 083 | N 913023014003 | NUT |
| ENGINE MOUNTING TO SUBSTRUCTURE | ||
| M14X1.5 | ||
| Repalced by: N 000000005662 | ||
| 083 | N 000000005662 | NUT |
| ENGINE MOUNTING TO SUBSTRUCTURE | ||
| Repalced by: N 913023014003 | ||
| 083 | N 913023014003 | NUT |
| ENGINE MOUNTING TO SUBSTRUCTURE | ||
| M14X1.5 | ||
| 086 | N 910105014011 | SCREW |
| LEFT BEARING BRACKET TO HOUSING | ||
| M 14X1.5X50 | ||
| 086 | N 910105014012 | SCREW |
| LEFT BEARING BRACKET TO HOUSING | ||
| M 14X1.5X30 | ||
| Repalced by: N 000000005518 | ||
| 086 | N 000000005518 | HEXAGON HEAD BOLT |
| LEFT BEARING BRACKET TO HOUSING | ||
| M14X1.5X30 | ||
| 090 | N 913023014003 | NUT |
| LEFT BEARING BRACKET TO HOUSING | ||
| M14X1.5 | ||
| Repalced by: N 000000005662 | ||
| 090 | N 000000005662 | NUT |
| LEFT BEARING BRACKET TO HOUSING | ||
| Repalced by: N 913023014003 | ||
| 090 | N 913023014003 | NUT |
| LEFT BEARING BRACKET TO HOUSING | ||
| M14X1.5 | ||
| 092 | A 6282400006 | CONSOLE |
| Repalced by: A 6282400406 | ||
| 092 | A 6282400006 | CONSOLE |
| Repalced by: A 6282400406 | ||
| 092 | A 6282400406 | CONSOLE |
| 092 | A 6282400406 | CONSOLE |
| 092 | A 6282400106 | CONSOLE |
| Repalced by: A 6282400306 | ||
| 092 | A 6282400106 | CONSOLE |
| Repalced by: A 6282400306 | ||
| 092 | A 6282400306 | CONSOLE |
| 092 | A 6282400306 | CONSOLE |
| VEHICLE WIDTH | ||
| 2.50 M | ||
| 095 | A 6282420305 | SUPPORTING ARM |
| REAR LEFT | ||
| OM 457 | ||
| 096 | A 6282420405 | SUPPORTING ARM |
| REAR LEFT | ||
| OM 906 | ||
| 098 | A 6282420105 | SUPPORTING ARM |
| REAR LEFT | ||
| OM 906 | ||
| 101 | A 6282410401 | ENGINE SUPPORT |
| REAR LEFT | ||
| OM 906 | ||
| 104 | A 6282411001 | ENGINE SUPPORT |
| Repalced by: A 6282411201 | ||
| 104 | A 6282411201 | ENGINE SUPPORT |
| Repalced by: A 6282411401 | ||
| 104 | A 6282411401 | ENGINE SUPPORT |
| 105 | A 4572240707 | ENGINE SUPPORT |
| OM 457 HLA | ||
| 108 | N 910105014005 | SCREW |
| M14 X 1.5 X 40 MM | ||
| Repalced by: N 000000005514 | ||
| 108 | N 000000005514 | SCREW |
| M14 X 1.5 X 40 MM | ||
| Repalced by: N 910105014005 | ||
| 108 | N 910105014005 | SCREW |
| M14 X 1.5 X 40 MM | ||
| 116 | A 6282420005 | SUPPORTING ARM |
| Repalced by: A 6282420605 | ||
| 116 | A 6282420605 | SUPPORTING ARM |
| 118 | A 6282410901 | ENGINE SUPPORT |
| REAR RIGHT | ||
| OM 457 | ||
| 119 | A 6282411101 | ENGINE SUPPORT |
| RIGHT | ||
| OM 906 | ||
| 125 | N 910105016018 | SCREW |
| SUPPORTING ARM TO ENGINE REAR MOUNTING | ||
| M 16X1.5X55 | ||
| Repalced by: N 000000005548 | ||
| 125 | N 000000005548 | SCREW |
| SUPPORTING ARM TO ENGINE REAR MOUNTING | ||
| M 16X1.5X55 | ||
| 125 | N 910105016015 | SCREW |
| SUPPORTING ARM TO ENGINE REAR MOUNTING | ||
| M 16X1.5X65 | ||
| Repalced by: N 000000005545 | ||
| 125 | N 000000005545 | SCREW |
| SUPPORTING ARM TO ENGINE REAR MOUNTING | ||
| M 16X1.5X65 | ||
| 125 | N 910105016014 | SCREW |
| SUPPORTING ARM TO ENGINE REAR MOUNTING | ||
| M 16X1.5X70 | ||
| Repalced by: N 000000005544 | ||
| 125 | N 000000005544 | SCREW |
| SUPPORTING ARM TO ENGINE REAR MOUNTING | ||
| M 16X1.5X70 | ||
| 125 | N 910105018027 | SCREW |
| SUPPORTING ARM TO ENGINE REAR MOUNTING | ||
| M 18X1.5X80 | ||
| Repalced by: N 000000005724 | ||
| 125 | N 000000005724 | SCREW |
| SUPPORTING ARM TO ENGINE REAR MOUNTING | ||
| M 18X1.5X80 | ||
| 125 | N 910105018022 | HEXAGON HEAD BOLT |
| SUPPORTING ARM TO ENGINE REAR MOUNTING | ||
| M18X1.5X50 | ||
| Repalced by: N 000000005563 | ||
| 125 | N 000000005563 | SCREW |
| SUPPORTING ARM TO ENGINE REAR MOUNTING | ||
| M 18X1.5X50 | ||
| 125 | N 910105018018 | SCREW |
| SUPPORTING ARM TO ENGINE REAR MOUNTING | ||
| M 18X1.5X45 | ||
| Repalced by: N 000000005559 | ||
| 125 | N 000000005559 | SCREW |
| SUPPORTING ARM TO ENGINE REAR MOUNTING | ||
| M 18X1.5X45 | ||
| 128 | N 009021019101 | WASHER |
| SUPPORTING ARM TO ENGINE REAR MOUNTING | ||
| 131 | N 910105016007 | SCREW |
| SUPPORTING ARM TO TRANSMISSION CASE | ||
| M 16X1.5X45 | ||
| Repalced by: N 000000005538 | ||
| 131 | N 000000005538 | SCREW |
| SUPPORTING ARM TO TRANSMISSION CASE | ||
| M 16X1.5X45 | ||
| 131 | N 910105016004 | SCREW |
| SUPPORTING ARM TO TRANSMISSION CASE | ||
| M 16X1.5X40 | ||
| Repalced by: N 000000005535 | ||
| 131 | N 000000005535 | SCREW |
| SUPPORTING ARM TO TRANSMISSION CASE | ||
| M 16X1.5X40 | ||
| 131 | N 910105016004 | SCREW |
| SUPPORTING ARM TO TRANSMISSION CASE | ||
| M 16X1.5X40 | ||
| Repalced by: N 000000005535 | ||
| 131 | N 000000005535 | SCREW |
| SUPPORTING ARM TO TRANSMISSION CASE | ||
| M 16X1.5X40 | ||
| 131 | N 910105016004 | SCREW |
| SUPPORTING ARM TO TRANSMISSION CASE | ||
| M 16X1.5X40 | ||
| Repalced by: N 000000005535 | ||
| 131 | N 000000005535 | SCREW |
| SUPPORTING ARM TO TRANSMISSION CASE | ||
| M 16X1.5X40 | ||
| 131 | N 910105016004 | SCREW |
| SUPPORTING ARM TO TRANSMISSION CASE | ||
| M 16X1.5X40 | ||
| Repalced by: N 000000005535 | ||
| 131 | N 000000005535 | SCREW |
| SUPPORTING ARM TO TRANSMISSION CASE | ||
| M 16X1.5X40 | ||
| 131 | N 910105016003 | SCREW |
| SUPPORTING ARM TO TRANSMISSION CASE | ||
| M 16X1.5X35 | ||
| 134 | N 910105016015 | SCREW |
| SUPPORTING ARM LEFT TO SUPPORTING ARM RIGHT | ||
| M 16X1.5X65 | ||
| Repalced by: N 000000005545 | ||
| 134 | N 000000005545 | SCREW |
| SUPPORTING ARM LEFT TO SUPPORTING ARM RIGHT | ||
| M 16X1.5X65 | ||
| 137 | N 910105018023 | HEXAGON HEAD BOLT |
| UPPER SUPPORTING ARM ON LOWER SUPPORTING ARM | ||
| M18X1.5X55 | ||
| Repalced by: N 000000005723 | ||
| 137 | N 000000005723 | HEXAGON HEAD BOLT |
| UPPER SUPPORTING ARM ON LOWER SUPPORTING ARM | ||
| M18X1.5X55 | ||
| 137 | N 910105016018 | SCREW |
| LEFT SUPPORTING ARM | ||
| M 16X1.5X55 | ||
| Repalced by: N 000000005548 | ||
| 137 | N 000000005548 | SCREW |
| LEFT SUPPORTING ARM | ||
| M 16X1.5X55 | ||
| 137 | N 910105016015 | SCREW |
| LEFT SUPPORTING ARM | ||
| M 16X1.5X65 | ||
| Repalced by: N 000000005545 | ||
| 137 | N 000000005545 | SCREW |
| LEFT SUPPORTING ARM | ||
| M 16X1.5X65 | ||
| 140 | N 913023016001 | NUT |
| SUPPORTING ARM LEFT TO SUPPORTING ARM RIGHT | ||
| Repalced by: N 000000005738 | ||
| 140 | N 000000005738 | NUT |
| SUPPORTING ARM LEFT TO SUPPORTING ARM RIGHT | ||
| 140 | N 913023016001 | NUT |
| LEFT SUPPORTING ARM | ||
| Repalced by: N 000000005738 | ||
| 140 | N 000000005738 | NUT |
| LEFT SUPPORTING ARM | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
