Transporto priemonė: O 814 R; VIN numerio dalis: 371032

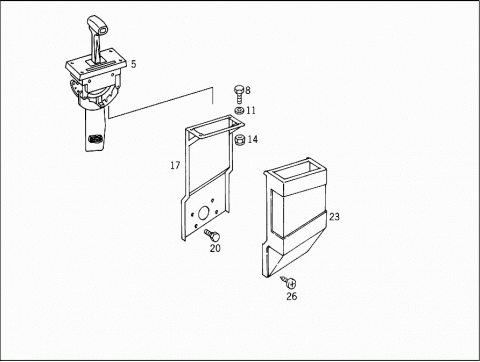

Grupė: 27 AUTOMATIC TRANSMISSION - 750 TRANSMISSION ATTACHMENT PARTS
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0002604572 | SHIFT CASE |
| 008 | N 000933006127 | SCREW |
| (SHIFTING UNIT) | ||
| 011 | N 000125006421 | WASHER |
| (SHIFTING UNIT) | ||
| 014 | N 913004006002 | NUT |
| (SHIFTING UNIT) | ||
| 017 | A 3712707141 | BRACKET |
| 020 | N 000933008108 | SCREW |
| BRACKET TO SUBSTRUCTURE | ||
| 023 | A 3712777081 | COVERING |
| CAB FLOOR COVERING | ||
| 026 | N 007983003279 | SHEET METAL SCREW |
| COVERING TO BRACKET | ||
| 029 | A 6682600151 | WIRE CABLE |
| 032 | A 1869970481 | GROMMET |
| WIRE CABLE | ||
| 035 | A 3219970081 | GROMMET |
| WIRE CABLE | ||
| 038 | N 071805010204 | BALL SOCKET |
| WIRE CABLE | ||
| B10 | ||
| 041 | N 071805010403 | CIRCLIP |
| WIRE CABLE | ||
| S10 | ||
| 044 | A 6682600162 | BRACKET |
| BRACKET TO OIL PAN | ||
| 047 | A 0049902901 | SCREW |
| Repalced by: A 1249904601 | ||
| 047 | A 1249904601 | SCREW |
| BRACKET TO OIL PAN | ||
| 050 | A 3552680015 | LEVER |
| LEVER TO SHIFTING SHAFT | ||
| 053 | N 071803010102 | BALL PIVOT |
| Repalced by: N 071803010301 | ||
| 053 | N 071803010301 | BALL PIVOT |
| LEVER | ||
| 056 | N 913004006002 | NUT |
| LEVER | ||
| 059 | A 6702700084 | OIL FILLER PIPE |
| 062 | A 6702700083 | OIL DIPSTICK |
| 065 | A 6702700041 | BRACKET |
| OIL FILLER NECK | ||
| 068 | A 0059906101 | SCREW |
| BRACKET TO TRANSMISSION | ||
| 071 | N 916016015200 | CLAMP |
| OIL FILLER PIPE TO BRACKET | ||
| 074 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 074 | N 304017008016 | SCREW |
| OIL FILLER PIPE TO BRACKET | ||
| 077 | N 000125008418 | WASHER |
| OIL FILLER PIPE TO BRACKET | ||
| 080 | A 6682710240 | BRACKET |
| FLYWHEEL HOUSING | ||
| 083 | N 000933016060 | SCREW |
| BRACKET TO FLYWHEEL HOUSING | ||
| 086 | A 3522700120 | FLANGE |
| PROPELLER SHAFT TO TRANSMISSION | ||
