Transporto priemonė: O 814 R; VIN numerio dalis: 371032

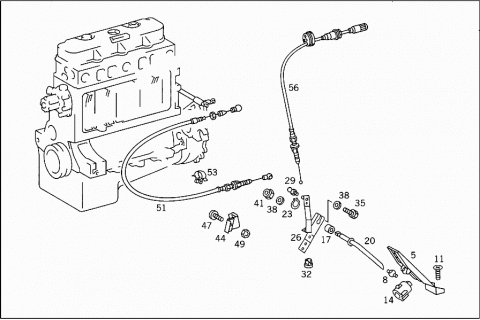

Grupė: 30 CONTROL - 060 ACCELERATOR PEDAL CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6733000004 | ACCELERATOR PEDAL |
| Repalced by: A 3843007004 | ||
| 005 | A 3843007004 | ACCELERATOR PEDAL |
| 008 | A 3093010022 | JOINT |
| 011 | N 000966006045 | SCREW |
| PEDAL TO CAB FLOOR | ||
| 014 | A 1263010141 | STOP |
| FULL THROTTLE | ||
| 017 | A 3863017050 | BUSHING |
| 020 | A 3843007625 | LEVER |
| (PEDAL LEVER) | ||
| 023 | N 006799009002 | LOCK PLATE |
| 026 | A 6883007025 | LEVER |
| (CONTROL LEVER) | ||
| 029 | N 071803008200 | BALL PIVOT |
| 032 | A 3093020050 | BUSHING |
| CONTROL LEVER | ||
| 035 | N 000931006197 | SCREW |
| Repalced by: N 000931006114 | ||
| 035 | N 000931006114 | SCREW |
| CONTROL LEVER TO PEDAL LEVER | ||
| 038 | N 000125006420 | WASHER |
| Repalced by: N 000125006421 | ||
| 038 | N 000125006421 | WASHER |
| CONTROL LEVER TO PEDAL LEVER | ||
| 041 | N 913004006002 | NUT |
| CONTROL LEVER TO PEDAL LEVER | ||
| 044 | A 6673000040 | BRACKET |
| 047 | N 000933006230 | SCREW |
| BRACKET TO COWL | ||
| 049 | N 000934006006 | NUT |
| Repalced by: N 304032006004 | ||
| 049 | N 304032006004 | NUT |
| BRACKET TO COWL | ||
| 051 | A 6883007130 | WIRE CABLE |
| BRACKET TO COWL | ||
| 053 | A 0009956044 | CLAMP |
| BOWDEN CABLE TO CAB | ||
| 056 | A 3843007132 | WIRE CABLE |
| IDLING ADJUSTER | ||
| 059 | A 3604301992 | ROD |
| INJECTION PUMP SHAFT TO OUTSIDE LEVER | ||
| 062 | A 0009912422 | BALL SOCKET |
| 065 | N 071805010403 | CIRCLIP |
| 068 | A 6682600462 | BRACKET |
| HEAT SHIELD | ||
| 071 | A 0049902901 | SCREW |
| Repalced by: A 1249904601 | ||
| 071 | A 1249904601 | SCREW |
| HEAT SHIELD | ||
| 074 | A 6682680083 | COVERING |
| HEAT SHIELD | ||
| 077 | N 000933006207 | SCREW |
| COVER PLATE TO BRACKET | ||
| 080 | N 000125006421 | WASHER |
| COVER PLATE TO BRACKET | ||

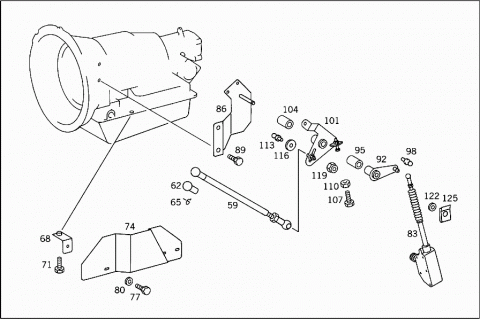

| 083 | A 0003002162 | MODULATOR |
| 086 | A 6683000240 | BRACKET |
| MODULATOR | ||
| 089 | A 0059906101 | SCREW |
| BRACKET TO TRANSMISSION | ||
| 092 | A 6683000627 | LEVER |
| OUTSIDE | ||
| 095 | A 3551440750 | BUSHING |
| 098 | N 071803010202 | BALL PIVOT |
| 101 | A 6683000727 | LEVER |
| INSIDE | ||
| 104 | A 3551440750 | BUSHING |
| 107 | N 000933006083 | SCREW |
| 110 | N 000934006007 | NUT |
| Repalced by: N 304032006004 | ||
| 110 | N 304032006004 | NUT |
| 113 | N 071803010102 | BALL PIVOT |
| Repalced by: N 071803010301 | ||
| 113 | N 071803010301 | BALL PIVOT |
| 116 | N 009021006205 | WASHER |
| 119 | N 913004006002 | NUT |
| 122 | N 000988012017 | FITTED WASHER |
| LEVER TO BRACKET | ||
| 125 | N 912007012000 | CLIP |
| LEVER TO BRACKET | ||
