Transporto priemonė: O 814 R; VIN numerio dalis: 371032

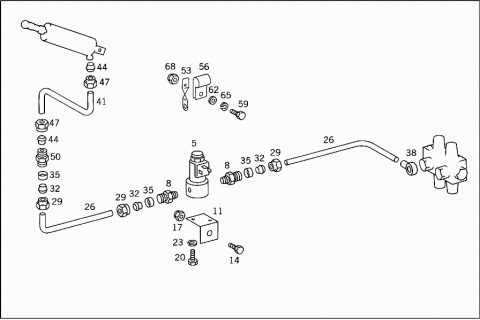

Grupė: 43 EXHAUST BRAKE

#	Kodas	Pavadinimas
005	A 3649977236	VALVE
		(3/2-WAY SOLENOID VALVE)
008	A 3454297736	CONNECTOR
011	A 6884347040	BRACKET
014	N 000933010174	SCREW
		BRACKET TO RIGHT SIDE MEMBER
017	N 913004010008	NUT
		BRACKET TO RIGHT SIDE MEMBER
020	N 000933005095	SCREW
		VALVE TO BRACKET
023	N 000127005001	LOCK WASHER
		VALVE TO BRACKET
026	A 0089976082	HOSE
	Repalced by: A 0009872627
026	A 0009872627	PLASTIC PIPE
		4X6 MM
	T YYYYYYYYYYYY	PART NAME MISSING
		FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "24" TO 3/2-WAY VALVE
	T YYYYYYYYYYYY	PART NAME MISSING
		FROM 3/2-WAY VALVE TO CONNECTOR
029	N 915017006100	UNION NUT
032	N 003861006007	GLAND
	Repalced by: A 0019901667
032	A 0019901667	GLAND
035	N 915062004000	SLEEVE
038	N 915052004002	BANJO UNION
041	A 6884208928	LINE
		FROM FITTING TO COMPRESSED AIR CYLINDER,ENGINE
044	N 003861006007	GLAND
	Repalced by: A 0019901667
044	A 0019901667	GLAND
047	N 915017006100	UNION NUT
050	N 003902006001	CONNECTION FITTING
053	A 6884297040	BRACKET
		LINE TO FITTING AND TO ELBOW FITTING
056	N 916016006201	CLAMP
		LINE TO BRACKET
056	A 6889957101	CLAMP
		LINE TO BRACKET
059	N 000933006030	SCREW
		LINE TO BRACKET
062	N 000125006117	WASHER
		LINE TO BRACKET
065	N 912004006100	LOCK WASHER
		LINE TO BRACKET
068	N 000934006014	NUT
		LINE TO BRACKET
