Transporto priemonė: O 814 R; VIN numerio dalis: 371032

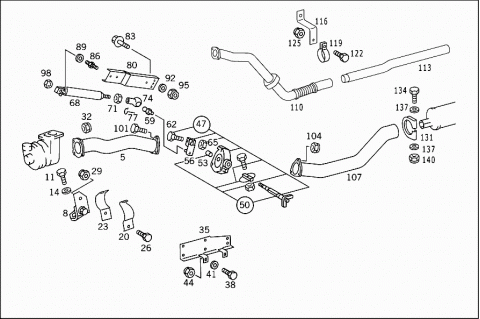

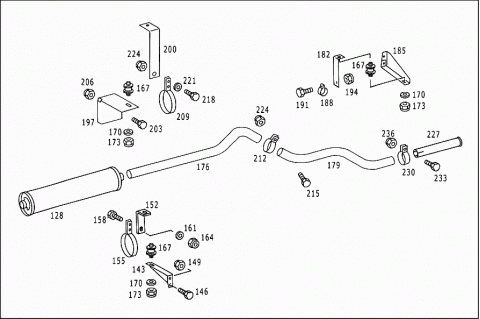

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6694901119 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| 005 | A 6694902519 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| 005 | A 6694902519 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| 008 | A 6684924241 | BRACKET |
| FRONT EXHAUST PIPE TO TRANSMISSION | ||
| 008 | A 6694900040 | BRACKET |
| FRONT EXHAUST PIPE TO TRANSMISSION | ||
| 008 | A 6694900040 | BRACKET |
| FRONT EXHAUST PIPE TO TRANSMISSION | ||
| 008 | A 3714922841 | BRACKET |
| FRONT EXHAUST PIPE TO TRANSMISSION | ||
| 011 | N 000933010094 | SCREW |
| BRACKET TO TRANSMISSION | ||
| M 10X40 | ||
| 011 | N 000933016060 | SCREW |
| BRACKET TO TRANSMISSION | ||
| M 16X25 | ||
| 011 | N 000933016060 | SCREW |
| BRACKET TO TRANSMISSION | ||
| M 16X25 | ||
| 014 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 014 | N 000125010532 | WASHER |
| BRACKET TO TRANSMISSION | ||
| 014 | N 000125017010 | WASHER |
| Repalced by: N 000125017016 | ||
| 014 | N 000125017016 | WASHER |
| BRACKET TO TRANSMISSION | ||
| 014 | N 000125017016 | WASHER |
| BRACKET TO TRANSMISSION | ||
| 020 | A 6684921640 | CLAMP |
| UPPER PART | ||
| 023 | A 6684921740 | CLAMP |
| LOWER PART | ||
| 026 | N 000933010202 | SCREW |
| Repalced by: N 304017010047 | ||
| 026 | N 304017010047 | SCREW |
| EXHAUST PIPE TO BRACKET | ||
| 029 | N 913004010000 | NUT |
| EXHAUST PIPE TO BRACKET | ||
| 032 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 032 | A 1201420072 | HEXAGON NUT |
| FRONT EXHAUST PIPE TO TURBOCHARGER | ||
| 035 | A 6884207044 | PROTECTIVE PLATE |
| 038 | N 000961010038 | SCREW |
| PROTECTIVE PLATE TO SIDE MEMBER | ||
| 041 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 041 | N 000125010532 | WASHER |
| PROTECTIVE PLATE TO SIDE MEMBER | ||
| 044 | N 913004010010 | NUT |
| PROTECTIVE PLATE TO SIDE MEMBER | ||
| 047 | A 3661402253 | THROTTLE HOUSING |
| PARTS KIT | ||
| 050 | A 3661401063 | VALVE |
| PARTS KIT | ||
| 053 | A 3521441650 | BUSHING |
| THROTTLE VALVE SHAFT | ||
| 053 | A 3761447350 | BUSHING |
| THROTTLE VALVE SHAFT | ||
| 056 | A 3661400032 | LEVER |
| Repalced by: A 3661400232 | ||
| 056 | A 3661400232 | LEVER |
| EXHAUST-BRAKE THROTTLE VALVE | ||
| 059 | N 071803013208 | BALL PIVOT |
| 062 | N 000933006124 | SCREW |
| Repalced by: N 304017006012 | ||
| 062 | N 304017006012 | SCREW |
| LEVER TO THROTTLE VALVE SHAFT | ||
| 065 | N 000934006007 | NUT |
| Repalced by: N 304032006004 | ||
| 065 | N 304032006004 | NUT |
| LEVER TO THROTTLE VALVE SHAFT | ||
| 068 | A 0004306026 | CYLINDER |
| 068 | A 0004305926 | CYLINDER |
| 071 | N 000439008209 | NUT |
| 074 | A 4039910222 | BALL SOCKET |
| 077 | N 071805013402 | CIRCLIP |
| 080 | A 3661440040 | BRACKET |
| Repalced by: A 3661440440 | ||
| 080 | A 3661440440 | BRACKET |
| THROTTLE VALVE SHAFT | ||
| 083 | N 914126008037 | SCREW |
| POWER CYLINDER TO BRACKET | ||
| 086 | A 4221440174 | PIN |
| POWER CYLINDER | ||
| 089 | N 000125008418 | WASHER |
| POWER CYLINDER | ||
| 092 | N 007349008002 | WASHER |
| POWER CYLINDER | ||
| 095 | N 999900008004 | NUT |
| POWER CYLINDER | ||
| 098 | N 000934008035 | NUT |
| POWER CYLINDER | ||
| 101 | N 000931012179 | SCREW |
| THROTTLE HOUSING TO FRONT EXHAUST PIPE | ||
| M 12X65 | ||
| 104 | N 913004012010 | NUT |
| THROTTLE HOUSING TO FRONT EXHAUST PIPE | ||
| 107 | A 6694900619 | EXHAUST PIPE |
| AT MUFFLER | ||
| 107 | A 6694903019 | EXHAUST PIPE |
| AT MUFFLER | ||
| 110 | A 3714907519 | EXHAUST PIPE |
| CENTRAL EXHAUST PIPE TO EXHAUST PIPE | ||
| 113 | A 3714927501 | FRONT EXHAUST PIPE |
| AT MUFFLER | ||
| 116 | A 3714928341 | BRACKET |
| FRONT EXHAUST PIPE TO SIDE MEMBER | ||
| 119 | N 071555075502 | CLAMP |
| FRONT EXHAUST PIPE TO SIDE MEMBER | ||
| 122 | N 304017008027 | SCREW |
| FRONT EXHAUST PIPE TO SIDE MEMBER | ||
| 125 | N 913004008004 | NUT |
| Repalced by: N 910113008003 | ||
| 125 | N 910113008003 | NUT |
| FRONT EXHAUST PIPE TO SIDE MEMBER | ||
| 128 | A 6174900301 | EXHAUST MUFFLER |
| 128 | A 6884907101 | EXHAUST MUFFLER |
| 128 | A 6884900301 | EXHAUST MUFFLER |
| 128 | A 6884900401 | EXHAUST MUFFLER |
| 128 | A 6694900001 | EXHAUST MUFFLER |
| 128 | A 6694900001 | EXHAUST MUFFLER |
| 131 | A 6734920140 | CLAMP |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 131 | A 6734920140 | CLAMP |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 134 | N 000931008220 | SCREW |
| Repalced by: N 304017008067 | ||
| 134 | N 304017008067 | SCREW |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 134 | N 304017008067 | SCREW |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 137 | A 1269900540 | WASHER |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 137 | A 1269900540 | WASHER |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 140 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 140 | A 1201420072 | HEXAGON NUT |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 140 | A 1201420072 | HEXAGON NUT |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 143 | A 6884917341 | BRACKET |
| EXHAUST PIPE IN FRONT OF FLEXIBLE METAL TUBE | ||
| 143 | A 3714907940 | BRACKET |
| FRONT EXHAUST PIPE | ||
| 146 | N 000933010105 | SCREW |
| BRACKET TO FRAME | ||
| M 10X25 | ||
| 146 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 146 | N 304017010002 | SCREW |
| BRACKET TO FRAME | ||
| M 10X30 | ||
| 149 | N 913004010008 | NUT |
| BRACKET TO FRAME | ||
| 152 | A 3714917216 | SUPPORT |
| Repalced by: A 3714917116 | ||
| 152 | A 3714917116 | SUPPORT |
| FRONT EXHAUST PIPE | ||
| 155 | A 3714907041 | CLAMP |
| AT MUFFLER | ||
| 158 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 158 | N 304017008027 | SCREW |
| CLAMP TO EXHAUST MUFFLER | ||
| 161 | N 000125008418 | WASHER |
| CLAMP TO EXHAUST MUFFLER | ||
| 164 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 164 | A 1201420072 | HEXAGON NUT |
| CLAMP TO EXHAUST MUFFLER | ||
| 164 | A 1201420072 | HEXAGON NUT |
| CLAMP TO EXHAUST MUFFLER | ||
| 167 | A 0019873140 | RUBBER BUFFER |
| 170 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 170 | N 000125010532 | WASHER |
| RUBBER MOUNTING TO BRACKET | ||
| 173 | N 913004010008 | NUT |
| RUBBER MOUNTING TO BRACKET | ||
| 176 | A 6884927104 | REAR EXHAUST PIPE |
| FRONT PART | ||
| 176 | A 3714927504 | REAR EXHAUST PIPE |
| FRONT PART | ||
| 179 | A 6884927004 | REAR EXHAUST PIPE |
| REAR PART | ||
| 182 | A 6884927116 | SUPPORT |
| REAR EXHAUST PIPE FRONT PART TO BRACKET ON SHOCK ABSORBER CROSS MEMBER | ||
| 185 | A 6884927141 | BRACKET |
| REAR EXHAUST PIPE FRONT PART | ||
| 188 | N 071555075502 | CLAMP |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 191 | N 000933010145 | SCREW |
| CLAMP TO EXHAUST PIPE | ||
| 194 | N 913004010000 | NUT |
| CLAMP TO EXHAUST PIPE | ||
| 197 | A 6884927241 | BRACKET |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 200 | A 3714927016 | SUPPORT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 203 | N 000933010105 | SCREW |
| BRACKET TO FRAME | ||
| 203 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 203 | N 304017010002 | SCREW |
| BRACKET TO FRAME | ||
| 206 | N 913004010008 | NUT |
| BRACKET TO FRAME | ||
| 209 | A 6684920340 | CLAMP |
| REAR EXHAUST PIPE FRONT PART TO REAR PART | ||
| 212 | N 071555075503 | CLAMP |
| REAR EXHAUST PIPE FRONT PART TO REAR PART | ||
| 215 | N 000931008257 | SCREW |
| REAR EXHAUST PIPE FRONT PART TO REAR PART | ||
| 218 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 218 | N 304017008027 | SCREW |
| CLAMP TO SUPPORT | ||
| 221 | N 000125008418 | WASHER |
| REAR EXHAUST PIPE FRONT PART TO REAR PART | ||
| 224 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 224 | A 1201420072 | HEXAGON NUT |
| REAR EXHAUST PIPE FRONT PART TO REAR PART | ||
| 224 | A 1201420072 | HEXAGON NUT |
| CLAMP TO SUPPORT | ||
| 227 | A 3714927014 | END PIECE |
| 230 | N 071555078502 | CLAMP |
| END PIECE TO EXHAUST PIPE | ||
| 233 | N 000933010058 | SCREW |
| END PIECE TO EXHAUST PIPE | ||
| 236 | N 913004010000 | NUT |
| END PIECE TO EXHAUST PIPE | ||
