Transporto priemonė: O 814 R; VIN numerio dalis: 371032

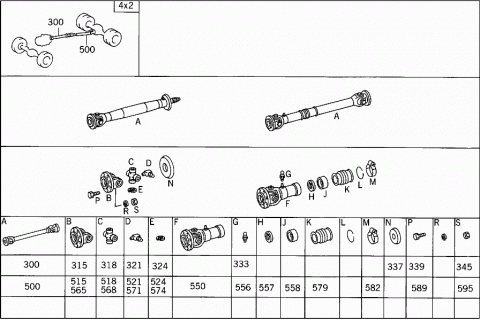

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas
300	A 6884100004	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		1466 MM
300	A 3844100604	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		1303 MM
315	A 3524110011	DRIVE FLANGE
318	A 3454107031	UNIVERSAL JOINT CROSS
318	A 0004101431	UNIVERSAL JOINT CROSS
321	N 071412008300	GREASE NIPPLE
		TO 345 410 70 31
321	A 3459977288	GREASE NIPPLE
		TO 345 410 70 31
324	A 3449947135	SNAP RING
		AS REQUIRED
		2.500 MM
324	A 3129941135	SNAP RING
		AS REQUIRED
		2.500 MM
324	A 3449947235	SNAP RING
		AS REQUIRED
		2.525 MM
324	A 3449947335	SNAP RING
		AS REQUIRED
		2.550 MM
324	A 3129941635	SNAP RING
		AS REQUIRED
		2.550 MM
324	A 3449947435	SNAP RING
		AS REQUIRED
		2.575 MM
324	A 3449947535	SNAP RING
		AS REQUIRED
		2.600 MM
324	A 3129941335	SNAP RING
		AS REQUIRED
		2.600 MM
324	A 3449947635	SNAP RING
		AS REQUIRED
		2.625 MM
324	A 3449947735	SNAP RING
		AS REQUIRED
		2.650 MM
324	A 3129941435	SNAP RING
		AS REQUIRED
		2.650 MM
324	A 3449947835	SNAP RING
		AS REQUIRED
		2.675 MM
324	A 3449947935	SNAP RING
		AS REQUIRED
		2.700 MM
324	A 3129941535	SNAP RING
		AS REQUIRED
		2.700 MM
324	A 3449948035	SNAP RING
		AS REQUIRED
		2.725 MM
324	A 3449948135	SNAP RING
		AS REQUIRED
		2.750
324	A 3129941735	SNAP RING
		AS REQUIRED
		2.750
333	N 071412008100	GREASE NIPPLE
	Repalced by: N 071412008102
333	N 071412008102	GREASE NIPPLE
337	A 3524130061	PROTECTIVE CAP
		INTERMEDIATE SHAFT BEARING
339	A 3529904701	SCREW
	Repalced by: A 0079901001
339	A 0079901001	SCREW
		PROPELLER SHAFT TO TRANSMISSION
345	N 000934010042	NUT
	Repalced by: N 308673010001
345	N 308673010001	NUT
		PROPELLER SHAFT TO TRANSMISSION

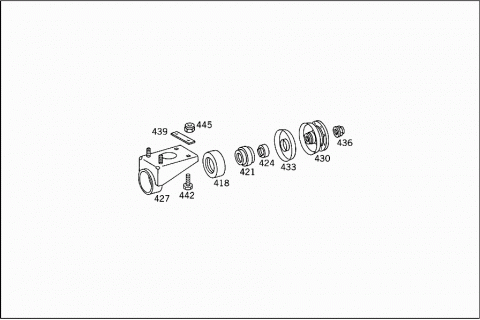

418	A 3524130012	RUBBER MOUNTING
421	A 3524100051	BALL BEARING
421	A 3454100051	BALL BEARING
424	A 3124131231	BEARING RING
427	A 3454100240	BRACKET
		INTERMEDIATE BEARING
430	A 3524100130	CENTERING FLANGE
		INTERMEDIATE SHAFT BEARING
433	A 3524130061	PROTECTIVE CAP
436	A 3449907050	NUT
		FOLLOWER FLANGE TO PROPELLER SHAFT
439	A 3524130011	REINFORCEMENT
		BRACKET TO CROSS MEMBER
442	A 0029901804	SCREW
		BRACKET TO CROSS MEMBER
		M 10X30
445	A 0009906650	NUT
		BRACKET TO CROSS MEMBER
500	A 3844100002	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
515	A 3524110011	DRIVE FLANGE
518	A 3454107031	UNIVERSAL JOINT CROSS
518	A 0004101431	UNIVERSAL JOINT CROSS
521	A 3459977288	GREASE NIPPLE
		TO 345 410 70 31
521	N 071412008300	GREASE NIPPLE
		TO 345 410 70 31
524	A 3449947135	SNAP RING
		AS REQUIRED
		2.500 MM
524	A 3129941135	SNAP RING
		AS REQUIRED
		2.500 MM
524	A 3449947235	SNAP RING
		AS REQUIRED
		2.525 MM
524	A 3449947335	SNAP RING
		AS REQUIRED
		2.550 MM
524	A 3129941635	SNAP RING
		AS REQUIRED
		2.550 MM
524	A 3449947435	SNAP RING
		AS REQUIRED
		2.575 MM
524	A 3449947535	SNAP RING
		AS REQUIRED
		2.600 MM
524	A 3129941335	SNAP RING
		AS REQUIRED
		2.600 MM
524	A 3449947635	SNAP RING
		AS REQUIRED
		2.625 MM
524	A 3449947735	SNAP RING
		AS REQUIRED
		2.650 MM
524	A 3129941435	SNAP RING
		AS REQUIRED
		2.650 MM
524	A 3449947835	SNAP RING
		AS REQUIRED
		2.675 MM
524	A 3449947935	SNAP RING
		AS REQUIRED
		2.700 MM
524	A 3129941535	SNAP RING
		AS REQUIRED
		2.700 MM
550	A 3444100008	UNIVERSAL JOINT YOKE
556	N 071412008100	GREASE NIPPLE
	Repalced by: N 071412008102
556	N 071412008102	GREASE NIPPLE
557	A 3374130080	SEAL RING
		TO 344 410 00 08
558	A 3214110158	SEAL HOLDER
		TO 344 410 00 08
565	A 3524110011	DRIVE FLANGE
568	A 3454107031	UNIVERSAL JOINT CROSS
568	A 0004101431	UNIVERSAL JOINT CROSS
571	N 071412008300	GREASE NIPPLE
		TO 345 410 70 31
571	A 3459977288	GREASE NIPPLE
		TO 345 410 70 31
574	A 3449947135	SNAP RING
		AS REQUIRED
		2.500 MM
574	A 3129941135	SNAP RING
		AS REQUIRED
		2.500 MM
574	A 3449947235	SNAP RING
		AS REQUIRED
		2.525 MM
574	A 3449947335	SNAP RING
		AS REQUIRED
		2.550 MM
574	A 3129941635	SNAP RING
		AS REQUIRED
		2.550 MM
574	A 3449947435	SNAP RING
		AS REQUIRED
		2.575 MM
574	A 3449947535	SNAP RING
		AS REQUIRED
		2.600 MM
574	A 3129941335	SNAP RING
		AS REQUIRED
		2.600 MM
574	A 3449947635	SNAP RING
		AS REQUIRED
		2.625 MM
574	A 3449947735	SNAP RING
		AS REQUIRED
		2.650 MM
574	A 3129941435	SNAP RING
		AS REQUIRED
		2.650 MM
574	A 3449947835	SNAP RING
		AS REQUIRED
		2.675 MM
574	A 3449947935	SNAP RING
		AS REQUIRED
		2.700 MM
574	A 3129941535	SNAP RING
		AS REQUIRED
		2.700 MM
574	A 3449948035	SNAP RING
		AS REQUIRED
		2.725 MM
574	A 3449948035	SNAP RING
		AS REQUIRED
		2.725 MM
574	A 3449948135	SNAP RING
		AS REQUIRED
		2.750 MM
574	A 3129941735	SNAP RING
		AS REQUIRED
		2.750 MM
579	A 3524100080	BOOT
579	A 3454107280	BOOT
582	N 000000000674	CLAMP
589	A 3529904701	SCREW
	Repalced by: A 0079901001
589	A 0079901001	SCREW
		PROPELLER SHAFT TO INTERMEDIATE BEARING AND TO REAR AXLE
595	N 308673010001	NUT
		PROPELLER SHAFT TO INTERMEDIATE BEARING AND TO REAR AXLE
