Transporto priemonė: O 814 R; VIN numerio dalis: 371032

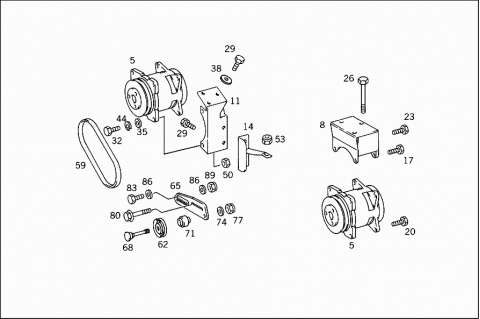

Grupė: 55 SPECIAL INSTALLATIONS - 090 COMPRESSOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3711317001 | COMPRESSOR |
| REFRIGERANT COMPRESSOR | ||
| SANKYO | ||
| 008 | A 3715507138 | SUPPORT |
| LEFT | ||
| 011 | A 3715507038 | SUPPORT |
| RIGHT | ||
| 014 | A 3715517096 | STRUT |
| RIGHT | ||
| 017 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 017 | N 304017010002 | SCREW |
| REFRIGERANT COMPRESSOR TO SUPPORT | ||
| M 10X30 | ||
| 017 | N 304017010002 | SCREW |
| STRUT TO SUPPORT | ||
| M 10X30 | ||
| 020 | N 000933010145 | SCREW |
| REFRIGERANT COMPRESSOR TO SUPPORT | ||
| M 10X35 | ||
| 023 | N 000931010282 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| M 10X40 | ||
| 026 | N 000931010258 | SCREW |
| REFRIGERANT COMPRESSOR TO SUPPORT | ||
| M 10X55 | ||
| 029 | N 000931010274 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| M 10X90 | ||
| 032 | N 000912010127 | SCREW |
| REFRIGERANT COMPRESSOR TO SUPPORT | ||
| M 10X40 | ||
| 035 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 035 | N 000125010532 | WASHER |
| 038 | N 009021010104 | WASHER |
| SUPPORT TO CROSS MEMBER | ||
| A 3719900240 | WASHER | |
| REFRIGERANT COMPRESSOR TO SUPPORT | ||
| 044 | N 000127010203 | LOCK WASHER |
| A 3719920025 | SLEEVE | |
| REFRIGERANT COMPRESSOR TO SUPPORT | ||
| 050 | N 913002010007 | NUT |
| 053 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 053 | N 304032010003 | NUT |
| STRUT TO SUPPORT | ||
| A 3719920101 | BUSHING | |
| REFRIGERANT COMPRESSOR TO SUPPORT | ||
| 059 | A 3719970092 | V-BELT |
| HORIZONTAL | ||
| 059 | A 3719970192 | V-BELT |
| RIGHT | ||
| 062 | A 1161300160 | PULLEY |
| BELT TIGHTENER PULLEY | ||
| 065 | A 6682400440 | BRACKET |
| BELT TIGHTENER PULLEY | ||
| 068 | A 3149900419 | SCREW |
| BELT TIGHTENER PULLEY TO BRACKET | ||
| 071 | A 6682410253 | SPACER TUBE |
| BELT TIGHTENER PULLEY TO BRACKET | ||
| 074 | A 1159904440 | WASHER |
| BELT TIGHTENER PULLEY TO BRACKET | ||
| 077 | N 913004008010 | NUT |
| BELT TIGHTENER PULLEY TO BRACKET | ||
| 080 | A 6682400171 | SCREW |
| BRACKET TO ENGINE FRONT SUPPORT | ||
| 083 | N 000933010095 | SCREW |
| BRACKET TO ENGINE FRONT SUPPORT | ||
| 086 | A 1159903040 | WASHER |
| BRACKET TO ENGINE FRONT SUPPORT | ||
| 089 | N 913004010008 | NUT |
| BRACKET TO ENGINE FRONT SUPPORT | ||
