Transporto priemonė: O 814 R; VIN numerio dalis: 371032

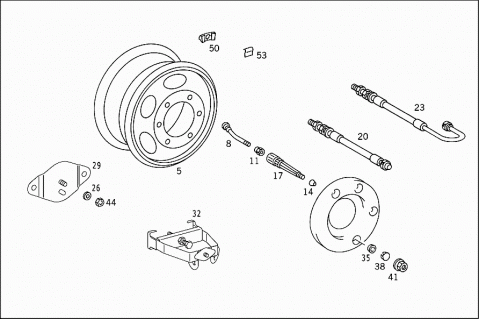

Grupė: 40 WHEELS - 090 DISC WHEELS AND SPARE WHEEL CARRIER
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6884000202 | DISC WHEEL |
| Repalced by: A 6744000102 | ||
| 005 | A 6884000402 | DISC WHEEL |
| Repalced by: A 6744000102 | ||
| 005 | A 6884000602 | DISC WHEEL |
| Repalced by: A 6744000102 | ||
| 005 | A 6744000102 | DISC WHEEL |
| 17,5X6,75 | ||
| 008 | A 0004013213 | VALVE |
| Repalced by: A 0004017113 | ||
| 008 | A 0004017213 | VALVE |
| Repalced by: A 0004017113 | ||
| 008 | A 0004017113 | VALVE |
| (TIRE INFLATOR VALVE) | ||
| 011 | A 0004010272 | NUT |
| (TIRE INFLATOR VALVE) | ||
| 014 | N 007757008600 | VALVE CAP |
| (TIRE INFLATOR VALVE) | ||
| 017 | A 3104010213 | VALVE |
| EXTENSION,FRONT WHEEL | ||
| 017 | A 3104010513 | VALVE |
| EXTENSION,FRONT WHEEL | ||
| 020 | A 6884017313 | VALVE |
| REAR INSIDE | ||
| 023 | A 6884017513 | VALVE |
| LEFT AND RIGHT REAR OUTSIDE | ||
| 026 | N 000125013008 | WASHER |
| RIM EMBELLISHER TO BRACKET | ||
| 029 | A 6888907014 | BRACKET |
| FRONT | ||
| 032 | A 6884007426 | BRACKET |
| Repalced by: A 3714007026 | ||
| 032 | A 3714007026 | BRACKET |
| REAR | ||
| 035 | A 3249970026 | SPHERICAL RING |
| DISC WHEEL TO REAR AXLE | ||
| 038 | N 074361018353 | SPRING LOCK WASHER |
| Repalced by: N 074361018352 | ||
| 038 | N 074361018352 | SPRING LOCK WASHER |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 041 | N 074361018205 | NUT |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 044 | N 000934012021 | NUT |
| HUB CAP | ||
| N 913004008004 | NUT | |
| Repalced by: N 910113008003 | ||
| N 910113008003 | NUT | |
| HUB CAP | ||
| 050 | A 3734010194 | BALANCING WEIGHT |
| 200 GR. | ||
| 050 | A 3734010294 | BALANCING WEIGHT |
| 150 GR. | ||
| 050 | A 3734010394 | BALANCING WEIGHT |
| 110 GR. | ||
| 050 | A 3734010494 | BALANCING WEIGHT |
| 60 GR. | ||
| 053 | A 3104010028 | BRACKET |
| BALANCING WEIGHT | ||

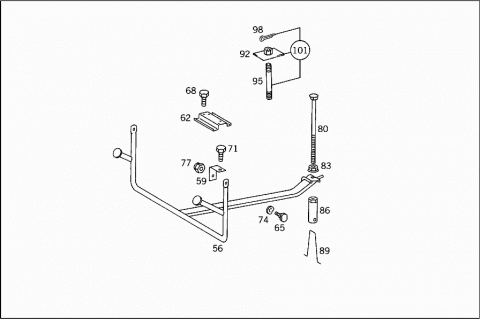

| 056 | A 6884000141 | MOUNTING BOW |
| SPARE WHEEL CARRIER | ||
| 059 | A 6884030040 | BRACKET |
| SPARE WHEEL CARRIER | ||
| 062 | A 6884037140 | BRACKET |
| SPARE WHEEL CARRIER | ||
| 065 | A 3084037075 | PIN |
| BRACKET TO BRACKET | ||
| 068 | N 000933008291 | SCREW |
| SPARE WHEEL CARRIER | ||
| M 8X20 | ||
| 071 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 071 | N 304017008034 | SCREW |
| BRACKET TO FRAME | ||
| M 8X25 | ||
| 074 | N 900055014002 | SPRING WASHER |
| BRACKET TO BRACKET | ||
| 077 | N 913004010008 | NUT |
| BRACKET TO FRAME | ||
| 077 | N 913004010008 | NUT |
| BRACKET TO BRACKET | ||
| 080 | A 3084037071 | SCREW |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| 083 | A 3094000072 | NUT |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| 086 | A 3094000470 | CLAMPING NUT |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| 089 | A 3084037073 | LOCK |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| 092 | A 3714007072 | NUT |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| 095 | A 3714037070 | STUD |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| 098 | N 000094002501 | COTTER PIN |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| 101 | A 3714037170 | STUD |
| RANGE OF DELIVERY | ||
