Transporto priemonė: S 407 CC USA EPA 10; VIN numerio dalis: 629540

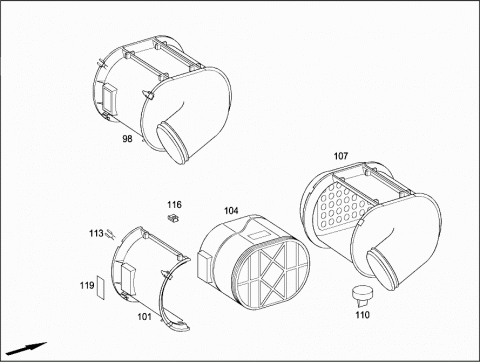

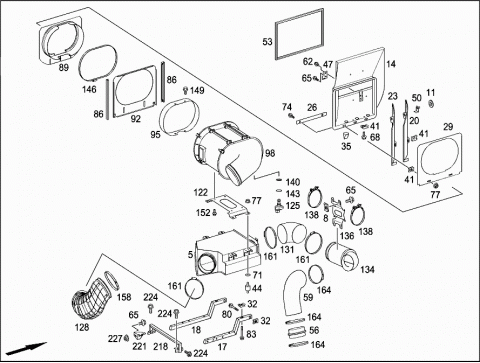

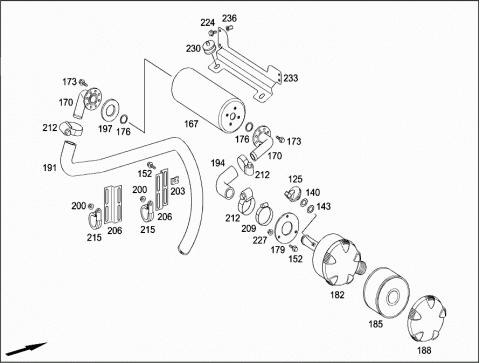

Grupė: 52 CHASSIS SHEET METAL - 120 AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6295202202 | RESONATOR |
| 008 | A 0049941945 | NUT |
| 011 | A 0019941445 | LOCK |
| 014 | A 0005200001 | AIR DUCT |
| ENGINE AIR INTAKE | ||
| 017 | A 0005200333 | CONSOLE |
| RIGHT | ||
| 493MM | ||
| 018 | A 6295201333 | CONSOLE |
| LEFT | ||
| 590MM | ||
| 020 | A 0005240296 | AIR FLOW SERRATION |
| 023 | A 0005240396 | AIR FLOW SERRATION |
| 026 | A 0005280049 | ATTACHMENT ANGLE BRACKET |
| 029 | A 0005280380 | SEALING FRAME |
| 032 | A 0049941945 | NUT |
| 035 | A 0019972515 | DRAIN-COCK VALVE |
| 041 | A 0019901856 | SPRING NUT |
| M6 | ||
| 044 | A 0009982144 | SILENTBLOCK |
| 047 | A 0005280740 | BRACKET |
| 050 | A 0005280440 | BRACKET |
| 053 | A 0005280680 | CIRCUMFERENTIAL GASKET |
| 056 | A 0005286009 | CONNECTION FITTING |
| 059 | A 6295280982 | INTAKE HOSE |
| 062 | N 910105006007 | HEXAGON HEAD BOLT |
| M6X10 | ||
| 065 | N 910105006004 | HEXAGON HEAD BOLT |
| M6X16 | ||
| 068 | N 000000002202 | HEXALOBULAR BOLT |
| M6X16 | ||
| 071 | N 000000003260 | WASHER |
| 074 | N 910105006008 | HEXAGON HEAD BOLT |
| M6X25 | ||
| 077 | N 913023006002 | NUT |
| M6 | ||
| 080 | N 910105008045 | HEXAGON HEAD BOLT |
| M8X55 | ||
| 083 | N 910105008017 | HEXAGON HEAD BOLT |
| M8X45 | ||
| 086 | A 0005280330 | MOUNTING BRACKET |
| 089 | A 0005280280 | SEALING FRAME |
| 092 | A 0005280144 | FASTENING PLATE |
| 095 | A 0005280795 | STANCHION |
| 098 | A 0005280806 | AIR FILTER |
| PSD12 | ||
| 101 | A 0005280010 | CLOSING COVER |
| 104 | A 0040946304 | AIR FILTER INSERT |
| 107 | A 0005280016 | AIR FILTER HOUSING |
| 110 | A 0000945165 | VACUUM VALVE |
| 113 | A 0000945555 | SNAP LOCK |
| 116 | A 0049941945 | NUT |
| 119 | A 0015842639 | PLATE |
| 122 | A 0005280339 | CONSOLE |
| 125 | A 0135422917 | CONTACT SENSOR |
| 128 | A 0005282682 | MOLDED HOSE |
| 131 | A 0005282282 | MOLDED HOSE |
| 134 | A 6295202002 | RESONATOR |
| 136 | A 0005281139 | CONSOLE |
| 138 | A 0008630471 | STRAP |
| 140 | A 0004291127 | THRUST RING |
| 14X10X2.6MM | ||
| 143 | A 0269970248 | O-RING |
| 146 | N 000000007037 | CLAMP |
| 330-350X12MM | ||
| 149 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16 | ||
| 152 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 158 | N 000000000681 | CLAMP |
| 160-180X12MM | ||
| 161 | N 000000000680 | CLAMP |
| 150-170X12MM | ||
| 164 | N 000000000677 | CLAMP |
| 120-140X12MM | ||
| 167 | A 6325200502 | RESONATOR |
| 170 | A 6325281509 | CONNECTION FITTING |
| 173 | N 910105005002 | HEXAGON HEAD BOLT |
| M5X16 | ||
| 176 | A 0199974948 | O-RING |
| 179 | A 0005200441 | BRACKET |
| 182 | A 0005280406 | AIR CLEANER |
| 185 | A 0009891311 | FILTER ELEMENT |
| 188 | A 0020940006 | COVER |
| 191 | A 0005282682 | MOLDED HOSE |
| Repalced by: A 6295281882 | ||
| 191 | A 6295281882 | MOLDED HOSE |
| 194 | A 6285014082 | MOLDED HOSE |
| 197 | A 0109974581 | GROMMET |
| 55MM | ||
| 200 | N 910112008000 | NUT |
| M8 | ||
| 203 | A 0049941845 | SPRING-THREAD NUT |
| 206 | A 6276125724 | RAIL |
| 115MM | ||
| 209 | N 000000000671 | CLAMP |
| 40-60X12MM | ||
| 212 | N 000000002774 | CLAMP |
| 35-50X13MM | ||
| 215 | N 000000000350 | CLAMP |
| 38/20MM | ||
| Repalced by: N 000000000351 | ||
| 215 | N 000000000351 | CLAMP |
| 42/15MM | ||
| Repalced by: N 000000007548 | ||
| 215 | N 000000007548 | CLAMP |
| 42/15MM | ||
| 218 | A 6295201433 | CONSOLE |
| 221 | A 6295282840 | BRACKET |
| 224 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20 | ||
| 227 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| 230 | A 0009981844 | METAL RUBBER BUFFER |
| 233 | A 6324910641 | BRACKET |
| 236 | N 913024006100 | RIVET NUT |
| M6X14,5MM | ||
