Transporto priemonė: S 407 CC USA EPA 10; VIN numerio dalis: 629540

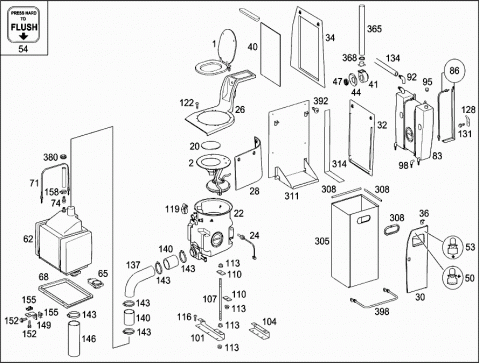

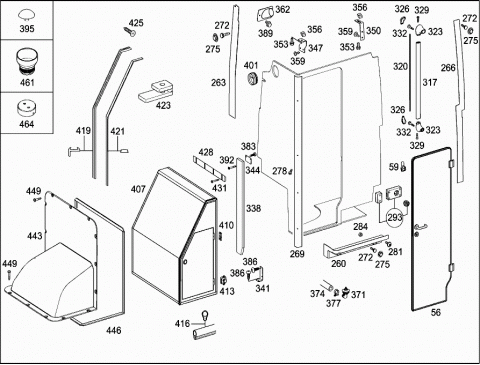

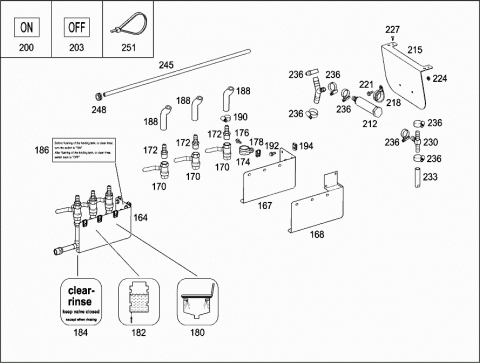

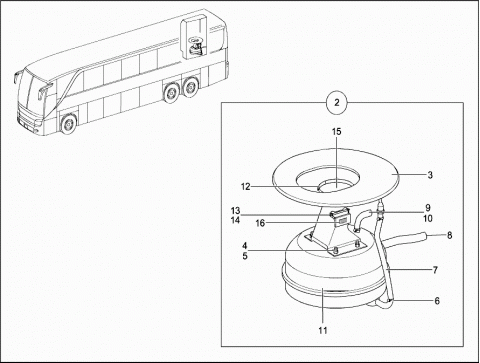

Grupė: 86 EMERGENCY EQUIPMENT - 165 TOILET
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 0008660663 | TOILET SEAT |
| 002 | A 6298660021 | PUMP |
| 003 | A 0008600861 | TOILET BOWL |
| UPPER PART | ||
| 004 | A 0029903050 | HEXAGON NUT |
| 005 | A 0008660097 | BASE |
| 006 | A 0009957710 | HOSE CLAMP |
| 007 | A 0039973652 | HOSE |
| 008 | A 0039973752 | HOSE |
| 009 | A 0009957810 | HOSE CLAMP |
| 010 | A 0039973852 | HOSE |
| 011 | A 0008660421 | DIAPHRAGM PUMP |
| 012 | A 0009980840 | BUFFER STOP |
| 013 | A 0008650055 | FIXTURE |
| 014 | A 0009941211 | PIN LOCK |
| 015 | A 0008600961 | TOILET BOWL |
| FLAP | ||
| 016 | A 0008179621 | LABEL |
| 020 | A 6298370098 | SEAL |
| 022 | A 6298600660 | EXCREMENT CONTAINER |
| PRIMARY SEWAGE TANK | ||
| 022 | A 6298600660 | EXCREMENT CONTAINER |
| PRIMARY SEWAGE TANK | ||
| 024 | A 0018205710 | SWITCH |
| 024 | A 0018205710 | SWITCH |
| 026 | A 6298662830 | COVER |
| TOILETTE SITZFLAECHE | ||
| 026 | A 6298662830 | COVER |
| TOILETTE SITZFLAECHE | ||
| 028 | A 6298662430 | COVER |
| UNTERTEIL GEBOGEN | ||
| 028 | A 6298662430 | COVER |
| UNTERTEIL GEBOGEN | ||
| 030 | A 6298663130 | COVER |
| KLAPPE ABLAGE | ||
| 030 | A 6298663130 | COVER |
| KLAPPE ABLAGE | ||
| 032 | A 6298662730 | COVER |
| REAR PANEL | ||
| 032 | A 6298662730 | COVER |
| REAR PANEL | ||
| 034 | A 6298663030 | COVER |
| REAR PANEL,TOP | ||
| 034 | A 6298663030 | COVER |
| REAR PANEL,TOP | ||
| 036 | A 6298661014 | BRACKET |
| HINGE | ||
| 036 | A 6298661014 | BRACKET |
| HINGE | ||
| A 0019908358 | NUT | |
| DRIVE-IN NUT | ||
| M 8 | ||
| A 0019908358 | NUT | |
| DRIVE-IN NUT | ||
| M 8 | ||
| 040 | A 6298660075 | TOILET MIRROR |
| ACRYLIC GLASS SILVER | ||
| 040 | A 6298660075 | TOILET MIRROR |
| ACRYLIC GLASS SILVER | ||
| 041 | A 0005450195 | BLOWER |
| 041 | A 0005450195 | BLOWER |
| 044 | A 6298350511 | FASTENING PLATE |
| 044 | A 6298350511 | FASTENING PLATE |
| 047 | A 0005280001 | PROTECTIVE GRILLE |
| 047 | A 0005280001 | PROTECTIVE GRILLE |
| 050 | A 6298170045 | STICKER |
| PRIMARY RESERVOIR PREFILLING | ||
| 050 | A 6298170045 | STICKER |
| PRIMARY RESERVOIR PREFILLING | ||
| 053 | A 6298170145 | STICKER |
| PRIMARY RESERVOIR DRAINING | ||
| 053 | A 6298170145 | STICKER |
| PRIMARY RESERVOIR DRAINING | ||
| 054 | A 6298170245 | STICKER |
| PRESS HARD TO FLUSH | ||
| 056 | A 6298601246 | LAVATORY DOOR |
| 056 | A 6298601246 | LAVATORY DOOR |
| 059 | A 0008143101 | CLOTHES-HOOK |
| 059 | A 0008143101 | CLOTHES-HOOK |
| 062 | A 6298600760 | EXCREMENT CONTAINER |
| SECONDARY SEWAGE TANK | ||
| 062 | A 6298600760 | EXCREMENT CONTAINER |
| SECONDARY SEWAGE TANK | ||
| 065 | A 0009700148 | SLIDE VALVE |
| WASTE PUSHER | ||
| 065 | A 0009700148 | SLIDE VALVE |
| WASTE PUSHER | ||
| 068 | A 6298661214 | BRACKET |
| FRAME, SECONDARY CONTAINER | ||
| 068 | A 6298661214 | BRACKET |
| FRAME, SECONDARY CONTAINER | ||
| 071 | A 0008661171 | RETAINING STRAP |
| 071 | A 0008661171 | RETAINING STRAP |
| 074 | A 0008661359 | FITTING |
| SCREW-IN FITTING | ||
| 25 / R 1" | ||
| 074 | A 0008661359 | FITTING |
| SCREW-IN FITTING | ||
| 25 / R 1" | ||
| 083 | A 6298600560 | WATER CONTAINER |
| FRESH WATER TANK | ||
| 083 | A 6298600560 | WATER CONTAINER |
| FRESH WATER TANK | ||
| 086 | A 6298600014 | BRACKET |
| WATER RESERVOIR | ||
| 086 | A 6298600014 | BRACKET |
| WATER RESERVOIR | ||
| N 913024008100 | RIVET NUT | |
| M 8 X 16 | ||
| N 913024008100 | RIVET NUT | |
| M 8 X 16 | ||
| 092 | A 0009975571 | FITTING |
| ANGULAR SCREW FITTING | ||
| WES 25 / R 1" | ||
| 092 | A 0009975571 | FITTING |
| ANGULAR SCREW FITTING | ||
| WES 25 / R 1" | ||
| 095 | A 0008690366 | FILLER NECK |
| 095 | A 0008690366 | FILLER NECK |
| 098 | A 6278660159 | FITTING |
| ANGULAR SCREW FITTING | ||
| WES 12 / R 1/2" | ||
| 098 | A 6278660159 | FITTING |
| ANGULAR SCREW FITTING | ||
| WES 12 / R 1/2" | ||
| 101 | A 6298661627 | MOUNTING RAIL |
| 104 | A 6298661727 | MOUNTING RAIL |
| 107 | A 6298660514 | BRACKET |
| FRONT PULL ROD | ||
| M 12 X 1,5 X 360 | ||
| 107 | A 6299960031 | TOWBAR |
| FRONT PULL ROD | ||
| M12X360 | ||
| 107 | A 6298660614 | BRACKET |
| REAR PULL ROD | ||
| M 12 X 1,5 X 305 | ||
| 107 | A 6299960131 | TOWBAR |
| REAR PULL ROD | ||
| M12X305 | ||
| 110 | A 6298660311 | PLATE |
| 113 | N 910112012001 | HEXAGON NUT |
| M 12 X 1,5 | ||
| 113 | N 910112012002 | HEXAGON NUT |
| M12 | ||
| 116 | N 000000000529 | SHEET METAL SCREW |
| 4.8X19 | ||
| 119 | N 000000000665 | CLAMP |
| 122 | A 0139909801 | SCREW, SPECIAL SHAPE |
| KUNSTSTOFF-SENKSCHRAUBE 4,8 X 25,4 | ||
| A 0029893898 | SEALING STRIP | |
| 128 | A 6298661714 | BRACKET |
| FRESH WATER TANK | ||
| 131 | N 910105006006 | HEXAGON HEAD BOLT |
| M 6 X 20 | ||
| 134 | A 0069970152 | WATER HOSE |
| DRINKING WATER | ||
| I = 12 MM | ||
| 137 | A 6298360085 | DRAIN PIPE |
| FECES | ||
| 140 | A 0059974452 | WATER HOSE |
| FECES | ||
| 143 | N 000000000675 | CLAMP |
| 80 - 100 X 12 | ||
| 146 | A 6299971252 | WATER HOSE |
| ABLAUF SEKUNDAER | ||
| 149 | A 6298661114 | BRACKET |
| SECONDARY SEWAGE TANK | ||
| 152 | N 910105008026 | HEXAGON HEAD BOLT |
| M 8 X 20 | ||
| 155 | A 0049941845 | SPRING-THREAD NUT |
| 155 | A 0049941945 | NUT |
| LOCK NUT | ||
| 158 | N 000000000668 | CLAMP |
| 25 - 40 X 12 | ||
| 164 | A 6298600166 | DISTRIBUTOR BLOCK |
| WASSERVERSORGUNG | ||
| 167 | A 6298661314 | BRACKET |
| AT WATER FAUCET | ||
| 167 | A 6298661314 | BRACKET |
| AT WATER FAUCET | ||
| 168 | A 6298662014 | BRACKET |
| AT WATER FAUCET | ||
| 168 | A 6298662014 | BRACKET |
| AT WATER FAUCET | ||
| 170 | A 0008300537 | SWITCH |
| 1/2" KUGELHAHN | ||
| 170 | A 0008300557 | SLIDE |
| 1/2" KUGELHAHN | ||
| 170 | A 0008300557 | SLIDE |
| 1/2" KUGELHAHN | ||
| 172 | A 0009980104 | GROMMET |
| 1/2" | ||
| 172 | A 0009980104 | GROMMET |
| 1/2" | ||
| 174 | N 000000000329 | CLAMP |
| 28 / 15 RSGU | ||
| 174 | N 000000000329 | CLAMP |
| 28 / 15 RSGU | ||
| 176 | N 000000003765 | HEXALOBULAR BOLT |
| M 6 X 20 | ||
| 176 | N 000000003765 | HEXALOBULAR BOLT |
| M 6 X 20 | ||
| 178 | A 0049941645 | SPRING NUT |
| M 6 | ||
| 178 | A 0049941645 | SPRING NUT |
| M 6 | ||
| 180 | A 0008650088 | STICKER |
| PRIMARY RESERVOIR CLEANING | ||
| 180 | A 0008650088 | STICKER |
| PRIMARY RESERVOIR CLEANING | ||
| 182 | A 0008650188 | STICKER |
| FRESH WATER TANK FILLING | ||
| 182 | A 0008650188 | STICKER |
| FRESH WATER TANK FILLING | ||
| 184 | A 0008650288 | STICKER |
| STICKER/CLEAR-RINSE | ||
| 184 | A 0008650288 | STICKER |
| STICKER/CLEAR-RINSE | ||
| 186 | A 0008170745 | STICKER |
| 186 | A 0008170745 | STICKER |
| 188 | A 0069970152 | WATER HOSE |
| DRINKING WATER | ||
| 190 | N 000000000665 | CLAMP |
| 192 | N 910105006004 | HEXAGON HEAD BOLT |
| M 6 X 16 | ||
| 192 | N 000000000454 | TAPPING SCREW |
| 4.2X16 | ||
| 194 | A 0049941745 | SPRING NUT |
| 194 | A 0039948145 | SPRING NUT |
| A 3725450207 | ROCKER SWITCH | |
| 200 | A 0008170845 | STICKER |
| 203 | A 0008170945 | STICKER |
| 212 | A 6298660052 | THERMOSTAT VALVE |
| 215 | A 6298661914 | BRACKET |
| THERMOSTAT BRACKET | ||
| 218 | N 000000000330 | CLAMP |
| 30 / 15 RSGU | ||
| Repalced by: A 0019951942 | ||
| 218 | A 0019951942 | MOUNTING CLAMP |
| 30 / 15 RSGU | ||
| 221 | N 910105006004 | HEXAGON HEAD BOLT |
| M 6 X 16 | ||
| 224 | N 910112006001 | HEXAGON NUT |
| M 6 | ||
| 227 | N 000000000521 | TAPPING SCREW |
| 4.2X13 | ||
| 230 | A 0009978974 | T-FITTING |
| 233 | A 0069970152 | WATER HOSE |
| I = 12 MM | ||
| 236 | N 000000000666 | CLAMP |
| 16 - 27 X 12 | ||
| 236 | N 000000000667 | CLAMP |
| 20 - 32 X 12 | ||
| 245 | A 6294200031 | COMPRESSED AIR LINE |
| 248 | A 0009876241 | RUBBER RING |
| ID = 12, LOCH 21 | ||
| 251 | A 0029972390 | CABLE TIE |
| 260 | A 6298664130 | COVER |
| DOOR ROCKER PANEL | ||
| 260 | A 6298664130 | COVER |
| DOOR ROCKER PANEL | ||
| 263 | A 6298663530 | COVER |
| SIDE PANEL | ||
| 263 | A 6298663530 | COVER |
| SIDE PANEL | ||
| 266 | A 6298663630 | COVER |
| REAR PANEL | ||
| 266 | A 6298664230 | COVER |
| REAR PANEL | ||
| 269 | A 6298662930 | COVER |
| EDGE GUARD SECTION | ||
| 269 | A 6298662930 | COVER |
| EDGE GUARD SECTION | ||
| 272 | A 0019904936 | SHEET METAL SCREW |
| 3.5X22 T20 | ||
| 272 | A 0019904936 | SHEET METAL SCREW |
| 3.5X22 T20 | ||
| 272 | A 0019904836 | SHEET METAL SCREW |
| 3,5 X 16 | ||
| 272 | A 0019904836 | SHEET METAL SCREW |
| 3,5 X 16 | ||
| 275 | A 0009877145 | LOCKING CAP |
| EVOGRAU 3 | ||
| 275 | A 0009877145 | LOCKING CAP |
| EVOGRAU 3 | ||
| 278 | N 000000000834 | TAPPING SCREW |
| 3,5 X 22 | ||
| 278 | N 000000000834 | TAPPING SCREW |
| 3,5 X 22 | ||
| 281 | N 000000001181 | HEXALOBULAR BOLT |
| M 5 X 16 | ||
| 284 | N 910112005000 | HEXAGON NUT |
| M 5 | ||
| A 0008601061 | LAVATORY | |
| DOOR CONTROL PNEUMATIC | ||
| 293 | A 6298660169 | FASTENER |
| MECHANICAL | ||
| 293 | A 6298660469 | LOCK LAVATORY DOOR |
| MECHANICAL | ||
| 305 | A 6298400374 | GARBAGE CONTAINER |
| 308 | A 0008210088 | EDGE GUARD SECTION |
| 311 | A 6298400414 | BRACKET |
| LITTER-BIN | ||
| 314 | A 0009835098 | FOAM PLASTICS |
| POLYETHYLENE | ||
| 317 | A 6328150036 | METAL SECTION |
| 317 | A 6338101354 | GRAB HANDLE |
| 550 LG, GRAUER EINLEGER | ||
| 320 | A 6329110597 | INSERT |
| 323 | A 0009800041 | END PIECE |
| 326 | A 6329190120 | COVERING |
| 329 | N 000000000480 | SHEET METAL SCREW |
| 3,5 X 25 | ||
| 332 | A 0009902111 | SCREW |
| M 8 X 25 | ||
| 338 | A 6298160155 | STOP BAR |
| STORAGE BOX | ||
| 341 | A 6298661212 | ATTACHMENT ANGLE BRACKET |
| 344 | A 6298680311 | FASTENING PLATE |
| 347 | A 6298660814 | BRACKET |
| FRONT | ||
| 350 | A 6298660914 | BRACKET |
| REAR | ||
| 353 | N 910105008041 | HEXAGON HEAD BOLT |
| M 8 X 16 | ||
| 356 | A 0009960434 | SLIDING NUT |
| M 8 | ||
| 359 | N 000000000528 | SHEET METAL SCREW |
| 4.8X16 | ||
| 362 | A 6298600264 | FITTING |
| FUER ABLUFT | ||
| 365 | A 6298310188 | HOSE |
| AIR HOSE | ||
| D = 50 MM, 1,2 M | ||
| 368 | N 000000000671 | CLAMP |
| 40 - 60 X 12 | ||
| 371 | A 0049903771 | ELBOW FITTING |
| Repalced by: A 0008450085 | ||
| 371 | A 0008450085 | DRAIN SET |
| OFFSET | ||
| 374 | A 0249976582 | HOSE |
| PVC WITH FABRIC | ||
| 3/4" | ||
| 377 | N 000000000666 | CLAMP |
| 16 - 27 X 12 | ||
| 380 | A 3609970681 | GROMMET |
| 383 | A 0009908610 | COUNTERSUNK WOOD SCREW |
| 4X35 T20 | ||
| 386 | N 000000002206 | COMBINATION BOLT |
| M 8 X 45 | ||
| 389 | N 910105006002 | HEXAGON HEAD BOLT |
| M 6 X 12 | ||
| 392 | N 000000000519 | TAPPING SCREW |
| 3.5X25 | ||
| 392 | N 000000000515 | TAPPING SCREW |
| 3.5X13 | ||
| 395 | A 0009876945 | CAP |
| 398 | A 6299830194 | ELASTIC BAND |
| EXPANDER, L = 400 | ||
| 401 | A 6298370142 | VENT |
| 407 | A 6298900054 | STORAGE BOX |
| ON W.C. BOOTH | ||
| 410 | A 6298430151 | HINGE |
| RIGHT | ||
| 413 | A 0008401084 | FASTENER |
| PUSH BUTTON | ||
| 416 | A 6296890098 | SEAL |
| STORAGE BOX | ||
| 419 | A 0009853262 | EDGE TRIM |
| STORAGE BOX | ||
| 421 | A 0009873323 | PLASTIC SECTION |
| 423 | A 0009871609 | LEDGE |
| 425 | N 000000004391 | TAPPING SCREW |
| 2,9 X 9,5 | ||
| 428 | A 6298661514 | BRACKET |
| STORAGE BOX | ||
| 431 | A 0009908610 | COUNTERSUNK WOOD SCREW |
| 4X35 T20 | ||
| 431 | A 0009908610 | COUNTERSUNK WOOD SCREW |
| 4X35 T20 | ||
| 431 | N 000000000458 | TAPPING SCREW |
| 4.2X32 | ||
| 443 | A 6296931417 | COVER, REAR-END FLOOR |
| REAR END FLOOR | ||
| EVOGRAU 3 | ||
| 443 | A 6296931517 | COVER, REAR-END FLOOR |
| REAR END FLOOR | ||
| EVOGRAU 3 | ||
| 446 | A 0009872266 | SEALING STRIP |
| 449 | N 000000000449 | TAPPING SCREW |
| 3.5X19 | ||
| 461 | A 0008227206 | SMOKE DETECTOR |
| ORS 142 | ||
| 464 | A 0008227406 | SMOKE DETECTOR |
| SOCKET TO BODY | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
