Transporto priemonė: S 407 CC USA EPA 10; VIN numerio dalis: 629540
Grupė: 71 PARTITION PANEL - 180 GRIP RAILS AND PARTITION PANELS

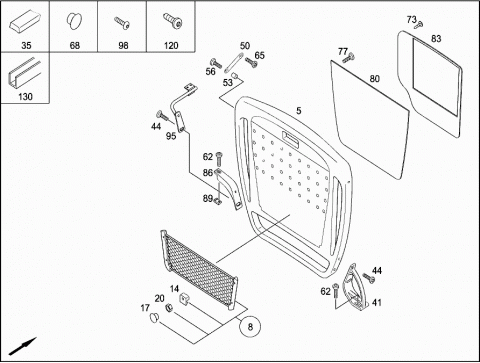

99908

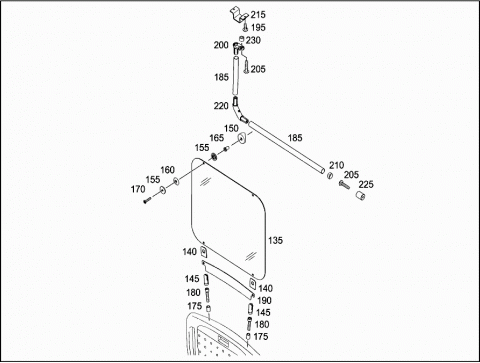

99911
# Kodas Pavadinimas
005 A 6327110301 PARTITION PANEL
008 A 6328100149 LUGGAGE NET
014 A 6298110307 COVERING
017 A 6299870145 LOCKING CAP
020 N 304032003001 HEXAGON NUT
M3
035 A 6299870175 GARNISH STRIP
AT PARTITION PANEL
041 A 6297110045 STAY
044 A 0009901129 SCREW
M8X22 T40
050 A 6297110612 ANGLE
053 A 0009912740 SPACER BUSH
LENGTH:
11
053 A 0003280053 SPACER TUBE
LENGTH:
11
056 A 0009901629 SCREW, SPECIAL SHAPE
M8X28 T40
062 A 0009901729 SCREW
M8X40 T40
065 A 0009901429 SCREW
M6X35 T30
068 A 6297110090 CAP
073 N 000000000516 TAPPING SCREW
3.5X16
077 N 000000000522 SHEET METAL SCREW
4.2X16
080 A 6297100018 PANELLING
083 A 6297100718 TRIM PANEL PARTITION
086 A 6297110145 STAY
089 A 6297110012 ANGLE
095 A 6277100031 CONSOLE
RIGHT
098 A 0039902312 SCREW
8X35 T40
120 N 000000000448 TAPPING SCREW
130 A 6297120027 RAIL
135 A 6277110010 GLASS PANE
140 A 6277110097 PAD
145 A 6337111901 BRACKET
150 A 6277118834 CONNECTION
155 A 0009876941 RUBBER RING
160 A 6277120013 WASHER
165 A 0029900320 SCREW
6X30 T30
170 N 913024006101 RIVET NUT
6X15,7
175 A 6299110017 BUSHING
180 N 000000003947 HEXALOBULAR BOLT
8X 40
185 A 6279852736 METAL SECTION
35X2,5
190 A 6297130201 SHELL
195 A 0009901129 SCREW
8X22 T40
200 A 6277106032 CONNECTION
205 A 0009901729 SCREW
8X40 T40
210 A 6277110634 CONNECTION
215 A 6299850099 METAL SECTION
220 A 6277104432 CONNECTION
225 A 6277110834 CONNECTION
230 A 0009912740 SPACER BUSH
