Transporto priemonė: S 407 CC USA EPA 10; VIN numerio dalis: 629540

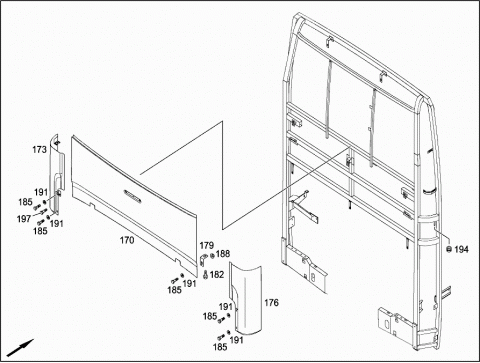

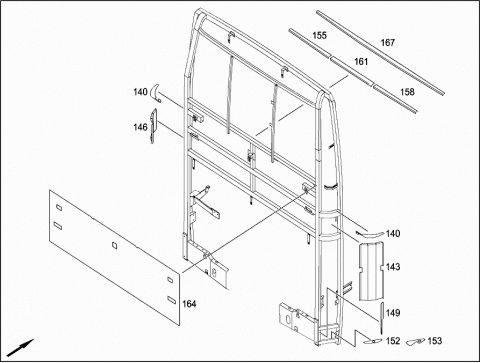

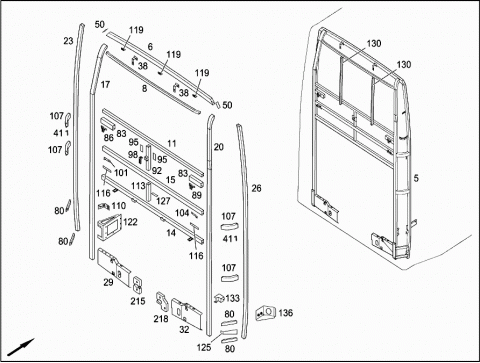

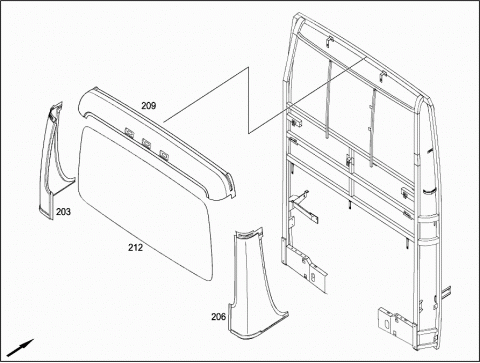

Grupė: 64 REAR PANEL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4106400101 | REAR FRAME |
| COMPLETE | ||
| 006 | A 6296420706 | STRUT |
| 008 | A 6296420806 | STRUT |
| 011 | A 6296400714 | CROSS MEMBER |
| 014 | A 6296400614 | CROSS MEMBER |
| 015 | A 6296400914 | CROSS MEMBER |
| 017 | A 6296403810 | CORNER PILLAR |
| LEFT | ||
| 020 | A 6296403910 | CORNER PILLAR |
| RIGHT | ||
| 023 | A 6296403610 | CORNER PILLAR |
| LEFT | ||
| 026 | A 6296403710 | CORNER PILLAR |
| RIGHT | ||
| 029 | A 6296400214 | CROSS MEMBER |
| LEFT | ||
| 032 | A 6296400314 | CROSS MEMBER |
| RIGHT | ||
| 038 | A 6296422309 | BRACKET |
| 041 | A 6296420065 | WELDING PIECE |
| 050 | A 6296423111 | PLATE |
| 080 | A 6296430320 | STRUT |
| 083 | A 6296420138 | STRUT |
| 086 | A 6296423309 | BRACKET |
| 089 | A 6296423409 | BRACKET |
| 092 | A 6296400012 | PILLAR |
| 095 | A 6296423111 | PLATE |
| 098 | A 6296422909 | BRACKET |
| 101 | A 6296422409 | BRACKET |
| 104 | A 6296423009 | BRACKET |
| 107 | A 6296430220 | STRUT |
| 110 | A 6296424709 | BRACKET |
| 113 | A 6296413810 | PILLAR |
| 116 | A 6296663111 | PLATE |
| 119 | A 6296121424 | BRACKET |
| 122 | A 6296424609 | BRACKET |
| 125 | A 4106420032 | ATTACHMENT ANGLE BRACKET |
| 127 | A 4106411413 | FASTENING PLATE |
| 130 | A 6296410624 | PIPE PIECE |
| 133 | A 6296412614 | BRACKET |
| RADIATOR MOUNTING | ||
| 136 | A 6296401151 | BRACKET |
| RADIATOR MOUNTING | ||
| 140 | A 6296470874 | PARTITION PANEL |
| 140 | A 6296470874 | PARTITION PANEL |
| 143 | A 6296472074 | PARTITION |
| 143 | A 6296472074 | PARTITION |
| 146 | A 6296472174 | PARTITION |
| 146 | A 6296472174 | PARTITION |
| 149 | A 6296460034 | COVER |
| 149 | A 6296460030 | PARTITION |
| 152 | A 6296470134 | COVER |
| 153 | A 6296460130 | PARTITION |
| 155 | A 6296471112 | ANGLE |
| 155 | A 6296471112 | ANGLE |
| 158 | A 6296471212 | ANGLE |
| 158 | A 6296471212 | ANGLE |
| 161 | A 6296471312 | ANGLE |
| 161 | A 6296471312 | ANGLE |
| 164 | A 6296471374 | PARTITION |
| 164 | A 6296471374 | PARTITION |
| 167 | A 6296471812 | ATTACHMENT ANGLE BRACKET |
| 170 | A 6296473584 | BOOT TRIM PANEL |
| 173 | A 6296473984 | REAR LAMP RECESS |
| LEFT | ||
| 176 | A 6296474084 | REAR LAMP RECESS |
| RIGHT | ||
| 179 | A 6296424309 | BRACKET |
| 182 | N 910105006004 | HEXAGON HEAD BOLT |
| M6X16MM | ||
| 185 | A 0009902029 | SCREW |
| M6X25MM | ||
| 188 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| 191 | A 0069901040 | SPACER WASHER |
| 194 | A 0099977981 | GROMMET |
| 197 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16MM | ||
| 203 | A 6296471184 | SIDE PART |
| TOP LEFT | ||
| 203 | A 6296471184 | SIDE PART |
| TOP LEFT | ||
| 206 | A 6296471284 | SIDE PART |
| TOP RIGHT | ||
| 206 | A 6296471284 | SIDE PART |
| TOP RIGHT | ||
| 209 | A 6296471084 | SIDE PIECE |
| DOME SHAPED SECTION | ||
| 209 | A 6296471084 | SIDE PIECE |
| DOME SHAPED SECTION | ||
| 212 | A 6296472684 | BOOT TRIM PANEL |
| 215 | A 6296413614 | BRACKET |
| 218 | A 6296413514 | BRACKET |
