Transporto priemonė: S 407 CC USA EPA 10; VIN numerio dalis: 629540

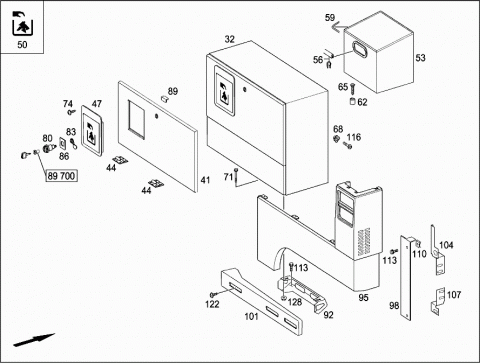

Grupė: 84 TRUNKS AND CASES - 125 STORAGE BOX AND LITTER-BIN
| # | Kodas | Pavadinimas |
|---|---|---|

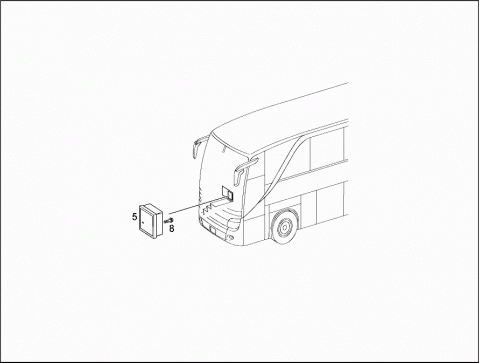

| 005 | A 0008401402 | VALUABLES COMPARTMENT |
| 008 | N 910143010011 | HEXALOBULAR BOLT |
| M 10 X 20 | ||
| 032 | A 6298402606 | STORAGE BOX |
| LITTER BOX | ||
| A 0009837880 | PLYWOOD | |
| GKL. II/II | ||
| A 0009837980 | PLYWOOD | |
| GKL. II/II | ||
| 041 | A 6298400207 | HINGED DOOR |
| 044 | A 0008400252 | HINGE |
| 047 | A 6298400007 | HINGED DOOR |
| LITTER BOX FLAP | ||
| 050 | A 6298480121 | KEYHOLE COVER |
| FOR GENERAL WASTE FLAP | ||
| 053 | A 6298403362 | GARBAGE CONTAINER |
| 056 | A 6298480079 | EDGE PROTECTION |
| 059 | A 6298480179 | EDGE PROTECTION |
| 062 | A 0009980043 | RUBBER BUFFER |
| 065 | N 000000000455 | SHEET METAL SCREW |
| 4.2X19 | ||
| 068 | A 0019908358 | NUT |
| DRIVE-IN NUT | ||
| M 8 | ||
| 071 | N 910143008021 | HEXALOBULAR BOLT |
| M8X65 | ||
| 074 | N 007982003257 | TAPPING SCREW |
| 3,5 X 16 | ||
| 080 | A 0007500850 | LOCK HOUSING |
| 083 | A 6297180085 | LATCH PLATE |
| 086 | A 6298660111 | PLATE |
| 089 | A 0008460157 | END PIECE |
| 092 | A 6296830032 | CONSOLE |
| 095 | A 6296801306 | PANELLING |
| REFRIGERATOR | ||
| 098 | A 6296830336 | COVER |
| 101 | A 6298300054 | NOZZLE |
| VENTILATION | ||
| 104 | A 6296890012 | ANGLE |
| TOP | ||
| 107 | A 6296890112 | ATTACHMENT ANGLE BRACKET |
| BOTTOM | ||
| 110 | A 0039941545 | NUT |
| PLUG-IN CLIP | ||
| 113 | N 910143008020 | HEXALOBULAR BOLT |
| M 8 X 12 | ||
| 116 | N 910143008002 | HEXALOBULAR BOLT |
| M 8 X 25 | ||
| A 0009901429 | SCREW | |
| M 6 X 35 T 30 | ||
| 122 | N 007982003257 | TAPPING SCREW |
| 3,5 X 16 | ||
| N 000000000460 | SHEET METAL SCREW | |
| 4.8X13 | ||
| 128 | N 910112008000 | NUT |
| M 8 | ||

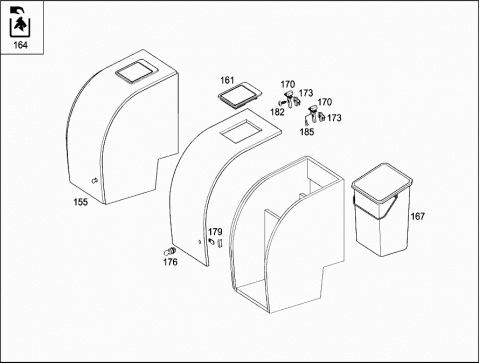

| 155 | A 6298404306 | STORAGE BOX |
| WASTE BOX ON WALL IN TOILET | ||
| MONDO SILBER MATT | ||
| 155 | A 6298404506 | STORAGE BOX |
| WASTE BOX ON WALL IN TOILET | ||
| ABET PINT 877 | ||
| 155 | A 6298404606 | STORAGE BOX |
| WASTE BOX ON WALL IN TOILET | ||
| THERMOPAL F23/001/0 | ||
| A 0009837980 | PLYWOOD | |
| GKL. II/II | ||
| 161 | A 4108400107 | HINGED DOOR |
| LITTER BOX FLAP | ||
| 164 | A 6298480121 | KEYHOLE COVER |
| FOR GENERAL WASTE FLAP | ||
| 167 | A 6298403262 | CONTAINER |
| LITTER-BIN | ||
| 170 | A 0008460051 | HINGE |
| 173 | A 0008460011 | PLATE |
| 176 | A 0006803484 | FASTENER |
| 179 | A 0008990650 | LATCH |
| 182 | A 0009907710 | COUNTERSUNK WOOD SCREW |
| 3 X 12 | ||
| 185 | N 000000000465 | TAPPING SCREW |
| 4.8X32 |
