Transporto priemonė: S 411 HD MODELLPFLEGE; VIN numerio dalis: 629610

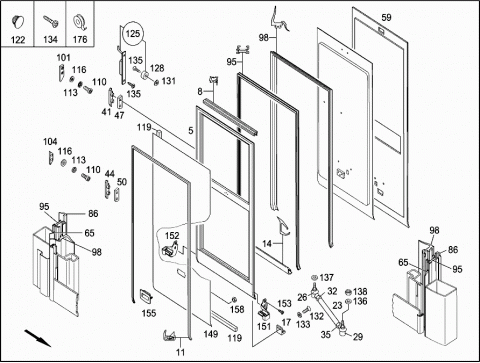

Grupė: 73 DOORS - 010 EXTERNAL SWIVELING DOOR,SINGLE-WING 900 WIDE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0007302503 | DOOR SHELL |
| 008 | A 0007321058 | SEAL |
| TOP | ||
| 011 | A 0007305278 | WEATHERSTRIP |
| CONNECTING BLOCK | ||
| 014 | A 0007200060 | WEATHERSTRIP |
| BOTTOM | ||
| 017 | A 6297230014 | BRACKET |
| GUIDE ARM | ||
| 023 | A 6297230164 | GUIDE |
| 026 | A 6277630029 | JOINT |
| L.H. THREAD | ||
| 029 | A 6277630129 | JOINT |
| DOOR WING | ||
| 032 | N 304035010002 | NUT |
| L.H. THREAD | ||
| 035 | N 304035010000 | NUT |
| 041 | A 0007232103 | STRIKER |
| TOP | ||
| 044 | A 0007232203 | STRIKER |
| BOTTOM | ||
| 047 | A 0007250296 | PAD |
| TOP | ||
| 050 | A 0007250196 | PAD |
| BOTTOM | ||
| 059 | A 0007321321 | COVERING |
| INSIDE | ||
| 065 | A 0007210980 | SEAL |
| OUTSIDE | ||
| L=2500 MM | ||
| 086 | A 0007210780 | SEAL |
| INSIDE | ||
| 095 | A 0007302108 | FRAME |
| 098 | A 0007306278 | WEATHERSTRIP |
| 101 | A 6297230703 | STRIKER |
| TOP | ||
| 104 | A 6297230503 | STRIKER |
| BOTTOM | ||
| 110 | A 0049904912 | SCREW |
| M 8X35 | ||
| 113 | A 0009943710 | LOCK |
| S8 | ||
| 116 | N 000433008409 | WASHER |
| 119 | A 0009879414 | RUBBER STRIP |
| L=5500 MM | ||
| 122 | A 0009878245 | LOCKING CAP |
| 125 | A 0088206410 | SWITCH |
| 125 | A 0088204610 | SOLENOID SWITCH |
| 128 | A 0007631156 | MAGNET |
| 131 | A 0007660404 | WASHER |
| 132 | A 0019908120 | SCREW W HEXAGON SOCKET |
| M 8X16 | ||
| 133 | N 006798008301 | SERRATED WASHER |
| 134 | N 000000000489 | TAPPING SCREW |
| 4,8X13 | ||
| 134 | N 000000000454 | TAPPING SCREW |
| 4.2X16 | ||
| 134 | A 0039908412 | HEX. SKT. CAP BOLT |
| M5X16MM | ||
| 134 | N 910105005009 | HEXAGON HEAD BOLT |
| M5X55MM | ||
| 135 | N 000000000488 | TAPPING SCREW |
| 4.2X38 | ||
| 135 | N 000000001094 | TAPPING SCREW |
| FASTENING SOLONOID SWITCH | ||
| 3.5X32 MM | ||
| 136 | N 006796010103 | CONICAL SPRING WASHER |
| 137 | N 000000003333 | WASHER |
| GUIDE ARM | ||
| 138 | N 910113010001 | HEXAGON NUT |
| M10 | ||
| 149 | A 6297321109 | PANELLING |
| Repalced by: A 6297200199 | ||
| 149 | A 6297200199 | PANELING |
| 151 | A 6297660669 | BRACKET |
| CONNECTING BLOCK | ||
| 152 | A 6297660769 | BRACKET |
| CONNECTING BLOCK | ||
| 153 | N 000000000515 | TAPPING SCREW |
| 3.5X13 | ||
| 155 | A 6297600059 | DOOR HANDLE |
| 158 | N 913023005000 | NUT |
| 176 | A 0069894285 | ADHESIVE TAPE |
| 179 | A 0019981050 | PLUG |
| 222 | A 0007661035 | CAP |
| DOOR DRIVE MECHANISM | ||
| 243 | A 0069873957 | RUBBER SEAL |
| 247 | A 0017602973 | SUPPORTING ARM |
| SWIVEL BAR | ||
| 249 | A 0007231412 | ANGLE |
| BOTTOM | ||
| 250 | A 0007663317 | MOUNTING |
| 252 | A 0007330372 | RUBBER BUFFER |
| 70MM | ||
| 253 | N 304035010001 | NUT |
| 254 | N 910112010001 | NUT |
| 256 | N 000000003333 | WASHER |
| 258 | N 000912010218 | SCREW |
| M 10X30 | ||
| 261 | N 000000000190 | SCREW |
| M8X25 | ||
| Repalced by: N 000000003552 | ||
| 261 | N 000000003552 | HEXALOBULAR BOLT |
| M8X25 | ||
| 267 | A 6297250247 | CLAMPING PIECE |
| Repalced by: A 6327250047 | ||
| 267 | A 6327250047 | CLAMPING PIECE |
| 270 | A 0018201897 | POTENTIOMETER |
| COMPLETE | ||
| 273 | A 0018202897 | POTENTIOMETER |
| 276 | A 0019901621 | SCREW |
| M5X10MM | ||
| 282 | A 0007661515 | PIN |
| PIVOT PIN | ||
| 285 | N 000000005470 | HEXAGON NUT |
| 288 | A 6297660017 | MOUNTING |
| SWIVEL BAR BEARING | ||
| 291 | A 6297660235 | CAP |
| 294 | A 6327660235 | CAP |
| 295 | A 6327660935 | CAP |
| 296 | N 000000001481 | HEXALOBULAR BOLT |
| CAP,TOP | ||
| M 6X40 | ||
| 297 | A 0007660905 | PAD |
| 1 MM | ||
| 297 | A 0007661005 | PAD |
| 2 MM | ||
| 300 | A 0007660705 | PAD |
| 1 MM | ||
| 300 | A 0007660805 | PAD |
| 2 MM | ||
| 303 | N 910105008041 | SCREW |
| M 8X16 | ||
| 305 | N 000912010038 | SCREW |
| M 10X30 | ||
| Repalced by: N 000912010218 | ||
| 305 | N 000912010218 | SCREW |
| M 10X25 | ||
| 307 | N 000000003386 | WASHER |
| 308 | A 0009944710 | LOCK |
| 310 | A 0019909620 | SCREW |
| M 5X12 | ||
| 312 | A 0029901020 | SCREW |
| M 5X10 | ||
| Repalced by: N 000000007000 | ||
| 312 | N 000000007000 | SCREW |
| M 5X10 | ||
| 314 | A 0007580082 | WASHER |
| 316 | A 0007661105 | PAD |
| BOTTOM | ||
| 318 | A 0049904812 | SCREW |
| M 8X30 | ||
| 319 | A 0009943710 | LOCK |
| S8 | ||
| 320 | N 000000003250 | WASHER |
| 322 | A 0007607664 | PILLAR |
| EVO GRAY | ||
| 324 | N 000000004290 | SCREW |
| 326 | A 0007630569 | GUIDE TUBE |
| 328 | A 0009913805 | COLLAR PIN |
| 330 | A 0009931135 | SPIRAL SPRING |
| 332 | A 0007233627 | MOUNTING |
| 345 | A 6327600040 | FASTENER |
| SWIVEL TYPE,LEFT | ||
| 347 | N 910112005000 | HEXAGON NUT |
| M5 | ||
| 349 | A 6327330064 | LATCH GUIDE |
| LEFT AND RIGHT | ||
| 64,5MM | ||
| 351 | A 6327230369 | LOCK STRIKER |
| LEFT AND RIGHT | ||
| L=108MM | ||
| 353 | A 0009916771 | RETAINING CLIP |
| 355 | N 000471016000 | LOCK RING |
| 357 | A 6327660019 | PLATE |
| 359 | N 304032003001 | NUT |
| M3 | ||
| 361 | A 0009914940 | BODY-BOUND RIVET |
| Repalced by: A 0009904892 | ||
| 361 | A 0009904892 | RIVET |
| 363 | A 0038212351 | SWITCH |
| 365 | N 000471005000 | LOCK RING |
| 5X0,6MM | ||
| 367 | N 000000002545 | SCREW |
| M3X10MM | ||
| 369 | A 6327230569 | PULL ROD |
| LEFT | ||
| 206MM | ||
| 371 | A 6327330469 | PULL ROD |
| RIGHT | ||
| 378MM | ||
| 373 | A 6327231469 | PULL ROD |
| 375 | A 0009915615 | BALL PIVOT |
| 377 | A 0007630531 | CONSOLE |
| 379 | A 6329190127 | LINK |
| 381 | A 6297230117 | GEAR |
| 383 | A 0005403688 | ELECTRIC MOTOR |
| 385 | A 6327600023 | CONSOLE |
| 387 | A 6297660191 | COVERING |
| A 6297660185 | INSULATION | |
| 389 | A 0007330464 | LATCH GUIDE |
| 391 | A 6327230369 | LOCK STRIKER |
| 393 | A 0007330469 | PULL ROD |
| 395 | A 0007330569 | PULL ROD |
| 397 | A 6327600223 | CONSOLE |
| 399 | N 000000001476 | SCREW |
| M 6X16 | ||
| 401 | N 000000003260 | WASHER |
| 403 | A 0079942041 | LOCK |
| 405 | A 0009835098 | FOAM PLASTICS |
| 407 | A 0019832513 | HOOK STRAP |
| 409 | A 3569830513 | SOFT STRAP |
| 410 | A 6297230055 | LOCK |
