Transporto priemonė: S 411 HD MODELLPFLEGE; VIN numerio dalis: 629610

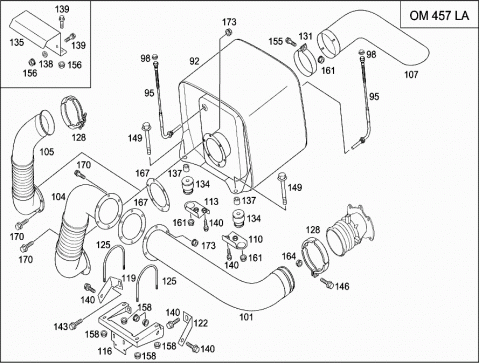

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 092 | A 0024902314 | CATALYST |
| FOR NOX SENSOR | ||
| 092 | A 0024902314 | CATALYST |
| FOR NOX SENSOR | ||
| 095 | A 0061530428 | SENDER UNIT |
| TEMPERATURE SENSOR,EXHAUST | ||
| 095 | A 0061530428 | SENDER UNIT |
| TEMPERATURE SENSOR,EXHAUST | ||
| 098 | A 0005460522 | CLAMPING RING |
| 098 | A 0005460522 | CLAMPING RING |
| 101 | A 6324900410 | EXHAUST PIPE |
| 104 | A 6324920004 | REAR EXHAUST PIPE |
| Repalced by: A 6324900810 | ||
| 104 | A 6324900810 | EXHAUST PIPE |
| 105 | A 6324900510 | EXHAUST PIPE |
| Repalced by: A 6324901010 | ||
| 105 | A 6324901010 | EXHAUST PIPE |
| 107 | A 6324900310 | EXHAUST PIPE |
| TAIL PIPE | ||
| 107 | A 6324900310 | EXHAUST PIPE |
| TAIL PIPE | ||
| 110 | A 6324900017 | ANGLE |
| Repalced by: A 6324900417 | ||
| 110 | A 6324900417 | ANGLE |
| 110 | A 6324900417 | ANGLE |
| 113 | A 6324900517 | ANGLE |
| 113 | A 6324900117 | ANGLE |
| Repalced by: A 6324900517 | ||
| 113 | A 6324900517 | ANGLE |
| 116 | A 6324910315 | CONSOLE |
| 119 | A 6324910417 | ANGLE |
| 122 | A 6324910517 | ANGLE |
| 125 | A 6324910027 | CLAMP |
| 128 | A 9429970290 | CLAMP |
| 128 | A 0009958602 | CLAMP |
| D 148 | ||
| 131 | A 6344920740 | CLAMP |
| EXHAUST SYSTEM | ||
| D=143,5 | ||
| 131 | A 6344920740 | CLAMP |
| EXHAUST SYSTEM | ||
| D=143,5 | ||
| 134 | A 0009980846 | DASHPOT |
| 134 | A 0009980246 | INSULATION |
| Repalced by: A 0009980846 | ||
| 134 | A 0009980846 | DASHPOT |
| 135 | A 6294910030 | PROTECTIVE PLATE |
| FOR NOX SENSOR | ||
| 135 | A 6294910030 | PROTECTIVE PLATE |
| FOR NOX SENSOR | ||
| 137 | A 0005040153 | SPACER SLEEVE |
| 137 | A 0005040153 | SPACER SLEEVE |
| 138 | A 6299910040 | SPACER SLEEVE |
| 138 | A 6299910040 | SPACER SLEEVE |
| 139 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20MM | ||
| 139 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20MM | ||
| 140 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16MM | ||
| 140 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16MM | ||
| 143 | N 910105010040 | HEXAGON HEAD BOLT |
| M10X16MM | ||
| 146 | N 910105008010 | HEXAGON HEAD BOLT |
| M8X40MM | ||
| 149 | N 910105010016 | HEXAGON HEAD BOLT |
| M10X80MM | ||
| 149 | N 910105010016 | HEXAGON HEAD BOLT |
| M10X80MM | ||
| 155 | N 910105010001 | HEXAGON HEAD BOLT |
| M10X30 | ||
| 155 | N 910105010011 | HEXAGON HEAD BOLT |
| M10X40MM | ||
| 156 | N 910112006001 | HEXAGON NUT |
| M 6 | ||
| 156 | N 910112006001 | HEXAGON NUT |
| M 6 | ||
| 158 | N 910112008000 | NUT |
| M8 | ||
| 161 | N 910112010000 | NUT |
| M10 | ||
| 161 | N 910112010001 | NUT |
| M10 | ||
| 164 | N 913023008003 | NUT |
| M8 | ||
| 167 | A 0004920780 | FLANGE GASKET |
| D=129 | ||
| 167 | A 0004920780 | FLANGE GASKET |
| D=129 | ||
| 170 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35MM | ||
| Repalced by: A 0189901101 | ||
| 170 | A 0189901101 | SCREW |
| M10X35MM | ||
| 170 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35MM | ||
| Repalced by: A 0189901101 | ||
| 170 | A 0189901101 | SCREW |
| M10X35MM | ||
| 173 | N 913023010002 | NUT |
| M10 | ||
| Repalced by: A 0009902852 | ||
| 173 | A 0009902852 | NUT FOR TAPPING SCREW |
| M10 | ||
| 173 | N 913023010002 | NUT |
| M10 | ||
| Repalced by: A 0009902852 | ||
| 173 | A 0009902852 | NUT FOR TAPPING SCREW |
| M10 | ||
