Transporto priemonė: S 415 GT; VIN numerio dalis: 632121

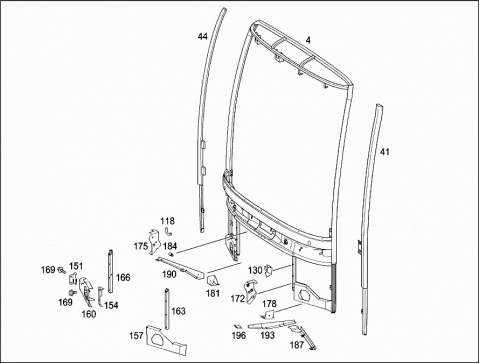

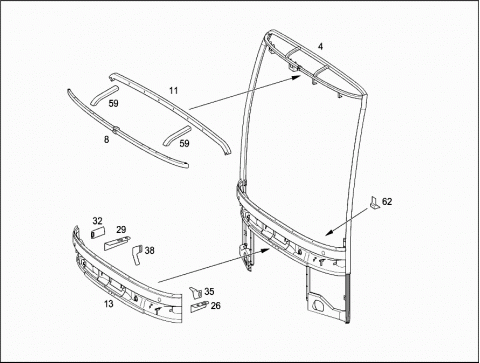

Grupė: 62 COWL,FRONT PANEL - 030 COWL
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 6326201002 | FRONT WALL |
| 005 | A 6326200202 | FRONT PANEL |
| 008 | A 6326220304 | SUPPORT |
| ABOVE WINDSHIELD | ||
| Repalced by: A 6326200330 | ||
| 008 | A 6326200330 | SUPPORT |
| ABOVE WINDSHIELD | ||
| 011 | A 6326220020 | BOW |
| FRONT PANEL,TOP | ||
| Repalced by: A 6326200020 | ||
| 011 | A 6326200020 | BOW |
| FRONT PANEL,TOP | ||
| 013 | A 6326200508 | FIREWALL |
| 014 | A 6326200008 | FRONT PANEL |
| 017 | A 6296200614 | BRACKET |
| FRONT BOX | ||
| 020 | A 6296200914 | BRACKET |
| FRONT BOX | ||
| 023 | A 6296201315 | CONSOLE |
| STEERING COLUMN | ||
| 026 | A 6326200214 | BRACKET |
| LEFT | ||
| 029 | A 6326200314 | BRACKET |
| RIGHT | ||
| 032 | A 6326250814 | BRACKET |
| 035 | A 6296251214 | BRACKET |
| 038 | A 6296251314 | BRACKET |
| 041 | A 6326201513 | PILLAR |
| LEFT OUTSIDE | ||
| 044 | A 6326201613 | PILLAR |
| RIGHT OUTSIDE | ||
| 047 | A 6326200713 | PILLAR |
| LEFT | ||
| 050 | A 6326201713 | PILLAR |
| RIGHT | ||
| 053 | A 6326200315 | CONSOLE |
| LEFT LOCK | ||
| 053 | A 6326200315 | CONSOLE |
| LEFT LOCK | ||
| 056 | A 6326200415 | CONSOLE |
| RIGHT LOCK | ||
| 056 | A 6326200415 | CONSOLE |
| RIGHT LOCK | ||
| 059 | A 6326220038 | INTERMEDIATE PIECE |
| 062 | A 6296221714 | BRACKET |
| 065 | A 6326270008 | COVERING |
| COWL | ||
| 068 | A 6326200014 | BRACKET |
| LEFT | ||
| 071 | A 6326200114 | BRACKET |
| RIGHT | ||
| 074 | A 6326200115 | CONSOLE |
| LEFT | ||
| 077 | A 6326200215 | CONSOLE |
| RIGHT | ||
| 080 | A 6326250214 | BRACKET |
| CENTRAL | ||
| 083 | A 6326250314 | BRACKET |
| Repalced by: A 6326253614 | ||
| 083 | A 6326253614 | BRACKET |
| LEFT | ||
| Repalced by: A 6326254314 | ||
| 083 | A 6326254314 | BRACKET |
| LEFT | ||
| 086 | A 6326250414 | BRACKET |
| RIGHT | ||
| Repalced by: A 6326254414 | ||
| 086 | A 6326254414 | BRACKET |
| RIGHT | ||
| 089 | A 0009927905 | BUSHING |
| 091 | A 6296250914 | BRACKET |
| INSIDE | ||
| 094 | A 0009872562 | RUBBER SECTION |
| 097 | A 0009871762 | RUBBER SECTION |
| Repalced by: A 0099872851 | ||
| 097 | A 0099872851 | RUBBER SEAL |
| 100 | A 6326020712 | ANGLE |
| GLAZING | ||
| 103 | A 6326020812 | ANGLE |
| GLAZING | ||
| 106 | A 6326220814 | BRACKET |
| 109 | A 6326250024 | PLATE |
| 112 | A 6326253914 | BRACKET |
| 115 | A 6276310221 | END PIECE |
| 118 | A 6326120132 | MOUNTING BRACKET |
| 121 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12MM | ||
| 121 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20MM | ||
| 124 | N 910112008000 | NUT |
| M8 | ||
| 127 | A 6296280100 | GUMMED LABEL |
| 130 | A 6326200914 | BRACKET |
| 151 | A 6326200131 | CONSOLE |
| OUTSIDE | ||
| 154 | A 6326200031 | CONSOLE |
| INSIDE;GREEN | ||
| 157 | A 6326200085 | STRUT |
| LEFT | ||
| 160 | A 6326200285 | STRUT |
| RIGHT | ||
| 163 | A 6326202513 | PILLAR |
| LEFT | ||
| 166 | A 6326202613 | PILLAR |
| RIGHT | ||
| 169 | N 910105010009 | HEXAGON HEAD BOLT |
| M10X25MM | ||
| 172 | A 6326201115 | CONSOLE |
| LEFT | ||
| 175 | A 6326201215 | CONSOLE |
| RIGHT | ||
| 178 | A 6296222714 | BRACKET |
| LEFT | ||
| 181 | A 6296222814 | BRACKET |
| RIGHT | ||
| 184 | A 6276310421 | PREFORMED CLOSING PIECE |
| 187 | A 6326220211 | SUPPORT PLATE |
| LEFT | ||
| 190 | A 6326220311 | SUPPORT PLATE |
| RIGHT | ||
| 193 | A 6326220112 | ATTACHMENT ANGLE BRACKET |
| 196 | A 6326220212 | ATTACHMENT ANGLE BRACKET |
| 200 | A 6336891811 | RETAINING PLATE |
| ON RIGHT A-PILLAR | ||
| 202 | A 6338210011 | FASTENING PLATE |
| ON RIGHT A-PILLAR | ||
| 204 | N 000000000819 | TAPPING SCREW |
| 4,2X38MM | ||
| 206 | N 914129005002 | SCREW |
| M5X20MM | ||
| 208 | N 910112005000 | HEXAGON NUT |
| M5 | ||
| 210 | N 913018008200 | PROTECTIVE CAP |
| 8X5,5 | ||
