Transporto priemonė: S 415 GT; VIN numerio dalis: 632121

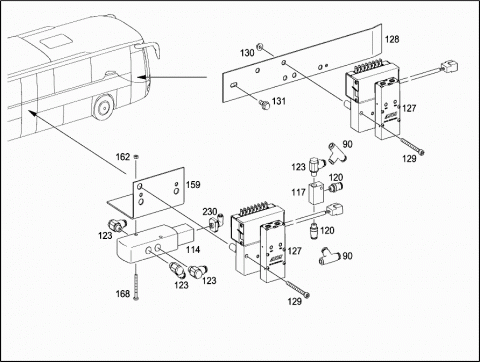

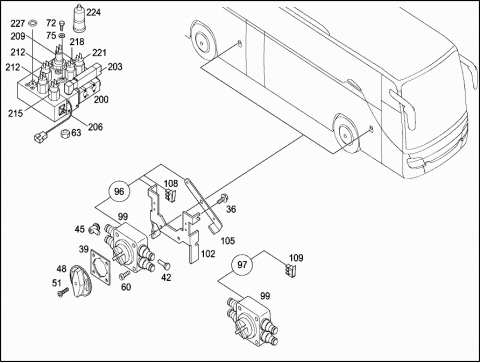

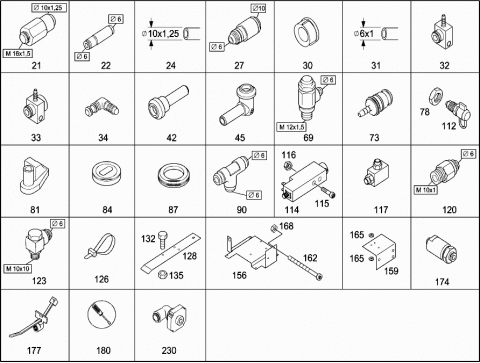

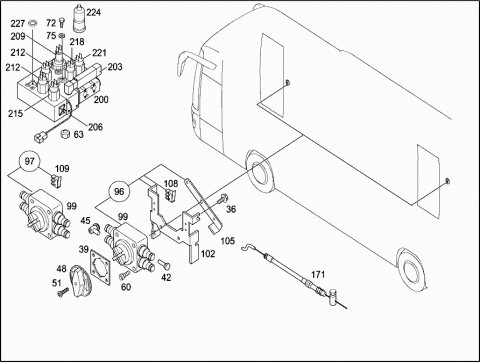

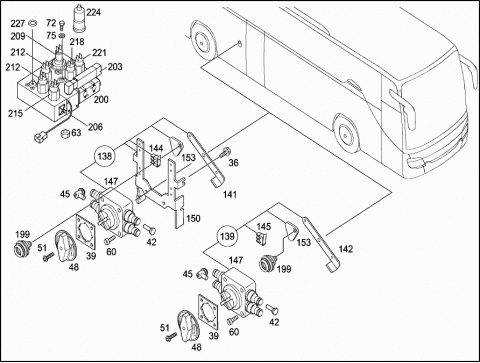

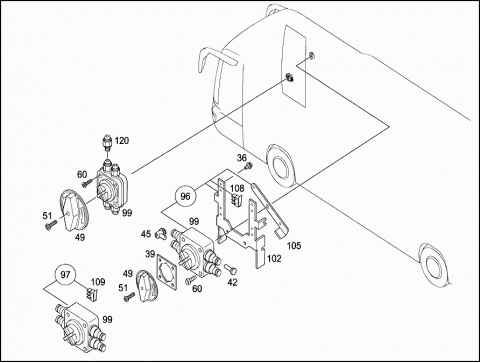

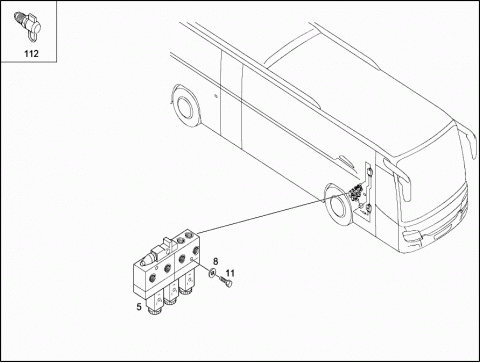

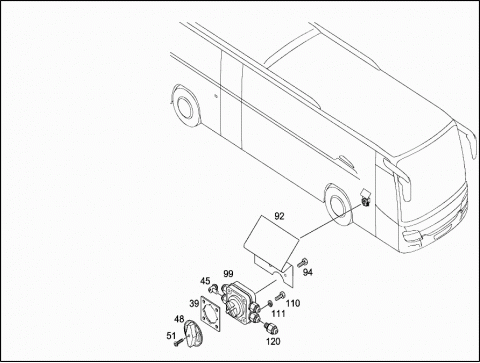

Grupė: 76 DOOR AND WINDOW ACCESSORIES - 060 DOOR CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0007605778 | VALVE |
| 008 | N 000000003337 | WASHER |
| 5 | ||
| 011 | N 910105005009 | SCREW |
| M 5X55 | ||
| 021 | A 0059974036 | VALVE |
| CHECK VALVE | ||
| 021 | A 0059974036 | VALVE |
| CHECK VALVE | ||
| 022 | A 0007605278 | VALVE |
| 024 | A 0009873927 | PLASTIC PIPE |
| 024 | A 0009873927 | PLASTIC PIPE |
| 027 | A 0009974475 | NOZZLE RESTRICTOR |
| 027 | A 0009974475 | NOZZLE RESTRICTOR |
| 030 | A 0019981050 | PLUG |
| 031 | A 0009872627 | PLASTIC PIPE |
| 031 | A 0009872627 | PLASTIC PIPE |
| 031 | A 0009872627 | PLASTIC PIPE |
| 032 | A 6459901278 | CONNECTOR |
| 033 | A 6459900778 | CONNECTOR |
| 034 | A 0049977889 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG8/6X1 | ||
| 036 | N 000000001474 | HEXALOBULAR BOLT |
| M6X10 | ||
| 036 | N 000000001474 | HEXALOBULAR BOLT |
| M6X10 | ||
| 036 | N 910143006012 | HEXALOBULAR BOLT |
| M6X10 | ||
| 039 | A 0029872460 | RUBBER PAD |
| 039 | A 0029872460 | RUBBER PAD |
| 042 | A 0009973101 | PLUG |
| 042 | A 0009973101 | PLUG |
| 042 | A 0009973101 | PLUG |
| 045 | A 0049904271 | ELBOW FITTING |
| 045 | A 0049904271 | ELBOW FITTING |
| 045 | A 0049904271 | ELBOW FITTING |
| 048 | A 0009977077 | ROTARY KNOB |
| 048 | A 0009977077 | ROTARY KNOB |
| 049 | A 0009977177 | ROTARY KNOB |
| WITH HEX.SOCKET | ||
| 049 | A 0009977177 | ROTARY KNOB |
| WITH HEX.SOCKET | ||
| 051 | N 000000007000 | SCREW |
| M5X10MM | ||
| 051 | N 000000002208 | SCREW |
| M5X16 | ||
| 051 | A 0029901020 | SCREW |
| M5X10 | ||
| Repalced by: N 000000007000 | ||
| 051 | N 000000007000 | SCREW |
| M5X10 | ||
| 051 | A 0029901020 | SCREW |
| M5X10 | ||
| Repalced by: N 000000007000 | ||
| 051 | N 000000002208 | SCREW |
| M5X16 | ||
| 051 | N 000000003146 | SCREW |
| M5X25 | ||
| 060 | N 000000007002 | SCREW |
| M6X10MM | ||
| 060 | A 0019909820 | HEXAL. SOCKET CSK. BOLT |
| M6X10MM | ||
| 060 | N 910105006002 | SCREW |
| M6X12 | ||
| 060 | N 000000001474 | HEXALOBULAR BOLT |
| M6X10 | ||
| 063 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| 063 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| 069 | A 0039907068 | FITTING |
| OUTLET THROTTLE | ||
| 069 | A 0039907068 | FITTING |
| OUTLET THROTTLE | ||
| 072 | N 304017006028 | SCREW |
| M6X50MM | ||
| 072 | N 304017006028 | SCREW |
| M6X50MM | ||
| 072 | N 910105006009 | HEXAGON HEAD BOLT |
| M6X45 | ||
| 073 | A 0039975389 | CONNECTION PIECE |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| NG12/6X1 | ||
| 075 | N 000125006449 | WASHER |
| 075 | N 000125006449 | WASHER |
| 078 | A 0049906051 | NUT |
| CHECK NUT | ||
| M16X1.5 RAUFOSS | ||
| 078 | A 0049906051 | NUT |
| CHECK NUT | ||
| M16X1.5 RAUFOSS | ||
| 081 | A 0109883378 | RETAINING CLIP |
| 081 | A 0109883378 | RETAINING CLIP |
| 084 | A 0009876441 | RUBBER RING |
| 084 | A 0009876441 | RUBBER RING |
| 087 | A 0099978581 | GROMMET |
| 087 | A 0099978581 | GROMMET |
| 090 | A 0049907170 | T-FITTING |
| 090 | A 0049907170 | T-FITTING |
| 092 | A 6297520021 | COVERING |
| 094 | Q 0200965243 | SCREW |
| M 6X12 | ||
| 096 | A 6277600857 | EMERGENCY COCK |
| STANDARD | ||
| 096 | A 6277600857 | EMERGENCY COCK |
| STANDARD | ||
| 097 | A 0007604457 | EMERGENCY VALVE |
| 099 | A 0009970512 | PNEU. DIR. CONTROL VALVE |
| Repalced by: A 6287602157 | ||
| 099 | A 0009970512 | PNEU. DIR. CONTROL VALVE |
| Repalced by: A 6287602157 | ||
| 099 | A 6287602157 | CONTROL COCK |
| 099 | A 6287602157 | CONTROL COCK |
| 099 | A 6287602157 | CONTROL COCK |
| 099 | A 6287602157 | CONTROL COCK |
| 102 | A 0007661469 | BRACKET |
| 102 | A 0007661469 | BRACKET |
| 105 | A 0007662224 | LEVER |
| Repalced by: A 0007663224 | ||
| 105 | A 0007663224 | ACTUATING LEVER |
| 105 | A 0007662224 | LEVER |
| Repalced by: A 0007663224 | ||
| 105 | A 0007663224 | ACTUATING LEVER |
| 108 | A 0055458714 | SWITCH |
| MICRO-SWITCH | ||
| 108 | A 0055458714 | SWITCH |
| MICRO-SWITCH | ||
| 109 | A 0138208510 | QUICK BREAK SWITCH |
| MICRO-SWITCH | ||
| 110 | Q 0200933010 | SCREW |
| M 6X1 | ||
| 111 | A 0009943610 | LOCK |
| S 6 | ||
| 112 | A 0014310031 | TEST CONNECTION |
| VOSS 230 | ||
| 112 | A 0014312331 | TEST CONNECTION |
| PNEUMATIC | ||
| M16X1.5/M16X1.5 | ||
| 112 | A 0014312331 | TEST CONNECTION |
| PNEUMATIC | ||
| M16X1.5/M16X1.5 | ||
| 112 | A 0014312331 | TEST CONNECTION |
| PNEUMATIC | ||
| M16X1.5/M16X1.5 | ||
| 114 | A 0007604978 | LOCKING VALVE |
| VOSS232 | ||
| 115 | A 0039908112 | SCREW |
| M4X30MM | ||
| 116 | N 304032004000 | HEXAGON NUT |
| M4 | ||
| 117 | A 0008050078 | VALVE |
| 117 | A 0008050078 | VALVE |
| 120 | A 0039905768 | FITTING |
| 120 | A 0039905768 | FITTING |
| 123 | A 0039906768 | FITTING |
| 123 | A 0039906768 | FITTING |
| 126 | A 0019978390 | CABLE TIE |
| 126 | A 0019978390 | CABLE TIE |
| 126 | A 0079975690 | CABLE STRAP |
| 126 | A 0029972390 | CABLE TIE |
| 127 | A 0007600761 | ACTUATION |
| 128 | A 6327630114 | BRACKET |
| 128 | A 6327630114 | BRACKET |
| 129 | N 000000007113 | CAP BOLT |
| M5X60 | ||
| 130 | N 910112005000 | HEXAGON NUT |
| M5 | ||
| 131 | N 910105006004 | HEXAGON HEAD BOLT |
| M6X16 | ||
| 132 | N 910105006004 | HEXAGON HEAD BOLT |
| M6X16 | ||
| Repalced by: N 910143006001 | ||
| 132 | N 910143006001 | HEXALOBULAR BOLT |
| M6X16 | ||
| 132 | N 910105006004 | HEXAGON HEAD BOLT |
| M6X16 | ||
| Repalced by: N 910143006001 | ||
| 132 | N 910143006001 | HEXALOBULAR BOLT |
| M6X16 | ||
| 135 | N 913023006002 | NUT |
| M6 | ||
| 135 | N 913023006002 | NUT |
| M6 | ||
| 138 | A 6277600457 | CONTROL COCK |
| Repalced by: A 6327600357 | ||
| 138 | A 6327600357 | CONTROL COCK |
| 139 | A 0007604557 | EMERGENCY VALVE |
| 141 | A 0007662224 | LEVER |
| Repalced by: A 0007663224 | ||
| 141 | A 0007663224 | ACTUATING LEVER |
| 142 | A 0007663224 | ACTUATING LEVER |
| 144 | A 0055458714 | SWITCH |
| 145 | A 0138208610 | QUICK BREAK SWITCH |
| 147 | A 6287602157 | CONTROL COCK |
| 150 | A 0007632414 | BRACKET |
| 153 | A 0007630040 | SHACKLE |
| 156 | A 6337640031 | CONSOLE |
| Repalced by: A 6337600623 | ||
| 156 | A 6337600623 | CONSOLE |
| 159 | A 6327640014 | BRACKET |
| 159 | A 6327640014 | BRACKET |
| Repalced by: A 0000000001 | ||
| 159 | A 6327640031 | CONSOLE |
| 162 | A 0039909312 | SCREW |
| M4X50 | ||
| Repalced by: N 000000003882 | ||
| 162 | N 000000003882 | HEXALOBULAR BOLT |
| M4X40 | ||
| 165 | A 0009944210 | LOCK |
| WASHER | ||
| 168 | N 304032004002 | HEXAGON NUT |
| M4 | ||
| 171 | A 6277601304 | PULL |
| 1430X1830MM | ||
| 171 | A 6277601704 | PULL |
| 1930X2330MM | ||
| 171 | A 6277602204 | PULL |
| 1000X1400MM | ||
| 174 | A 0008053169 | FILTER |
| 174 | A 0008053169 | FILTER |
| 177 | A 2105461943 | BRACKET |
| 180 | A 0055840238 | ADHESIVE LABEL |
| 199 | A 0007500850 | LOCK HOUSING |
| 200 | A 0007606178 | VALVE |
| DOOR CONTROL | ||
| 200 | A 0007606178 | VALVE |
| DOOR CONTROL | ||
| 200 | A 0007606178 | VALVE |
| DOOR CONTROL | ||
| 200 | A 0007608378 | VALVE |
| DOOR CONTROL | ||
| 200 | A 0007608378 | VALVE |
| DOOR CONTROL | ||
| 200 | A 0007607578 | SOLENOID VALVE |
| DOOR CONTROL | ||
| Repalced by: A 0007608378 | ||
| 200 | A 0007608378 | VALVE |
| DOOR CONTROL | ||
| 200 | A 0007607578 | SOLENOID VALVE |
| DOOR CONTROL | ||
| Repalced by: A 0007608378 | ||
| 200 | A 0007608378 | VALVE |
| DOOR CONTROL | ||
| 203 | A 0009971712 | DIRECTIONAL CONTROL VALVE |
| 5/2 | ||
| 203 | A 0009971712 | DIRECTIONAL CONTROL VALVE |
| 5/2 | ||
| 203 | A 0009971712 | DIRECTIONAL CONTROL VALVE |
| 5/2 | ||
| 206 | A 0008200585 | CONTROL ELECTRONICS |
| TO A 000 760 75 78/A 000 760 61 78 | ||
| Repalced by: A 0008201085 | ||
| 206 | A 0008201085 | CONTROL ELECTRONICS |
| TO A 000 760 75 78/A 000 760 61 78 | ||
| 206 | A 0008201085 | CONTROL ELECTRONICS |
| TO A 000 760 83 78 | ||
| 206 | A 0008201085 | CONTROL ELECTRONICS |
| TO A 000 760 83 78 | ||
| 209 | A 0008005878 | VALVE |
| 209 | A 0008005878 | VALVE |
| 209 | A 0008005878 | VALVE |
| 212 | A 0065452714 | SWITCH |
| BREAK PULSE | ||
| 4,5BAR | ||
| 212 | A 0065452714 | SWITCH |
| BREAK PULSE | ||
| 4,5BAR | ||
| 212 | A 0065452714 | SWITCH |
| BREAK PULSE | ||
| 4,5BAR | ||
| 215 | A 0065453014 | SWITCH |
| MAKE PULSE | ||
| 4,5BAR | ||
| 215 | A 0065453014 | SWITCH |
| MAKE PULSE | ||
| 4,5BAR | ||
| 215 | A 0065453014 | SWITCH |
| MAKE PULSE | ||
| 4,5BAR | ||
| 218 | A 0065452814 | SWITCH |
| MAKE PULSE | ||
| 2,0BAR | ||
| 218 | A 0065452814 | SWITCH |
| MAKE PULSE | ||
| 2,0BAR | ||
| 218 | A 0065452814 | SWITCH |
| MAKE PULSE | ||
| 2,0BAR | ||
| 221 | A 0065452914 | SWITCH |
| MAKE PULSE | ||
| 3,0BAR | ||
| 221 | A 0065452914 | SWITCH |
| MAKE PULSE | ||
| 3,0BAR | ||
| 221 | A 0065452914 | SWITCH |
| MAKE PULSE | ||
| 3,0BAR | ||
| 224 | A 0009983323 | PROTECTIVE CAP |
| 224 | A 0009983323 | PROTECTIVE CAP |
| 227 | A 0209976645 | O-RING |
| 227 | A 0209976645 | O-RING |
| 230 | A 0039904171 | ELBOW FITTING |
