Transporto priemonė: S 415 GT; VIN numerio dalis: 632121

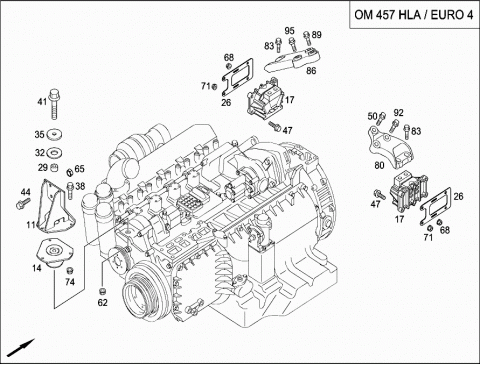

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 011 | A 6292400206 | CONSOLE |
| 011 | A 6292400206 | CONSOLE |
| 014 | A 0002400118 | RUBBER MOUNTING |
| REAR | ||
| 014 | A 0002400118 | RUBBER MOUNTING |
| REAR | ||
| 017 | A 6292400217 | RUBBER MOUNTING |
| FRONT | ||
| 017 | A 6292400217 | RUBBER MOUNTING |
| FRONT | ||
| 020 | A 6292400701 | ENGINE SUPPORT |
| RIGHT FRONT | ||
| 020 | A 6272402901 | ENGINE SUPPORT |
| RIGHT FRONT | ||
| 021 | A 6292401801 | ENGINE SUPPORT |
| RIGHT FRONT | ||
| 023 | A 6292400601 | ENGINE SUPPORT |
| FRONT LEFT | ||
| 023 | A 6272402801 | ENGINE SUPPORT |
| FRONT LEFT | ||
| 024 | A 6292401701 | ENGINE SUPPORT |
| FRONT LEFT | ||
| 026 | A 6292411831 | PLATE |
| 026 | A 6292411831 | PLATE |
| 029 | A 0002420053 | SPACER TUBE |
| 029 | A 0002420053 | SPACER TUBE |
| 032 | A 0002400165 | STOP |
| 032 | A 0002400165 | STOP |
| 035 | A 0002420075 | WASHER |
| 035 | A 0002420075 | WASHER |
| 038 | N 910105012020 | SCREW |
| M12X1,5X35MM | ||
| 038 | N 910105012020 | SCREW |
| M12X1,5X35MM | ||
| 041 | N 000000005578 | SCREW |
| M12X1,5X180MM | ||
| 041 | N 000000005578 | SCREW |
| M12X1,5X180MM | ||
| 044 | N 000000005535 | SCREW |
| M16X1,5X40MM | ||
| 044 | N 000000005535 | SCREW |
| M16X1,5X40MM | ||
| 044 | N 910105016004 | SCREW |
| M16X1,5X40MM | ||
| 047 | N 000000005718 | SCREW |
| M14X1,5X45MM | ||
| 047 | N 000000005718 | SCREW |
| M14X1,5X45MM | ||
| 050 | N 910105018026 | HEXAGON HEAD BOLT |
| M18X1.5X70 | ||
| Repalced by: N 000000005565 | ||
| 050 | N 000000005565 | SCREW |
| M18X1,5X70MM | ||
| 050 | N 000000005563 | HEXAGON HEAD BOLT |
| M18X1,5X50MM | ||
| Repalced by: A 0179901201 | ||
| 050 | A 0179901201 | BOLT AND WASHER ASSY. |
| M18X1,5X50MM | ||
| 050 | A 0179901501 | SCREW |
| M18X1,5X70MM | ||
| 050 | N 000000005561 | SCREW |
| M18X1,5X35MM | ||
| 053 | N 910105018022 | HEXAGON HEAD BOLT |
| M18X1.5X50 | ||
| Repalced by: N 000000005563 | ||
| 053 | N 000000005563 | HEXAGON HEAD BOLT |
| M18X1.5X50 | ||
| 053 | N 000000005563 | SCREW |
| M18X1,5X50MM | ||
| 053 | N 000000005534 | SCREW |
| M16X1,5X35MM | ||
| 062 | N 000000005706 | HEXAGON NUT |
| M20X1,5 | ||
| 062 | N 000000005706 | HEXAGON NUT |
| M20X1,5 | ||
| 065 | N 000000005734 | HEXAGON NUT |
| M16X1,5 | ||
| 065 | N 000000005734 | HEXAGON NUT |
| M16X1,5X10 | ||
| 068 | N 910112006001 | NUT |
| M6 | ||
| 068 | N 910112006001 | NUT |
| M6 | ||
| 071 | N 000000005733 | HEXAGON NUT |
| M14X1,5 | ||
| 071 | N 000000005733 | HEXAGON NUT |
| M14X1,5 | ||
| 074 | N 913023012002 | NUT |
| M12X1,5 | ||
| 074 | N 910112012001 | NUT |
| M12X1,5 | ||
| 080 | A 6332410001 | ENGINE SUPPORT |
| RIGHT FRONT | ||
| 083 | N 000000005723 | HEXAGON HEAD BOLT |
| M18X1.5X55 | ||
| 086 | A 6332410101 | ENGINE SUPPORT |
| FRONT LEFT | ||
| 089 | A 0179901801 | BOLT W FLANGE |
| M18X1,5X100MM | ||
| 092 | A 0179901701 | BOLT AND WASHER ASSY. |
| M18X1,5X90MM | ||
| 095 | A 0179900901 | SCREW |
| M18X1,5X110MM | ||
| A 0019896420 | SEALING COMPOUND | |
| 068 | N 910112006001 | HEXAGON NUT |
| M6 | ||
