Transporto priemonė: S 415 GT; VIN numerio dalis: 632121

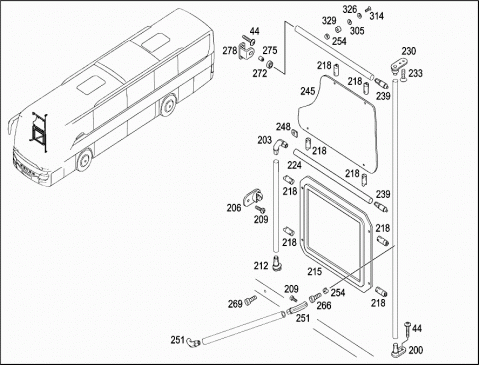

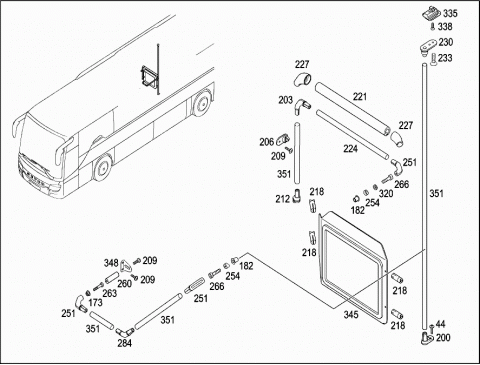

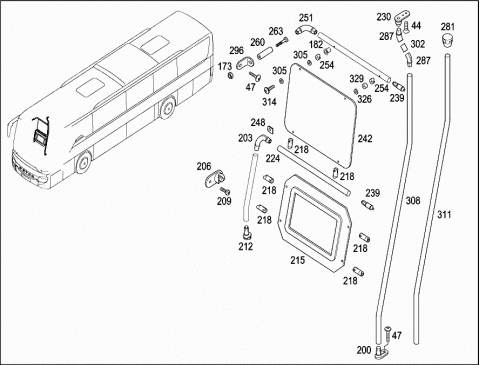

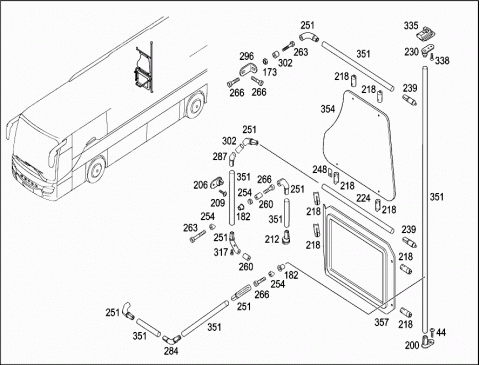

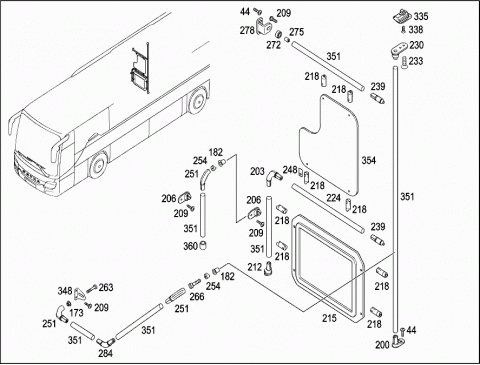

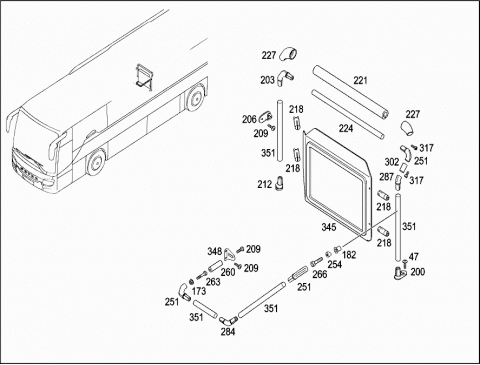

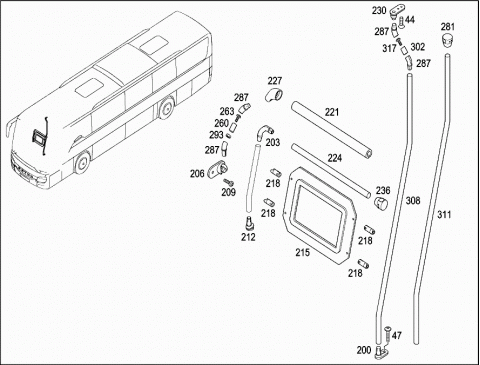

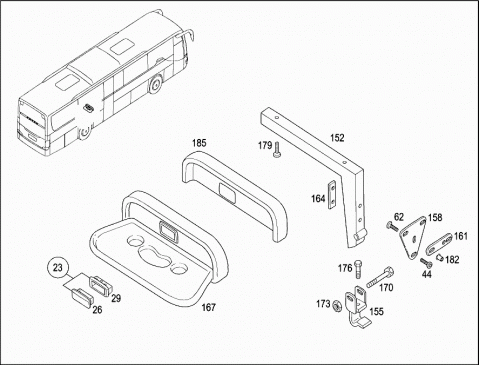

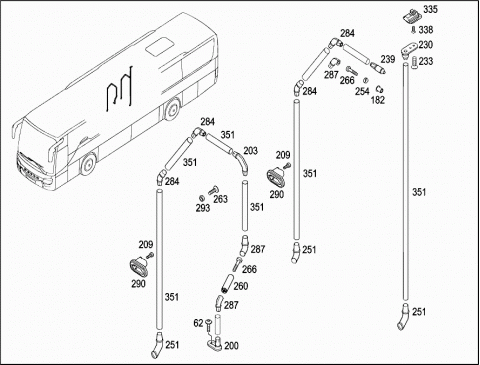

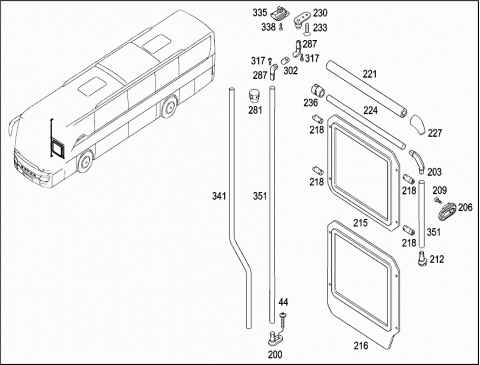

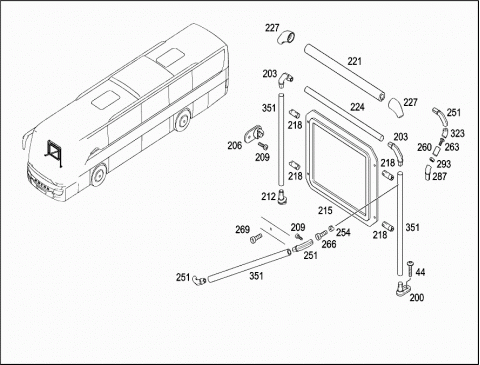

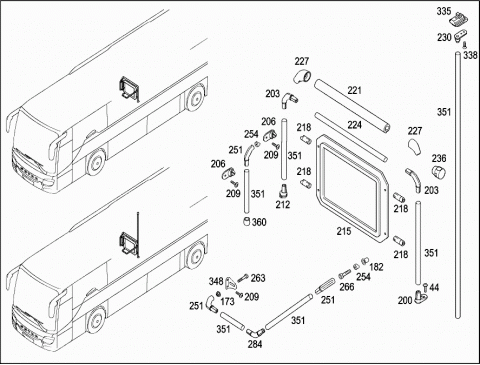

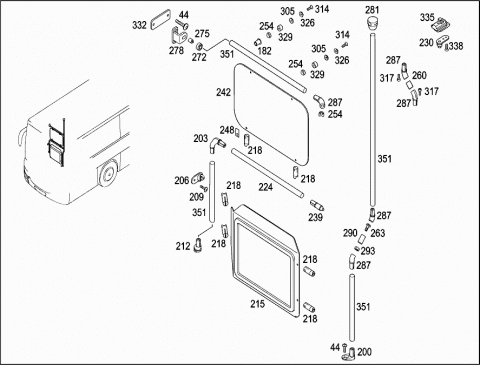

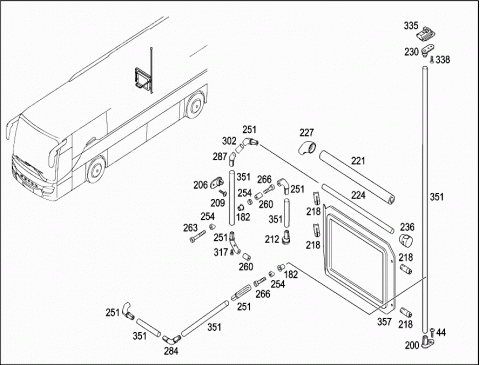

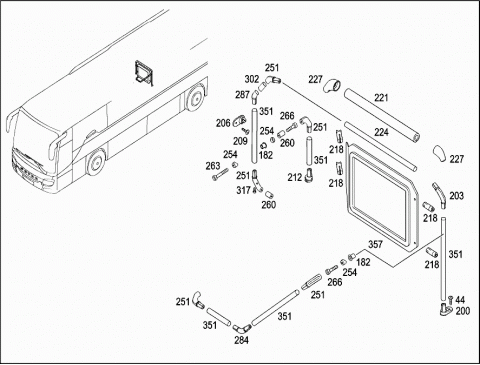

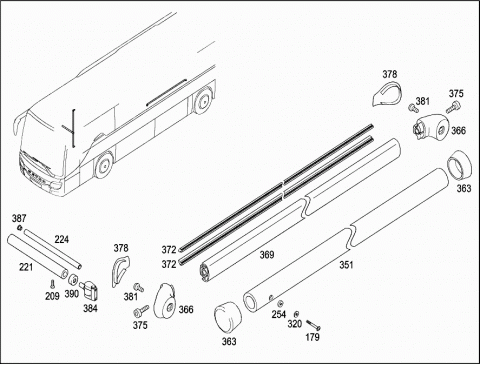

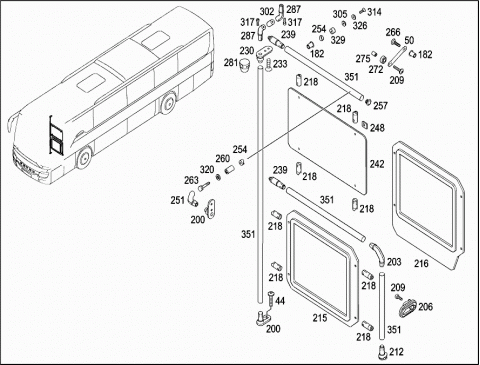

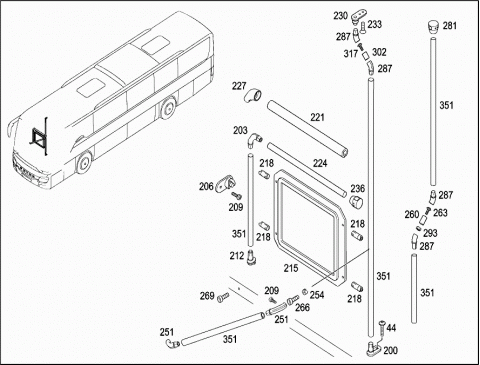

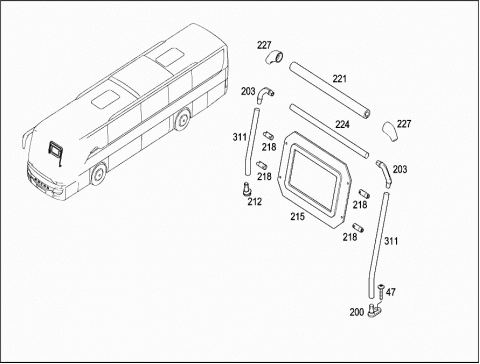

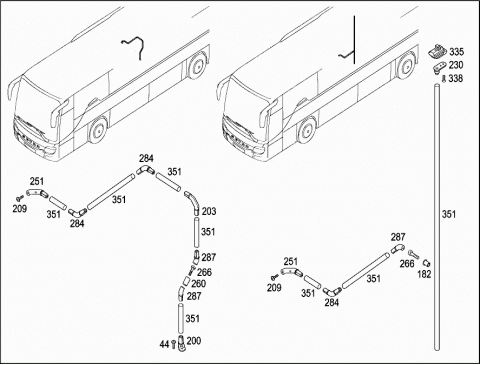

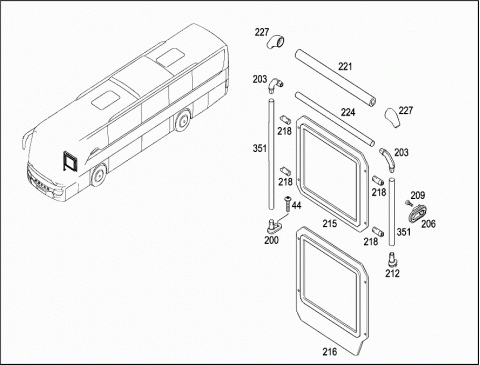

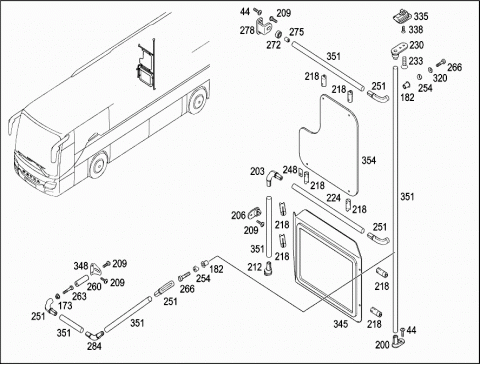

Grupė: 71 PARTITION PANEL - 180 GRIP RAILS AND PARTITION PANELS
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6297110401 | PARTITION PANEL |
| 005 | A 6297110401 | PARTITION PANEL |
| 005 | A 6327110301 | PARTITION PANEL |
| 008 | A 6298100549 | LUGGAGE NET |
| TOTAL RANGE OF DELIVERY | ||
| Repalced by: A 6328100149 | ||
| 008 | A 6328100149 | LUGGAGE NET |
| TOTAL RANGE OF DELIVERY | ||
| 008 | A 6328100149 | LUGGAGE NET |
| TOTAL RANGE OF DELIVERY | ||
| 008 | A 6328100149 | LUGGAGE NET |
| TOTAL RANGE OF DELIVERY | ||
| 014 | A 6298110307 | COVERING |
| 014 | A 6298110307 | COVERING |
| 014 | A 6298110307 | COVERING |
| 017 | A 6299870145 | LOCKING CAP |
| 017 | A 6299870145 | LOCKING CAP |
| 017 | A 6299870145 | LOCKING CAP |
| 020 | N 304032003001 | HEXAGON NUT |
| M3 | ||
| 020 | N 304032003001 | HEXAGON NUT |
| M3 | ||
| 020 | N 304032003001 | HEXAGON NUT |
| M3 | ||
| 023 | A 6298101130 | ASHTRAY |
| TOTAL RANGE OF DELIVERY | ||
| 023 | A 6298101130 | ASHTRAY |
| TOTAL RANGE OF DELIVERY | ||
| 026 | A 6298130158 | COVER |
| 026 | A 6298130158 | COVER |
| 029 | A 6298130258 | HOUSING |
| 029 | A 6298130258 | HOUSING |
| 030 | A 6298130028 | CLIP |
| ASHTRAY | ||
| 030 | A 6298130028 | CLIP |
| ASHTRAY | ||
| 030 | A 6298130028 | CLIP |
| ASHTRAY | ||
| 035 | A 6299870075 | INLAID STRIP |
| AT PARTITION PANEL | ||
| 035 | A 6299870075 | INLAID STRIP |
| AT PARTITION PANEL | ||
| 035 | A 6299870175 | GARNISH STRIP |
| AT PARTITION PANEL | ||
| 041 | A 6297110045 | STAY |
| 041 | A 6297110045 | STAY |
| 041 | A 6297110045 | STAY |
| 044 | A 0009901129 | SCREW |
| M8X22 T40 | ||
| 044 | A 0009901129 | SCREW |
| M8X22 T40 | ||
| 044 | A 0009901129 | SCREW |
| M8X22 T40 | ||
| 044 | A 0009901129 | SCREW |
| M8X22 T40 | ||
| 044 | N 910105008026 | SCREW |
| M8X20 | ||
| 044 | A 0009901729 | SCREW |
| M8X40 | ||
| 044 | A 0009901729 | SCREW |
| M8X40 | ||
| 044 | A 0009901729 | SCREW |
| M8X40 | ||
| 044 | A 0009901729 | SCREW |
| M8X40 | ||
| 047 | A 0039902312 | SCREW |
| M8X35 T40 | ||
| 047 | A 0039902312 | SCREW |
| M8X35 T40 | ||
| 047 | A 0009901729 | SCREW |
| M8X40 | ||
| 050 | A 6297110612 | ANGLE |
| 050 | A 6297110612 | ANGLE |
| 053 | A 0009912740 | SPACER BUSH |
| LENGTH: | ||
| 11 | ||
| 053 | A 0009912740 | SPACER BUSH |
| LENGTH: | ||
| 11 | ||
| 053 | A 0009912740 | SPACER BUSH |
| LENGTH: | ||
| 11 | ||
| 056 | A 0009901629 | SCREW, SPECIAL SHAPE |
| M8X28 T40 | ||
| 056 | A 0009901629 | SCREW, SPECIAL SHAPE |
| M8X28 T40 | ||
| 056 | A 0009901129 | SCREW |
| M8X22 | ||
| 059 | A 6277110023 | PANELLING |
| 062 | A 0009901729 | SCREW |
| M8X40 T40 | ||
| 062 | A 0009901729 | SCREW |
| M8X40 T40 | ||
| 062 | A 0009901729 | SCREW |
| M8X40 T40 | ||
| 062 | N 910105008010 | HEXAGON HEAD BOLT |
| M8X40 | ||
| 065 | A 0009901429 | SCREW |
| M6X35 T30 | ||
| 065 | A 0009901429 | SCREW |
| M6X35 T30 | ||
| 068 | A 6297110290 | CAP |
| 068 | A 6297110090 | CAP |
| DIA., | ||
| 18 | ||
| 071 | A 6297100043 | PLATE |
| 074 | A 6297110069 | ORNAMENTAL COVER |
| ASHTRAY | ||
| 077 | N 000000000522 | SHEET METAL SCREW |
| 4.2X16 | ||
| 080 | A 6297100018 | PANELLING |
| 086 | A 6297110145 | STAY |
| 089 | A 6297110012 | ANGLE |
| 092 | A 0003280053 | SPACER TUBE |
| LENGTH: | ||
| 18 | ||
| 092 | A 0003280053 | SPACER TUBE |
| LENGTH: | ||
| 18 | ||
| 092 | A 0003280053 | SPACER TUBE |
| LENGTH: | ||
| 18 | ||
| 095 | A 6277100031 | CONSOLE |
| RIGHT | ||
| 098 | A 0039902312 | SCREW |
| M8X35 | ||
| 098 | A 0039901129 | SCREW |
| M8X22 | ||
| 101 | A 0007110153 | TUBE |
| LENGTH: | ||
| 415 | ||
| 104 | A 6277110334 | CONNECTION |
| 107 | N 000000000530 | TAPPING SCREW |
| 4.8X22 | ||
| 110 | A 6277110013 | WASHER |
| 120 | N 000000000448 | TAPPING SCREW |
| 130 | A 6297120027 | RAIL |
| 138 | A 0019908358 | NUT |
| 152 | A 6297100013 | FRAME |
| 152 | A 6297100013 | FRAME |
| 155 | A 6297100236 | BRACKET |
| 155 | A 6297100236 | BRACKET |
| 158 | A 6297110511 | PLATE |
| 158 | A 6297110511 | PLATE |
| 161 | A 6297110611 | PLATE |
| 161 | A 6297110611 | PLATE |
| 164 | A 6297550111 | PLATE |
| 164 | A 6297550111 | PLATE |
| 167 | A 6297101801 | PARTITION PANEL |
| 167 | A 6297101801 | PARTITION PANEL |
| 170 | N 910105008038 | HEXAGON HEAD BOLT |
| M8X50 | ||
| 170 | N 910105008045 | HEXAGON HEAD BOLT |
| M8X55 | ||
| 173 | N 913023008003 | NUT |
| M8 | ||
| 173 | N 913023008003 | NUT |
| M8 | ||
| 173 | N 913023008003 | NUT |
| M8 | ||
| 176 | N 304017008010 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 176 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 179 | A 0009901829 | SCREW |
| M8X75 T40 | ||
| 179 | A 0009901829 | SCREW |
| M8X75 T40 | ||
| 182 | N 913024006100 | RIVET NUT |
| M6X14 | ||
| 182 | A 0009844821 | RIVETED NUT |
| M8X16 | ||
| Repalced by: N 913024008100 | ||
| 182 | N 913024008100 | RIVET NUT |
| M8X16 | ||
| 182 | A 0009844821 | RIVETED NUT |
| M8X16 | ||
| 182 | A 0009844821 | RIVETED NUT |
| M8X16 | ||
| 182 | A 0009844821 | RIVETED NUT |
| M8X16 | ||
| 182 | A 0009844821 | RIVETED NUT |
| M8X16 | ||
| Repalced by: N 913024008100 | ||
| 182 | N 913024008100 | RIVET NUT |
| M8X16 | ||
| 185 | A 6327100201 | PARTITION PANEL |
| 200 | A 6277106032 | CONNECTION |
| EVO GRAY | ||
| 200 | A 6277106032 | CONNECTION |
| EVO GRAY | ||
| 200 | A 6277106032 | CONNECTION |
| EVO GRAY | ||
| 200 | A 6277106032 | CONNECTION |
| EVO GRAY | ||
| 200 | A 6277106032 | CONNECTION |
| EVO GRAY | ||
| 203 | A 6277104432 | CONNECTION |
| EVO GRAY | ||
| 203 | A 6277104432 | CONNECTION |
| EVO GRAY | ||
| 203 | A 6277104432 | CONNECTION |
| EVO GRAY | ||
| 203 | A 6277104432 | CONNECTION |
| EVO GRAY | ||
| 203 | A 6277104432 | CONNECTION |
| EVO GRAY | ||
| 206 | A 6277105632 | CONNECTION |
| EVO GRAY | ||
| 206 | A 6277105632 | CONNECTION |
| EVO GRAY | ||
| 206 | A 6277105632 | CONNECTION |
| EVO GRAY | ||
| 206 | A 6277105632 | CONNECTION |
| EVO GRAY | ||
| 206 | A 6277105632 | CONNECTION |
| EVO GRAY | ||
| 209 | A 0009902029 | SCREW |
| M6X25 T30 | ||
| 209 | A 0009902029 | SCREW |
| M6X25 T30 | ||
| 209 | A 0009902029 | SCREW |
| M6X25 T30 | ||
| 209 | A 0009902029 | SCREW |
| M6X25 T30 | ||
| 209 | A 0009902029 | SCREW |
| M6X25 T30 | ||
| 209 | A 0009902029 | SCREW |
| M6X25 T30 | ||
| 212 | A 6277100532 | CONNECTION |
| EVO GRAY | ||
| 212 | A 6277100532 | CONNECTION |
| EVO GRAY | ||
| 212 | A 6277100532 | CONNECTION |
| EVO GRAY | ||
| 212 | A 6277100532 | CONNECTION |
| EVO GRAY | ||
| 212 | A 6277100532 | CONNECTION |
| EVO GRAY | ||
| 215 | A 6327110001 | PARTITION PANEL |
| 215 | A 6327110001 | PARTITION PANEL |
| Repalced by: A 6337110501 | ||
| 215 | A 6337110501 | PARTITION PANEL |
| 215 | A 6327110001 | PARTITION PANEL |
| 216 | A 6327110001 | PARTITION PANEL |
| Repalced by: A 6327110101 | ||
| 216 | A 6327110101 | PARTITION PANEL |
| 218 | A 6277111534 | CONNECTION |
| EVO GRAY | ||
| 218 | A 6277111534 | CONNECTION |
| EVO GRAY | ||
| 218 | A 6277111534 | CONNECTION |
| EVO GRAY | ||
| 218 | A 6277111534 | CONNECTION |
| EVO GRAY | ||
| 218 | A 6277111534 | CONNECTION |
| EVO GRAY | ||
| 221 | A 6297110724 | PAD |
| EVO GRAY | ||
| 658MM | ||
| 221 | A 6297110724 | PAD |
| EVO GRAY | ||
| 658MM | ||
| 221 | A 6297110724 | PAD |
| EVO GRAY | ||
| 658MM | ||
| 221 | A 6297110724 | PAD |
| EVO GRAY | ||
| 658MM | ||
| 224 | A 6299850736 | METAL SECTION |
| ALUMINUM | ||
| 35X2,5 | ||
| 224 | A 6299850736 | METAL SECTION |
| ALUMINUM | ||
| 35X2,5 | ||
| 224 | A 6279852736 | METAL SECTION |
| DARK GREY | ||
| 35X2,5 | ||
| 224 | A 6279852736 | METAL SECTION |
| DARK GREY | ||
| 35X2,5 | ||
| 224 | A 6279852736 | METAL SECTION |
| DARK GREY | ||
| 35X2,5 | ||
| 224 | A 6279852736 | METAL SECTION |
| DARK GREY | ||
| 35X2,5 | ||
| 227 | A 6297100818 | PANELLING |
| 227 | A 6297100818 | PANELLING |
| 227 | A 6297100818 | PANELLING |
| 227 | A 6297100818 | PANELLING |
| 230 | A 6277100932 | CONNECTION |
| EVO GRAY | ||
| 230 | A 6277100932 | CONNECTION |
| EVO GRAY | ||
| 230 | A 6277100932 | CONNECTION |
| EVO GRAY | ||
| 233 | Q 0200965247 | SCREW |
| 233 | A 0009901129 | SCREW |
| M8X22 | ||
| 236 | A 6277102532 | CONNECTION |
| EVO GRAY | ||
| 35X35X35 | ||
| 236 | A 6277102532 | CONNECTION |
| EVO GRAY | ||
| 35X35X35 | ||
| 236 | A 6277102532 | CONNECTION |
| EVO GRAY | ||
| 35X35X35 | ||
| 239 | A 6277102132 | CONNECTION |
| EVO GRAY | ||
| 239 | A 6277102132 | CONNECTION |
| EVO GRAY | ||
| 239 | A 6277102132 | CONNECTION |
| EVO GRAY | ||
| 242 | A 6297110010 | GLASS PANE |
| 242 | A 6297110010 | GLASS PANE |
| 245 | A 6277115101 | WASHER |
| 248 | A 6277110097 | PAD |
| 248 | A 6277110097 | PAD |
| 248 | A 6277110097 | PAD |
| 251 | A 6277104832 | CONNECTION |
| EVO GRAY | ||
| 251 | A 6277104832 | CONNECTION |
| EVO GRAY | ||
| 251 | A 6277104832 | CONNECTION |
| EVO GRAY | ||
| 251 | A 6277104832 | CONNECTION |
| EVO GRAY | ||
| 254 | A 6277118834 | CONNECTION |
| EVO GRAY | ||
| 254 | A 6277118834 | CONNECTION |
| EVO GRAY | ||
| 254 | A 6277118834 | CONNECTION |
| EVO GRAY | ||
| 254 | A 6277118834 | CONNECTION |
| EVO GRAY | ||
| 257 | A 6279870145 | LOCKING CAP |
| DIA., | ||
| 34 | ||
| 257 | A 6279870145 | LOCKING CAP |
| DIA., | ||
| 34 | ||
| 260 | A 6277117234 | CONNECTION |
| LENGTH: | ||
| 53 | ||
| 260 | A 6277117234 | CONNECTION |
| LENGTH: | ||
| 53 | ||
| 260 | A 6277117234 | CONNECTION |
| LENGTH: | ||
| 53 | ||
| Repalced by: A 0009972876 | ||
| 260 | A 0009972876 | CONNECTION |
| LENGTH: | ||
| 53 | ||
| 260 | A 6277117234 | CONNECTION |
| LENGTH: | ||
| 53 | ||
| 263 | N 000912008067 | SCREW |
| M8X70 | ||
| 263 | N 000912008067 | SCREW |
| M8X70 | ||
| 263 | N 000912008057 | SCREW |
| M8X90 | ||
| 263 | N 000000001502 | HEXALOBULAR BOLT |
| M8X100 | ||
| 263 | N 000000001502 | HEXALOBULAR BOLT |
| M8X100 | ||
| 263 | N 910105008065 | HEXAGON HEAD BOLT |
| M8X120 | ||
| 263 | N 910105008034 | HEXAGON HEAD BOLT |
| M8X160 | ||
| 266 | N 000912008009 | SCREW |
| M8X20 | ||
| 266 | A 0029908022 | SCREW |
| M8X30 | ||
| 266 | A 0029908022 | SCREW |
| M8X30 | ||
| 266 | A 0029908022 | SCREW |
| M8X30 | ||
| 266 | N 000000003947 | SCREW |
| WITH HEXALOBULAR SOCKET | ||
| M8X40 | ||
| 269 | A 0039909212 | SCREW |
| M8X25 T45 | ||
| 272 | A 6277110634 | CONNECTION |
| 275 | A 6277110834 | CONNECTION |
| EVO GRAY | ||
| 278 | A 6277110614 | BRACKET |
| 281 | A 6277109132 | CONNECTION |
| EVO GRAY | ||
| 35X30X30 | ||
| 281 | A 6277109132 | CONNECTION |
| EVO GRAY | ||
| 35X30X30 | ||
| 284 | A 6277103332 | CONNECTION |
| EVO GRAY | ||
| 284 | A 6277103332 | CONNECTION |
| EVO GRAY | ||
| 287 | A 6277103732 | CONNECTION |
| EVO GRAY | ||
| 287 | A 6277103732 | CONNECTION |
| EVO GRAY | ||
| 287 | A 6277103732 | CONNECTION |
| EVO GRAY | ||
| 290 | A 6277106932 | CONNECTION |
| EVO GRAY | ||
| 293 | N 304032008006 | NUT |
| M8 | ||
| 293 | N 304032008006 | NUT |
| M8 | ||
| 296 | A 6277111034 | CONNECTION |
| 302 | A 0009972776 | SEAL CONE |
| 302 | A 0009972776 | CONNECTION |
| 305 | A 0009876941 | RUBBER RING |
| 308 | A 6278151270 | GRIP RAIL |
| 311 | A 6277110554 | GRIP RAIL |
| 314 | N 000000003852 | SCREW |
| M6X20 | ||
| 314 | A 0009901729 | SCREW |
| M8X40 T40 | ||
| 317 | A 0039903712 | SCREW |
| M8X16 | ||
| 317 | A 0039903712 | SCREW |
| M8X16 | ||
| 320 | A 6277110013 | WASHER |
| 323 | A 6277104032 | CONNECTION |
| 326 | A 6277120013 | WASHER |
| 329 | A 0009888211 | BUFFER |
| 332 | A 6297540097 | PAD |
| 335 | A 6277106332 | CONNECTION |
| (SPACER) | ||
| 335 | A 6277106332 | CONNECTION |
| (SPACER) | ||
| 338 | A 0029900520 | SCREW |
| 338 | A 0029900520 | SCREW |
| 341 | A 6278151270 | GRIP RAIL |
| PAINT | ||
| RAL1023 | ||
| 341 | A 6338150270 | GRIP RAIL |
| EVO GRAY | ||
| 1 | ||
| 345 | A 6327110401 | PARTITION PANEL |
| 348 | A 6277110414 | BRACKET |
| 351 | A 6278156959 | TUBE |
| EVO GRAY | ||
| 3;34X2 | ||
| 351 | A 0008159651 | GRIP RAIL |
| EVO GRAY | ||
| 1;34X2 | ||
| 354 | A 6277110210 | GLASS PANE |
| 357 | A 6327110501 | PARTITION PANEL |
| 360 | A 6277117434 | TUBE PROTECTIVE CAP |
| 363 | A 6277117434 | TUBE PROTECTIVE CAP |
| 366 | A 0009800241 | END PIECE |
| 369 | A 6328150036 | METAL SECTION |
| SECTION | ||
| 372 | A 6329110097 | INSERT |
| YELLOW | ||
| 375 | A 0009902111 | SCREW |
| M8X25 | ||
| 378 | A 6329190120 | COVERING |
| RIGHT | ||
| 381 | A 0009903029 | SCREW |
| M8X16 T40 | ||
| 384 | A 6277100836 | BRACKET |
| 387 | A 6279870045 | LOCKING CAP |
| 390 | A 6277110090 | CAP |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
