Transporto priemonė: S 415 GT-HD; VIN numerio dalis: 632131

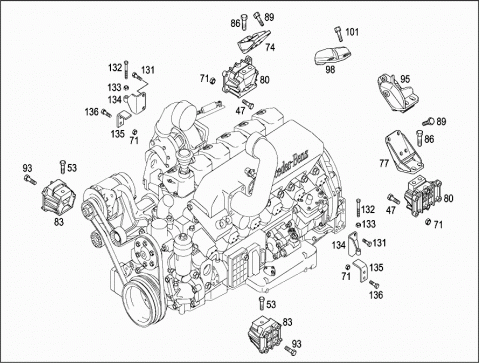

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 047 | N 910105014010 | SCREW |
| M14X1,5X45 | ||
| Repalced by: N 000000005718 | ||
| 047 | N 000000005718 | HEXAGON HEAD BOLT |
| 047 | N 000000005718 | SCREW |
| M14X1,5X45 | ||
| 053 | N 910105018022 | HEXAGON HEAD BOLT |
| M18X1.5X50 | ||
| Repalced by: N 000000005563 | ||
| 053 | N 000000005563 | SCREW |
| M18X1,5X50 | ||
| Repalced by: A 0179901201 | ||
| 053 | A 0179901201 | BOLT AND WASHER ASSY. |
| M18X1,5X50 | ||
| 053 | N 000000005563 | SCREW |
| M18X1,5X50 | ||
| 071 | N 910112014000 | NUT |
| M14X1,5 | ||
| Repalced by: N 000000005733 | ||
| 071 | N 000000005733 | HEXAGON NUT |
| M14X1,5 | ||
| 071 | N 000000005733 | HEXAGON NUT |
| M14X1,5 | ||
| 074 | A 6292401501 | ENGINE SUPPORT |
| RIGHT FRONT | ||
| 077 | A 6292401601 | ENGINE SUPPORT |
| LEFT FRONT | ||
| 080 | A 6292400217 | RUBBER MOUNTING |
| FRONT | ||
| 080 | A 6292400217 | RUBBER MOUNTING |
| FRONT | ||
| 083 | A 6292400218 | RUBBER MOUNTING |
| REAR | ||
| 083 | A 9402401318 | ENGINE MOUNTING |
| 086 | N 910105018020 | SCREW |
| M18X1,5X35 | ||
| Repalced by: N 000000005561 | ||
| 086 | N 000000005561 | SCREW |
| M18X1,5X35 | ||
| 086 | N 000000005561 | SCREW |
| M18X1,5X35 | ||
| 089 | N 000000005534 | SCREW |
| M16X1,5X35 | ||
| 093 | N 910105014007 | SCREW |
| M14X1,5X25 | ||
| Repalced by: N 000000005515 | ||
| 093 | N 000000005515 | HEXAGON HEAD BOLT |
| M14X1,5X25 | ||
| 093 | N 000000005515 | SCREW |
| M14X1,5X25 | ||
| 095 | A 6292411101 | ENGINE SUPPORT |
| FRONT | ||
| 095 | A 6292411101 | ENGINE SUPPORT |
| FRONT | ||
| 098 | A 6292411001 | ENGINE SUPPORT |
| FRONT | ||
| 098 | A 6292411001 | ENGINE SUPPORT |
| FRONT | ||
| 101 | N 910105018021 | HEXAGON HEAD BOLT |
| M18X1.5X40 | ||
| Repalced by: N 000000005562 | ||
| 101 | N 000000005562 | HEXAGON HEAD BOLT |
| M18X1,5X40 | ||
| 101 | N 000000005562 | SCREW |
| M18X1,5X40 | ||
| 131 | N 308676016021 | SCREW |
| M16X1,5X35 | ||
| 132 | N 304017016031 | SCREW |
| M16X90MM | ||
| 133 | N 304032016003 | NUT |
| M16 | ||
| 134 | A 6292400610 | ENGINE STAY |
| 134 | A 6292410209 | ENGINE STAY |
| 135 | A 6292410121 | BRACKET |
| 136 | N 910105014013 | SCREW |
| Repalced by: N 000000005519 | ||
| 136 | N 000000005519 | SCREW |
| Repalced by: N 910105014013 | ||
| 136 | N 910105014013 | SCREW |
