Transporto priemonė: S 415 GT-HD; VIN numerio dalis: 632131

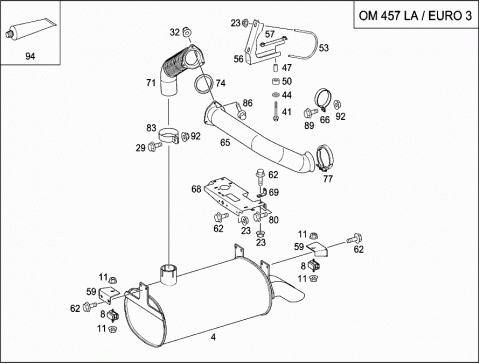

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 6294910700 | MUFFLER |
| 008 | A 0004910285 | RUBBER MOUNTING |
| 011 | N 910112010001 | NUT |
| M10 | ||
| 011 | N 913023010002 | NUT |
| M10 | ||
| 011 | N 913023010002 | NUT |
| M10 | ||
| 023 | N 913023008003 | NUT |
| M8 | ||
| 023 | N 913023008003 | NUT |
| M8 | ||
| Repalced by: N 910112008000 | ||
| 023 | N 910112008000 | NUT |
| M8 | ||
| 029 | N 910105012020 | HEXAGON HEAD BOLT |
| M12X1,5X35MM | ||
| Repalced by: N 910105010007 | ||
| 029 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35MM | ||
| 032 | N 910113012002 | HEXAGON NUT |
| M12X1,5 | ||
| Repalced by: N 910112012001 | ||
| 032 | N 910112012001 | HEXAGON NUT |
| M12X1,5 | ||
| 041 | N 910105008017 | HEXAGON HEAD BOLT |
| M8X45MM | ||
| 044 | N 000000003250 | WASHER |
| 8MM | ||
| 047 | A 0004920050 | PILOT BUSHING |
| 050 | A 0004921082 | VIBRATION DAMPER |
| 053 | A 0004920127 | MOUNTING BRACKET |
| ATTACHMENT BRACKET AND EXHAUST PIPE | ||
| 056 | A 0004920641 | BRACKET |
| EXHAUST PIPE | ||
| 057 | A 6344900044 | FASTENING PLATE |
| 059 | A 6294910041 | BRACKET |
| 062 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20MM | ||
| 065 | A 6344900210 | EXHAUST PIPE |
| 065 | A 6324901110 | EXHAUST PIPE |
| 066 | A 6294920040 | CLAMP |
| D=120/445LG | ||
| 068 | A 6294910015 | CONSOLE |
| 069 | A 6344920541 | BRACKET |
| EXHAUST PIPE | ||
| 071 | A 6294901210 | EXHAUST PIPE |
| 074 | A 6294920080 | FLANGE GASKET |
| D=140/116X18 | ||
| 077 | A 9429970290 | CLAMP |
| D=148MM | ||
| Repalced by: A 0009958602 | ||
| 077 | A 0009958602 | CLAMP |
| D=148MM | ||
| 080 | N 910105016029 | HEXAGON HEAD BOLT |
| M16X25MM | ||
| Repalced by: N 000000005555 | ||
| 080 | N 000000005555 | HEXAGON HEAD BOLT |
| M16X25MM | ||
| 083 | A 6294910040 | CLAMP |
| D=124 | ||
| Repalced by: A 0004921240 | ||
| 083 | A 0004921240 | CLAMP |
| D=124,5MM | ||
| Repalced by: A 6554920140 | ||
| 083 | A 6554920140 | CLAMP |
| 086 | N 308676012011 | HEXAGON HEAD BOLT |
| M12X1,5X50MM | ||
| Repalced by: N 910105012021 | ||
| 086 | N 910105012021 | HEXAGON HEAD BOLT |
| M12X1,5X50MM | ||
| 089 | N 910105010011 | HEXAGON HEAD BOLT |
| M10X40MM | ||
| 092 | N 910112010001 | NUT |
| M10 | ||
| 094 | A 0079893571 | ADHESIVE |
| THREAD LOCK | ||
| 50G | ||
| 095 | A 0014902914 | CATALYST |
| 095 | A 0024902314 | CATALYST |
| FOR NOX SENSOR | ||
| 098 | A 0061530428 | SENDER UNIT |
| TEMPERATURE SENSOR,EXHAUST | ||
| 101 | A 0005460522 | CLAMPING RING |
| 103 | A 6324900410 | EXHAUST PIPE |
| 106 | A 6324920004 | REAR EXHAUST PIPE |
| Repalced by: A 6324900810 | ||
| 106 | A 6324900810 | EXHAUST PIPE |
| 109 | A 6324900210 | EXHAUST PIPE |
| TAIL PIPE | ||
| 109 | A 6324900310 | EXHAUST PIPE |
| TAIL PIPE | ||
| 112 | A 6324900017 | ANGLE |
| 112 | A 6324900017 | ANGLE |
| Repalced by: A 6324900417 | ||
| 112 | A 6324900417 | ANGLE |
| 115 | A 6324900117 | ANGLE |
| 115 | A 6324900117 | ANGLE |
| Repalced by: A 6324900517 | ||
| 115 | A 6324900517 | ANGLE |
| 118 | A 6324910315 | CONSOLE |
| 121 | A 6324910417 | ANGLE |
| 123 | A 6324910517 | ANGLE |
| 126 | A 6324910027 | CLAMP |
| 129 | A 9429970290 | CLAMP |
| 132 | A 6344920740 | CLAMP |
| EXHAUST SYSTEM | ||
| D=143,5MM | ||
| 135 | A 0009980246 | INSULATION |
| 135 | A 0009980246 | INSULATION |
| Repalced by: A 0009980846 | ||
| 135 | A 0009980846 | DASHPOT |
| 138 | A 0005040153 | SPACER TUBE |
| 141 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20MM | ||
| Repalced by: N 910105008041 | ||
| 141 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16MM | ||
| 141 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16MM | ||
| 144 | N 910105010040 | HEXAGON HEAD BOLT |
| M10X16MM | ||
| 147 | N 910105008010 | HEXAGON HEAD BOLT |
| M8X40MM | ||
| 150 | N 910105010010 | HEXAGON HEAD BOLT |
| M10X70 | ||
| Repalced by: N 910105010016 | ||
| 150 | N 910105010016 | HEXAGON HEAD BOLT |
| M10X80MM | ||
| 150 | N 910105010016 | HEXAGON HEAD BOLT |
| M10X80MM | ||
| 153 | N 910105010001 | HEXAGON HEAD BOLT |
| M10X30 | ||
| 156 | N 910112008000 | NUT |
| M8 | ||
| 159 | N 910112010000 | HEXAGON NUT |
| M10 | ||
| 162 | N 913023008003 | NUT |
| M8 | ||
| 165 | A 0004920780 | FLANGE GASKET |
| D=129MM | ||
| 168 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35MM | ||
| 168 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35MM | ||
| Repalced by: A 0189901101 | ||
| 168 | A 0189901101 | SCREW |
| M10X35MM | ||
| 171 | N 913023010002 | NUT |
| M10 | ||
| 171 | N 913023010002 | NUT |
| M10 | ||
| Repalced by: A 0009902852 | ||
| 171 | A 0009902852 | NUT FOR TAPPING SCREW |
| M10 | ||
| 180 | A 6294910030 | PROTECTIVE PLATE |
| FOR NOX SENSOR | ||
| 183 | A 6299910040 | SPACER SLEEVE |
| 186 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20MM | ||
| 189 | N 910112006001 | HEXAGON NUT |
| M6 | ||
