Transporto priemonė: S 415 GT-HD; VIN numerio dalis: 632131

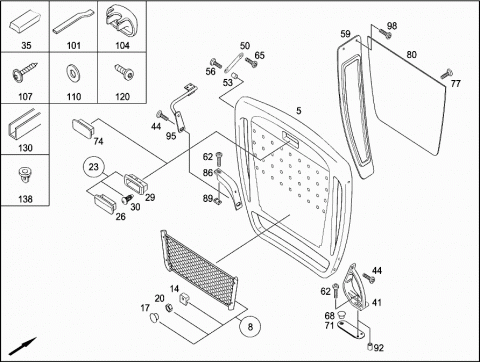

Grupė: 71 PARTITION PANEL - 180 GRIP RAILS AND PARTITION PANELS
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6297110401 | PARTITION PANEL |
| 005 | A 6297110401 | PARTITION PANEL |
| 005 | A 6327110301 | PARTITION PANEL |
| 005 | A 6327110301 | PARTITION PANEL |
| 008 | A 6328100149 | LUGGAGE NET |
| TOTAL RANGE OF DELIVERY | ||
| 008 | A 6328100149 | LUGGAGE NET |
| TOTAL RANGE OF DELIVERY | ||
| 008 | A 6298100549 | LUGGAGE NET |
| TOTAL RANGE OF DELIVERY | ||
| Repalced by: A 6328100149 | ||
| 008 | A 6328100149 | LUGGAGE NET |
| TOTAL RANGE OF DELIVERY | ||
| 008 | A 6328100149 | LUGGAGE NET |
| TOTAL RANGE OF DELIVERY | ||
| 014 | A 6298110307 | COVERING |
| 014 | A 6298110307 | COVERING |
| 014 | A 6298110307 | COVERING |
| 017 | A 6299870145 | LOCKING CAP |
| 017 | A 6299870145 | LOCKING CAP |
| 017 | A 6299870145 | LOCKING CAP |
| 020 | N 304032003001 | HEXAGON NUT |
| 020 | N 304032003001 | HEXAGON NUT |
| 020 | N 304032003001 | HEXAGON NUT |
| 023 | A 6298101130 | ASHTRAY |
| TOTAL RANGE OF DELIVERY | ||
| 023 | A 6298101130 | ASHTRAY |
| TOTAL RANGE OF DELIVERY | ||
| 026 | A 6298130158 | COVER |
| 026 | A 6298130158 | COVER |
| 029 | A 6298130258 | HOUSING |
| 029 | A 6298130258 | HOUSING |
| 030 | A 6298130028 | CLIP |
| ASHTRAY | ||
| 030 | A 6298130028 | CLIP |
| ASHTRAY | ||
| 030 | A 6298130028 | CLIP |
| ASHTRAY | ||
| 035 | A 6299870075 | INLAID STRIP |
| AT PARTITION PANEL | ||
| 035 | A 6299870075 | INLAID STRIP |
| AT PARTITION PANEL | ||
| 035 | A 6299870175 | GARNISH STRIP |
| AT PARTITION PANEL | ||
| 035 | A 6299870175 | GARNISH STRIP |
| AT PARTITION PANEL | ||
| 035 | A 6299870175 | GARNISH STRIP |
| AT PARTITION PANEL | ||
| 041 | A 6297110045 | STAY |
| 041 | A 6297110045 | STAY |
| 041 | A 6297110045 | STAY |
| 044 | A 0009901129 | SCREW |
| M8X22 T40 | ||
| 044 | A 0009901129 | SCREW |
| M8X22 T40 | ||
| 044 | A 0009901129 | SCREW |
| M8X22 T40 | ||
| 050 | A 6297110612 | ANGLE |
| 050 | A 6297110612 | ANGLE |
| 050 | A 6297110612 | ANGLE |
| 053 | A 0009912740 | SPACER BUSH |
| LENGTH: | ||
| 11 | ||
| 053 | A 0009912740 | SPACER BUSH |
| LENGTH: | ||
| 11 | ||
| 053 | A 0009912740 | SPACER BUSH |
| LENGTH: | ||
| 11 | ||
| 056 | A 0009901629 | SCREW, SPECIAL SHAPE |
| M8X28 T40 | ||
| 056 | A 0009901629 | SCREW, SPECIAL SHAPE |
| M8X28 T40 | ||
| 056 | A 0009901629 | SCREW, SPECIAL SHAPE |
| M8X28 T40 | ||
| 059 | A 6277110023 | PANELLING |
| 062 | A 0009901729 | SCREW |
| M8X40 T40 | ||
| 062 | A 0009901729 | SCREW |
| M8X40 T40 | ||
| 062 | A 0009901729 | SCREW |
| M8X40 T40 | ||
| 065 | A 0009901429 | SCREW |
| M6X35 T30 | ||
| 065 | A 0009901429 | SCREW |
| M6X35 T30 | ||
| 065 | A 0009901429 | SCREW |
| M6X35 T30 | ||
| 068 | A 6297110290 | CAP |
| DIA., | ||
| 55 | ||
| 068 | A 6297110290 | CAP |
| DIA., | ||
| 55 | ||
| 068 | A 6297110090 | CAP |
| DIA., | ||
| 18 | ||
| 071 | A 6297100043 | PLATE |
| 071 | A 6297100043 | PLATE |
| 074 | A 6297110069 | ORNAMENTAL COVER |
| ASHTRAY | ||
| 077 | Q 0011032202 | SHEET METAL SCREW |
| 3,9X16 | ||
| Repalced by: N 000000000522 | ||
| 077 | N 000000000522 | SHEET METAL SCREW |
| 4.2X16 | ||
| 080 | A 6297100018 | PANELLING |
| 086 | A 6297110145 | STAY |
| 086 | A 6297110145 | STAY |
| 089 | A 6297110012 | ANGLE |
| 089 | A 6297110012 | ANGLE |
| 092 | A 0003280053 | SPACER TUBE |
| LENGTH: | ||
| 18 | ||
| 092 | A 0003280053 | SPACER TUBE |
| LENGTH: | ||
| 18 | ||
| 092 | A 0003280053 | SPACER TUBE |
| LENGTH: | ||
| 18 | ||
| 095 | A 6277100031 | CONSOLE |
| RIGHT | ||
| 098 | A 0039902312 | SCREW |
| M8X35 T40 | ||
| 098 | N 000000000530 | TAPPING SCREW |
| 4.8X22 | ||
| 101 | A 0007110153 | TUBE |
| 104 | A 6277110334 | CONNECTION |
| 107 | N 000000000530 | TAPPING SCREW |
| 4.8X22 | ||
| 110 | A 6277110013 | WASHER |
| 120 | N 000000000448 | TAPPING SCREW |
| 130 | A 6297120027 | RAIL |
| 138 | A 0019908358 | NUT |
| M8 | ||
