Transporto priemonė: S 415 GT-HD; VIN numerio dalis: 632131

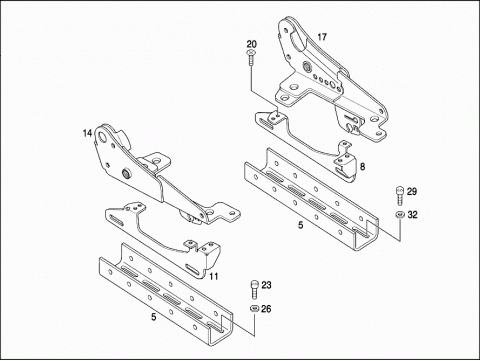

Grupė: 92 SEATS - 040 REAR SEAT BENCH

#	Kodas	Pavadinimas
005	A 6299210111	PLATE
008	A 6299201262	CONSOLE
		LEFT
011	A 6299201362	CONSOLE
		RIGHT
014	A 6299500474	TAKE-UP DEVICE
		LEFT,FOR ADJUSTMENT
017	A 6299500574	TAKE-UP DEVICE
		RIGHT,FOR ADJUSTMENT
020	A 0019908120	SCREW W HEXAGON SOCKET
		M 8 X 16
023	A 0039903712	SCREW
		M 8 X 16 T40
026	N 000000003250	WASHER
029	A 0009902129	SCREW
		M10X80 T50
032	N 000125010538	WASHER
	A 6299200226	FRAME PART
		INSTALLATION MATERIAL, REAR SEAT FRAME
206	A 6329500261	CUSHION
		SEAT CUSHION(INTEGRATED LEG PADDING),REAR,RIGHT WALL-SIDE,SPACE FOR HANDICAPPED PERSON
209	A 6299590214	BRACKET
212	N 000000006408	SCREW
		4,2X16MM
370	A 6329700064	STAY
		DIA.,
		21MM
371	A 0009590120	SUPPORT
		BEARING BRACKET
		M 8X1
373	A 6299590117	BUSHING
		REAR
376	A 0009911725	WASHER
379	A 6299590017	BUSHING
		FRONT
380	A 3029590117	WASHER
		10,2X22X5MM
381	A 0009590221	STOP
		5MM
381	A 0009590321	STOP
		13,6MM
381	A 0009590421	STOP
		22,5MM
381	A 0009590521	STOP
		32,5MM
383	A 6299504754	LEVER
		REAR,SPACE FOR HANDICAPPED PERSON,LEFT
383	A 6299504854	LEVER
		REAR,SPACE FOR HANDICAPPED PERSON,RIGHT
384	N 000125008443	WASHER
		8,4MM
385	A 0009911725	WASHER
387	A 6299501154	LEVER
		LEFT,IN THE REAR
387	A 6299501254	LEVER
		RIGHT,IN THE REAR
388	A 0009985540	STOP BUFFER
		BACKREST
391	A 6299730320	SUPPORT
		AT REAR ON GAS-OPERATED SPRING
392	A 6299590028	CAP
394	A 0029906522	SCREW
396	A 6299590264	SPRING
		LEFT
396	A 6299590364	SPRING
		RIGHT
