Transporto priemonė: S 415 HD; VIN numerio dalis: 629411

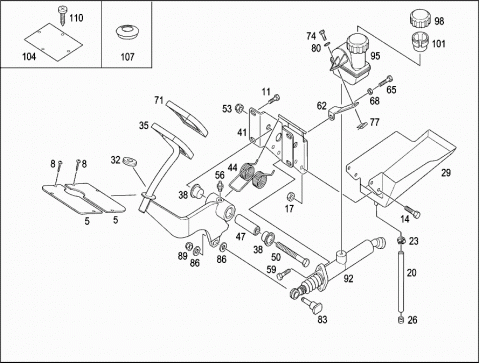

Grupė: 29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6292910025 | COVER PLATE |
| 53X140MM | ||
| 005 | A 6292910025 | COVER PLATE |
| 53X140MM | ||
| 008 | N 007981004240 | TAPPING SCREW |
| 4,2X9,5MM | ||
| 008 | N 007981004240 | TAPPING SCREW |
| 4,2X9,5MM | ||
| 011 | N 910143008000 | HEXALOBULAR BOLT |
| AT CONSOLE | ||
| M8X16MM | ||
| 011 | N 910143008000 | HEXALOBULAR BOLT |
| AT CONSOLE | ||
| M8X16MM | ||
| 014 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12MM | ||
| 014 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12MM | ||
| 017 | N 913023006002 | NUT |
| M6 | ||
| 017 | N 913023006002 | NUT |
| M6 | ||
| 020 | A 0249975382 | HOSE |
| 020 | A 0249975382 | HOSE |
| 023 | A 0079970290 | HOSE CLAMP |
| 9.4-9.7MM | ||
| 023 | A 0079970290 | HOSE CLAMP |
| 9.4-9.7MM | ||
| 026 | A 0099979981 | GROMMET |
| 026 | A 0099979981 | GROMMET |
| 029 | A 6292900184 | COLLECTING PAN |
| 029 | A 6292900184 | COLLECTING PAN |
| 032 | A 6292910086 | STOP |
| CLUTCH PEDAL STOP | ||
| 032 | A 6292910086 | STOP |
| CLUTCH PEDAL STOP | ||
| 035 | A 6292900016 | PEDAL |
| CLUTCH PEDAL ASSEMBLY | ||
| 035 | A 6292900016 | PEDAL |
| CLUTCH PEDAL ASSEMBLY | ||
| 038 | A 6292910050 | BUSHING |
| CLUTCH PEDAL | ||
| 23X20X16.5 MM | ||
| 038 | A 6292910050 | BUSHING |
| CLUTCH PEDAL | ||
| 23X20X16.5 MM | ||
| 041 | A 6292900033 | CONSOLE |
| CLUTCH PEDAL | ||
| 142X86 MM | ||
| 041 | A 6292900033 | CONSOLE |
| CLUTCH PEDAL | ||
| 142X86 MM | ||
| 044 | A 6292910092 | SPRING |
| TORSION SPRING ON BRACKET | ||
| 044 | A 6292910092 | SPRING |
| TORSION SPRING ON BRACKET | ||
| 047 | A 6272910022 | GUIDE |
| CLUTCH PEDAL | ||
| 22X5X65.5 MM | ||
| 047 | A 6272910022 | GUIDE |
| CLUTCH PEDAL | ||
| 22X5X65.5 MM | ||
| 050 | N 910105010044 | HEXAGON HEAD BOLT |
| PEDAL BEARING | ||
| M10X90MM | ||
| 050 | N 910105010044 | HEXAGON HEAD BOLT |
| PEDAL BEARING | ||
| M10X90MM | ||
| 053 | N 913023010002 | NUT |
| M10 | ||
| 053 | N 913023010002 | NUT |
| M10 | ||
| 056 | N 071412008200 | LUBRICATING NIPPLE |
| CLUTCH PEDAL | ||
| M8X1 | ||
| 056 | N 071412008200 | LUBRICATING NIPPLE |
| CLUTCH PEDAL | ||
| M8X1 | ||
| 059 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12MM | ||
| 059 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12MM | ||
| 062 | A 6292910140 | BRACKET |
| 61.5X68.5 MM | ||
| 062 | A 6292910140 | BRACKET |
| 61.5X68.5 MM | ||
| 065 | N 000933008079 | SCREW |
| M8X35MM | ||
| 065 | N 000933008079 | SCREW |
| M8X35MM | ||
| 068 | N 000934008008 | NUT |
| M8 | ||
| 068 | N 000934008008 | NUT |
| M8 | ||
| 071 | A 6292910082 | PAD |
| CLUTCH PEDAL | ||
| 106X70 MM | ||
| 071 | A 6292910082 | PAD |
| CLUTCH PEDAL | ||
| 106X70 MM | ||
| 074 | N 000000001444 | HEXAGON HEAD BOLT |
| M6X20MM | ||
| 074 | N 000000001444 | HEXAGON HEAD BOLT |
| M6X20MM | ||
| 077 | A 0029942145 | NUT |
| 077 | A 0029942145 | NUT |
| 080 | N 000000003260 | WASHER |
| 080 | N 000000003260 | WASHER |
| 083 | A 9412910474 | PIN |
| PUSH ROD | ||
| 083 | A 9412910474 | PIN |
| PUSH ROD | ||
| 086 | A 6292910029 | WASHER |
| CLUTCH PEDAL PUSH ROD | ||
| 086 | A 6292910029 | WASHER |
| CLUTCH PEDAL PUSH ROD | ||
| 089 | N 913023008003 | NUT |
| CLUTCH PEDAL | ||
| M8 | ||
| 089 | N 913023008003 | NUT |
| CLUTCH PEDAL | ||
| M8 | ||
| 092 | A 0012959506 | MASTER CYLINDER |
| CLUTCH | ||
| 092 | A 0012959506 | MASTER CYLINDER |
| CLUTCH | ||
| 095 | A 6272900015 | RESERVOIR |
| 095 | A 6272900015 | RESERVOIR |
| 098 | A 0004300014 | COVER |
| 098 | A 0004300014 | COVER |
| 101 | A 0004313734 | STRAINER |
| 101 | A 0004313734 | STRAINER |
| 104 | A 6272910049 | PLATE |
| ASTRONIC | ||
| 107 | A 0019983250 | PLUG |
| ASTRONIC | ||
| Repalced by: A 0019986350 | ||
| 107 | A 0019986350 | PLUG |
| ASTRONIC | ||
| 110 | N 007981004240 | TAPPING SCREW |
| 4,2X9,5MM | ||
| Repalced by: N 000000000452 | ||
| 110 | N 000000000452 | TAPPING SCREW |
| 4.2X9.5 | ||
