Transporto priemonė: S 415 H; VIN numerio dalis: 633121
Grupė: 57 CENTRAL LUBRICATION
| # | Kodas | Pavadinimas |
|---|---|---|

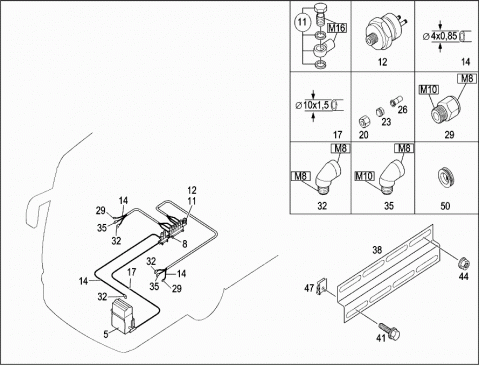

| 005 | A 0015710101 | PUMP |
| 008 | A 0045730120 | DISTRIBUTOR |
| FRONT | ||
| 008 | A 6295730120 | DISTRIBUTOR |
| FRONT | ||
| 011 | A 0029906771 | ELBOW FITTING |
| Repalced by: A 0049903971 | ||
| 011 | A 0049903971 | ELBOW FITTING |
| 012 | A 0065452314 | SWITCH |
| Repalced by: A 0035450614 | ||
| 012 | A 0035450614 | SWITCH |
| 014 | A 0179977082 | HOSE |
| 4X0,85 | ||
| 017 | A 0179977182 | HOSE |
| 10X1,5 | ||
| 020 | A 0029905968 | FITTING |
| 023 | A 0019903667 | SEAL CONE |
| 026 | A 0005730553 | PIN BUSHING |
| Repalced by: A 0005730753 | ||
| 026 | A 0005730753 | PIN BUSHING |
| 029 | A 0005730532 | CONNECTOR |
| Repalced by: A 0005731155 | ||
| 029 | A 0005731155 | CONNECTOR |
| 032 | A 0005731230 | ELBOW |
| 035 | A 0005731330 | ELBOW |
| 038 | A 6299850649 | "Z" SECTION |
| FRONT DISTRIBUTOR | ||
| L=225 MM | ||
| 038 | A 6279850349 | "Z" SECTION |
| FRONT DISTRIBUTOR | ||
| L=170 MM | ||
| 041 | N 304017006016 | HEXAGON HEAD BOLT |
| M6X16 | ||
| 044 | N 000934006006 | NUT |
| M6 | ||
| 047 | A 0049941645 | SPRING NUT |
| M6 | ||
| 047 | A 0049941945 | NUT |
| M8 | ||
| 050 | A 0089978381 | GROMMET |
| FOR PASSAGE OF LINE | ||

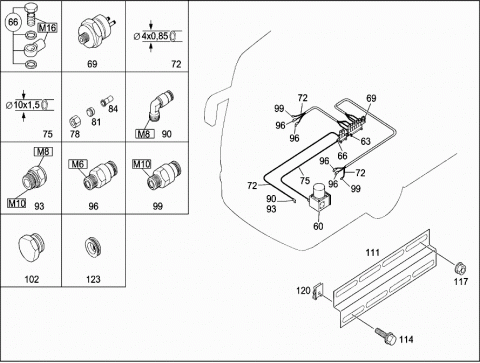

| 060 | A 0015710101 | PUMP |
| 063 | A 0005701510 | LUBRICANT DISPENSER |
| FRONT | ||
| 066 | A 0049903971 | ELBOW FITTING |
| 069 | A 0035450614 | SWITCH |
| 072 | A 0179977082 | HOSE |
| 4X0,85 | ||
| 075 | A 0179977182 | HOSE |
| 10X1,5 | ||
| 078 | A 0029905968 | FITTING |
| 081 | A 0019903667 | SEAL CONE |
| 084 | A 0005730753 | PIN BUSHING |
| 090 | A 0019974270 | CONNECTION FITTING |
| M8X1-KEG/SW9 | ||
| 093 | A 0019973970 | CONNECTION FITTING |
| M8X1-KEG/M8X1 | ||
| Repalced by: A 0005731055 | ||
| 093 | A 0005731055 | CONNECTOR |
| M8X1-KEG/M8X1 | ||
| 096 | A 0019974170 | CONNECTION FITTING |
| M6X1-KEG/SW10 | ||
| 099 | A 0019974370 | CONNECTION FITTING |
| M10X1-KEG/SW10 | ||
| 102 | A 0005710756 | SCREW PLUG |
| M16X1.5 | ||
| 111 | A 6279850349 | "Z" SECTION |
| FRONT DISTRIBUTOR | ||
| L=170 MM | ||
| 114 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 117 | N 910112008000 | NUT |
| M8 | ||
| 120 | A 0049941645 | SPRING NUT |
| M6 | ||
| 120 | A 0049941945 | NUT |
| M8 | ||
| 123 | A 0089978381 | GROMMET |
| FOR PASSAGE OF LINE | ||
