Transporto priemonė: S 415 H; VIN numerio dalis: 633121

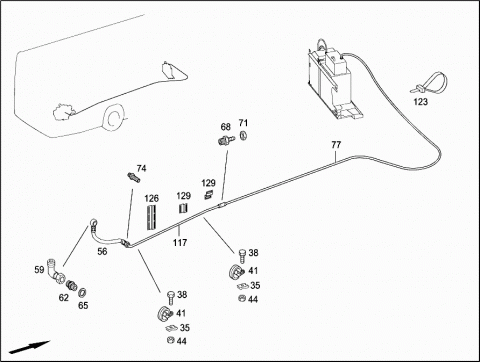

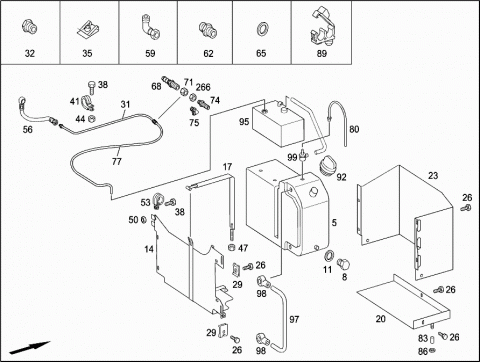

Grupė: 48 OIL TANK - 020 ENGINE OIL AUTOMATIC REPLENISHMENT
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6284801401 | OIL TANK |
| ENGINE OIL AUTOMATIC REPLENISHMENT | ||
| 005 | A 6284801401 | OIL TANK |
| ENGINE OIL AUTOMATIC REPLENISHMENT | ||
| 008 | N 007604018109 | SCREW PLUG, FILLING |
| AT OIL TANK | ||
| M18X1.5 | ||
| 008 | N 007604018109 | SCREW PLUG, FILLING |
| AT OIL TANK | ||
| M18X1.5 | ||
| Repalced by: N 000000005441 | ||
| 008 | N 000000005441 | SCREW PLUG, FILLING |
| AT OIL TANK | ||
| M18X1.5 | ||
| Repalced by: N 007604018109 | ||
| 008 | N 007604018109 | SCREW PLUG, FILLING |
| AT OIL TANK | ||
| M18X1.5 | ||
| 008 | N 007604018109 | SCREW PLUG, FILLING |
| AT OIL TANK | ||
| M18X1.5 | ||
| 011 | N 007603018104 | SEALING RING |
| 18X24-CU | ||
| 011 | N 007603018104 | SEALING RING |
| 18X24-CU | ||
| 014 | A 6334800139 | SUPPORT |
| OIL TANK | ||
| 017 | A 6284800021 | STRAP |
| OIL TANK | ||
| 017 | A 6284800321 | STRAP |
| OIL TANK | ||
| 017 | A 6284800321 | STRAP |
| OIL TANK | ||
| 017 | A 6284800321 | STRAP |
| 020 | A 6334800439 | SUPPORT |
| 023 | A 6334810038 | REINFORCEMENT |
| 026 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16 | ||
| 026 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16 | ||
| 029 | A 0049941945 | NUT |
| M8 | ||
| 029 | A 0049941945 | NUT |
| M8 | ||
| 031 | A 6334800115 | OIL LINE |
| FROM PRIMER CAPSULE TO ENGINE | ||
| 032 | N 915008008407 | FITTING |
| D=10MM | ||
| 035 | A 0049941645 | SPRING NUT |
| M6 | ||
| 035 | A 0049941645 | SPRING NUT |
| M6 | ||
| 038 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20 | ||
| 038 | N 910105006006 | HEXAGON HEAD BOLT |
| M6X20 | ||
| 041 | N 916016010201 | CLAMP |
| 10/15 | ||
| Repalced by: N 000000000320 | ||
| 041 | N 000000000320 | CLAMP |
| 10/15 | ||
| Repalced by: N 000000007511 | ||
| 041 | N 000000007511 | CLAMP |
| 10/15 | ||
| 041 | N 000000000320 | CLAMP |
| 10/15 | ||
| Repalced by: N 000000007511 | ||
| 041 | N 000000007511 | CLAMP |
| 10/15 | ||
| 044 | N 910112008000 | NUT |
| M8 | ||
| 044 | N 910112008000 | NUT |
| M8 | ||
| 047 | N 913023010002 | NUT |
| M10 | ||
| 047 | N 913023010002 | NUT |
| M10 | ||
| 050 | N 910112006001 | HEXAGON NUT |
| M6 | ||
| 053 | N 916016012200 | CLAMP |
| 12/15 | ||
| Repalced by: N 000000000321 | ||
| 053 | N 000000000321 | CLAMP |
| 12/15 | ||
| Repalced by: N 000000007512 | ||
| 053 | N 000000007512 | CLAMP |
| 12/15 | ||
| 056 | A 0004761175 | FUEL HOSE |
| FROM PRIMER CAPSULE TO ENGINE | ||
| 056 | A 0004761175 | FUEL HOSE |
| FROM PRIMER CAPSULE TO ENGINE | ||
| 059 | A 0009976571 | FITTING |
| ADJUSTABLE 60 DEGREES | ||
| 059 | A 0009976571 | FITTING |
| ADJUSTABLE 60 DEGREES | ||
| 062 | N 915027000006 | FITTING |
| M18X1.5 | ||
| Repalced by: N 000000006152 | ||
| 062 | N 000000006152 | FITTING |
| M18X1.5 | ||
| 062 | N 000000007123 | FITTING |
| M18X1.5 | ||
| Repalced by: N 000000006152 | ||
| 062 | N 000000006152 | FITTING |
| M18X1.5 | ||
| 065 | N 007603018101 | SEALING RING |
| 18X22-CU | ||
| 065 | N 007603018101 | SEALING RING |
| 18X22-CU | ||
| 068 | A 0019974972 | FITTING |
| 068 | A 0019974972 | FITTING |
| 071 | N 915017010200 | NUT |
| BL10 | ||
| Repalced by: N 000000006238 | ||
| 071 | N 000000006238 | NUT |
| BL10 | ||
| 071 | N 000000006238 | NUT |
| BL10 | ||
| 074 | A 0009974170 | BULKHEAD FITTING |
| 074 | A 0009974170 | BULKHEAD FITTING |
| 075 | A 0008320059 | FITTING |
| 077 | A 0019970652 | PLASTIC PIPE |
| FROM PRIMER CAPSULE TO ENGINE | ||
| 077 | A 0019970652 | PLASTIC PIPE |
| FROM PRIMER CAPSULE TO ENGINE | ||
| 080 | A 0009979052 | HOSE |
| 8X5MM | ||
| 080 | A 0009979052 | HOSE |
| 8X5MM | ||
| 083 | A 6334810037 | OIL LINE |
| 7,3X100MM | ||
| 086 | A 0009876441 | RUBBER RING |
| WITH ELONGATED HOLE | ||
| 089 | A 1201580440 | BRACKET |
| 089 | A 1201580440 | BRACKET |
| 092 | A 0000180702 | FILLER CAP |
| LESS BREATHING | ||
| 092 | A 0000180702 | FILLER CAP |
| LESS BREATHING | ||
| 093 | A 0000180180 | GASKET |
| 093 | A 0000180180 | GASKET |
| 095 | A 6285400745 | CONTROL UNIT |
| 095 | A 6285400745 | CONTROL UNIT |
| 097 | A 0109976482 | PLASTIC PIPE |
| 10X1MM | ||
| 097 | A 0109976482 | PLASTIC PIPE |
| 10X1MM | ||
| 098 | A 6284800025 | ELBOW FITTING |
| 098 | A 6284800025 | ELBOW FITTING |
| 099 | A 6284800125 | ELBOW FITTING |
| 099 | A 6284800125 | ELBOW FITTING |
| 102 | A 0109976982 | PLASTIC PIPE |
| 8X1MM | ||
| 102 | A 0109976982 | PLASTIC PIPE |
| 8X1MM | ||
| 105 | A 6284811740 | BRACKET |
| 105 | A 6284811740 | BRACKET |
| 108 | N 000912004016 | CAP BOLT |
| M4X8 | ||
| 108 | N 000912004016 | CAP BOLT |
| M4X8 | ||
| 111 | A 6334800339 | SUPPORT |
| 111 | A 6334800339 | SUPPORT |
| 114 | A 6334810204 | COLLECTING PAN |
| 114 | A 6334810204 | COLLECTING PAN |
| 117 | A 6334800015 | OIL LINE |
| 117 | A 6334800015 | OIL LINE |
| 120 | N 915008008407 | FITTING |
| 10MM | ||
| 123 | A 0029979890 | STRAP |
| 123 | A 0029975890 | CABLE TIE |
| 126 | A 6279850349 | "Z" SECTION |
| 170MM | ||
| 129 | A 6276165218 | "Z" SECTION |
| 60MM | ||
| 266 | A 0049906051 | NUT |
| M16X1.5 RAUFOSS | ||
