Transporto priemonė: S 415 NF 3-TUERER; VIN numerio dalis: 628788

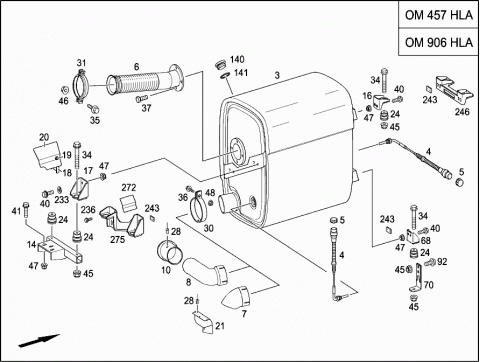

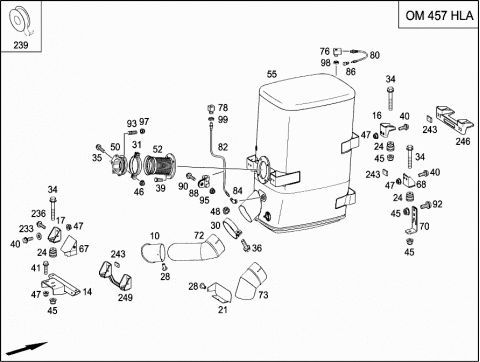

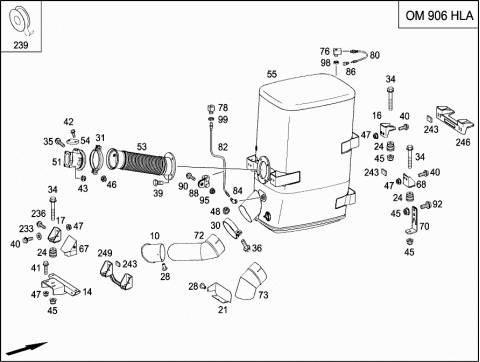

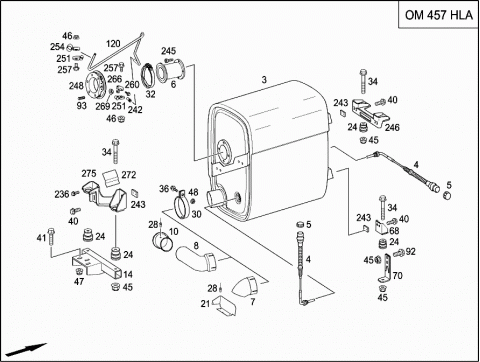

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 0014904814 | CATALYST |
| 003 | A 0004907714 | CATALYST |
| 003 | A 0014903914 | PARTICULATE CONVERTER |
| 004 | A 0061530328 | SENDER UNIT |
| TEMPERATURE SENSOR,EXHAUST | ||
| 005 | A 0005460522 | CLAMPING RING |
| 006 | A 6284901919 | EXHAUST PIPE |
| OM 906 | ||
| Repalced by: A 6284903319 | ||
| 006 | A 6284903319 | EXHAUST PIPE |
| OM 906 | ||
| 006 | A 6284902719 | EXHAUST PIPE |
| OM 457 | ||
| 006 | A 6284902719 | EXHAUST PIPE |
| 006 | A 6284904119 | EXHAUST PIPE |
| 007 | A 6284901021 | EXHAUST PIPE |
| 008 | A 6284923104 | REAR EXHAUST PIPE |
| 010 | A 3574920814 | END PIECE |
| 014 | A 6284903140 | BRACKET |
| 014 | A 6284903140 | BRACKET |
| 016 | A 6284903240 | BRACKET |
| Repalced by: A 6284905140 | ||
| 016 | A 6284905140 | BRACKET |
| 016 | A 6284903240 | BRACKET |
| Repalced by: A 6284905140 | ||
| 016 | A 6284905140 | BRACKET |
| 016 | A 6284903240 | BRACKET |
| Repalced by: A 6284905140 | ||
| 016 | A 6284905140 | BRACKET |
| 017 | A 6284903440 | BRACKET |
| Repalced by: A 6284905340 | ||
| 017 | A 6284905340 | BRACKET |
| 017 | A 6284903440 | BRACKET |
| Repalced by: A 6284905340 | ||
| 017 | A 6284905340 | BRACKET |
| 017 | A 6284903440 | BRACKET |
| Repalced by: A 6284905340 | ||
| 017 | A 6284905340 | BRACKET |
| 018 | A 6284903340 | BRACKET |
| Repalced by: A 6284905240 | ||
| 018 | A 6284905240 | BRACKET |
| 018 | A 6284903340 | BRACKET |
| Repalced by: A 6284905240 | ||
| 018 | A 6284905240 | BRACKET |
| 019 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12 | ||
| 019 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12 | ||
| 020 | A 6284900130 | PROTECTIVE PLATE |
| 020 | A 6284900130 | PROTECTIVE PLATE |
| 021 | A 6284920630 | PROTECTIVE PLATE |
| 024 | A 0009980246 | INSULATION |
| Repalced by: A 0009980846 | ||
| 024 | A 0009980846 | DASHPOT |
| 024 | A 0009980246 | INSULATION |
| Repalced by: A 0009980846 | ||
| 024 | A 0009980846 | DASHPOT |
| 024 | A 0009980246 | INSULATION |
| Repalced by: A 0009980846 | ||
| 024 | A 0009980846 | DASHPOT |
| 028 | N 007337004001 | BLIND RIVET |
| 028 | N 007337004001 | BLIND RIVET |
| 030 | A 6554920140 | CLAMP |
| D=124,5MM | ||
| 030 | A 0004921240 | CLAMP |
| D=124,5MM | ||
| Repalced by: A 6554920140 | ||
| 030 | A 6554920140 | CLAMP |
| D=124,5MM | ||
| 031 | A 6219970090 | CLAMP |
| Repalced by: A 6289950044 | ||
| 031 | A 6289950044 | CLAMP |
| 031 | A 6219970090 | CLAMP |
| Repalced by: A 6289950044 | ||
| 031 | A 6289950044 | CLAMP |
| 031 | A 6219970090 | CLAMP |
| 032 | A 0004921540 | CLAMP |
| EXHAUST SYSTEM | ||
| 034 | N 910105010010 | HEXAGON HEAD BOLT |
| M10X70 | ||
| 034 | N 910105010003 | HEXAGON HEAD BOLT |
| M10X60 | ||
| 034 | N 910105010003 | HEXAGON HEAD BOLT |
| M10X60 | ||
| 035 | N 910105008016 | HEXAGON HEAD BOLT |
| M8X30 | ||
| 035 | N 910105008016 | HEXAGON HEAD BOLT |
| M8X30/TO A 621 997 00 90 | ||
| Repalced by: N 910105010007 | ||
| 035 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35/TO A 628 995 00 44 | ||
| 035 | N 910105008018 | HEXAGON HEAD BOLT |
| M8X40/TO A 621 997 00 90 | ||
| 035 | N 910105008010 | HEXAGON HEAD BOLT |
| M8X40/TO A 621 997 00 90 | ||
| Repalced by: N 910105008018 | ||
| 035 | N 910105008018 | HEXAGON HEAD BOLT |
| M8X40/TO A 621 997 00 90 | ||
| 035 | N 910105008018 | HEXAGON HEAD BOLT |
| M8X40/TO A 621 997 00 90 | ||
| Repalced by: N 910105010007 | ||
| 035 | N 910105010007 | HEXAGON HEAD BOLT |
| M10X35/TO A 628 995 00 44 | ||
| 036 | N 910105010001 | HEXAGON HEAD BOLT |
| M10X30 | ||
| 036 | N 910105012007 | HEXAGON HEAD BOLT |
| M12X1.5X30 | ||
| Repalced by: N 910105010001 | ||
| 036 | N 910105010001 | HEXAGON HEAD BOLT |
| M10X30 | ||
| 037 | N 304017010019 | HEXAGON HEAD BOLT |
| M10X25 | ||
| 037 | N 304017010019 | HEXAGON HEAD BOLT |
| M10X25 | ||
| 039 | N 304017010040 | HEXAGON HEAD BOLT |
| M10X25 | ||
| 040 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 040 | N 910105008039 | HEXAGON HEAD BOLT |
| M8X25 | ||
| 041 | N 910105008016 | HEXAGON HEAD BOLT |
| M8X30 | ||
| 041 | N 910105008016 | HEXAGON HEAD BOLT |
| M8X30 | ||
| 042 | N 910105006004 | HEXAGON HEAD BOLT |
| M6X16 | ||
| Repalced by: N 910143006001 | ||
| 042 | N 910143006001 | HEXALOBULAR BOLT |
| M6X16 | ||
| 042 | N 910105006004 | HEXAGON HEAD BOLT |
| M6X16 | ||
| Repalced by: N 000000004913 | ||
| 042 | N 000000004913 | HEXAGON HEAD BOLT |
| M6X16 | ||
| 043 | A 0009902850 | NUT |
| M10 | ||
| 045 | N 913023010002 | NUT |
| M10 | ||
| 045 | N 913023010002 | NUT |
| M10 | ||
| 046 | N 913023008003 | NUT |
| M8 | ||
| 046 | N 910112008001 | HEXAGON NUT |
| M8 | ||
| 046 | N 913023008003 | NUT |
| M8/TO A 621 997 00 90 | ||
| Repalced by: N 913023010002 | ||
| 046 | N 913023010002 | NUT |
| M10/TO A 628 995 00 44 | ||
| 046 | N 913023008003 | NUT |
| M8 | ||
| Repalced by: N 913023010002 | ||
| 046 | N 913023010002 | NUT |
| M8 | ||
| 046 | N 913023008002 | NUT |
| M8/TO A 621 997 00 90 | ||
| 047 | N 913023008003 | NUT |
| M8 | ||
| 047 | N 913023008003 | NUT |
| M8 | ||
| 048 | N 913023010002 | NUT |
| M10 | ||
| 048 | N 913023010002 | NUT |
| M10 | ||
| 048 | N 913023012002 | NUT |
| M12X1,5 | ||
| 050 | A 6284921609 | CONNECTOR |
| 051 | A 9061442744 | FLANGE |
| 051 | A 9061442744 | FLANGE |
| Repalced by: A 9061443544 | ||
| 051 | A 9061443544 | FLANGE |
| 051 | A 6284923409 | CONNECTOR |
| 052 | A 6284902019 | EXHAUST PIPE |
| 053 | A 6284902919 | EXHAUST PIPE |
| 054 | A 6284910118 | PLATE |
| 055 | A 0014902714 | CATALYST |
| 055 | A 0014908014 | CATALYTIC CONVERTER |
| Repalced by: A 0014907914 | ||
| 055 | A 0014907914 | CATALYTIC CONVERTER |
| 056 | A 0004900213 | NOZZLE |
| REDUCING AGENT | ||
| Repalced by: A 0004900513 | ||
| 056 | A 0004900513 | INJECTION NOZZLE ADDITIVE |
| REDUCING AGENT | ||
| 057 | A 0004900180 | GASKET |
| 058 | A 0004900380 | GASKET |
| 059 | A 0004902592 | PARTICLE FILTER |
| 059 | A 0004902792 | PARTICULATE FILTER |
| 060 | A 0004910203 | BOTTOM |
| 060 | A 0004910303 | FLOOR |
| 061 | A 0019904000 | SCREW |
| M6X12 | ||
| 062 | A 0169902301 | SCREW |
| M8X14.5 | ||
| 063 | A 0019900217 | SCREW |
| M20X8 | ||
| 064 | N 007603020101 | SEALING RING |
| 20X24MM-CU | ||
| 065 | A 0004921080 | SINGLE LAYER METAL SEAL |
| TO A 000 490 02 13 | ||
| 067 | A 6284900230 | PROTECTIVE PLATE |
| 068 | A 6284903540 | BRACKET |
| Repalced by: A 6284905640 | ||
| 068 | A 6284905640 | BRACKET |
| 068 | A 6284908940 | BRACKET |
| 070 | A 6284903640 | BRACKET |
| 070 | A 6284927042 | BRACKET |
| 072 | A 6284901727 | END PIECE |
| 073 | A 6284902027 | END PIECE |
| 076 | A 6284922218 | BASE PLATE |
| 078 | A 6284922118 | BASE PLATE |
| 080 | A 0049975052 | HOSE |
| 082 | A 0049974252 | HOSE |
| 084 | A 0009975870 | CONNECTION FITTING |
| 086 | A 0009976570 | CONNECTION FITTING |
| 088 | N 916016008200 | CLAMP |
| 8/15MM | ||
| Repalced by: N 000000000319 | ||
| 088 | N 000000000319 | CLAMP |
| 8/15MM | ||
| Repalced by: N 000000007510 | ||
| 088 | N 000000007510 | CLAMP |
| 8/15MM | ||
| 090 | N 910105005003 | HEXAGON HEAD BOLT |
| M5X20 | ||
| 092 | N 910105010009 | HEXAGON HEAD BOLT |
| M10X25 | ||
| 093 | A 0019904605 | STUD |
| M10X45 | ||
| 093 | A 0019904605 | STUD |
| M10X45 | ||
| 095 | N 913023005002 | NUT |
| M5 | ||
| 097 | A 0009903150 | HEXAGON NUT |
| M10 | ||
| 098 | N 080705022001 | NUT |
| M22X1.5 | ||
| Repalced by: N 000000006644 | ||
| 098 | N 000000006644 | NUT |
| M22X1.5 | ||
| 099 | N 080705024002 | NUT |
| M24X1.5 | ||
| Repalced by: N 000000005915 | ||
| 099 | N 000000005915 | NUT |
| M24X1.5 | ||
| 100 | A 6284903940 | BRACKET |
| Repalced by: A 6284906840 | ||
| 100 | A 6284906840 | BRACKET |
| 102 | A 0009950083 | BRACKET |
| 104 | A 6284910130 | PROTECTIVE PLATE |
| 106 | A 0001400539 | METERING DEVICE |
| Repalced by: A 0001400739 | ||
| 106 | A 0001400739 | METERING DEVICE |
| Repalced by: A 0001404139 | ||
| 106 | A 0001404139 | METERING EQUIPMENT |
| 107 | A 0001400594 | SOOT FILTER |
| 108 | A 0061534328 | SENDER UNIT |
| Repalced by: A 0061537428 | ||
| 108 | A 0061537428 | PRESSURE SENSOR |
| 109 | A 0061534428 | SENDER UNIT |
| Repalced by: A 0061537528 | ||
| 109 | A 0061537528 | PRESSURE SENSOR |
| 110 | A 0061534528 | SENDER UNIT |
| 111 | A 0029973671 | FITTING |
| 112 | N 000000001390 | SEALING RING |
| 10X13,5MM | ||
| 114 | A 0001420050 | BUSHING |
| 116 | A 0029971271 | FITTING |
| TO A 000 140 05 39 | ||
| 116 | A 0039971771 | FITTING |
| TO A 000 140 07 39 | ||
| 118 | A 0169974945 | SEAL RING |
| TO A 000 140 05 39 | ||
| 120 | A 6281400255 | DELIVERY LINE |
| 120 | A 4571401655 | DELIVERY LINE |
| Repalced by: A 4571402355 | ||
| 120 | A 4571402355 | PRESSURE LINE |
| 122 | N 916016010203 | CLAMP |
| 10/20MM | ||
| Repalced by: N 000000006221 | ||
| 122 | N 000000006221 | CLAMP |
| 10/20MM | ||
| 124 | N 910105008013 | HEXAGON HEAD BOLT |
| M8X12 | ||
| 125 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16 | ||
| 126 | N 910105008026 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 127 | N 910105008045 | HEXAGON HEAD BOLT |
| M8X55 | ||
| 140 | A 0019900217 | SCREW |
| 141 | N 007603020101 | SEALING RING |
| 20X24MM-CU | ||
| 200 | A 6284903040 | BRACKET |
| 210 | A 6284920130 | PROTECTIVE PLATE |
| 220 | N 910105006004 | HEXAGON HEAD BOLT |
| M6X16 | ||
| Repalced by: N 910143006001 | ||
| 220 | N 910143006001 | HEXALOBULAR BOLT |
| M6X16 | ||
| 225 | N 910105008013 | HEXAGON HEAD BOLT |
| M8X12 | ||
| 230 | N 910105008041 | HEXAGON HEAD BOLT |
| M8X16 | ||
| 233 | N 000125008445 | WASHER |
| 8MM | ||
| 233 | N 000125008445 | WASHER |
| 8MM | ||
| 236 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12 | ||
| 236 | N 910105006002 | HEXAGON HEAD BOLT |
| M6X12 | ||
| 239 | A 0029891998 | SEALING STRIP |
| 242 | A 0001400468 | WATER NOZZLE |
| REDUCING AGENT | ||
| ADBLUE | ||
| 243 | A 6280370011 | THREADED PLATE |
| 245 | N 000912010152 | SCREW |
| M10X25 | ||
| Repalced by: A 0009908712 | ||
| 245 | A 0009908712 | SCREW |
| M10X25 | ||
| 246 | A 6284908640 | BRACKET |
| 248 | A 6284922809 | CONNECTOR |
| 249 | A 6284908740 | BRACKET |
| 251 | N 916016006207 | CLAMP |
| 6/20MM | ||
| 254 | N 916016012205 | CLAMP |
| 12/20MM | ||
| 257 | N 910105008011 | HEXAGON HEAD BOLT |
| M8X20 | ||
| 260 | N 910105006023 | HEXAGON HEAD BOLT |
| M6X16 | ||
| Repalced by: N 000000004913 | ||
| 260 | N 000000004913 | HEXAGON HEAD BOLT |
| M6X16 | ||
| 266 | A 6284923742 | BRACKET |
| CONNECTOR | ||
| 269 | A 0009903150 | NUT |
| CONNECTOR | ||
| M10 | ||
| 272 | A 6284900430 | HEAT SHIELD |
| 275 | A 6284908840 | BRACKET |
